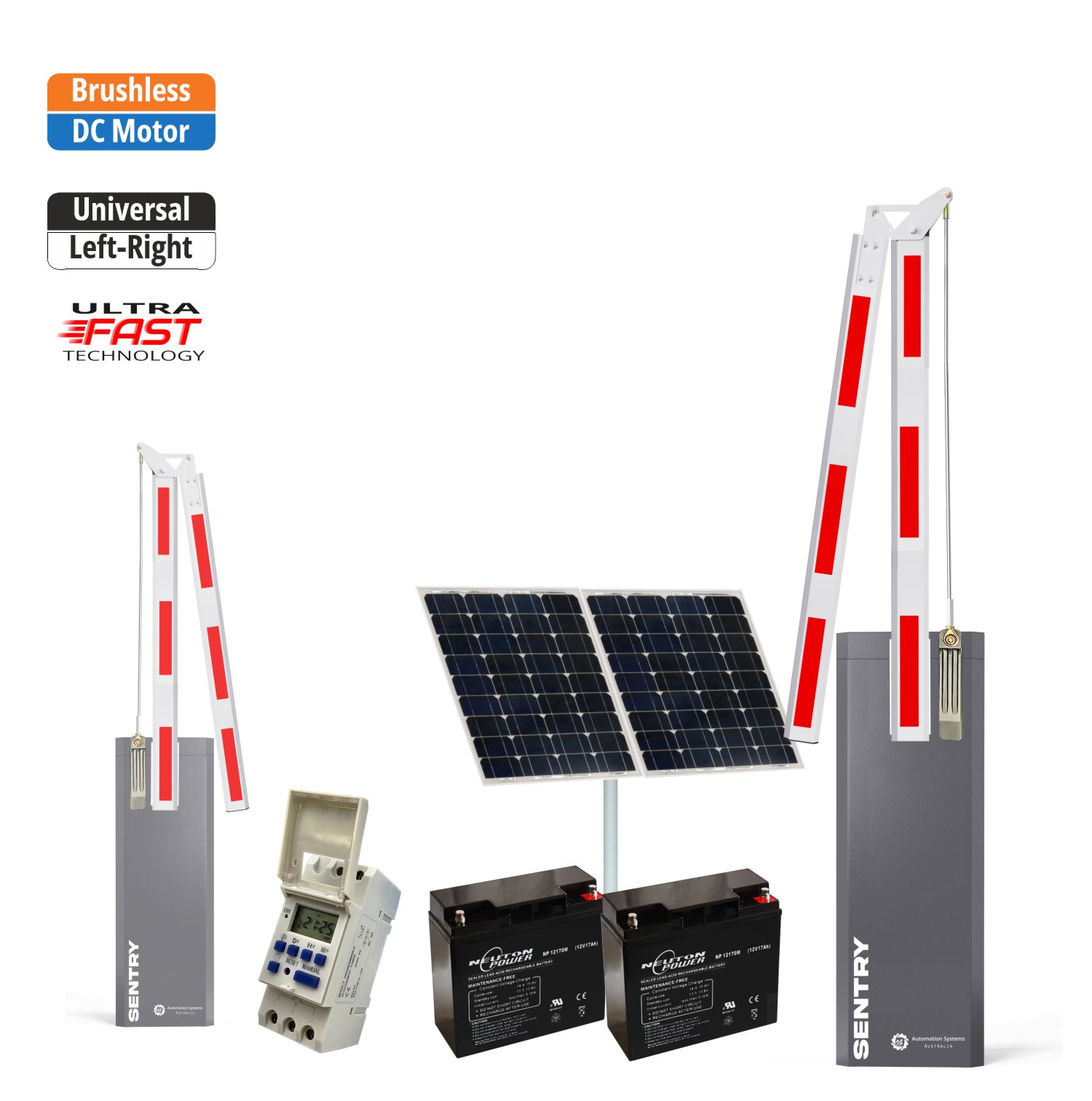

SENTRY Solar OFF GRID BRUSHLESS Low Voltage Automatic Folding 180 Degree Boom Barrier Gate underground garage offices low clearance with Weekly Timer

SKU: SENTRY-A180-SOLAR-WT

$2,785.00

$2,515.00

Save $270.00

  • Bulky Item Shipping costs are calculated during checkout
  • 1 Year Warranty
  • Brand : Automation Systems Australia
Max. 4.5m Arm Span
Ultra Fast
High Duty Cycle
Brushless Motor
Digital Display
  • Max. 4.5m Arm Span
  • Ultra Fast
  • High Duty Cycle
  • Brushless Motor
  • Digital Display

In stock

Click & Collect

Delivery

In-Store

Same Day Dispatch (Order before 10AM)

SENTRY 180 Degree Articulate Brushless 24 Volt DC Boom Gate

folding 180 degree boom gate for carparks

The Sentry low voltage 24 Volts Boom Arm Barrier Gate is the latest in cutting edge technology. Within the boom gates powder coated steel casing lies the heart of the system the brushless 24V 150 Watts motor, tested for over 5 million total cycles the dynamic brushless motor can run at 80% duty cycle suiting almost every application from large scale parking structures, commercial environments, down to small scale entry management such as caravan parks.

The boom gate kit is supplied with an Articulating aluminum arm set ready to cut to the required size, the length is adjustable from the supplied 4.5 metres maximum to a minimum of 2.0 metres Please note to choose the intended arm length correctly as each kit is supplied with the balancing spring pack to suit.

The system is equipped with a multi-speed adjustment allowing for total tuning of speed of operation from 2.4 seconds with short arms to 4 seconds at fastest on long arms. If required the system can be slowed to an 8 second operation speed.

The versatile brushless logic controller (control board) will control the accessories inputs and there power supply, lights output, up and down position relays and a number of setting changes for speed, arm positions and much more. The brushless motors hall effect sensor is also connected to the controller proving the best possible arm accuracy as there is no dependence on limit switches or alike.



Key Features

✓ Tested for OVER 5 Million individual cycles brushless motor
✓ Hall effect sensor for the best accuracy
✓ Incredible 80% Duty Cycle
✓ Universal LEFT or RIGHT side installation, easy switch over in-case of installation change
✓ Robust powder coated steel casing
✓ Automatic closing timer
✓ Traffic light compatible

✓ Light bar Compatible
✓ Weekly scheduled timer compatible
✓ Induction Loop Compatible
✓ Keypad (Standalone and Wiegand) compatible
✓ Parking, booking system and ticket machine compatible
✓ Din rail mounting system for modules

A quick look at the Sentry BRUSHLESS Super Duty Boom Gate System

Unlimited Driveway compatibility

Robust Design Overview

brushless boom gate super duty

One boom gate can work with either side

Universal left and right side boom gate

Intelligent Brushless Logic Controller and Solar Regulator

Sentry solar brushless boom gate control board

Boom Gate System Specifications

Operating Voltage 24V DC
Motor Type BRUSHLESS 24V 150W
Duty Cycle 80%
Speed 2.4-8s Adjustable
Accessories Power 24V DC
Safety Inputs Photocell, Detector, Induction Loop, Stop Button
Light Outputs Light bar and Traffic Light
Remotes Yes, Up to 16 ADMIN remotes with wireless expander
Dimensions 945x335x230mm

22aH and 26aH Battery Options

22aH (Low Intensity Usage)

solar boom gate battery system 17aH



Battery System 2x 22aH (24v/22ah)
Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) Up to 14 Days WITHOUT Solar Input
Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) up to 5 Days WITHOUT solar Input
25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom MAX. 2 Days WITHOUT solar Input

Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.

26aH (High Intensity Usage)

solar boom gate battery system 26aH



Battery System 2x 26aH (24v/26ah)
Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) Up to 22 Days WITHOUT Solar Input
Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) up to 7 Days WITHOUT solar Input
25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom MAX. 4 Days WITHOUT solar Input
50% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom MAX. 2 Days WITHOUT solar Input

Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.

High Wattage PREMIUM Monocrystalline Solar Panel (Aluminum Frame)

gate solar panel high wattage 60 watt

Solar Panel can be installed vertically or horizontally.



Key Features

✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ Anodized Silver Aluminum Frame
✓ IP66 Outdoor Rated Design
✓ 97% or greater power tolerance
✓ Long 10 Metre Cable (or cut to required size)

Specifications

Maximum Power(Pmax) 60W/120W/180W
Operating Voltage(Vmp) 36V
Operating Current(Isc) 1.8A(60W)/3.6A(120W)/5.4A(180W)
Open Circuit Voltage(Voc) 41V

Adjustable Solar Fence Post (Vertical/Horizontal Orientation)

gate solar fence post adjustable
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations

Weekly Schedule Automatic Gate Timer

Automatic timer for opening and closing a driveway gate residential and commercial
The weekly timer allows for scheduling open and close cycles to operate the gate, simple set the open time and the close time (with accuracy to the minute). During the scheduled times the gate will automatically open- remain open- then close when the set close time lapses. The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.


Key Features

✓ Automatic Opening and Closing at the Set times
✓ LCD Display
✓ Quartz micro-controller for stability and accuracy
✓ Built in Backup-Battery to retain schedules up to 150 Hours
✓ DIN Rail Mounting
✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

Kit Contents (See Description Tab for Full In-Depth Details)

  • Bulky item
    Description

    SENTRY 180 Degree Articulate Brushless 24 Volt DC Boom Gate

    folding 180 degree boom gate for carparks

    The Sentry low voltage 24 Volts Boom Arm Barrier Gate is the latest in cutting edge technology. Within the boom gates powder coated steel casing lies the heart of the system the brushless 24V 150 Watts motor, tested for over 5 million total cycles the dynamic brushless motor can run at 80% duty cycle suiting almost every application from large scale parking structures, commercial environments, down to small scale entry management such as caravan parks.

    The boom gate kit is supplied with an Articulating aluminum arm set ready to cut to the required size, the length is adjustable from the supplied 4.5 metres maximum to a minimum of 2.0 metres Please note to choose the intended arm length correctly as each kit is supplied with the balancing spring pack to suit.

    The system is equipped with a multi-speed adjustment allowing for total tuning of speed of operation from 2.4 seconds with short arms to 4 seconds at fastest on long arms. If required the system can be slowed to an 8 second operation speed.

    The versatile brushless logic controller (control board) will control the accessories inputs and there power supply, lights output, up and down position relays and a number of setting changes for speed, arm positions and much more. The brushless motors hall effect sensor is also connected to the controller proving the best possible arm accuracy as there is no dependence on limit switches or alike.



    Key Features

    ✓ Tested for OVER 5 Million individual cycles brushless motor
    ✓ Hall effect sensor for the best accuracy
    ✓ Incredible 80% Duty Cycle
    ✓ Universal LEFT or RIGHT side installation, easy switch over in-case of installation change
    ✓ Robust powder coated steel casing
    ✓ Automatic closing timer
    ✓ Traffic light compatible

    ✓ Light bar Compatible
    ✓ Weekly scheduled timer compatible
    ✓ Induction Loop Compatible
    ✓ Keypad (Standalone and Wiegand) compatible
    ✓ Parking, booking system and ticket machine compatible
    ✓ Din rail mounting system for modules

    A quick look at the Sentry BRUSHLESS Super Duty Boom Gate System

    Unlimited Driveway compatibility

    Robust Design Overview

    brushless boom gate super duty

    One boom gate can work with either side

    Universal left and right side boom gate

    Intelligent Brushless Logic Controller

    Sentry brushless boom gate control board

    Built In Switch Mode Power Transformer (240V to 24V)

    Switch mode power supply

    Supplied with an efficient switch mode power supply rated up to 10A the power supply steps down and converts the voltage to 24V DC to suit both the brushless low voltage motor, controller and accessories.

    Boom Gate System Specifications

    Operating Voltage 24V DC
    Motor Type BRUSHLESS 24V 150W
    Duty Cycle 80%
    Speed 2.4-8s Adjustable
    Accessories Power 24V DC
    Safety Inputs Photocell, Detector, Induction Loop, Stop Button
    Light Outputs Light bar and Traffic Light
    Remotes Yes, Up to 16 ADMIN remotes with wireless expander
    Dimensions 945x335x230mm
