Titan 2410 Electric 24V Low Voltage Automatic Sliding Driveway Gate Opener Kit FAST Heavy Duty POWERFUL Design with Wifi Mobile App Control and Keypad Entry

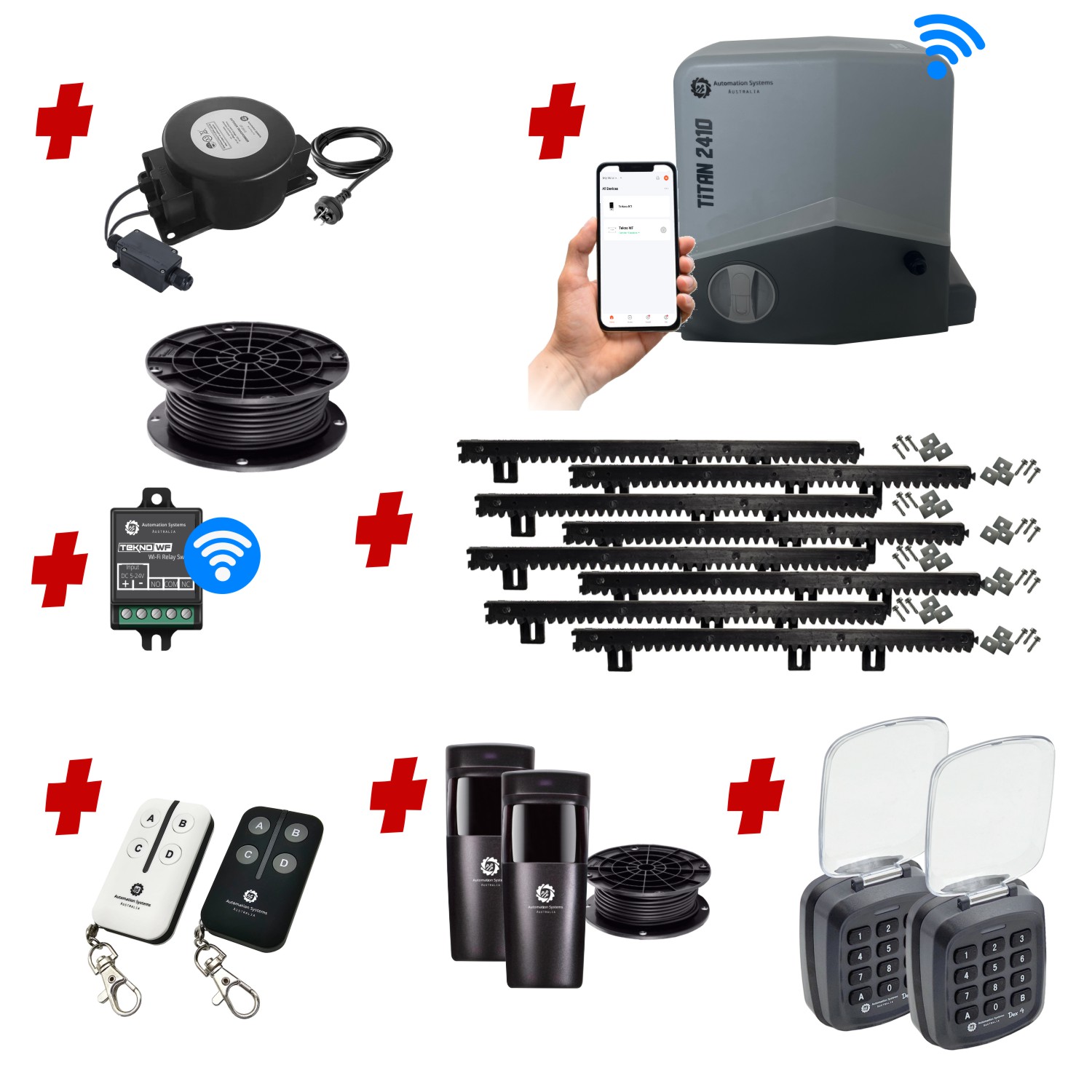

Kit Contents (See Description Tab for Full In-Depth Details)

•

  Description

  Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor



  The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length. Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life. Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability. The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).

  Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property. The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers. The premier controller also supports all installations with an intelligent light control system with three output options (traffic light control, driveway light control and alert strobe/courtesy light) All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

  Key Features



  ✓ Fast and Efficient 24 Volt Operation ✓ Die-Cast Alloy Housing ✓ Compact Footprint ✓ Multiple Cable entries by IP68 rated Glands

  ✓ Steel Pinion Gear ✓ Open and Closed Position Easy Micro-Switch Limits ✓ Flexible size and weight capacities

  A peak inside the Titan Series Operator

  Tough 180 Watt DC Motor and Digital Logic Controller



  Steel Pinion and Easy Limit Switches



  Secure yet Easy Manual Release





  Automatic Gate System Logic Controller Features



  Features as Standard

  ✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature ✓ Open partially Pedestrian Mode Feature (adjustable distance) ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes ✓ Automatic learning of the gate + Fine tunable operating Times ✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN) ✓ Adjustable Slow Down Speed and Time ✓ Optional Plug and Play Battery Backup System ✓ Low Voltage Power for all accessories directly through the gate controller ✓ Warning Light Output ✓ Traffic Light Output ✓ Driveway Light Output

  Normal Modes allow for the "STAY Open" feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.



  Multiple Configurable Safety Inputs

  ✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel. ✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption. ✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate.. ✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs). ✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle. ✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

  Wired and Wireless Access Control Support

  ✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4) ✓ Press Button Simple button operation ✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF) ✓ Doorbell Intercom Systems ✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence ✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1) ✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

  Residential, Commercial and Complex Working Modes Options

  ✓ Normal Remote Operation (Open-Stop-Close) ✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes) ✓ Typical Complex - Individual Open and Close Command Inputs ✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes) ✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input

  OPTIONAL Uninterrupted Battery Backup System



  The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes. If the optional battery system is not desired the system can still be manually release using the secure override system.

  Dimensions



  Automatic Sliding Gate System Specifications

  Operating Voltage	24V
  Maximum Gate Size	8 Meters
  Maximum Gate Weight	1000KG
  Duty Cycle	90%
  Thrust	27nM
  Speed	Adjustable up to 36cm/s (21 Meters per minute)
  Standby Consumption	40mA
  Supports Battery Backup	Yes, 24V DC
  Light Support	Yes, Traffic Light/Driveway Light/Strobe
  Accessories Voltage	Yes, 12V DC
  Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
  Operating Temperature	-10°-60°C
  Maximum Remotes	250



  x

  Titan 2410 1000KG 24V External Power Supply Sliding Gate Motor (NO TRANSFORMER OR REGULATOR INCLUDED)

  • Ultra Fast
  • Maximum 8m Gate Length
  • Maximum 1000KG Weight
  • Adjustable Open & Closed Limit Switches
  • Advanced Digital Control Board

  Show more

  • Ultra Fast
  • Maximum 8m Gate Length
  • Maximum 1000KG Weight
  • Adjustable Open & Closed Limit Switches
  • Advanced Digital Control Board

  ×

  Out Of Stock

•

  Description

  Extra Heavy Duty Sliding Gate Gear Rack

  • 520mm Lengths
  • Black Nylon
  • Steel Core
  • Interlocking with Key on one end, Keyway on the other for precise alignment
  • 3 Lug fixing facing downwards

  x

  QUIET 520mm (Clip In Key - Keyway) Sliding Gate Gear Rack Nylon Coated over Steel Reinforced

  Out Of Stock

  Gear Rack *

  Choose an optionFor gates up to 3.5 MetresFor gates up to 4.5 MetresFor gates up to 5.5 MetresFor gates up to 6.5 MetresFor gates up to 7.5 MetresFor gates up to 3 MetresFor gates up to 4 MetresFor gates up to 5 MetresFor gates up to 6 MetresFor gates up to 7 MetresFor gates up to 8 Metres Clear Out Of Stock

•

  Description

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (White)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K White quantity

•

  Description

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (Black)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

•

  Description

  Dukie XR Retro-Reflective Sensor



  The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.

  Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.





  Key Features

  ✓ No wiring needed across the driveway (reflector)
  ✓ Narrow Sensor only 20mm width
  ✓ Flexible with multiple different mounting methods
  ✓ NO and NC Relay Options
  ✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)

  x

  Dukie X OR Dukie XR Photocells

  Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

  Show more

  Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

  ×

  Out Of Stock

  X Series Photocell Kit *

  Choose an optionNo Photocell, No Cable (I have my own)Wired Both Sides, I already have cable (Dukie X)Wired Both Sides with 5m Cable Roll (Dukie X)Wired Both Sides with 7m Cable Roll (Dukie X)Wired Both Sides with 10m Cable Roll (Dukie X)Reflective Sensor- WIRELESS ACROSS DRIVEWAY (Dukie XR) Clear Out Of Stock

•

  Description

  24V Low Voltage External Transformer



  The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 120 meters making it suitable for most installations that do not have a power point nearby to the gate.

  Key Features

  ✓ IP66 Outdoor Rated Design ✓ Can work up to 120 meters low voltage cabling distance ✓ Multiple cable roll options or use your own cable

  Specifications

  Input Power	240V AC
  Output Power	24V AC
  Rated Current	10A
  IP Rating	IP66

  x

  Weatherproof 24V Low Voltage Transformer

  Out Of Stock

  Cable Length *

  Choose an optionNo Cable (BYO)15m Cable30m Cable50m Cable100m Cable120m Cable Clear Out Of Stock

•

  Description

  Dex 4 Wireless Keypad



  The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

  Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

  Key Features

  ✓ Three colour options are available: Classic White, Subtle Grey and Deep black
  ✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
  ✓ Control Up to four systems or four features on different pin codes
  ✓ Astounding open air distance of 80 metres
  ✓ Works on 2x AAA batteries (supplied)
  ✓ Audible and LED indicators
  ✓ Totally wireless (wire free) easy installation

  Power	2xAAA Batteries (Supplied)
  Operating Distance	80 Meters Open Air
  Frequency	Secure Rolling Code 433MHZ
  Operating Channels	4
  Transmitting Time	1.5s

  x

  Wireless Keypad (Three colour options) × 2

  Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

  Show more

  Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

  ×

  Out Of Stock

  Colour *

  Choose an optionBlackGreyWhite Clear Out Of Stock

•

  Description

  Tekno WF APP Control Switch



  The Tekno WF is a versatile control device allowing for connection to the gate system to bridge from a locally controlled installation to also allow for Mobile APP based automatic gate control from anywhere in the world. Its mini design allows for mounting inside the system without the need for any additional boxes.





  Key Features

  ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
  ✓ Control your gate ANYWHERE in the world
  ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
  ✓ Can configure opening/closing schedules by Day and Time
  ✓ Fits directly into the system, no extras required
  ✓ Simple connection and simple setup
  ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

  Specifications

  Operating Voltage	5-24V DC
  Consumption	≤35mA Standby/≤100mA Operation
  Smart Assistant Support	YES
  Operating Methods	Mobile APP
  Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

  x

  Mobile App Control Wi-Fi Connection Module

  Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

  Show more

  Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

  ×

  Out Of Stock
