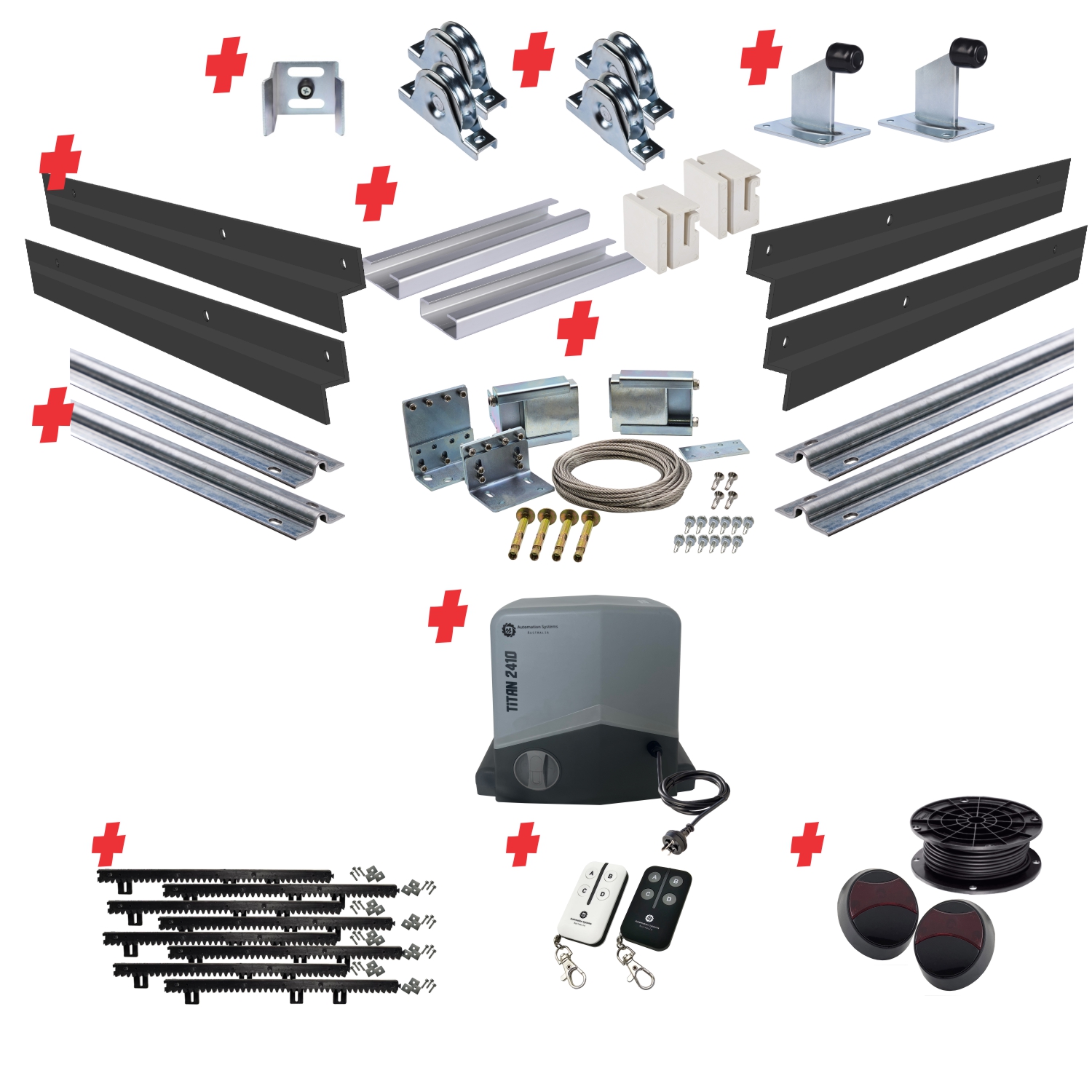

Complete Automatic Telescopic Sliding Gate System (Master and Trailing Sliding Gates) With Hardware Kit and Titan Electric Sliding Gate Motor

SKU: TELESCOPIC500+SGHK-CLAD+TITAN2410-P-I

$1,757.00

$1,560.00

Save $197.00

  • Freight from $65.00 Calculate Freight
  • 1 Year Warranty
  • Brand : Automation Systems Australia

    In stock

    Click & Collect

    Delivery

    In-Store

    The default allowance for the package is 3.5 meters per gate, this can be adjusted in the kit contents to cater for your requirements.

    Telescopic Sliding Gate Pulley System (Master and Trailing Sliding Gates) Maximum 4.5m/500KG EACH

    Telescopic Master and Trailing Sliding Gate System pulley following gate

    The heavy duty telescopic gate allows for a primary and trailing gate configuration to eliminate the amount of space requirement in which the sliding gate opens to. The kit will create an interconnection between the primary gate (back gate) and the secondary gate (front gate).

    The primary gate (closest to inside the property) will incorporate both the adjustable pulley systems in which both operate on sealed bearings, the secondary gate will have its own exclusive bracket fitted directly to it (supplied) in which it will connect to the primary gates stainless steel pulley wire.

    When the primary gate is moved the secondary will follow, when the secondary is moved the primary will follow (manual operations). If automated using a sliding gate motor, all movements are initiated by the connected primary gate

    The telescopic gate system can work with all sliding gate wheels thanks to the supplied low and high base plate system thus supporting IRM wheels (Internal recess mount) and EFM wheel (external flat mount wheels and in terms of the guiding system it can work with roller and bracket arrangements as well as nylon block and angle arrangements.

    The cleverly designed pulley system allows for up to 25mm (1 inch) of adjustment from either end of the primary gate to allow for a correctly tensioned system in turn allowing for smooth operation, The system is capable of 4500mm (4.5 Meters) per gate and a maximum of 250kg per gate, typically the tail section of the sliding gate is 350mm minimum thus allowing for an absolute maximum opening of 8300mm (8.3m).

    Typical guidelines

    Gate Size
    ✓ Primary gate width is half the opening +350mm minimum
    ✓Secondary gate width is also half the opening +350mm minimum
    Ground Track
    ✓Primary gate requires floor track double its width
    ✓Secondary gate requires floor track double its width + half the driveway

    Wheels
    ✓A pair of wheels for each gate is required (total 4 wheels)
    Support
    ✓A support post on the inside BEHIND the primary gate is required
    ✓A guiding system per gate is required (rollers and bracket OR nylon block and channel)

    Facts about a telescopic sliding gate system

    The secondary gate will move at twice the speed of the primary gate, essentially the load is at minimum doubled to tripled when automating, always use a higher specification DC motor such as the Titan 2410 (1000kg Capacity) DC sliding gate motor is strongly suggested for automation due to adjustable speed characteristics and slowdown smoothness and adjustment.

    Typical Layout

    Telescopic Master and Trailing Sliding Gate System general installation layout

    Sliding-gate-on-track-residential cladded

    C Channel Section with Nylon Block

    c channel and nylon block

    The C channel with Nylon Block is fitted to a support post behind the gate on the inside. On the back of the gate the supplied Z section slides through the nylon block. This totally removes the need for rollers operating on an uneven surface such as vertical cladding or any protrusions that may be above the gate frame such as spears.

    The C channel and nylon block also works well for gates on a grade where the guide system must follow UP/DOWN during the gates operation, Suitable for gates where there is overhead protrusions such as spears, suitable for gates with face mounted cladding to the frame.

    The C channel is available in both Steel (with top cap) and Aluminum and the Nylon block is available in both white and black colour options.

    Satin Black Aluminum Z Profile Angle for Rear Guiding by Nylon Block

    z profile angle for rear guiding of all sliding gates with nylon block
    ✓ Powder Coated Satin Black
    ✓ Excellent alternative to having an angle welded to the gate
    ✓ Compatible with all gate using 40mm tubing or greater
    ✓ 4mm Aluminum Extrusion Profile Specific for use with sliding gate guiding
    ✓ 34mm Mounting face with 6mm pre punched holes for fixing every 300mm
    ✓ Total offset of 42mm from gate back face to the back of the angle

    Gate Catcher/Receiver Meeting Point

    Multiple options available to choose from based on the gates total thickness including and cladding material if applicable. It is recommended to use a gate catcher that is 10mm greater than the gate thickness. All catchers are available with offset brackets allowing for closing behind a post (as opposed to up to a post).

    Sliding Gate Wheel Options

    Internal Recess/Flush Mount Wheels

    Sliding gate internal recess bearing wheel

    Internal Double bearing wheels allow the gate wheels to be recessed into the bottom of the gate frame (minimum height 78mm tubing), they keep the gate close to the ground track system (normally within 25mm) and provide the neatest aesthetic. The small pocket cut into the bottom of the gate is not greater than the 78mm wheel diameter and allows the flange points to meet with the tubing on either side and screw into place.

    External Surface Mount Wheels

    Sliding gate internal recess bearing wheel

    The easiest to install, these bearing wheels screw directly to the bottom of the gate tubing without any need for cutting, the external surface mounting wheels typically raise the gate 90mm from the ground track system.

    Sliding Gate Ground/Floor Track

    domes r10 sliding gate track round profile bolt down to ground concrete

    The sliding gate ground track is formed from galvanized steel to the R10 profile, this profile is proven to be the smoothest operation for the gate wheels without any negative characteristics like the older v groove designs.

    The track is secured to the driveway using plugs and screws or knock in’s such as anchor nails, its important to use a fixing that does not protrude greater than 3-4mm to prevent contact with the gate wheels.

    ✓ Galvanized Steel
    ✓ Elongated 6mm holes allow for adjustment before final tie down
    ✓ Suits all R10 gate wheels

    Gate Stopper

    Sliding gate stop

    The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

    ✓ Rubber Bumper
    ✓ 115mm High
    ✓ 8mm stem and 4mm base steel thickness

    Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor

    The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab).

    Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.

    Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability.

    The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).

    Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

    The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing.

    The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

    The premier controller also supports all installations with an intelligent light control system with three output options (traffic light control, driveway light control and alert strobe/courtesy light)

    Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

    Key Features



    ✓ Fast and Efficient 24 Volt Operation
    ✓ Die-Cast Alloy Housing
    ✓ Compact Footprint
    ✓ Multiple Cable entries by IP68 rated Glands
    ✓ Steel Pinion Gear
    ✓ Open and Closed Position Easy Micro-Switch Limits
    ✓ Flexible size and weight capacities

    A peak inside the Titan Series Operator

    Tough 180 Watt DC Motor and Digital Logic Controller

    high quality strong automatic low voltage sliding gate motor

    Steel Pinion and Easy Limit Switches

    Secure yet Easy Manual Release

    Automatic Gate System Logic Controller Features

    Features as Standard

    ✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
    ✓ Open partially Pedestrian Mode Feature (adjustable distance)
    ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
    ✓ Automatic learning of the gate + Fine tunable operating Times
    ✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
    ✓ Adjustable Slow Down Speed and Time
    ✓ Optional Plug and Play Battery Backup System
    ✓ Low Voltage Power for all accessories directly through the gate controller
    ✓ Warning Light Output
    ✓ Traffic Light Output
    ✓ Driveway Light Output

    Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.


    Multiple Configurable Safety Inputs

    ✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
    ✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
    ✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
    ✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
    ✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
    ✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

    Wired and Wireless Access Control Support

    ✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
    ✓ Press Button Simple button operation
    ✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
    ✓ Doorbell Intercom Systems
    ✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
    ✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
    ✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

    Residential, Commercial and Complex Working Modes Options

    ✓ Normal Remote Operation (Open-Stop-Close)
    ✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
    ✓ Typical Complex – Individual Open and Close Command Inputs
    ✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
    ✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

    OPTIONAL Uninterrupted Battery Backup System

    backup uninterrupted battery sliding gate

    The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

    If the optional battery system is not desired the system can still be manually release using the secure override system.

    Dimensions

    compact small sliding gate motor dimensions

    Automatic Sliding Gate System Specifications

    Operating Voltage 24V
    Maximum Gate Size 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab)
    Maximum Gate Weight 1000KG
    Duty Cycle 90%
    Thrust 27nM
    Speed Adjustable up to 36cm/s (21 Meters per minute)
    Standby Consumption 40mA
    Supports Battery Backup Yes, 24V DC
    Light Support Yes, Traffic Light/Driveway Light/Strobe
    Accessories Voltage Yes, 12V DC
    Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
    Operating Temperature -10°-60°C
    Maximum Remotes 250
    automatic sliding gate motor specifications



    STX4K Keyring High Range Remote

    Automation systems Australia keyring remote control for driveway gate
    The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    Key Features

    ✓ Up to 100 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
    ✓ Clear visibility red LED indicator which will illuminate upon a button press
    ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
    ✓ Slimline and modern ergonomic design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

    Dukie X 32KHZ Anti-Interference Professional Photocell Kit

    Dukie X Automatic gate and garage door photocell

    The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.

    Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.



    Key Features

    ✓ Ultra modern and neat appearance
    ✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
    ✓ NO and NC Relay Settings
    ✓ Excellent range characteristics of up to 10 meter distance between each photocell
    ✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)

    Kit Contents (See Description Tab for Full In-Depth Details)

    • Description

      Telescopic Sliding Gate Pulley System (Master and Trailing Sliding Gates) Maximum 4.5m/500KG EACH

      Telescopic Master and Trailing Sliding Gate System pulley following gate

      The heavy duty telescopic gate allows for a primary and trailing gate configuration to eliminate the amount of space requirement in which the sliding gate opens to. The kit will create an interconnection between the primary gate (back gate) and the secondary gate (front gate).

      The primary gate (closest to inside the property) will incorporate both the adjustable pulley systems in which both operate on sealed bearings, the secondary gate will have its own exclusive bracket fitted directly to it (supplied) in which it will connect to the primary gates stainless steel pulley wire.

      When the primary gate is moved the secondary will follow, when the secondary is moved the primary will follow (manual operations). If automated using a sliding gate motor, all movements are initiated by the connected primary gate

      The telescopic gate system can work with all sliding gate wheels thanks to the supplied low and high base plate system thus supporting IRM wheels (Internal recess mount) and EFM wheel (external flat mount wheels and in terms of the guiding system it can work with roller and bracket arrangements as well as nylon block and angle arrangements.

      The cleverly designed pulley system allows for up to 25mm (1 inch) of adjustment from either end of the primary gate to allow for a correctly tensioned system in turn allowing for smooth operation, The system is capable of 4500mm (4.5 Meters) per gate and a maximum of 250kg per gate, typically the tail section of the sliding gate is 350mm minimum thus allowing for an absolute maximum opening of 8300mm (8.3m).

      Typical guidelines

      Gate Size ✓ Primary gate width is half the opening +350mm minimum ✓Secondary gate width is also half the opening +350mm minimum Ground Track ✓Primary gate requires floor track double its width ✓Secondary gate requires floor track double its width + half the driveway
      Wheels ✓A pair of wheels for each gate is required (total 4 wheels) Support ✓A support post on the inside BEHIND the primary gate is required ✓A guiding system per gate is required (rollers and bracket OR nylon block and channel)

      Facts about a telescopic sliding gate system

      The secondary gate will move at twice the speed of the primary gate, essentially the load is at minimum doubled to tripled when automating, always use a higher specification DC motor such as the Titan 2410 (1000kg Capacity) DC sliding gate motor is strongly suggested for automation due to adjustable speed characteristics and slowdown smoothness and adjustment.

      Typical Layout

      Telescopic Master and Trailing Sliding Gate System general installation layout
