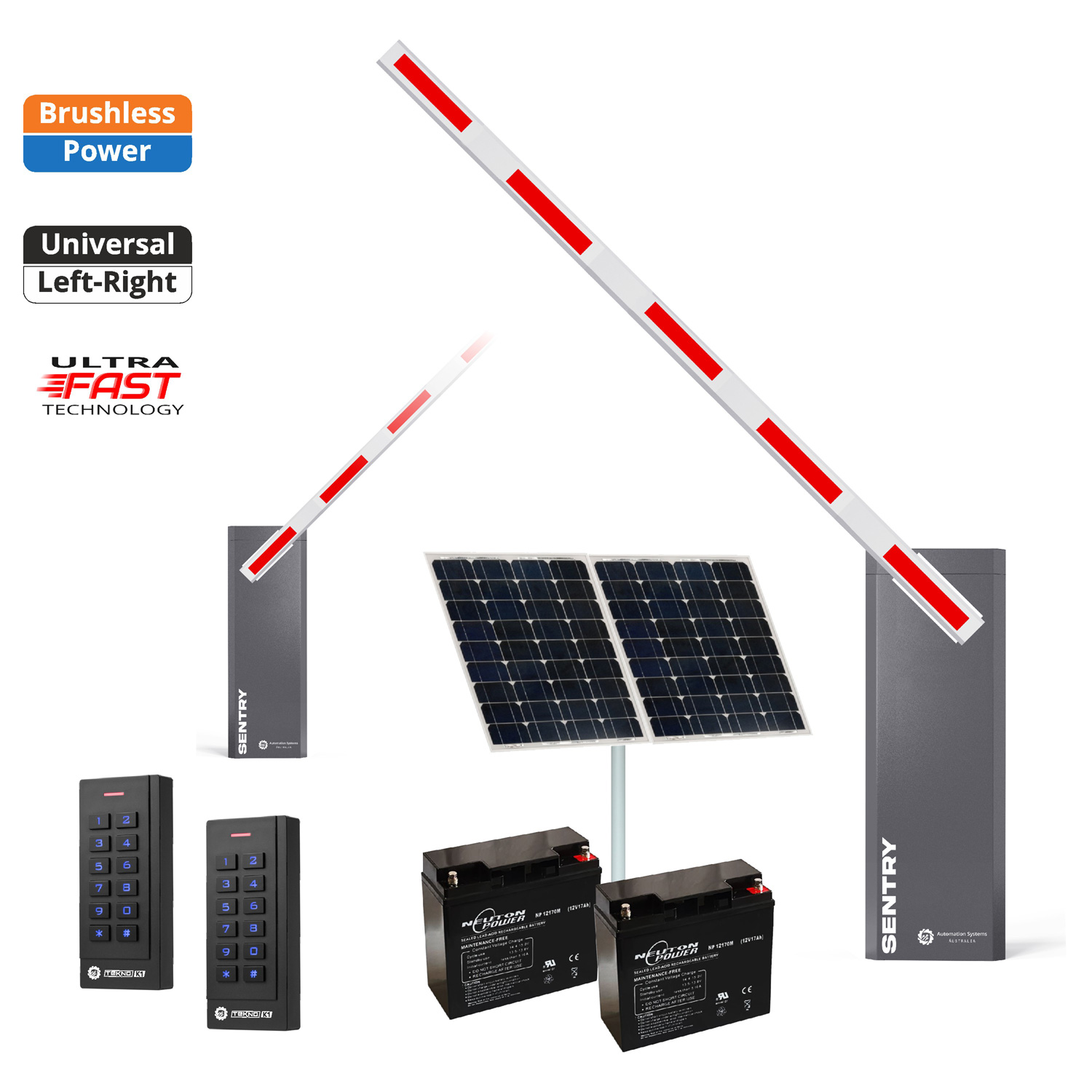

SENTRY Solar OFF GRID BRUSHLESS Low Voltage Automatic Boom Barrier Gate High Duty Cycle Depot Yards Caravan Park offices with TWO Keypads Entry Exit

Optional Add On's

•

  Description

  SENTRY Boom Gate Resting Point



  The resting point for Sentry series operators (can also universally work with others) is a clever and simple system that allows for adjustable height to match the boom gate arms final height regardless if it is installed on the same plane, the boom gate is installed on a traffic island or there is a camber in the driveway (providing the boom gate is on the higher side).

  The resting point can also double as a post for photocells making it perfect for all installations.





  Key Features

  ✓ Takes the load away from the boom gate ✓ Doubles as a mounting point for a photoelectric sensor ✓ Powder Coated Grey to Match the Sentry Series Operators ✓ Adjustable height to suit all installations including boom gates installed on a traffic island ✓ Catch design allows arm to be guided in high winds

  Specifications

  Minimum Height to Catch	760mm
  Minimum Height to Catch	1020mm
  Tubing Size and Material	40x40 Steel Powder coated Grey

  x

  Arm Support Resting Point for Sentry Series Boom Gate Operators

  • Must be used for Arm length 4m or greater
  • Doubles as a mounting point for a photoelectric sensor
  • Powder Coated Grey
  • Catch design allows arm to fall slide in high winds

  Show more

  • Must be used for Arm length 4m or greater
  • Doubles as a mounting point for a photoelectric sensor
  • Powder Coated Grey
  • Catch design allows arm to fall slide in high winds

  ×

  Add for

  $78.00

  $50.00

  Save $28.00

  Out Of Stock

•

  Description

  Commercial Double Mount Gooseneck Pedestal Bollard for Driveways (Car's and Truck's)



  Suitable for all commercial applications requiring a DOUBLE keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 100x100mm SHS tube welded to a 200x200mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.

  Key Features

  ✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms ✓ Easy four bolt installation to join the top and bottom sections ✓ Anti deformation with 200x200x5mm thick base plate (pre-punched for dynabolts/masonry anchors) ✓ Rigid and durable ✓ Pre-Galvanized Steel (100x100mm) ✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood) ✓ Safety Yellow Powder Coating

  Rain hood internal dimensions 115mm (H) x 65mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.

  x

  Truck and Car Double pedestal Gooseneck Bollard 100x100 Steel Safety Yellow Powder Coat (commercial/industrial)

  Add for

  $315.00

  $285.00

  Save $30.00

  Out Of Stock

  Truck and Car Double pedestal Gooseneck Bollard 100x100 Steel Safety Yellow Powder Coat (commercial/industrial) quantity

•

  Description

  Gooseneck Pedestal Bollard for Driveways



  Suitable for all applications requiring a keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 75x75mm SHS tube welded to a 150x150mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.

  Key Features

  ✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms ✓ Easy four bolt installation to join the top and bottom sections ✓ Anti deformation with 175x175x5mm thick base plate (pre-punched for dynabolts/masonry anchors) ✓ Rigid and durable ✓ Pre-Galvanized Steel (75x75mm) ✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood) ✓ Satin Black Powder Coating (NIGHT SKY COLOUR)

  Rain hood internal dimensions 115mm (H) x 65mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.

  x

  Gooseneck pedestal bollard for intercom, keypad door bell 75x75 Steel Satin Black Powder Coat (residential)

  Add for

  $195.00

  $165.00

  Save $30.00

  Out Of Stock

  Gooseneck pedestal bollard for intercom, keypad door bell 75x75 Steel Satin Black Powder Coat (residential) quantity

•

  Description

  Dukie Photocell Kit



  The Dukie series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage wiring however the optional upgrade to Dukie+ photocell allows for battery operation on the further photocell from the gate control box meaning only one of the photocells is wired.

  Key Features

  ✓ 45° Adjustable in each direction, suited for inline and out of line posts ✓ Ultra modern and neat appearance ✓ Compact design fits almost anywhere at 100(L)x45(W)x35(D)mm ✓ NO and NC Relay Settings ✓ Excellent range characteristics of up to 10 meter distance between each photocell ✓ Unlimited sets can be installed on each system for added protective layers ✓ OPTIONAL Dukie+ upgrade for a battery operated transmitter cell on the far side

  x

  Dukie OR Dukie + Photocells

  Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

  Show more

  Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

  ×

  Add for

  an Additional $40.00 – $100.00 each

  Out Of Stock

  Photocell Options *	Choose an optionDukie (Wired BOTH Sides) ADJUSTABLE ANGLE PhotocellDukie + (No cable to OTHER side of the driveway) ADJUSTABLE ANGLE Photocell
  Cable Length *	Choose an option3m Cable5m Cable10m CableNo Cable (BYO)7m Cable15m Cable20m Cable Clear Out Of Stock

  Photocell Safety Sensor quantity

•

  Description

  EM Tag



  • Slimline Design
  • Fits on to a keyring
  • 125KHZ

  x

  EM 125KHZ Proximity Tag and Card Reader

  • Slimline Design
  • Fits on keyrings
  • 125KHZ

  Show more

  • Slimline Design
  • Fits on keyrings
  • 125KHZ

  ×

  Add for

  $3.50

  Out Of Stock

  EM 125KHZ Proximity Tag and Card Reader quantity

•

  Description

  Induction Loop Detector



  The Single channel loop can be used for either a pulse to command operation (upon detection latches the relay) or a presence command (typically as a safety device to hold the relay til clear). With four adjustable sensitivity setting + sensitivity boost feature the loop detector can be fine tuned to suit the installation. The frequency is also adjustable to prevent cross talk between multiple loops in close proximity to one another.

  Key Features

  ✓ Pulse and Presence Modes (5 min MAX. presence/Permanent presence) ✓ Four sensitivity settings ✓ Four frequency settings ✓ Normally Open and Normally Closed Contacts ✓ Automatic Sensitivity Boost Upon detection (Ideal for large ground to chassis vehicles like trucks) ✓ Filter mode setting for interference prone environments ✓ Loop inductance: Total loop plus connection wiring:50 to 1000μH.Ideal is 100 to 300μH

  Specifications

  Operating Voltage	24V DC
  Tuning	Auto:10uH to 1500uH
  Sensitivity	Four Settings
  Frequency	12-80kHz (based on actual loop and setting switch)
  Relay Circuits	YN/O and N/C
  Configurations	Pulse or Presence
  Wiring	11 Pin Screw Terminal Base
  Mounting	Din Rail or Shelf

  x

  Automatic Opening/Closing Induction Loop Detector 24V AC/DC Presence and Pulse Relay (24 Volt Version)

  • 24V DC
  • Pulse and Presence Modes (5 min MAX. presence/Permanent presence)
  • Four sensitivity settings
  • Four frequency settings
  • Normally Open and Normally Closed Contacts

  Show more

  • 24V DC
  • Pulse and Presence Modes (5 min MAX. presence/Permanent presence)
  • Four sensitivity settings
  • Four frequency settings
  • Normally Open and Normally Closed Contacts

  ×

  Add for

  an Additional $55.00 – $105.00 each

  Out Of Stock

  Teflon Insulated Cable Roll *

  Choose an option100m Roll50m RollNo Cable Clear Out Of Stock

  Automatic Opening/Closing Induction Loop Detector 24V AC/DC Presence and Pulse Relay (24 Volt Version) quantity

•

  Description

  Teflon Insulated Induction Loop Detector Cable

  The correct cable to use induction loop installations, provides superior insulation, temperature and deterioration resistance due to Teflon insulation, perfect thickness for all saw cuts.



  Specifications

  Length	50m
  Insulation	Single Insulated (Teflon)
  Conductor	Tinned Copper
  Strands	19
  Strand Thickness	.040mm

  x

  50 Metre Roll Teflon Insulated Induction Loop Cable

  Add for

  $45.00

  $30.00

  Save $15.00

  Out Of Stock

  50 Metre Roll Teflon Insulated Induction Loop Cable quantity

•

  Description

  Tekno 4 4G 3G LTE GSM Intercom



  The Tekno 4 is the solution for gates and entry ways that are unable to have a hard wired or Wi-Fi intercom. It can be used in just about all locations with a 98% network coverage of Australia.

  The Tekno 4 is powered by 12V DC (adapted supplied) it will allow for a guest to press the call button, at this time the Tekno 4 will begin calling its enrolled admin users in sequence (can be a mobile or landline, individual person or an office).

  Once the call is answered the admin user and the guest have two-way handsfree communication at which point a command can be given by the admin user to operate the system. If a call was not answered by the admin user the Tekno 4 will call the second admin then the third admin. Cleverly designed the Tekno 4 has an adjustable maximum ringing time to avoid being answered by voice mails.




  Key Features

  ✓ No distance limitations unlike traditional intercom systems ✓ Communication with guest (Two-Way) using mobile network (4G/3G) ✓ Automatically chooses the best 4G/3G service connection based on mobile reception ✓ Can operate any access control system (Automatic gates, boom gates, garage doors, electric strikers, magnetic locks etc.) with ADJUSTABLE relay time ✓ Three admin users called in sequence til answered/end of list is reached ✓ Configurable Maximum ringing time (Avoids voice mails) and Configurable Maximum talking time ✓ Enable and Disable the LED ring around the call button ✓ Unlock during a call or anytime by SMS ✓ No computers or APPs needed, configured easily by SMS commands ✓ Nano Sim using any network provider with best coverage in your area

  Compatible Networks



  Tekno 4 GSM Intercom Dimensions



  Specifications

  Operating Voltage	12V DC
  Power Consumption	45mA Standby/<130mA Initialization and calling
  IP Rating	IP54
  Sim Card Size Length	Nano Sim
  4G Network	TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
  3G Network	2100(B1)/1900(B2)/850(B5)/90038)

  Electric Striker (Fail-Safe and Fail-Secure)



  Automation Systems (Automatic Gates, Boom Gates, etc)



  x

  Tekno 4 4G 3G LTE Intercom System by Sim Card works in Rural Properties and Commercial Industrial Gate intercom

  Add for

  $850.00

  $595.00

  Save $255.00

  Out Of Stock

•

  Description

  Tekno S1 4G LTE GSM Switch



  The Tekno S1 is a flexible control device allowing for connection to the gate system and operation from anywhere in the world by a simple phone call. Easy to install and configure it is the best solution when no Wi-Fi or internet connection is available and a great alternative to APP based control. The requirement is good 4G/3G Network at the gate position and a sim card that can accept voice calls (not data sims).

  Key Features

  ✓ Call your gate from ANYWHERE in the world
  ✓ Control by SMS
  ✓ Can be configured to allow for Authorized users (Telephone numbers allowed to operate the S1) or Public Mode (Anyone)
  ✓ Fits directly into the system, no extras required
  ✓ Simple connection and simple setup

  The Tekno S1 can work with all 4G Telco providers however please note the recommended network of choice is telstra providing the strongest 4G coverage.

  Specifications

  Operating Voltage	9-36V DC
  Power Consumption	45mA Standby/<130mA Initialization and calling
  Sim Card Size Length	Nano Sim
  4G Network	TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
  3G Network	2100(B1)/1900(B2)/850(B5)/90038)

  x

  Tekno S1 3G 4G LTE GSM Controller Sim Card Gate Controller 4G

  Add for

  $185.00

  Out Of Stock

•

  Description

  Sentry STX Remote Control



  The Sentry STX Keyring Remote is a high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The multi button design allows for independent feature usage of UP, STOP and DOWN to command and control the Sentry Boom Gate System.


  Key Features

  ✓ Keeloq rolling code security ✓ Clear visibility LED indicator which will illuminate upon a button press ✓ Sliding cover to prevent accidental operation of the system ✓ Slimline and modern ergonomic design

  The Sentry system must have a Sentry RX Wireless Expanded installed to use remotes, available as a separate item in or store.

  x

  Admin Remote Control for Sentry Series Boom Gates

  Add for

  $40.00

  Out Of Stock

  Admin Remote Control for Sentry Series Boom Gates quantity

•

  Description

  Weekly Schedule Automatic Gate Timer



  The weekly timer allows for scheduling open and close cycles to operate the gate, simple set the open time and the close time (with accuracy to the minute). During the scheduled times the gate will automatically open- remain open- then close when the set close time lapses. The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.




  Key Features

  ✓ Automatic Opening and Closing at the Set times
  ✓ LCD Display
  ✓ Quartz micro-controller for stability and accuracy
  ✓ Built in Backup-Battery to retain schedules up to 150 Hours
  ✓ DIN Rail Mounting
  ✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

  Specifications

  Operating Voltage	24V DC
  Power Consumption	50mA
  Display	LCD
  Load Capacity	16A/250V
  Programs	8
  Relay	NO/NC

  x

  Weekly Schedule Automatic Gate Timer Auto Open-Close (24V Version) Multi-Schedules Quartz Precision

  Programable timer with numerous configurations options on when to open and close the gate.

  Show more

  Programable timer with numerous configurations options on when to open and close the gate.

  ×

  Add for

  $75.00

  $69.00

  Save $6.00

  Out Of Stock

•

  Description

  Push/Press Button



  The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.



  Key Features


  ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits ✓ 2 Wire connection ✓ Easy to operate

  x

  Weatherproof Press Button

  Typical press button for foot traffic, suitable for outdoor and indoor installations.

  Show more

  Typical press button for foot traffic, suitable for outdoor and indoor installations.

  ×

  Add for

  $35.00

  $32.00

  Save $3.00

  Out Of Stock

  Weatherproof Momentary Press Push Button for Automatic Gates, Boom Barriers, Garage Doors, Machinery NO and NC Circuit quantity

•

  Description

  Big Head (Mushroom) Push/Press Button



  The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.



  Key Features


  ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits ✓ 2 Wire connection ✓ Easy to operate

  x

  Weatherproof Push Button (Mushroom Head)

  Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

  Show more

  Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

  ×

  Add for

  $38.00

  $35.00

  Save $3.00

  Out Of Stock

  Weatherproof MUSHROOM HEAD momentary Push Button for Automatic Gates, Boom Barriers, Garage Doors, Machinery NO and NC Circuit quantity

•

  Description

  Emergency Stop Push/Press Button



  The emergency stop button is a one push latching button, when pressed in it will remain in the IN position halting or stopping the controlled system. To release just twist the knob. Ideal for commercial and industrial automation and machinery.



  Key Features


  ✓ Weatherproof for outdoor use and can be used indoors ✓ One Push Latching ✓ Supports NO and NC circuits ✓ 2 Wire connection ✓ Easy to operate

  x

  Weatherproof Emergency Stop Latching Push Button for Automatic Gates, Boom Barriers, Garage Doors, Machinery NO and NC Circuit

  Typical emergency stop button for halting or stopping a system, suitable for outdoor and indoor installations.

  Show more

  Typical emergency stop button for halting or stopping a system, suitable for outdoor and indoor installations.

  ×

  Add for

  $45.00

  $38.00

  Save $7.00

  Out Of Stock
