4200mm 4.2×1.5m Double Swing Driveway Gates Opening Alternating Picket Steel Gates + Hinges (Satin Black Powder Coat)

SKU: ALT15-2085 x2+HINGES

$840.00

  • Bulky Item Shipping costs are calculated during checkout
  • 1 Year Warranty
  • Brand : Alpha Automation
Alternating Picket Design
4.2m Opening (2x 2085mm Gates)
1500mm Height
  • Alternating Picket Design
  • 4.2m Opening (2x 2085mm Gates)
  • 1500mm Height

In stock

Click & Collect

Delivery

In-Store

Same Day Dispatch (Order before 10AM)

Driveway Swing Gate with Alternating Pickets

Steel Driveway Gate flat top design

The Alternating top design gate combines the classic design with a more modern appearance. Each picket in the top rail section of the gate is alternating and still provides excellent security as the gates remining section has pickets throughout. The gate height is 1.5m (1500mm) allowing for use in most driveway installations

The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features

✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80×40 Bottom Rails
✓ SHS 40×40 Top, Sides and Additional Rails
✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail
✓ Alternating picket design in top rail for ultra modern appearance

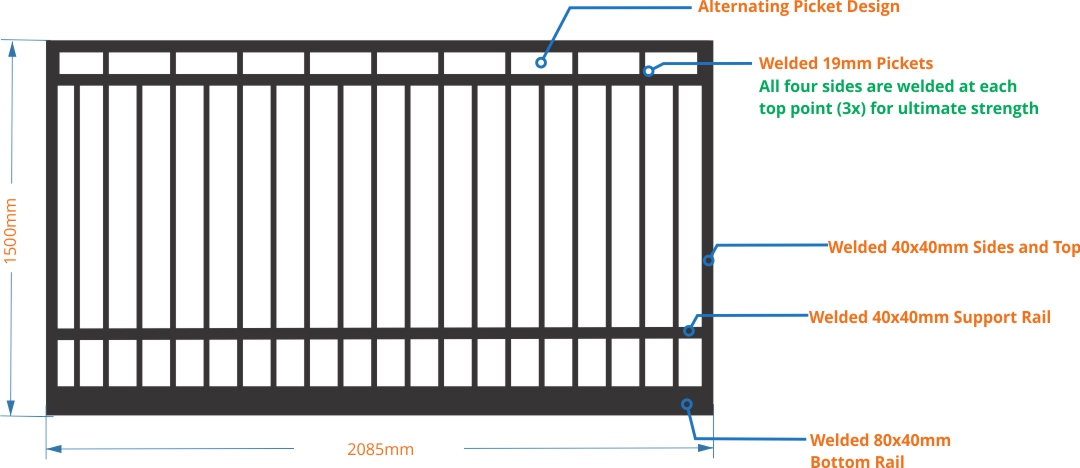

Dimensions

Gate Measurement Steel Driveway Gate flat top design

Important Information – Measurement details and Requirements

Width of Gate Panel 2085mm EACH
Height of Gate Panel 1500mm
Combined Width 2085mm+2085mm= 4170mm
Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre
Total Space Requirements Including Mandatory Gaps BETWEEN POSTS MEASURMENT MIN. 4215mm to Max. 4230mm + POSTS

Gate Hinge Options

Multiple hinge options are available to choose from based on two factors gate weight and adjustability/flexibility.

STANDARD Ball bearing Hinge

standard lift off gate hinges

The standard ball bearing hinge is used with light weight gates only and is fixed without adjustability, it is a simple lift off type hinge.

Strap Hing Ball Bearing

200mm strap hinge

Strap hinge (non-adjustable) is used with gates not exceeding 150kg, it is a simple lift off type hinge.

Rising Hinges

rising hinge tilting gate system

Used with gates requiring a tilt as they open, typically for steep driveways, dead weight of the gate should not exceed 150kg.

Adjustable Strap Hinge (300mm/600mm)

extra long strap hinge 300mm 600mm

Used for weightier gates such as cladded gates requiring adjustment back to/away from post to achieve alignment, by far the most adjustable hinge option. Available in both a 300mm and 600mm strap length.

Kit Contents (See Description Tab for Full In-Depth Details)

  • Bulky item
    Description

    Driveway Swing Gate with Alternating Pickets

    Steel Driveway Gate flat top design

    The Alternating top design gate combines the classic design with a more modern appearance. Each picket in the top rail section of the gate is alternating and still provides excellent security as the gates remining section has pickets throughout. The gate height is 1.5m (1500mm) allowing for use in most driveway installations

    The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

    Key Features

    ✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ RHS 80x40 Bottom Rails ✓ SHS 40x40 Top, Sides and Additional Rails ✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail ✓ Alternating picket design in top rail for ultra modern appearance

    Dimensions

    Gate Measurement Steel Driveway Gate flat top design

    Important Information - Measurement details and Requirements

    Width of Gate Panel 2085mm EACH
    Height of Gate Panel 1500mm
    Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate)
    x

    2085mm x 1500mm Alternating Picket Driveway Steel Gate (Satin Black Powder Coat) × 2

    Out Of Stock

  • No description available...
    x

    Gate Hinge Sets × 2

    Out Of Stock
    Clear
    Out Of Stock

Optional Add On's

  • Description

    40mm Galvanized Driveway Gate Stop

    galvanized swing gate ground floor stop
    • Galvanized Steel Construction
    • Will not damage vehicles (no sharp edges)
    • Will not break like rubber stops
    • Bolt down design
    • Can be driven over
    • Supports installations where the gate is no higher than 25mm from driveway level

    Dimensions

    swing gate metal galvanized gate stop
    x

    Strong Swing Gate Stop Galvanized Steel 40mm

    Out Of Stock

  • Description

    D Latch for Pedestrian Access Walkway Gates

    D latch gate lock for pedestrian Gates
    ✓ Lathes in when the gate is closed, pull the extended rod (if installed) or the D latch to unlock ✓ Zinc Plated Finish ✓ Supplied with extension rod, d latch and striker plate

    Dimensions

    d latch dimensions
    x

    D Latch and Striker Lock System for Pedestrian Access and Small Gates

    Out Of Stock

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 100x100mm

    100mm gate fence post powder coat black
    ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 100x100x2660mm(2.66 Meters)- 2.5mm Wall Thickness
    x

    100x100x2660 (2.7m) Steel Gate Fence Post Powder Coated Night Sky Satin Black

    Out Of Stock

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 100x100mm with Base Ground Plate

    100mm gate fence post powder coat black
    ✓ Smart Design flush (within 5mm) welded base plate allows for fixings of base plate on the inside of fence line, can go against walls, etc. ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 100x100x2000mm(2.0 Meters)- 2.0mm Wall Thickness / 5mm Base Plate
    x

    100x100x2000 (2.0m) Steel Gate Fence Post WITH BASE PLATE (Bolt Down) Powder Coated Night Sky Satin Black

    Out Of Stock

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 75x75mm

    75mm gate fence post powder coat black
    ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 75x75x2660mm(2.66 Meters)- 2.0mm Wall Thickness
    x

    FENCE POST 75x75x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

    Out Of Stock

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 50x50mm

    50mm gate fence post powder coat black
    ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 50x50x2660mm(2.66 Meters)- 1.5mm Wall Thickness
    x

    Optionally used for Pedestrian Gate 50x50x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

    Out Of Stock

  • No description available...
    x

    Lock 35mm Kit (Lock + Handle + Cylinder surrounds)

    Out of stock

    Out Of Stock

  • No description available...
    x

    Pedestrian Gate Hinge (Choose a side)

    Out Of Stock

  • Bulky item
    Description

    Driveway Pedestrian Gate with Alternating Pickets

    Steel Driveway Gate top alternating design

    The Alternating top design gate combines the classic design with a more modern appearance. Each picket in the top rail section of the gate is alternating and still provides excellent security as the gates remining section has pickets throughout. The gate height is 1.5m (1500mm) allowing for use in most driveway installations

    The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

    Key Features

    ✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ RHS 80x40 Bottom Rails ✓ SHS 40x40 Top, Sides and Additional Rails ✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail ✓ Alternating picket design in top rail for ultra modern appearance

    Dimensions

    gate measurements flat top alt design

    Important Information - Measurement details and Requirements

    Width of Gate Panel 880mm EACH
    Height of Gate Panel 1500mm
    Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate)
    x

    880mm x 1500mm Alternating Picket Steel Pedestrian Gate (Satin Black Powder Coat)

    Out Of Stock

  • No description available...
    x

    Fence Panel Screw On Socket Kit Tops and Bottom (Both Sides)-PER PANEL

    Out Of Stock

  • Bulky item
    Description

    Fence Panel with Alternating Pickets

    Fence Panel With flat top design

    The Alternating top design fence panel combines the classic design with a more modern appearance. Each picket in the top rail section of the fence panel is alternating and still provides excellent security as the fence panel remining section has pickets throughout. The panel height is 1.5m (1500mm) allowing for use in most driveway installations

    The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the fence panel is welded providing the best strength and rigidity unlike flat pack fence panels.

    Key Features

    ✓ Proper Rigid Steel fence panel, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ SHS 40x40 Top Rails x2 and Bottom ✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail ✓ Alternating picket design in top rail for ultra modern appearance

    Dimensions

    fence panel Measurement Steel Driveway fence panel flat top design

    Important Information - Measurement details and Requirements

    Width of fence panel Panel 2400mm EACH
    Height of fence Panel 1500mm
    Max. Post Span 2400mm
    Min. Post Span Any, Cut to size
    x

    2400mm x 1500mm Alternating Picket FENCE PANEL- Cut to width during install (Satin Black Powder Coat)

    Out Of Stock
