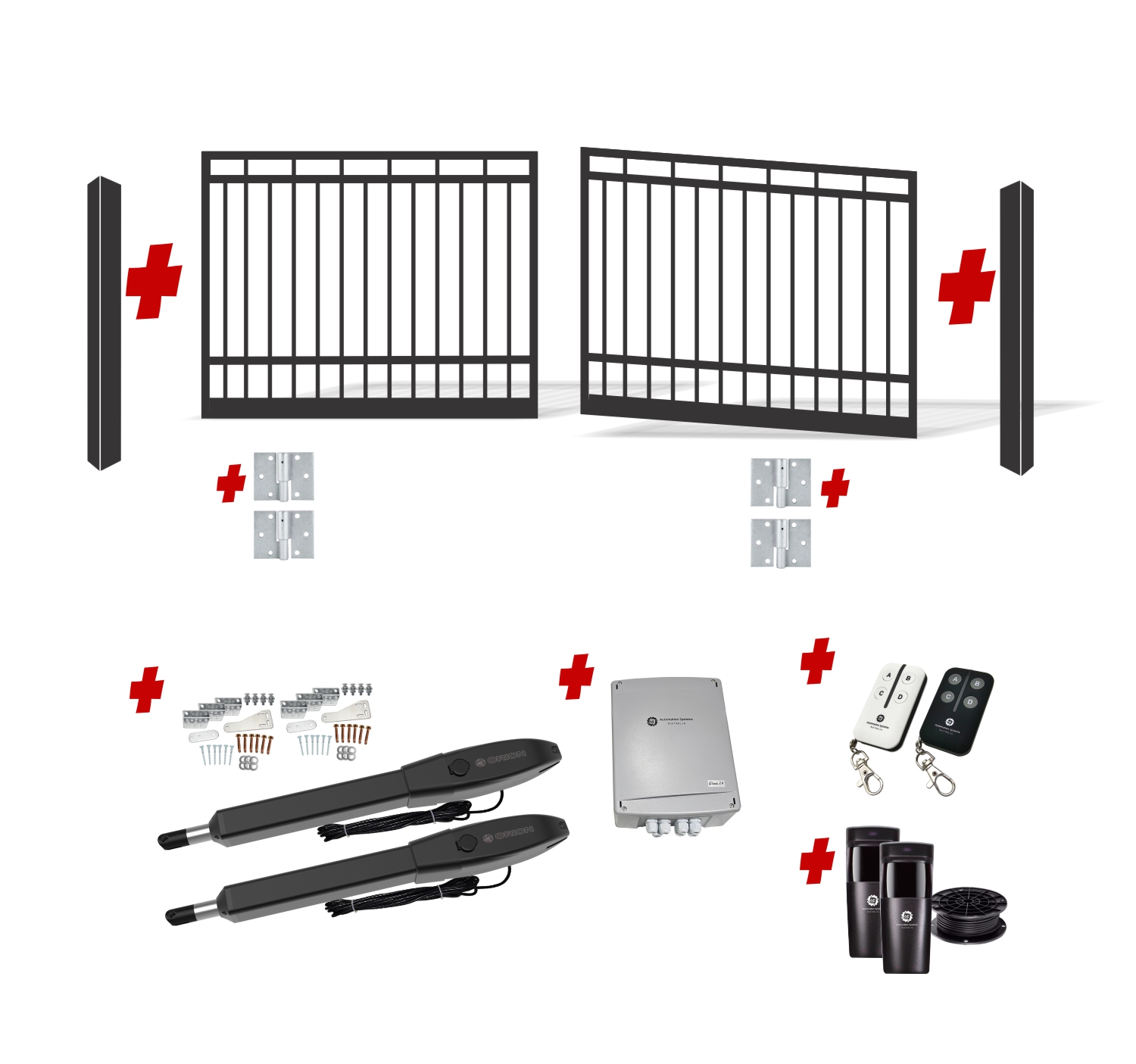

3600mm 3.6×1.5m Double Swing Driveway Gates Opening Alternating Picket Steel Gates (Satin Black Powder Coat) with Double Swing automatic gate motor

Name: 3600mm 3.6x1.5m Double Swing Driveway Gates Opening Alternating Picket Steel Gates (Satin Black Powder Coat) with Double Swing automatic gate motor
SKU: ALT15-1785 x2+POSTS+HINGES+ORION
Price: 1990 AUD
Availability: OutOfStock

SKU: ALT15-1785 x2+POSTS+HINGES+ORION

$2,198.00

$1,990.00

Save $208.00

Bulky Item Shipping costs are calculated during checkout
1 Year Warranty
Brand : Alpha Automation

Alternating Picket Design

3.6m Opening (2x 1785mm Gates)

1500mm Height

Alternating Picket Design
3.6m Opening (2x 1785mm Gates)
1500mm Height

Out of stock

Click & Collect

Delivery

In-Store

Call for Lead Time

Driveway Swing Gate with Alternating Pickets

The Alternating top design gate combines the classic design with a more modern appearance. Each picket in the top rail section of the gate is alternating and still provides excellent security as the gates remining section has pickets throughout. The gate height is 1.5m (1500mm) allowing for use in most driveway installations

The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features

✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80×40 Bottom Rails
✓ SHS 40×40 Top, Sides and Additional Rails
✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail
✓ Alternating picket design in top rail for ultra modern appearance

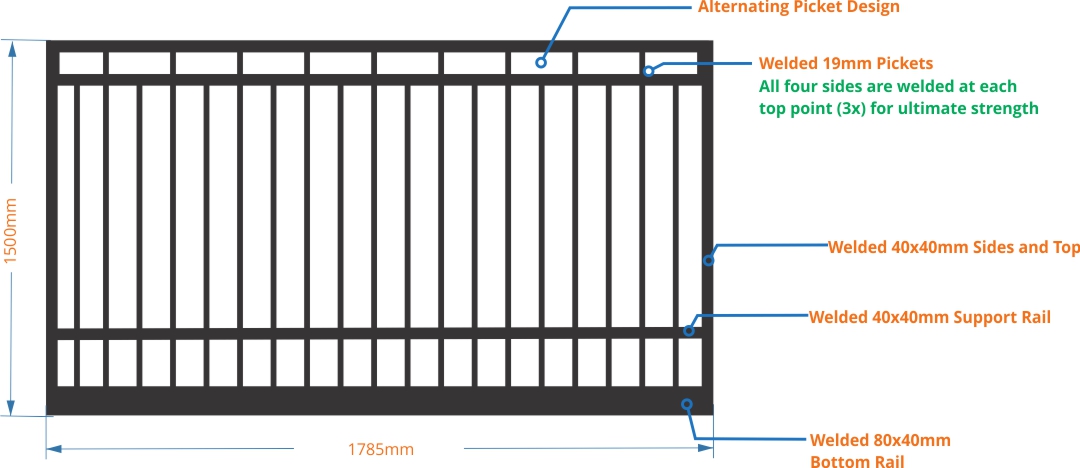

Dimensions

Gate Measurement Steel Driveway Gate flat top design

Important Information – Measurement details and Requirements

Width of Gate Panel	1785mm EACH
Height of Gate Panel	1500mm
Combined Width	1785mm+1785mm= 3570mm
Additional Space Requirements	15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre
Total Space Requirements Including Mandatory Gaps BETWEEN POSTS MEASURMENT	MIN. 3615mm to Max. 3630mm + POSTS

Gate Hinge Options

Multiple hinge options are available to choose from based on two factors gate weight and adjustability/flexibility.

STANDARD Ball bearing Hinge

The standard ball bearing hinge is used with light weight gates only and is fixed without adjustability, it is a simple lift off type hinge.

Strap Hing Ball Bearing

Strap hinge (non-adjustable) is used with gates not exceeding 150kg, it is a simple lift off type hinge.

Rising Hinges

Used with gates requiring a tilt as they open, typically for steep driveways, dead weight of the gate should not exceed 150kg.

Adjustable Strap Hinge (300mm/600mm)

Used for weightier gates such as cladded gates requiring adjustment back to/away from post to achieve alignment, by far the most adjustable hinge option. Available in both a 300mm and 600mm strap length.

Post Options

75x75x2660mm, Suitable for applications not requiring automation
100x100x2660mm, Suitable for applications with heavier gates (eg. cladded with light timber, colorbond etc.) and automatic applications
150x150x2700mm, Suitable for applications with heavier gates (eg. cladded with Hardwoods) and automatic applications
100x100x2000mm, Bolt down with base plate post only used when unable to concrete a post into the ground, if use with cladded gates consider bracing the post

Orion Slimline Low Voltage 24 Volt Driveway Linear Actuator Gate Motor

The Orion Linear Actuator kit is ultra modern and slimline measuring at only 80mm in width. Suitable for narrow post installations of 100mm. Constructed from a die-cast alloy rear housing for the DC motor and metal gear set and an extruded aluminum housing for the stainless steel telescopic piston it retains a subtle yet modern appearance with plenty of strength for most applications of ow resistance/low wind loading gates up to 3.5m in size or up to 350kg in weight each.

Operations are smooth and efficient using its 24 Volt DC motor system transferred to its steel lead screw through its metal gear set. The end positions are set using the retracted stroke (in) and a gate stop for its expanded stroke (out).

The Orion has a 400mm stroke and the ability to work with each gate as short as 800mm and as wide as 3.5m (12ft) with a maximum weight of 350kg, if a wider, heavier or a cladded gate is installed please see the Viper series of operators.

Key Features

✓ Fast and Efficient 24 Volt Operation
✓ Subtle and Quiet
✓ Die-Cast Housing and Extruded
✓ Slimline and Compact design

✓ Stainless Steel Piston with Metal Gear Set
✓ Only Two Wires Back to Gate Control Box
✓ Flexible and vast installation geometries
✓ 1.5mm Double Insulated PVC Cable

Overview of the Orion Actuator

Robust Case Construction

Detail on the Build

Manual Release (Clutch)

Simply open the top cover, insert the supplied key and turn to manually release the gate.

Driveway Gate Motor Specifications

Operating Voltage	24V DC
Duty Cycle	60%
Thrust	1200N
Maximum Stroke Length	400mm
Limit Switches	No, Gate stop required
Gearing Structure	Gearbox
Case Material	Die-Cast and Extruded Aluminum
Piston	Stainless Steel With Alloy Gate Connection
Maximum Gate Weight	3.5 Meters (12 Ft) EACH
Maximum Gate Weight	350KG EACH

orion automatic gate motor specifications

“Pull to Open” Opening Inwards Geometry

“Push to Open” Opening Outwards Geometry

System Powering Options

By default in this package the system will be supplied as a powered system, (power point available at the gate)(optional uninterrupted battery back up available), optionally if required there are upgrade options available to switch to an external power supply with a lov voltage run available up to 120 meters, or a totally standalone solar system with a 60 Watt panel and 15aH Deep Cycle Batteries.

Power at the gate (Default Option)

External Low Voltage Power Supply

Off Grid Standalone Solar 60 Watts 15aH Deep Cycle

Premier SW24 Advanced Digital Automatic Gate Controller

Automatic electric 24v driveway gate control box

The Premier SW24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged setup requiring advanced logic principals taking advantage of the 70% duty cycle.

The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SW24 system (see the complete list below).

Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more.

The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

Automatic Gate System Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Fortress Series Electric and Magnetic Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output

Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.

Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
✓ Typical Complex – Individual Open and Close Command Inputs
✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

Automatic Gate System Controller Specifications

Operating Voltage	24V
Duty Cycle	70%
Standby Consumption	20mA
Supports Battery Backup	Yes, 24V DC
Automatic Gate Lock Support	Yes, 24V DC
Light Support	Yes, 24V DC
Accessories Voltage	Yes, 12V DC
Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature	-10°-60°C
Maximum Remotes	192

Control Box Dimensions

Automatic Driveway Gate System Control Box

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

Dukie Photocell Kit

Dukie Automatic gate and garage door photocell

The Dukie series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage wiring however the optional upgrade to Dukie+ photocell allows for battery operation on the further photocell from the gate control box meaning only one of the photocells is wired.

Key Features

✓ 45° Adjustable in each direction, suited for inline and out of line posts
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 100(L)x45(W)x35(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Unlimited sets can be installed on each system for added protective layers
✓ OPTIONAL Dukie+ upgrade for a battery operated transmitter cell on the far side

Kit Contents (See Description Tab for Full In-Depth Details)

Bulky item

Description

Driveway Swing Gate with Alternating Pickets

The Alternating top design gate combines the classic design with a more modern appearance. Each picket in the top rail section of the gate is alternating and still provides excellent security as the gates remining section has pickets throughout. The gate height is 1.5m (1500mm) allowing for use in most driveway installations

The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ RHS 80x40 Bottom Rails ✓ SHS 40x40 Top, Sides and Additional Rails ✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail ✓ Alternating picket design in top rail for ultra modern appearance

Dimensions

Important Information - Measurement details and Requirements

Width of Gate Panel 1785mm EACH

Height of Gate Panel 1500mm

Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate)

x

1785mm x 1500mm Alternating Picket Driveway Steel Gate (Satin Black Powder Coat) × 2

Out Of Stock

Gate Posts × 2

Select the post size that best suits your clearance area.

Out Of Stock

Post Options *

Clear

Out Of Stock

Gate Hinge Sets × 2

Out Of Stock

Hinge Options *

Clear

Out Of Stock

Description
43mm Solid Rubber Driveway Gate Stop

Bolt down design

Supports installations where the gate is no higher than 30mm from driveway level

x2 Fixing Holes
x
43mm Solid Rubber Swing Gate Stop with Steel Base
Out Of Stock

Orion Slimline Low Voltage 24 Volt Driveway Linear Actuator Gate Motor

The Orion Linear Actuator kit is ultra modern and slimline measuring at only 80mm in width. Suitable for narrow post installations of 100mm. Constructed from a die-cast alloy rear housing for the DC motor and metal gear set and an extruded aluminum housing for the stainless steel telescopic piston it retains a subtle yet modern appearance with plenty of strength for most applications of low resistance/low wind loading gates up to 3.5m in size or up to 350kg in weight each.

The Orion has a 400mm stroke and the ability to work with gates from as short as 800mm and as wide as 3.5m (12ft) with a maximum weight of 350kg, if a wider, heavier or a cladded gate is installed please see the Viper series of operators.

Key Features

✓ Fast and Efficient 24 Volt Operation
✓ Subtle and Quiet
✓ Die-Cast Housing and Extruded
✓ Slimline and Compact design

✓ Stainless Steel Piston with Metal Gear Set
✓ Only Two Wires Back to Gate Control Box
✓ Flexible and vast installation geometries
✓ 1.5mm Double Insulated PVC Cable

Overview of the Orion Actuator

Robust Case Construction

Detail on the Build

Manual Release (Clutch)

Simply open the top cover, insert the supplied key and turn to manually release the gate.

Driveway Gate Motor Specifications

Operating Voltage	24V DC
Duty Cycle	60%
Thrust	1200N
Maximum Stroke Length	400mm
Limit Switches	No, Gate stop required
Gearing Structure	Gearbox
Case Material	Die-Cast and Extruded Aluminum
Piston	Stainless Steel With Alloy Gate Connection
Maximum Gate Weight	3.5 Meters (12 Ft)
Maximum Gate Weight	350KG

“Pull to Open” Opening Inwards Geometry

“Push to Open” Opening Outwards Geometry

Orion Actuator Kit with 7 Metre Cable × 2

Maximum 3.5m (12FT) Opening / 350KG
Slimline Telescopic Actuator includes 7m of Cable
Can swing Up To 100° (Adjustable)

Out Of Stock

Description

STX4K Keyring High Range Remote

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Four Button Keyring Remote Control (White)
- Up to 100 Metre Open Air Distance
- High Security Rolling Code
- Slimline and Ergonomic
Show more
Up to 100 Metre Open Air Distance

High Security Rolling Code

Slimline and Ergonomic
×
Out Of Stock

Provide a Sun Visor Clip? ($3) *
Clear
Out Of Stock

Automatic Gate Remote Control Keyring Mounting STX4K White quantity
Description

STX4K Keyring High Range Remote

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Four Button Keyring Remote Control (Black)
- Up to 100 Metre Open Air Distance
- High Security Rolling Code
- Slimline and Ergonomic
Show more
Up to 100 Metre Open Air Distance

High Security Rolling Code

Slimline and Ergonomic
×
Out Of Stock

Provide a Sun Visor Clip? ($3) *
Clear
Out Of Stock

Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

Dukie automatic gate and garage photocell

Dukie OR Dukie + Photocells

Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

Out Of Stock

Photocell Options *
Cable Length *	Clear Out Of Stock

No description available...

x

Premier 24V Weatherproof Swing Gate Control Box

Please Choose the Power Option that Best Suits Your Requirments

Show more

Please Choose the Power Option that Best Suits Your Requirments

×

Out Of Stock

System Power Options *
Clear
Out Of Stock

Manuals

3600mm 3.6×1.5m Double Swing Driveway Gates Opening Alternating Picket Steel Gates (Satin Black Powder Coat) with Double Swing automatic gate motor

$2,198.00

$1,990.00

Save $208.00

Out of stock

Width of fence panel Panel	2400mm EACH
Height of fence Panel	1500mm
Max. Post Span	2400mm
Min. Post Span	Any, Cut to size

Operating Voltage	12-30VDC/12-24VAC
Operating Current	9mA standby
Relay Switching Current Capacity	3A Momentary/500mA Latching
Frequency	433mhz
Compatible Transmitters (tX)	STX4L, STX4K, Dex4

Power	2xAAA Batteries (Supplied)
Operating Distance	80 Meters Open Air
Frequency	Secure Rolling Code 433MHZ
Operating Channels	4
Transmitting Time	1.5s

Power	24V DC
Consumption	15VA
Lock Body Size	124x67x35mm
Mounting Size	Vertical OR Horizontal
Cable Length	7 Meters

Operating Voltage	12V DC
Power Consumption	50mA
Display	LCD
Load Capacity	16A/250V
Programs	8
Relay	NO/NC

Power	12V DC
Standby Current	≤35mA
Maximum Users	10,000 Users
Operating Temperature	-40°C - +60°C
Operating Methods	PIN CODE, RFID,MOBILE APP
Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

Operating Voltage	5-24V DC
Consumption	≤35mA Standby/≤100mA Operation
Smart Assistant Support	YES
Operating Methods	Mobile APP
Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

3600mm 3.6×1.5m Double Swing Driveway Gates Opening Alternating Picket Steel Gates (Satin Black Powder Coat) with Double Swing automatic gate motor

Driveway Swing Gate with Alternating Pickets

Key Features

Dimensions

Important Information – Measurement details and Requirements

Gate Hinge Options

STANDARD Ball bearing Hinge

Strap Hing Ball Bearing

Rising Hinges

Adjustable Strap Hinge (300mm/600mm)

Post Options

Orion Slimline Low Voltage 24 Volt Driveway Linear Actuator Gate Motor

Key Features

Overview of the Orion Actuator

Robust Case Construction

Detail on the Build

Manual Release (Clutch)

Driveway Gate Motor Specifications

“Pull to Open” Opening Inwards Geometry

“Push to Open” Opening Outwards Geometry

System Powering Options

Power at the gate (Default Option)

External Low Voltage Power Supply

Off Grid Standalone Solar 60 Watts 15aH Deep Cycle

Premier SW24 Advanced Digital Automatic Gate Controller

Automatic Gate System Features

Features as Standard

Multiple Configurable Safety Inputs

Wired and Wireless Access Control Support

Residential, Commercial and Complex Working Modes Options

Automatic Gate System Controller Specifications

Control Box Dimensions

STX4K Keyring High Range Remote

Key Features

Dukie Photocell Kit

Key Features

Kit Contents (See Description Tab for Full In-Depth Details)

Description

Driveway Swing Gate with Alternating Pickets

Key Features

Dimensions

Important Information - Measurement details and Requirements

1785mm x 1500mm Alternating Picket Driveway Steel Gate (Satin Black Powder Coat) × 2

Gate Posts × 2

Gate Hinge Sets × 2

Description

43mm Solid Rubber Driveway Gate Stop

43mm Solid Rubber Swing Gate Stop with Steel Base

Description

Orion Slimline Low Voltage 24 Volt Driveway Linear Actuator Gate Motor

Key Features

Overview of the Orion Actuator

Robust Case Construction

Detail on the Build

Manual Release (Clutch)

Driveway Gate Motor Specifications

“Pull to Open” Opening Inwards Geometry

“Push to Open” Opening Outwards Geometry

Orion Actuator Kit with 7 Metre Cable × 2

Description

STX4K Keyring High Range Remote

Key Features

Four Button Keyring Remote Control (White)

Description

STX4K Keyring High Range Remote

Key Features

Four Button Keyring Remote Control (Black)

Description

Dukie Photocell Kit

Key Features

Dukie OR Dukie + Photocells

Premier 24V Weatherproof Swing Gate Control Box

Optional Add On's

Description

40mm Galvanized Driveway Gate Stop

Dimensions

Strong Swing Gate Stop Galvanized Steel 40mm

Description

D Latch for Pedestrian Access Walkway Gates

Dimensions
