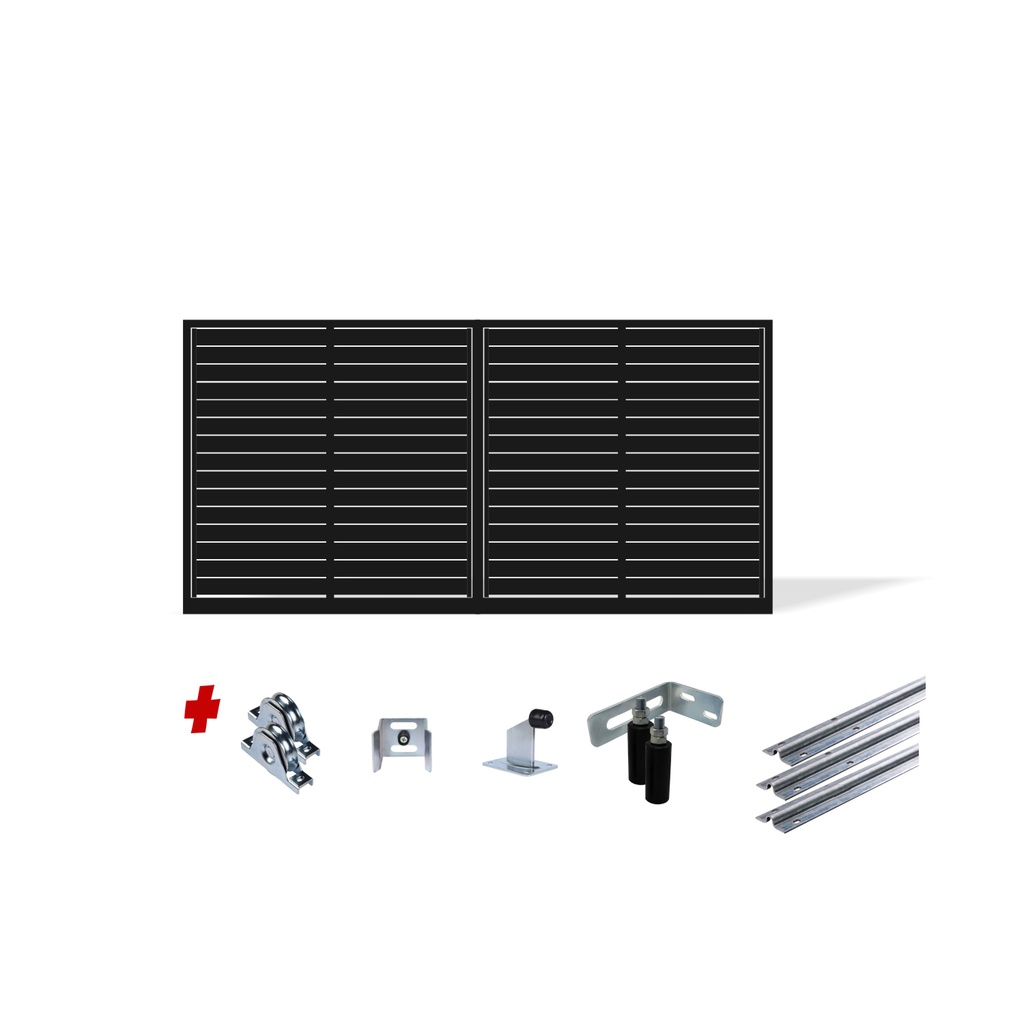

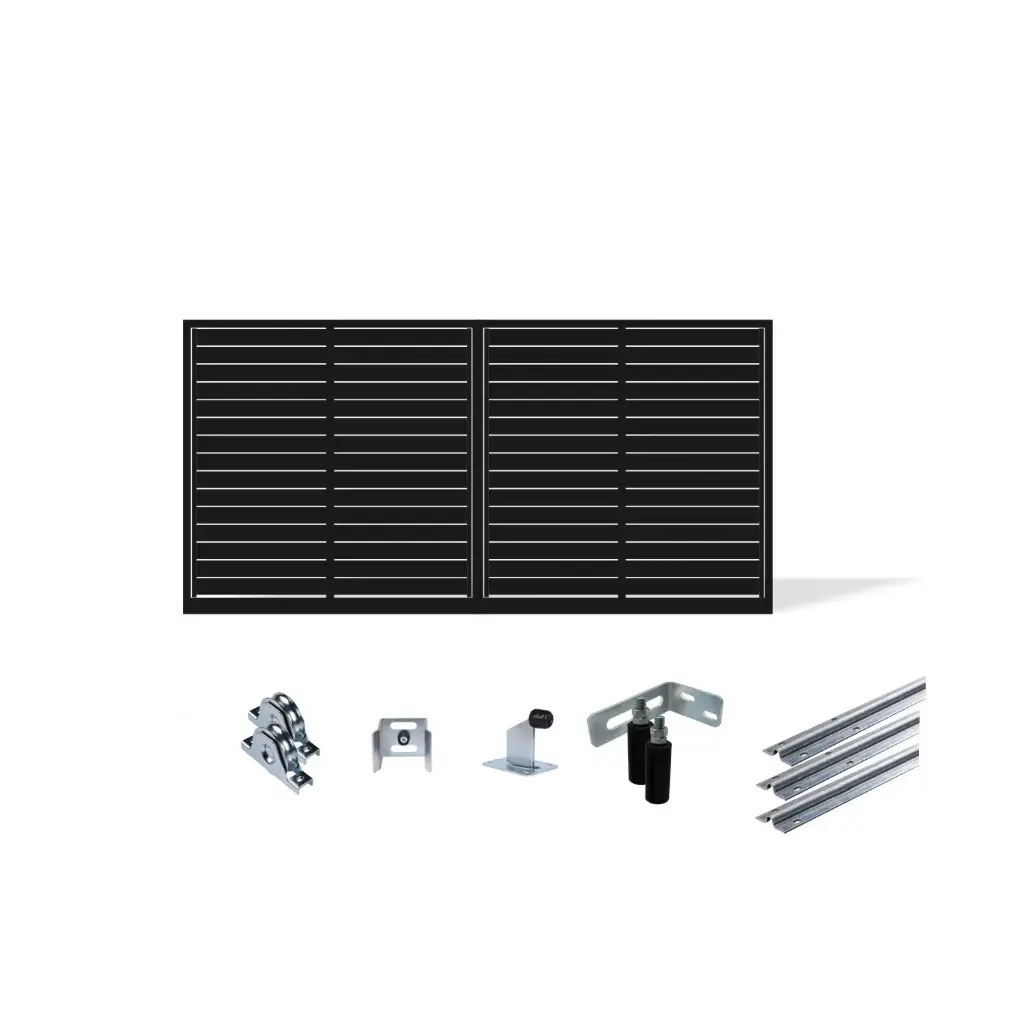

Up to 4200mm / 4.2m Opening (1200mm H) 4.6×1.2m Horizontal Slat Sliding Driveway Gate Package (Satin Black Powder Coat)
Kit Part No:
FRAME12-4600-ALUCLAD x1+SLIDEHW
Bulky Item
| Gate Frame Colour: Black |
| Design: Horizontal Slat Gate |
| Driveway Opening Size (Sliding Gate): Max. 4.2m (4600mm Gate) |
| Gate Height: 1200mm (1.2M) |
| Includes Automation: No |
Versatile Driveway Sliding Gate Frame for cladding
The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x40mm dividing the cladding area into two sections which does not interfere with internal cladding.
The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x40mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rails
✓ SHS 40x40 Top and Sides
✓ SHS 40x40 Vertical Center
Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rails
✓ SHS 40x40 Top and Sides
✓ SHS 40x40 Vertical Center
Horizontal Aluminium Slat System
The Aluminium slat system provides maintenance free and a cost effective solution for a privacy conscience and modern gate and fencing system. Key benefits over this slat system compared to others are:
✓ Additional support structure within each slat
✓ Pre-Punched Channels with fixed 10mm gaps makes alignment simple
✓ No finicky spacers
✓ Finned channel extrusion allows for two friction fit holding points of the slat WITHOUT the need of additional screws (Slats are totally screw-less).
Three Aluminium slat colour's to choose from in the kit contents tab:
✓ Satin Black (Night Sky)
✓ Monument
✓ Woodland Grey
✓ Additional support structure within each slat
✓ Pre-Punched Channels with fixed 10mm gaps makes alignment simple
✓ No finicky spacers
✓ Finned channel extrusion allows for two friction fit holding points of the slat WITHOUT the need of additional screws (Slats are totally screw-less).
Three Aluminium slat colour's to choose from in the kit contents tab:
✓ Satin Black (Night Sky)
✓ Monument
✓ Woodland Grey
The kit is supplied with the required Aluminium slats, punched channels etc. Cutting and assembly of the slat system is required during the installation phase.
What makes ours better
Finished Examples
Satin Black/Night Sky Slats
Monument Slats
Woodland Grey Slats
Dimensions
Important Information - Measurement details and Requirements
| Width of Gate Panel | 4600mm EACH |
| Height of Gate Panel | 1200mm |
| Max Sliding Gate Opening Size | (Manual Operation: 4400mm factors in an internal support post)(Automated/Motorised: 4270mm) |
| Min. clear area for gate to open to | 4800mm including a gate stop |
Top Guide System Options
Multiple options available to choose from based on the gates total thickness including any horizontally cladding material if applicable.
Gate Catcher/Receiver Meeting Point
Multiple options available to choose from based on the gates total thickness including and cladding material if applicable. It is recommended to use a gate catcher that is 10mm greater than the gate thickness. All catchers are available with offset brackets allowing for closing behind a post (as opposed to up to a post).
Sliding Gate Wheel Options
Internal Recess/Flush Mount Wheels
Internal Double bearing wheels allow the gate wheels to be recessed into the bottom of the gate frame (minimum height 75mm tubing), they keep the gate close to the ground track system (normally within 25mm) and provide the neatest aesthetic. The small pocket cut into the bottom of the gate is not greater than the 78mm wheel diameter and allows the flange points to meet with the tubing on either side and screw into place.
External Surface Mount Wheels
The easiest to install, these bearing wheels screw directly to the bottom of the gate tubing without any need for cutting, the external surface mounting wheels typically raise the gate 90mm from the ground track system.
Sliding Gate Ground/Floor Track
The sliding gate ground track is formed from galvanized steel to the R10 profile, this profile is proven to be the smoothest operation for the gate wheels without any negative characteristics like the older v groove designs.
The track is secured to the driveway using plugs and screws or knock in's such as anchor nails, its important to use a fixing that does not protrude greater than 3-4mm to prevent contact with the gate wheels.
✓ Galvanized Steel
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ Suits all R10 gate wheels
✓ Galvanized Steel
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ Suits all R10 gate wheels
Gate Stopper
The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.
✓ Rubber Bumper
✓ 115mm High
✓ 8mm stem and 4mm base steel thickness
✓ Rubber Bumper
✓ 115mm High
✓ 8mm stem and 4mm base steel thickness
