Universal Left/Right Heavy Duty Adjustable Bearing KNOCK IN Aluminum SHS Square Tube 50mm for Swing Gate
Part No:
SH-SHS-AL50
Adjustable 50x50 Aluminum Tube Knock In Hinge

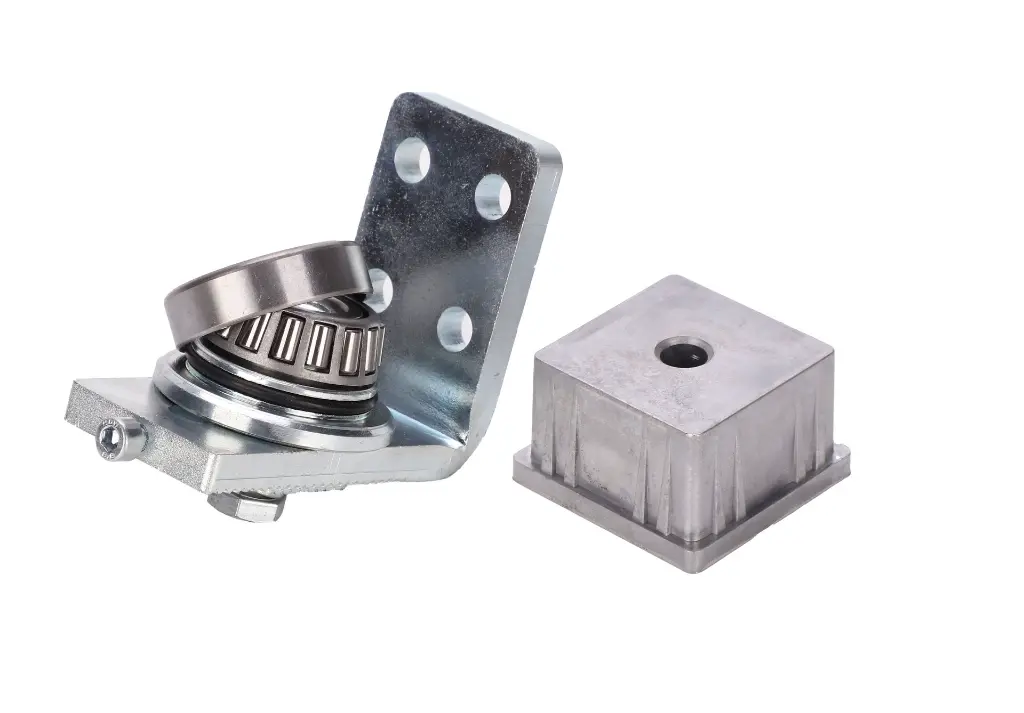

✓ Ball Bearing Race Design for Top and Taper Roller Bearing for Bottom
✓ Knocks directly into the tube from top and bottom
✓ Supports up to 400KG per pair of hinges
✓ Adjustable distance from post to center of gate
✓ Steel 90 Degree Bracket can be welded if required to steel posts
✓ Can be installed on to narrow posts
✓ Suitable for 1.6mm wall thickness, 2.0mm may require slight grinding on the cap face
✓ Knocks directly into the tube from top and bottom
✓ Supports up to 400KG per pair of hinges
✓ Adjustable distance from post to center of gate
✓ Steel 90 Degree Bracket can be welded if required to steel posts
✓ Can be installed on to narrow posts
✓ Suitable for 1.6mm wall thickness, 2.0mm may require slight grinding on the cap face

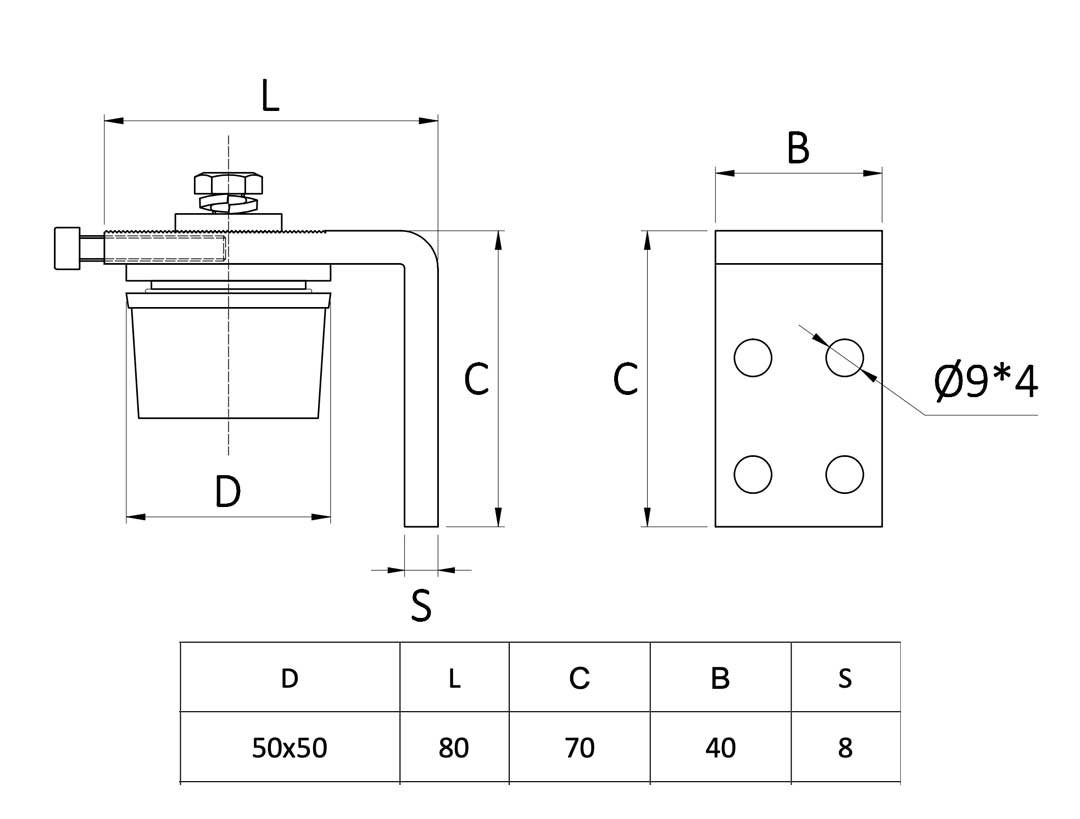

Technical Drawing
