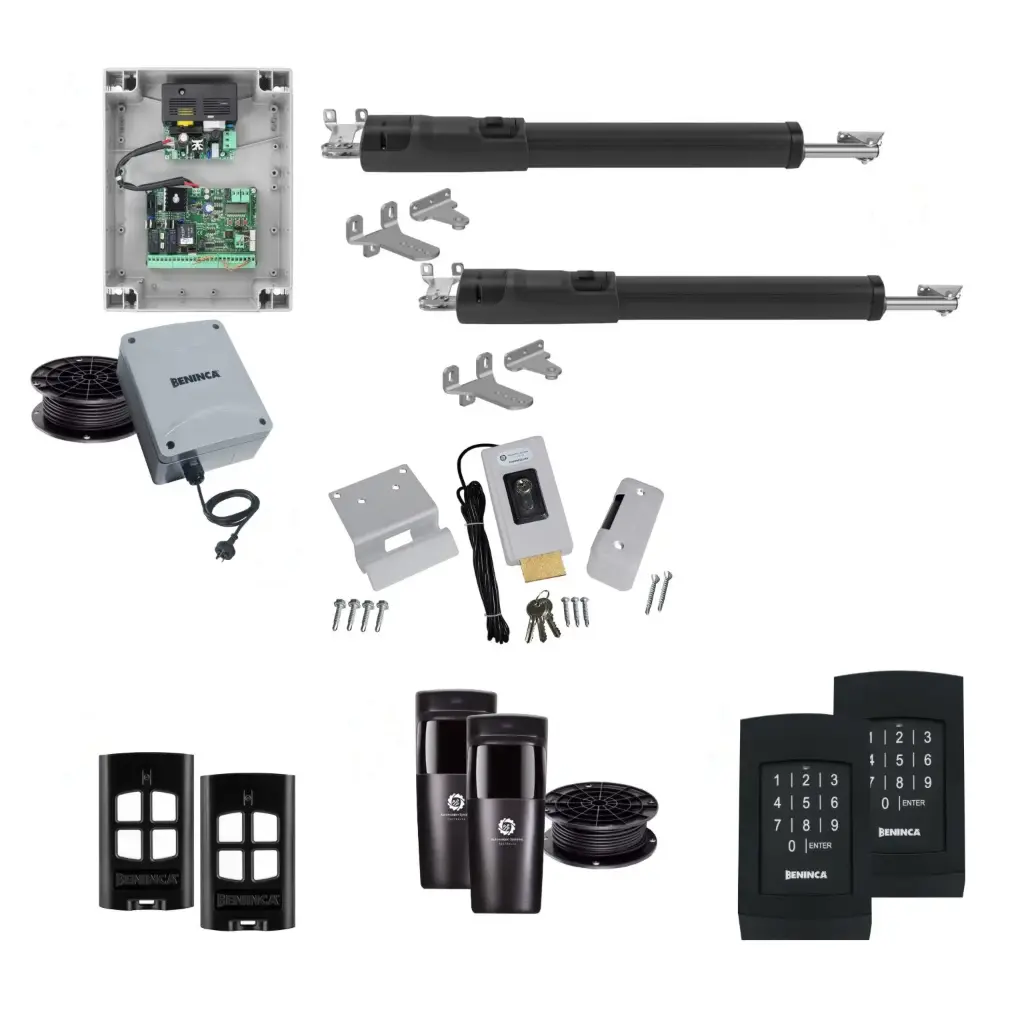

TOM 5 Telescopic Long Stroke ITALIAN Low Voltage 24V Automatic Double Swing Driveway Gate Opener 24 Volt Kit with Wifi Mobile App Control and Keypad Entry Exit
Kit Part No:
TOM5-2D-E-AP
Long Stroke
🏆 3 Year Warranty!
| Operating Method: Remotes & Pin Code Keypad |
| Gate Opener Brand: Beninca |
| Swing Gate Thrust/Torque: 1500N |
| Model: TOM 5 |
| Warranty: 3 Year |
| Maximum Swing Gate Size (each): 5m |
Beninca TOM5024 Telescopic Actuator
The TOM5024 Is a Italian Made Operator built to a high standard using a heavy duty lead screw, quality high strength die casting and an all metal gearbox.
TOM operators use a 500mm Long stroke providing great leverage over the gate.
TOM operators are universal Left and Right side compatible and can be wired as 2 Wire operators (not using encoder) and 5 wires (when using encoder, additional cable available in the add ons).
TOM operators use a 500mm Long stroke providing great leverage over the gate.
TOM operators are universal Left and Right side compatible and can be wired as 2 Wire operators (not using encoder) and 5 wires (when using encoder, additional cable available in the add ons).
Key Features
✓ Strong and Reliable
✓ Sleek and Stylish
✓ Open and Closed Mechanical Stops
✓ Large TELESCOPIC Stroke as standard
✓ Die-Cast Housing
✓ Sleek and Stylish
✓ Open and Closed Mechanical Stops
✓ Large TELESCOPIC Stroke as standard
✓ Die-Cast Housing
✓ Compact 100mm Width
✓ Can be used as a 2 Wire System
✓ Encoder Built In and can be utilized using a 5 wire Cable
✓ Flexible and vast installation geometries
✓ Can be used as a 2 Wire System
✓ Encoder Built In and can be utilized using a 5 wire Cable
✓ Flexible and vast installation geometries
Overview of the Orion Actuator
Secure Manual Release
Simply Unlock the cover and use the hidden tool key to unlock the operator.
Adjustable Mechanical Stops
Set and forget, easy to adjust open and closed positions by the adjustable mechanical stops.
Driveway Gate Motor Specifications
| Operating Voltage | 24V DC |
| Duty | Intensive Use |
| Thrust | 1500N |
| Maximum Stroke Length | 500mm |
| Limit Stops | Yes for both Open and Closed (individually removable) Ideally a gate stop is used in the closed position if possible |
| Gearing Structure | Gearbox |
| Case Material | Die-Cast and Extruded Aluminum |
| Maximum Gate Width | 5 Meters See specifications graph |
| Maximum Gate Weight | 500KG (See specifications table) |
Pivot Geometry
Technical Drawing
Beninca TO.GO4A
Sleek, Modern, Stylish and Easy to Use the TO.GO4A Remote Control allows for utilization of Pedestrian Function and Normal Gate Operation with the Allowance for control of another Gate/Garage Door with the Unused buttons.
Brainy PLUS Top End Digital Automatic Gate Controller
The Brainy PLUS is the latest 24V Swing Gate Control Box from Beninca. Brainy Plus controller carries new and improved motor management settings and suits Residential and Commercial applications with an Intensive Use allowance.
The LCD Display (not Switches) allows for adjustment of most working settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible (see the complete list below).
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
The LCD Display (not Switches) allows for adjustment of most working settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible (see the complete list below).
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
Automatic Gate System Features
Automatic Gate System Controller Specifications
| Operating Voltage | 24V |
| Duty Cycle | Intensive Use |
| Standby Consumption | 20mA |
| Supports Battery Backup | Yes, 24V DC (Mains Systems Only) |
| Automatic Gate Lock Support | Yes, 12-24V DC |
| Light Support | Yes, Aux. Output |
| Accessories Voltage | Yes, 24V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -20°-50°C |
| Maximum Remotes | 64 |

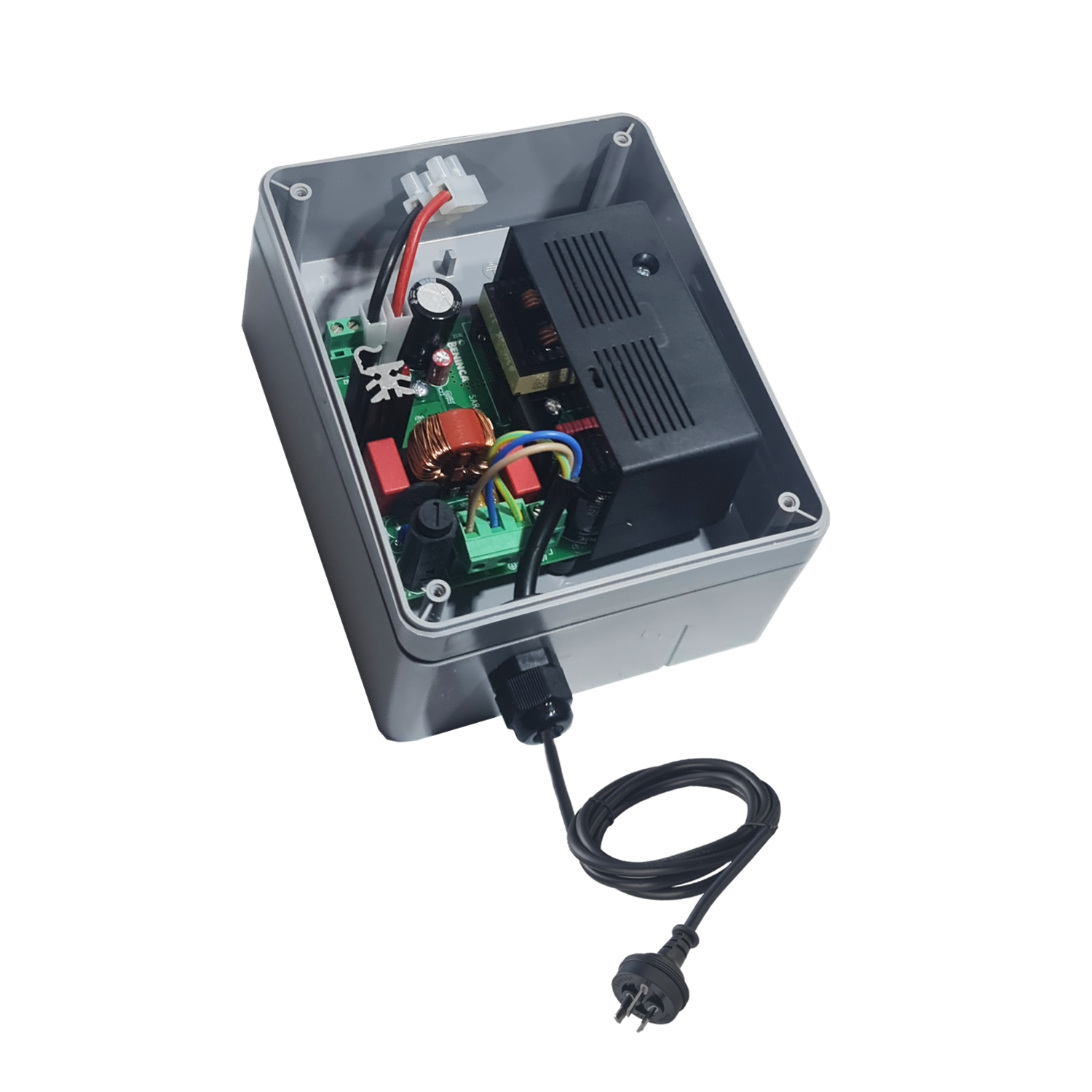

SA.24 and SAR.24 Low Voltage External Transformer
The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system.
Two Options are available for the transformer
SA.24 for distances up to 25m and SAR.24 for distances up to 45m (See the Kit Contents tab)
✓ Two Options based on distance
✓ Multiple cable roll options or use your own cable
Two Options are available for the transformer
SA.24 for distances up to 25m and SAR.24 for distances up to 45m (See the Kit Contents tab)
Key Features
✓ IP Rated Outdoor Rated Design✓ Two Options based on distance
✓ Multiple cable roll options or use your own cable
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Beninca BE.CODE Wireless Keypad
Slimline and Wireless using replaceable CR123A Lithium Batteries allows a remarkable battery life of 7 years with a use case of 190 Users per day.
Maximum distance of 100m in clear line of sight is achievable with the BE.CODE and with an allowance of up to 254 stored codes in the Keypad.
Maximum distance of 100m in clear line of sight is achievable with the BE.CODE and with an allowance of up to 254 stored codes in the Keypad.
Automatic Electric Lock and Magnetic Lock Options
Fortress EL Automatic Gate Lock
The Fortress EL totally AUTOMATIC electric gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security.Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.
The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).
For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).
Key Features
✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation

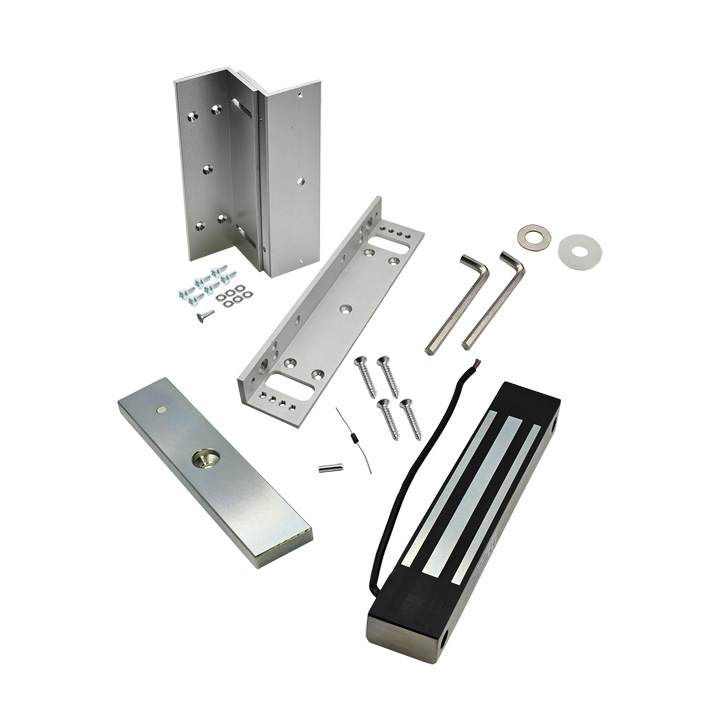

Fortress ML Automatic Magnetic Gate Lock
The Fortress ML totally AUTOMATIC Magnetic gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.The Fortress ML is designed to work with both gate to post (for single gates) and also a gate to gate (for double gates to be used with a metal gate stop).
The benefit in using a ML series Magnetic lock over an EL series Electric lock is that ML magnetic lock allows for an automatic release from the system as per normal in a circumstance where the lock is loaded by wind resistance whereas the electric lock cannot release whilst loaded by wind resistance.
Key Features
✓ Waterproof Stainless Steel Case with resin filled core
✓ 280KG Holding Force
✓ Works with the gate controllers backup-battery system
✓ Can still unlock under load when commanded
✓ Easy 2 Wire connection
✓ flexible installation
