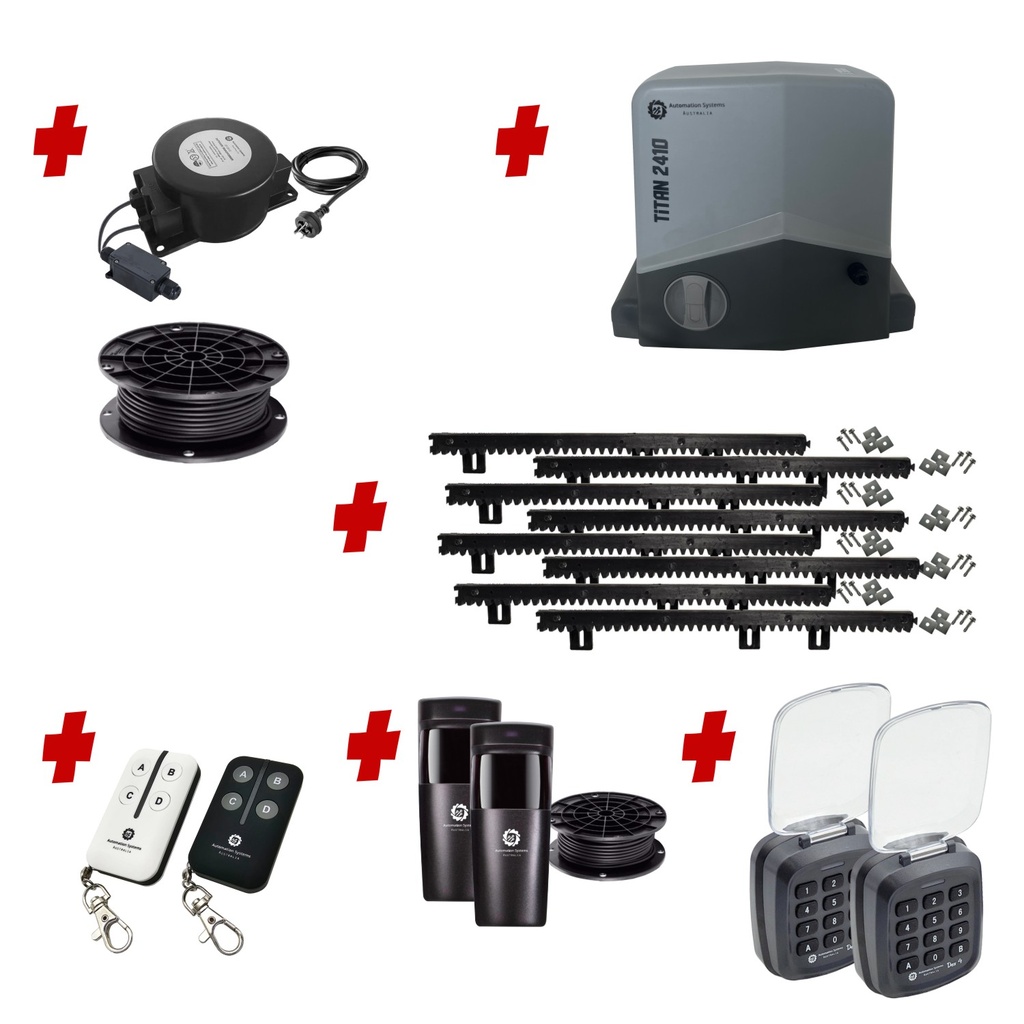

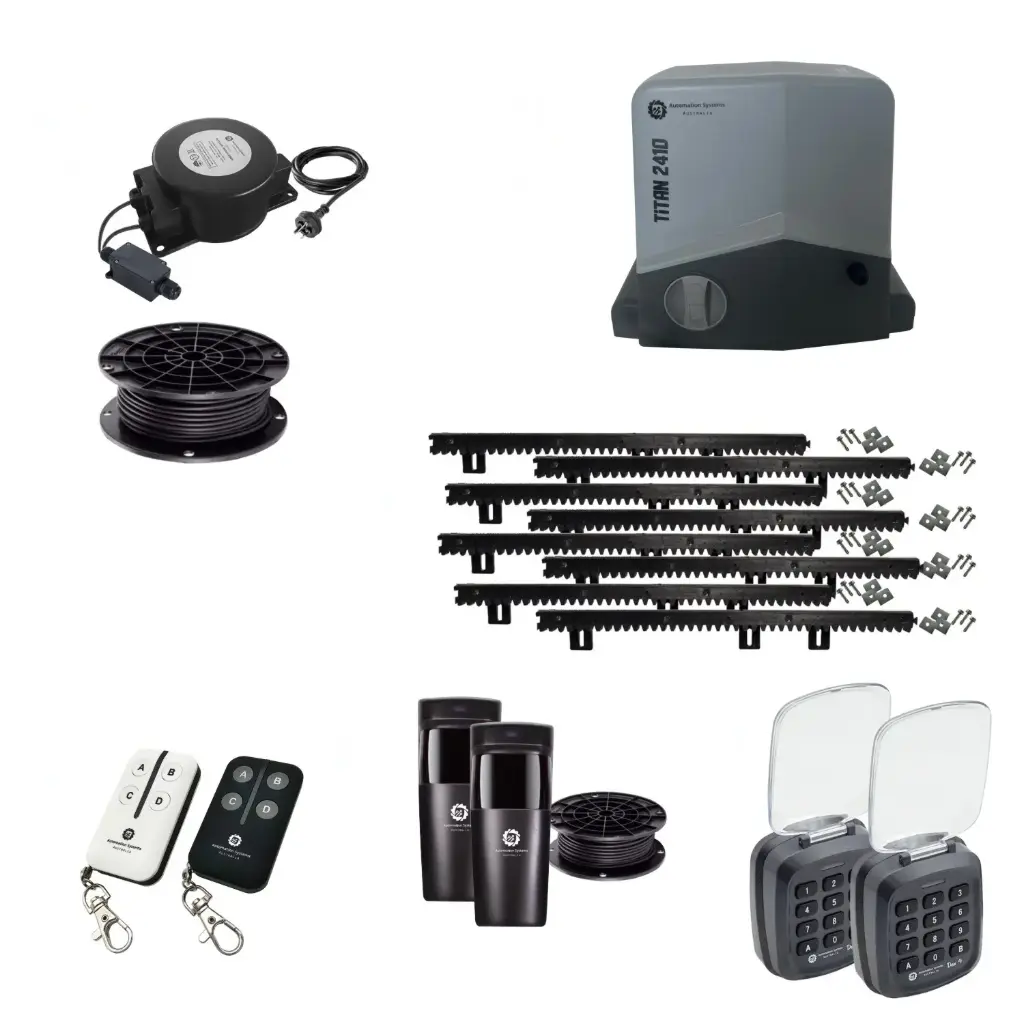

Titan 2410 Low Voltage 24V Automatic Sliding Driveway Gate Opener 24 Volt Kit FAST Heavy Duty POWERFUL Design with TWO Keypads Entry Exit
Kit Part No:
TITAN2410-E-AP
Ultra Fast
🥇 Class Leader
| Operating Method: Remotes & Pin Code Keypad |
| Warranty: 1 Year |
| Gate Opener Brand: Automation Systems Australia |
| Model: Titan 2410 |
| Sliding Gate Max. Width: 8m |
| Sliding Gate Max. Weight Capacity: 1000KG |
Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor
The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab).
Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.
Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability. The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).
Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.
Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability. The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).
The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.
All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.
Key Features
✓ Fast and Efficient 24 Volt Operation
✓ Die-Cast Alloy Housing
✓ Compact Footprint
✓ Multiple Cable entries by IP68 rated Glands
✓ Die-Cast Alloy Housing
✓ Compact Footprint
✓ Multiple Cable entries by IP68 rated Glands
✓ Steel Pinion Gear
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Flexible size and weight capacities
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Flexible size and weight capacities
A peak inside the Titan Series Operator

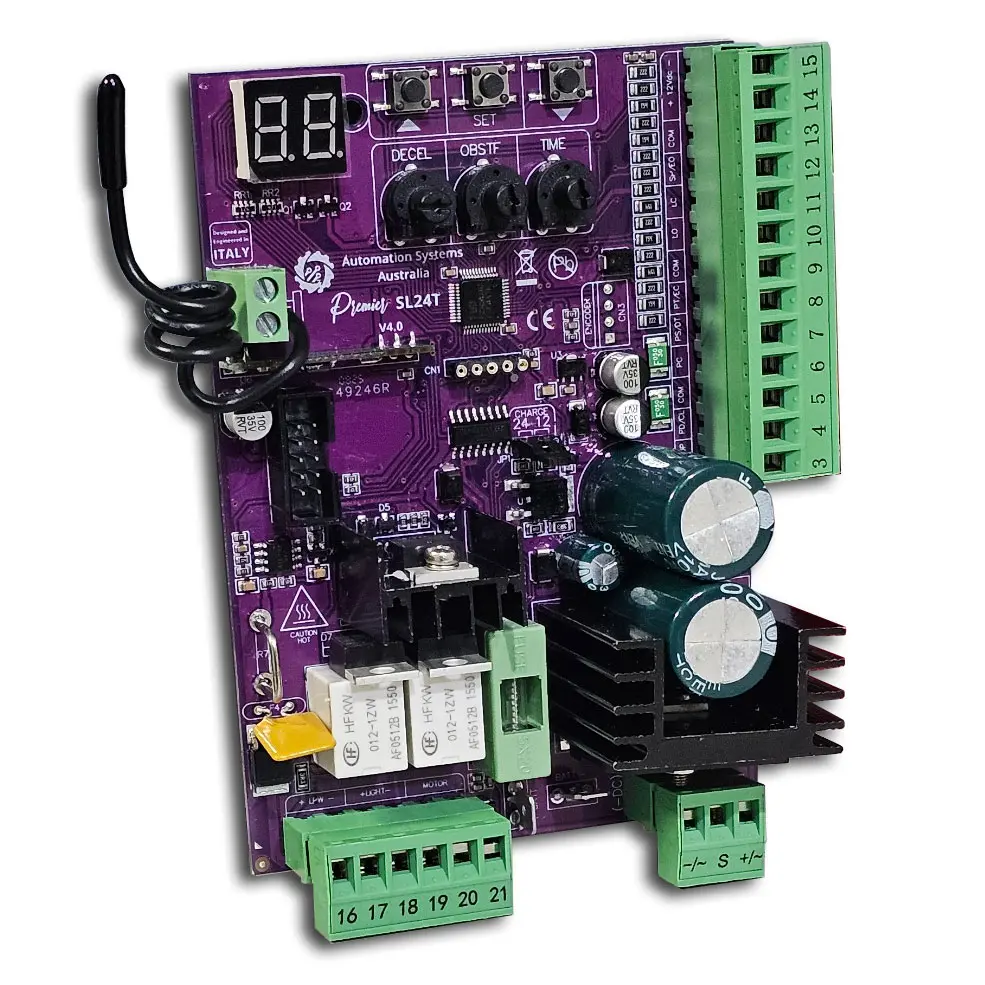

Tough 180 Watt DC Motor and Digital Logic Controller
Steel Pinion and Easy Limit Switches
Secure yet Easy Manual Release
Automatic Gate System Logic Controller Features
Features as Standard
✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature✓ Open partially Pedestrian Mode Feature (adjustable distance)
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
Multiple Configurable Safety Inputs
✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.
Wired and Wireless Access Control Support
✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times
Residential, Commercial and Complex Working Modes Options
✓ Normal Remote Operation (Open-Stop-Close)✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)
✓ Typical Complex - Individual Open and Close Command Inputs
✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input

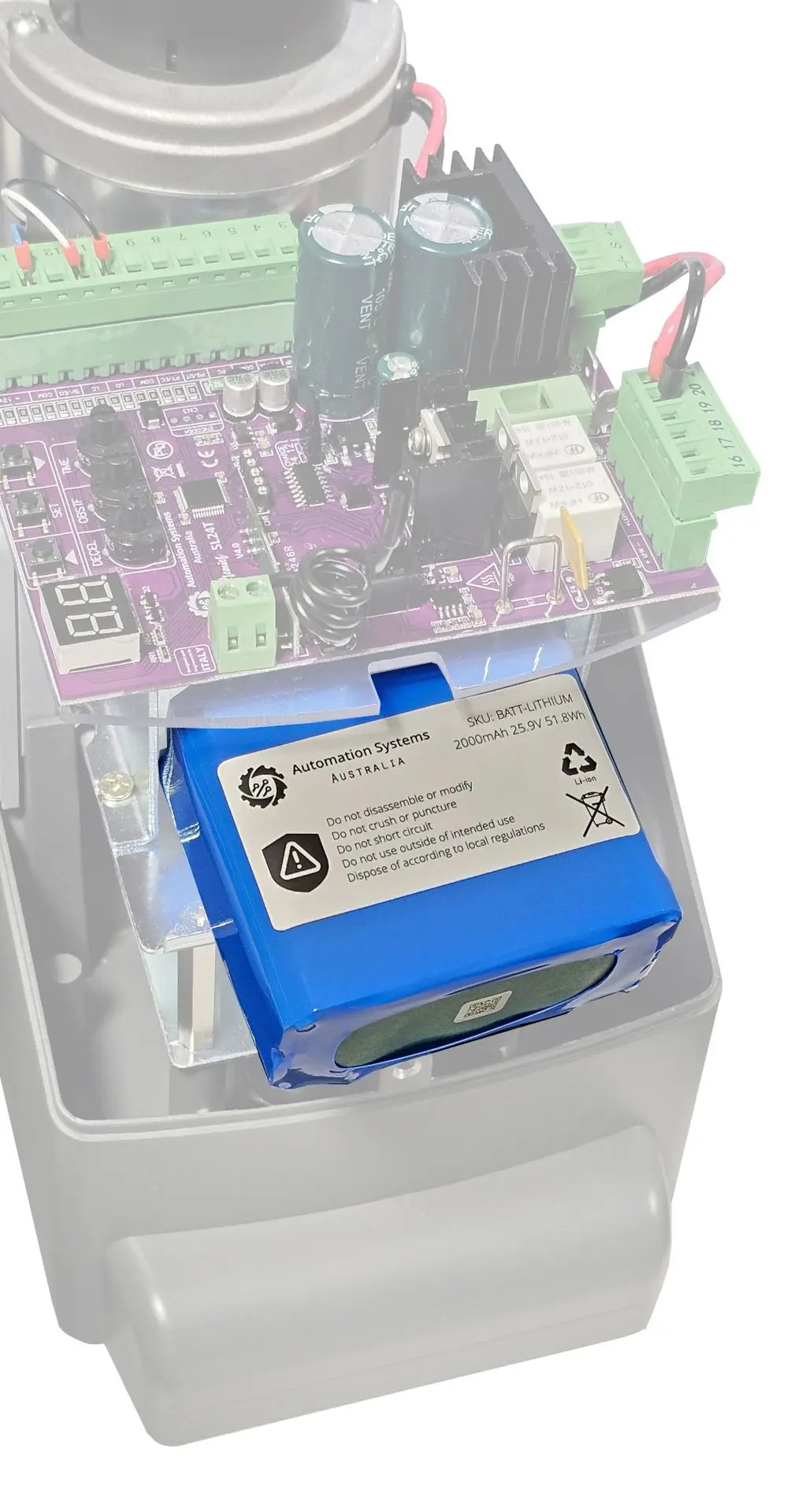

OPTIONAL Uninterrupted Battery Backup System
The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored.
The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes. If the optional battery system is not desired the system can still be manually release using the secure override system.
The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes. If the optional battery system is not desired the system can still be manually release using the secure override system.
Dimensions
Automatic Sliding Gate System Specifications
| Operating Voltage | 24V |
| Maximum Gate Size | 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab) |
| Maximum Gate Weight | 1000KG |
| Duty Cycle | 90% |
| Thrust | 27nM |
| Speed | Adjustable up to 36cm/s (21 Meters per minute) |
| Standby Consumption | 40mA |
| Supports Battery Backup | Yes, 24V DC |
| Light Support | Yes, Warning Light |
| Accessories Voltage | Yes, 12V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -10°-60°C |
| Maximum Remotes | 250 |
24V Low Voltage External Transformer
The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 100 meters making it suitable for most installations that do not have a power point nearby to the gate.
✓ Can work up to 100 meters low voltage cabling distance
✓ Multiple cable roll options or use your own cable
Key Features
✓ IP66 Outdoor Rated Design✓ Can work up to 100 meters low voltage cabling distance
✓ Multiple cable roll options or use your own cable
STX4K Keyring High Range Remote
The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor
upgrade for wiring on one side only
Dex 4 Wireless Keypad
The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.
Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.
Key Features
✓ Three colour options are available: Classic White, Subtle Grey and Deep black
✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
✓ Control Up to four systems or four features on different pin codes
✓ Astounding open air distance of 80 metres
✓ Works on 2x AAA batteries (supplied)
✓ Audible and LED indicators
✓ Totally wireless (wire free) easy installation
