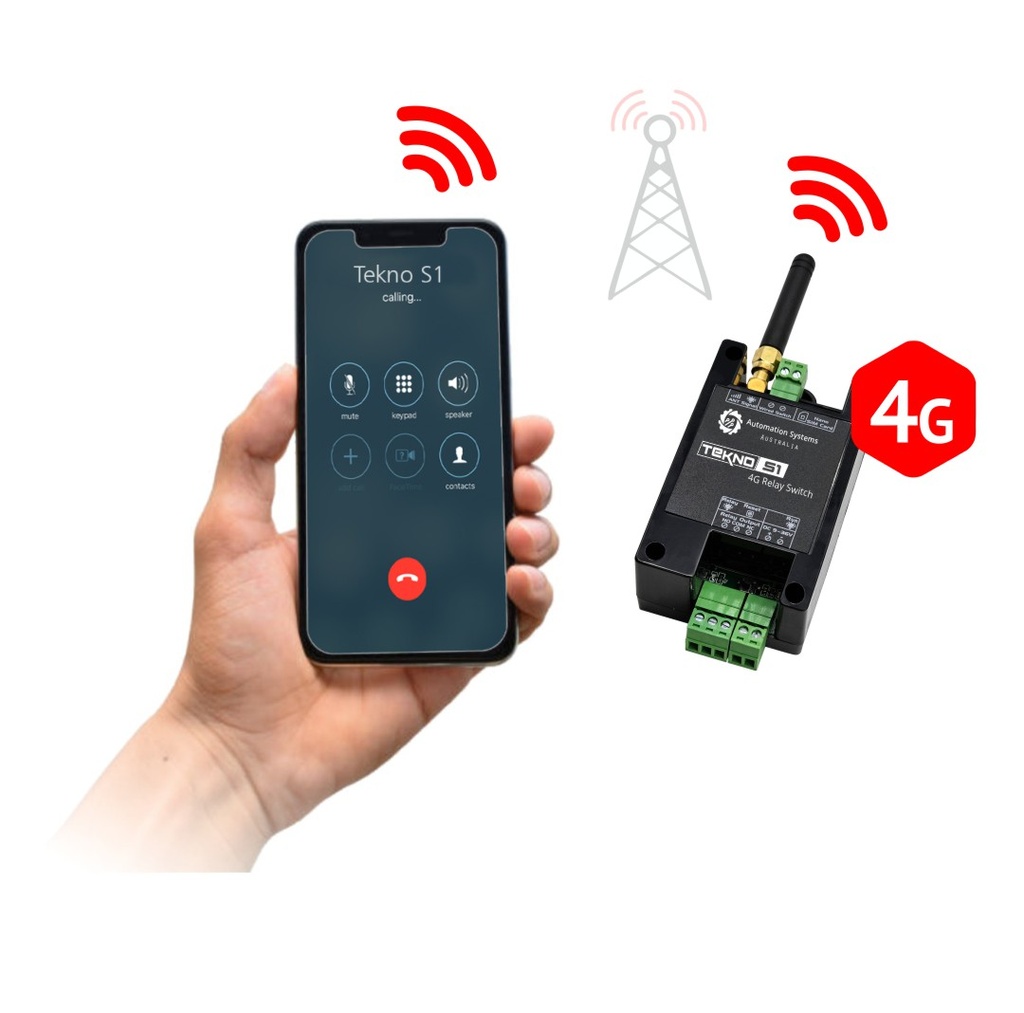

Tekno S1 4G VOLTE GSM Switch
The Tekno S1 is a 4G VOLTE flexible control device allowing for connection to the gate system and operation from anywhere in the world by a simple phone call. Easy to install and configure it is the best solution when no Wi-Fi or internet connection is available and a great alternative to APP based control. The requirement is good 4G Network at the gate position and a sim card that can accept voice calls (not data specific sims).
✓ Control by SMS
✓ Can be configured to allow for Authorized users (Telephone numbers allowed to operate the S1) or Public Mode (Anyone)
✓ Fits directly into the system, no extras required
✓ Simple connection and simple setup
✓ 999 Users Allowance
✓ SMS Notifications to Admin per operation even (can be disabled)
Key Features
✓ Call your gate from ANYWHERE in the world✓ Control by SMS
✓ Can be configured to allow for Authorized users (Telephone numbers allowed to operate the S1) or Public Mode (Anyone)
✓ Fits directly into the system, no extras required
✓ Simple connection and simple setup
✓ 999 Users Allowance
✓ SMS Notifications to Admin per operation even (can be disabled)
The Tekno S1 can work with all 4G Telco providers however please note the recommended network of choice is Telstra providing the strongest 4G coverage.
Product Overview
Specifications
| Operating Voltage | 9-36V DC |
| Power Consumption | 45mA Standby/<130mA Initialization and calling |
| Sim Card Size Length | Nano Sim |
| 4G Network | TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28) |
| 3G Network | 2100(B1)/1900(B2)/850(B5)/90038) |
