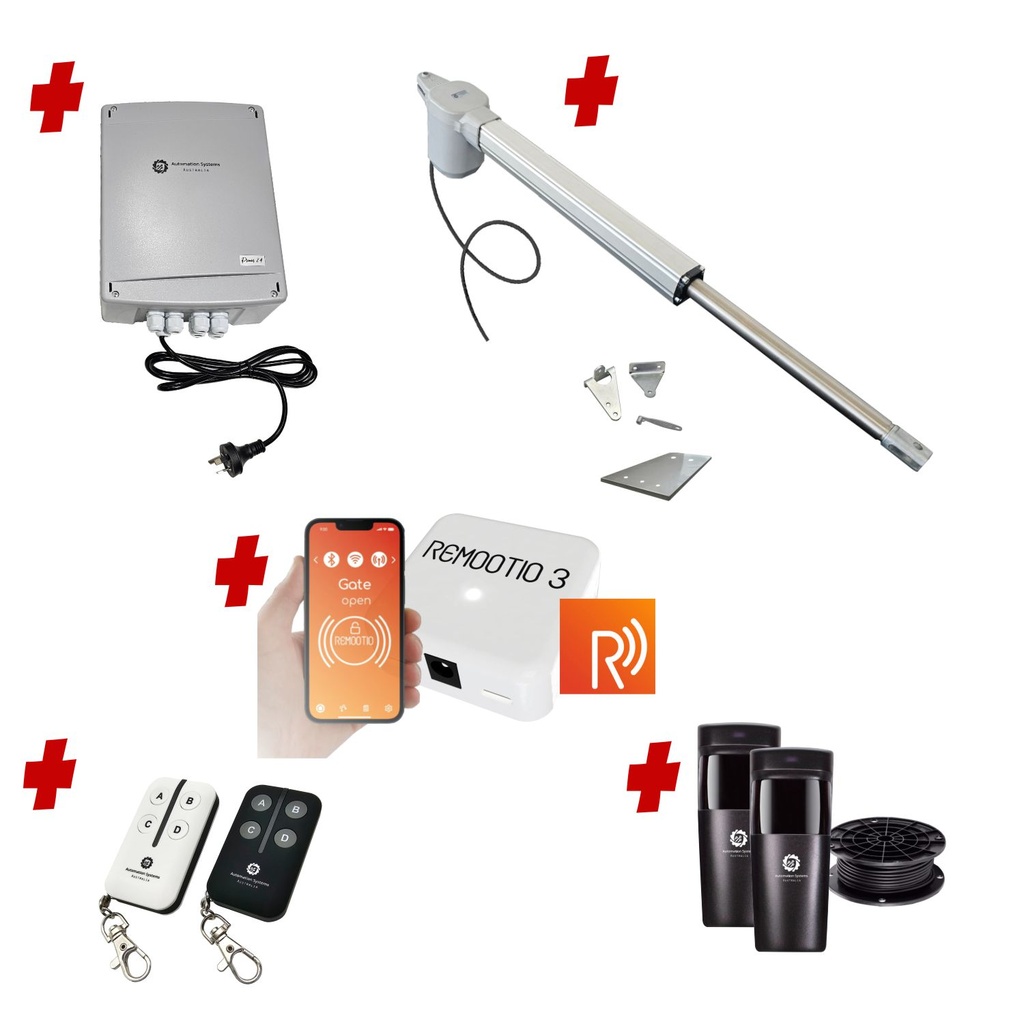

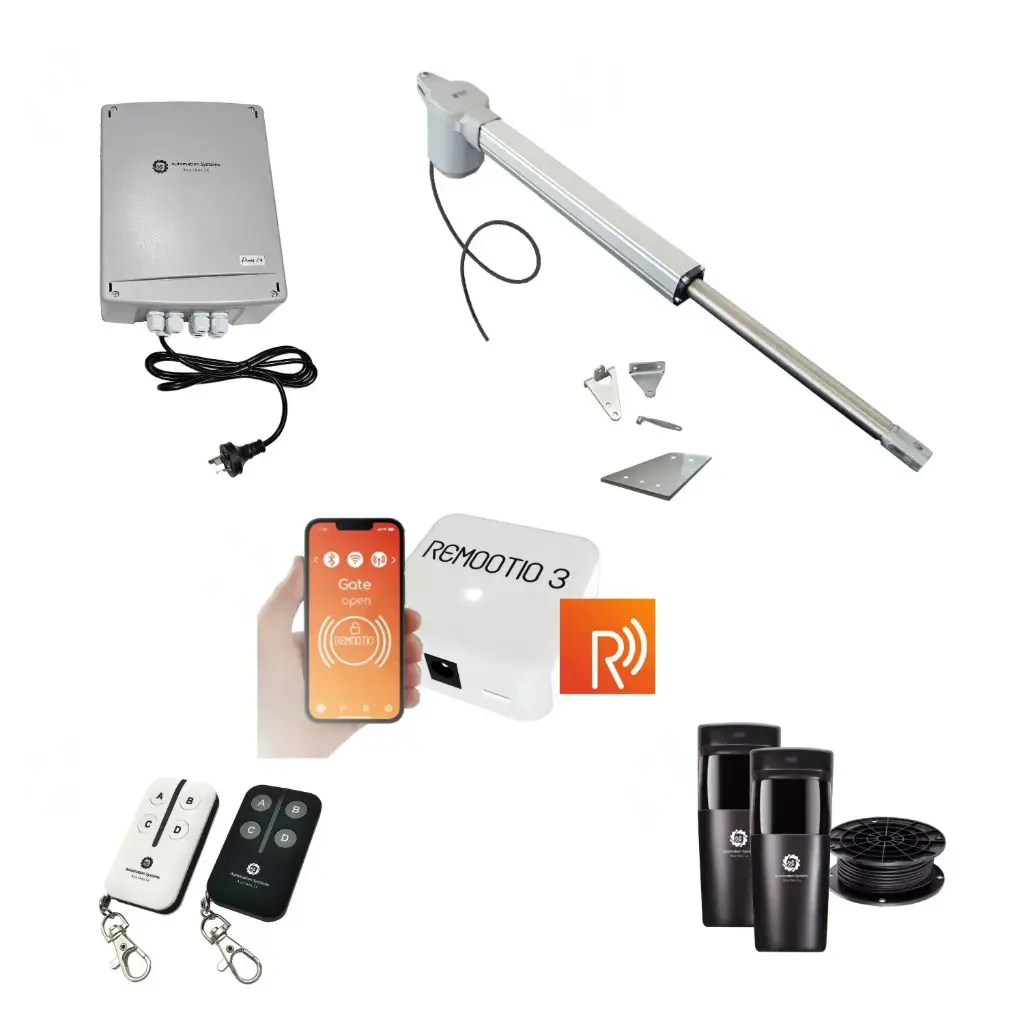

Remootio Viper 5 Long Stroke ITALIAN Electric 24V Low Voltage Automatic Swing Driveway Gate Opener Kit ROBUST Heavy Duty Design
| Operating Method: Remotes & Mobile Phone Control |
| Gate Opener Brand: Automation Systems Australia |
| Swing Gate Thrust/Torque: 2000N |
| Model: Viper 5 |
| Warranty: 3 Year |
| Maximum Swing Gate Size (each): 4m/4.2m |
VIPER 524 Low Voltage 24 Volt Strong and Silent Linear Actuator
Operations are smooth and efficient using its 24 Volt DC motor system coupled to a 19mm (3/4") lead screw driving the stainless steel "piston" in and out. The end positions are set using the easiest possible method of adjustable limit stops. Limit stops are slid forward/back to adjust both the maximum open and closed positions of the gate, being a mechanical system its a case of set and forget with no further adjustments being required.
Typically the open and closed positions will not require and further stops unless higher wind loads are expected (cladded gates). The Viper series actuators are 100% Universal meaning one actuator could be installed on EITHER side of the driveway as the clever clutch release system (Emergency release) is available on both sides of the actuator. The laser cut steel brackets for the gate and post are constructed from 6mm steel (galvanized) ensuring they are rigid and static with no flexibility or movement.
The actuator is suited for both pull to open inwards and also pushing outwards to open installations. The Viper 524 has 500mm of usable stroke without the use of included limit stoppers, or effectively a reduction of 30mm per limit stop used (MIN. 440mm/470mm) and has the ability to work with gates from as narrow as 850mm and as wide as 4.2m (14ft) with a maximum weight of 300kg.
The prerequisite for a VIPER operator is a gate mounting rail or fitting point at 200mm or greater from the ground level. A 6mm thick Riser plate is included in the package contents to create a mounting point for the actuator if required. A 1 Metre flying lead is pre-connected to the actuator ready to connect to a junction of your choosing. Cable rolls and junction boxes are available as add on items.
Key Features
✓ Fast and Efficient 24 Volt Operation
✓ Metal Transfer Gear
✓ Aluminum Housing
✓ Quiet and discreet
✓ 19mm (3/4") Actuator Lead Screw
✓ Open and Closed Position ADJUSTABLE without the need for a gate stop (adjustable limit stops)
✓ Flexible and vast installation geometries
Supplied Riser Plate
The supplied riser plate allows for installation to the bottom rail when no others are available making it suitable for all gate mounting rail scenarios. Alternatively the gate mounting bracket (without the riser plate) can be installed to any horizontal rail greater than 200mm from ground level.
Manual Release System
Simply insert the supplied lever key and turn clockwise/counter-clockwise to lock and unlock
A peak inside the VIPER Series
Driveway Gate Motor Specifications
| Operating Voltage | 24V DC |
| Duty Cycle | 90% |
| Thrust | 2000N |
| Maximum Stroke Length | 500mm (Minus 30mm Per limit Stop Used) |
| Limit Stops | Yes, Open and Closed Positions (Removable) |
| Gearing Structure | Transfer Gear, Irreversible |
| Case Material | Extruded Aluminum Piston Housing, Die-Cast Inner Structure, ABS Fascia |
| Piston | Die-Cast Alloy Gate End-Stainless Steel Piston |
| Maximum Gate Width | 4.2 Meters (14 Ft) |
| Maximum Gate Weight | 300KG EACH |
"Pull to Open"/"Push to Open" Installation Geometry
Remootio 3
This Remootio 3 Package Includes
- Remootio 3 device (Bluetooth and Wi-Fi enabled device for controlling and monitoring gates and garage doors)
- Sensor (for detecting if your gate is open or closed)
- Power adapter (5V) (for powering Remootio 3 from a wall socket) (Can also be powered by Automatic gate/garage door directly (5-32V DC, 12-24V AC))
- Power cable for the 5V power adapter
- Double-sided tapes
- Cable for connecting Remootio to your gate or garage door
- Installation manual
Key Features
- Remootio 3 has two output relays which makes it compatible with gate/garage door openers that have separate trigger inputs for opening and closing
- Remootio 3 works with a 5V power supply (standard USB charger)
- Remootio 3 also works from 5-32V DC, 12-24V AC voltages, so it can be powered from the control board of most gate openers making installation very easy
- Remootio 3 has two accessory input terminals (e.g. sensor and doorbell button)
Works With
|
Most electric gates |
|
Most garage door openers |
|
Most electric strikes |
Please use the compatibility checker to make sure that Remootio 3 is compatible with your gate or garage door opener.
Connection Methods
|
Bluetooth (also works when there is no Wi-Fi / Internet access) |
|
Wi-Fi (local network) |
|
Internet (via Wi-Fi) |
Smart Home Integrations
|
Apple Home |
|
Amazon Alexa |
|
Google Assistant |
|
Samsung SmartThings |
Control Via
|
iOS and Android Smartphones |
|
Apple Watch |
|
Open API |
Easy Installation
|
Wiring diagrams available for most electric gate and garage door openers |
|
Small dimensions – fits almost anywhere |
|
Wide operating voltage range: 5-32VDC & 12-24VAC |
|
2x output relays |
Three ways to connect
Bluetooth: You can control your gates even when WiFi is not available at your gates or when the internet service is down.
Wi-Fi: Connect Remootio to your home WiFi and control your gates from anywhere within your house. In this mode, no data goes through the internet.
Internet: You can control and monitor your gates from anywhere in the world.
No external bridge or hub is needed. It's all built into the device.
It also works in parallel with your traditional remote controller
Apple Home, Amazon Alexa, Google Home, Siri, SmartThings
Remootio 3 is compatible with Apple Home, Google Home, Amazon Alexa and SmartThings so you can use voice commands to open or close your garage door.
You can also add a personal phrase in the Remootio app and open or close your gates with Siri shortcuts.
Easy keysharing
You can easily share keys with family and friends or even Airbnb guests via QR code or via text message. (You can also use the messaging platform of any social media apps to share keys).
Access right management
Grant or revoke access rights easily from the app. You have full control over which users have access to your gate or garage via Bluetooth, WiFi and Internet. (For example you can limit the gardener's key to only work via Bluetooth.)
Limit when users can operate the gates:
Duration based: Set a start date and an end date (ideal for AirBnB)
Weekly recurring pattern: Set a start time and an end time for each day of the week. (For example the gardener can only open on weekdays between 10:00 am and 2:00 pm)
Automations
Close or open your gate or garage door at certain times of the day. You can set up as many automations as you wish.
For example, Remootio can open your gate every working day at 9:00 AM and close it at 6:00 PM. (You can choose any day of the week and any time of the day.) You can add as many automations as you wish.
Camera add-on
You can add a Remootio compatible Wi-Fi camera and watch the live stream in the Remootio app.
Check gate status
You can check whether your gate is open or closed from the Remootio app any time. You can also ask Alexa or Google home if your garage door is closed.
Notifications
Get notified when someone operates your gate, someone rings the doorbell, or when the gate has been left open.
Apple Watch app
Use the Remootio apple watch app to control your gate from your wrist.
Widgets
Open and close your gate or garage door without opening the app using the Remootio widget or the Siri shortcuts widget.
Security
Independently from whether you use Bluetooth or Wi-Fi, Remootio uses 256-bit authenticated end-to-end encryption between your smartphone and the Remootio device.
Keys are not stored in a cloud, but in your Remootio device and your smartphone.
Small size
Thanks to its small dimensions, Remootio fits just about anywhere.
Customizable App
From the Remootio app you can easily rename, add a photo and select a background color for each gate and garage door so that you can easily find them when you are swiping through your devices.
Multiple devices
Handle multiple devices from the same app. Swipe horizontally between them. You can add as many Remootio devices as you wish.
Free smartphone app
The smartphone app is available for both iOS and Android. There are no subscription fees.
Remootio 3
This Remootio 3 Package Includes
- Remootio 3 device (Bluetooth and Wi-Fi enabled device for controlling and monitoring gates and garage doors)
- Sensor (for detecting if your gate is open or closed)
- Power adapter (5V) (for powering Remootio 3 from a wall socket) (Can also be powered by Automatic gate/garage door directly (5-32V DC, 12-24V AC))
- Power cable for the 5V power adapter
- Double-sided tapes
- Cable for connecting Remootio to your gate or garage door
- Installation manual
Key Features
- Remootio 3 has two output relays which makes it compatible with gate/garage door openers that have separate trigger inputs for opening and closing
- Remootio 3 works with a 5V power supply (standard USB charger)
- Remootio 3 also works from 5-32V DC, 12-24V AC voltages, so it can be powered from the control board of most gate openers making installation very easy
- Remootio 3 has two accessory input terminals (e.g. sensor and doorbell button)
Works With
|
|
Most electric gates |
|
|
Most garage door openers |
|
|
Most electric strikes |
Please use the compatibility checker to make sure that Remootio 3 is compatible with your gate or garage door opener.
Connection Methods
|
|
Bluetooth (also works when there is no Wi-Fi / Internet access) |
|
|
Wi-Fi (local network) |
|
|
Internet (via Wi-Fi) |
Smart Home Integrations
|
|
Apple Home |
|
|
Amazon Alexa |
|
|
Google Assistant |
|
|
Samsung SmartThings |
Control Via
|
|
iOS and Android Smartphones |
|
|
Apple Watch |
|
|
Open API |
Easy Installation
|
|
Wiring diagrams available for most electric gate and garage door openers |
|
|
Small dimensions – fits almost anywhere |
|
|
Wide operating voltage range: 5-32VDC & 12-24VAC |
|
|
2x output relays |
Three ways to connect
Bluetooth: You can control your gates even when WiFi is not available at your gates or when the internet service is down.
Wi-Fi: Connect Remootio to your home WiFi and control your gates from anywhere within your house. In this mode, no data goes through the internet.
Internet: You can control and monitor your gates from anywhere in the world.
No external bridge or hub is needed. It's all built into the device.
It also works in parallel with your traditional remote controller
Apple Home, Amazon Alexa, Google Home, Siri, SmartThings
Remootio 3 is compatible with Apple Home, Google Home, Amazon Alexa and SmartThings so you can use voice commands to open or close your garage door.
You can also add a personal phrase in the Remootio app and open or close your gates with Siri shortcuts.
Easy keysharing
You can easily share keys with family and friends or even Airbnb guests via QR code or via text message. (You can also use the messaging platform of any social media apps to share keys).
Access right management
Grant or revoke access rights easily from the app. You have full control over which users have access to your gate or garage via Bluetooth, WiFi and Internet. (For example you can limit the gardener's key to only work via Bluetooth.)
Limit when users can operate the gates:
Duration based: Set a start date and an end date (ideal for AirBnB)
Weekly recurring pattern: Set a start time and an end time for each day of the week. (For example the gardener can only open on weekdays between 10:00 am and 2:00 pm)
Automations
Close or open your gate or garage door at certain times of the day. You can set up as many automations as you wish.
For example, Remootio can open your gate every working day at 9:00 AM and close it at 6:00 PM. (You can choose any day of the week and any time of the day.) You can add as many automations as you wish.
Camera add-on
You can add a Remootio compatible Wi-Fi camera and watch the live stream in the Remootio app.
Check gate status
You can check whether your gate is open or closed from the Remootio app any time. You can also ask Alexa or Google home if your garage door is closed.
Notifications
Get notified when someone operates your gate, someone rings the doorbell, or when the gate has been left open.
Apple Watch app
Use the Remootio apple watch app to control your gate from your wrist.
Widgets
Open and close your gate or garage door without opening the app using the Remootio widget or the Siri shortcuts widget.
Security
Independently from whether you use Bluetooth or Wi-Fi, Remootio uses 256-bit authenticated end-to-end encryption between your smartphone and the Remootio device.
Keys are not stored in a cloud, but in your Remootio device and your smartphone.
Small size
Thanks to its small dimensions, Remootio fits just about anywhere.
Customizable App
From the Remootio app you can easily rename, add a photo and select a background color for each gate and garage door so that you can easily find them when you are swiping through your devices.
Multiple devices
Handle multiple devices from the same app. Swipe horizontally between them. You can add as many Remootio devices as you wish.
Free smartphone app
The smartphone app is available for both iOS and Android. There are no subscription fees.
STX4K Keyring High Range Remote
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
Premier SW24 Advanced Digital Automatic Gate Controller
Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property. The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers. Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.
Automatic Gate System Features
Features as Standard
✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Fortress Series Electric and Magnetic Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
Multiple Configurable Safety Inputs
✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.
Wired and Wireless Access Control Support
✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times
Residential, Commercial and Complex Working Modes Options
✓ Normal Remote Operation (Open-Stop-Close)✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)
✓ Typical Complex - Individual Open and Close Command Inputs
✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input
OPTIONAL Uninterrupted Battery Backup System
Automatic Gate System Controller Specifications
| Operating Voltage | 24V |
| Duty Cycle | 70% |
| Standby Consumption | 20mA |
| Supports Battery Backup | Yes, 24V DC |
| Automatic Gate Lock Support | Yes, 24V DC |
| Light Support | Yes, 24V DC |
| Accessories Voltage | Yes, 12V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -10°-60°C |
| Maximum Remotes | 192 |
Control Box Dimensions
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
