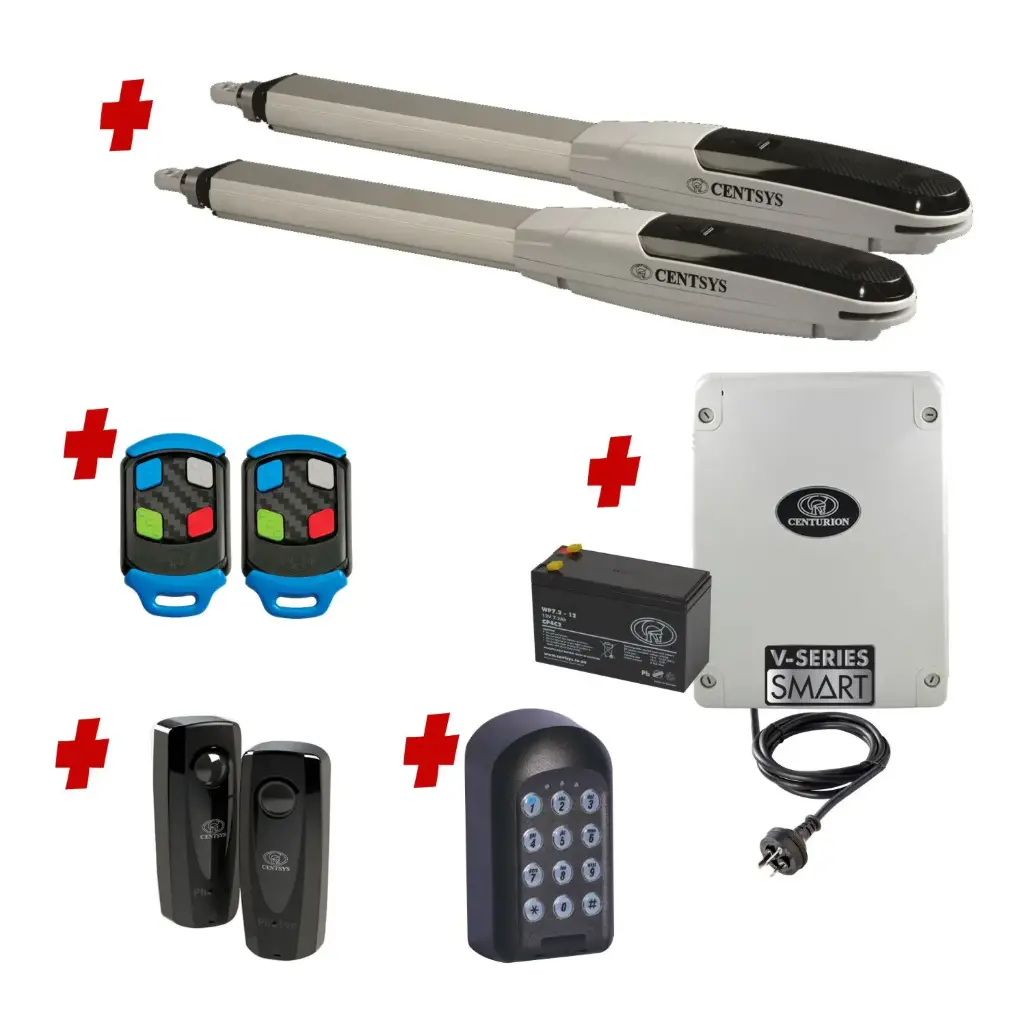

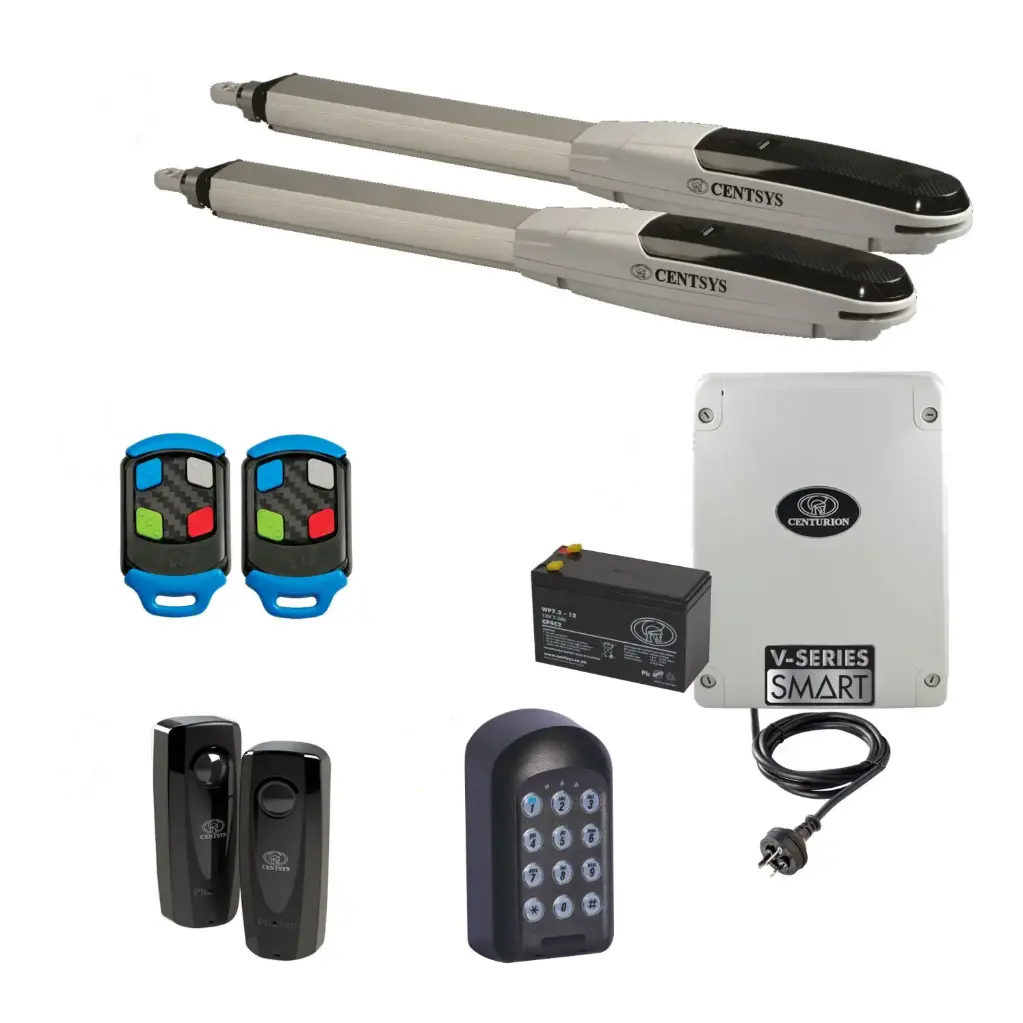

Centsys V500 Smart (240V) Double Swing Gate System with Keypad

Centsys V500 Smart (240V) Double Swing Gate System with Keypad

Kit Part No: V500-2d-P-AS
Long Stroke
https://www.alphaautomation.com.au/web/image/product.template/8173/image_1920?unique=88271bd

$ 2,039.00 2039.0 AUD $ 2,039.00 Tax Included

Not Available For Sale

  • Gate Opener Brand
  • Warranty
  • Swing Gate Thrust/Torque
  • Model
  • Maximum Swing Gate Size (each)
  • Operating Method

This combination does not exist.

Delivery
In-store
Click & Collect
Freight from Loading...

2 Year Warranty

Brand: Centsys (Centurion)

Contact Us
Gate Opener Brand: Centsys
Warranty: 2 Year
Swing Gate Thrust/Torque: 2500N
Model: V500
Maximum Swing Gate Size (each): 4m/4.2m
Operating Method: Remotes & Pin Code Keypad

Terms and Conditions

Share

Please note the V500 actuator brackets do require welding according to the installation requirements and the V500 uses a only high quality shielded cables for the encoder (not ordinary cable), this can be purchased in the add on's


Centsys V500

The Centsys V500 is a Higher push force gate operator in the 12V operating voltage range. When setup for inwards opening its origin clamp is used as the retracted open position stop point making it a simple to mechanically install operator.

Its high cycle capability allows for up to light commercial use of 50 cycles per hour with uninterrupted operation thanks to a Centsys standard battery backup system which is automatically charged whilst power is available. Being a installer grade product all post and gate bracket plates are included but do require welding together to suit the site specific geometry requirements.

Key Features


✓ SMART Controller (Complete configuration by mobile APP)
✓ South African Design
✓ Travel Encoder Based System
✓ Robust Heavy Duty Die-Cast Housing
✓ Adjustable Origin Open collar for MAX. Full open position (pull to open)
✓ Universal Left or Right Side
✓ Support's inwards and Outwards Opening

SMART Control Board

 All setup and settings are made completely by the smartphone APP via a direct Bluetooth connection


ROBUST

High strength Die-Cast housing for complete Uncompromised quality.

Collar Setting

MAX. Open position set by a simple mechanical collar.



Installation Requirements

Dimensions

V500 Specifications

Input voltage 90V - 240V AC ±10%, 50/60Hz
Motor voltage 12V DC
Motor power supply Battery-driven (standard capacity - 7.2Ah)
Battery charger 1.8A @ 13.8V
Current consumption (mains) 170mA
Current consumption (motor at rated load) 15A - Maximum
Operator push force - maximum 250kgf
Operator stroke 500mm
Piston extention / retraction speed 28mm/sec (variable)
Typical gate opening time3 17.8 sec
Manual override Key release
Maximum number of operations per day 250
Duty cycle - Mains present5,6 50%
Operations in standby with 7.2Ah battery7
Half day 70 cycles
Full day 58 cycles
Collision sensing Electronic
Operating temperature range -15°C to +50°C
Degree of protection IP55
Controller incorporated Vx SMΔRT in separate wallbox
Onboard receiver type NOVA code-hopping onboard multichannel
Receiver frequency 433.92MHz
Receiver code storage capacity 60 transmitter buttons

Wind Loading


Gate length 1.5m 2m 2.5m 3m 3.5m 4m
Gate height 1.8m 1.8m 1.8m 1.8m 1.8m 1.8m
Allowable wind speed 25% clad(km/h) 134 100 79 67 58 51
Allowable wind speed 100% clad (km/h) 67 50 39 33 29 25

Photon 30 Wired One Side Infrared Beam

For a totally wireless solution for Centsys SMART systems only consider the Photon Smart which is battery operated for both sides.

The Photon sensor allows prevents the gate closure if there is a an obstacle between the sensors. The reciever sensor which is closest to the control board is wired directly to the control board, where as the Transmitter on the far side is powered by 2x AA batteries.

Multiple sensors can be installed for additional protection in the installation, the maximum range between both the transmitter and reciever sensor is 30 meters.

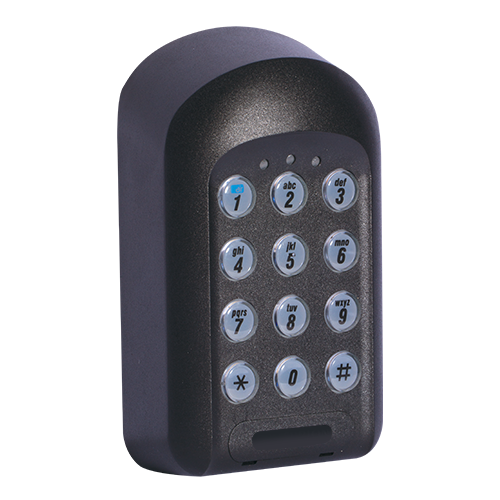

Centsys Smart Guard Air


Fully Wireless Design

Say goodbye to messy wiring. The wireless design ensures quick, clean installations with a professional finish.

1000 Unique Codes

Supports up to 1000 unique access codes, each customisable from 1 to 10 digits, to fit your needs.

Backup Memory Module

Keeps your programmed codes secure, even during power interruptions.

Control Multiple Devices

Operate up to 15 devices wirelessly, making it ideal for multi-access properties.

Extensive Compatibility

Seamlessly integrates with CENTURION SMΔRT gate motors, garage door motors, traffic barriers, and external NOVA receivers.

Temporary Access Control

The downcounter feature lets you issue single-use codes for visitors or service providers.
