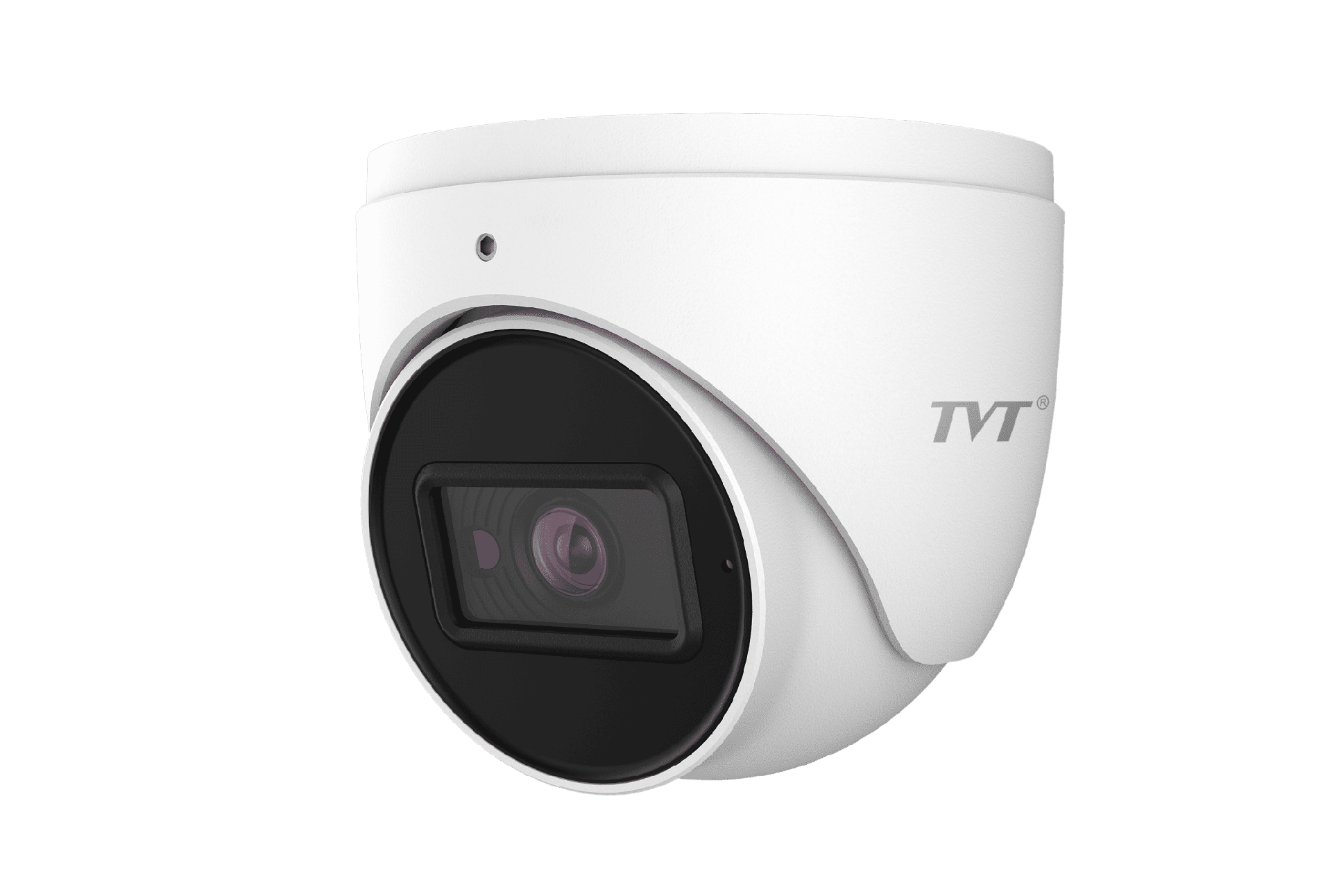

TD-9564S4 Overview
✓H.265+ /H.265 /H.264+/H.264/MJPEG coding
✓6MP IR Water-proof Mini Eyeball
✓Network Camera
✓Starlight performance
✓Max.resolution: 6MP ( 3072 × 2048)
✓ICR auto switch, true day / night vision
✓3D DNR, WDR, HLC, BLC, smart IR, etc.
✓ROI coding
✓20~30m IR night view distance
✓Built-in micro SD card slot, up to 256GB
✓DC12V/PoE power supply
✓IP 67 ingress protection
✓Support three streams
✓Intelligent analytics
✓6MP IR Water-proof Mini Eyeball
✓Network Camera
✓Starlight performance
✓Max.resolution: 6MP ( 3072 × 2048)
✓ICR auto switch, true day / night vision
✓3D DNR, WDR, HLC, BLC, smart IR, etc.
✓ROI coding
✓20~30m IR night view distance
✓Built-in micro SD card slot, up to 256GB
✓DC12V/PoE power supply
✓IP 67 ingress protection
✓Support three streams
✓Intelligent analytics

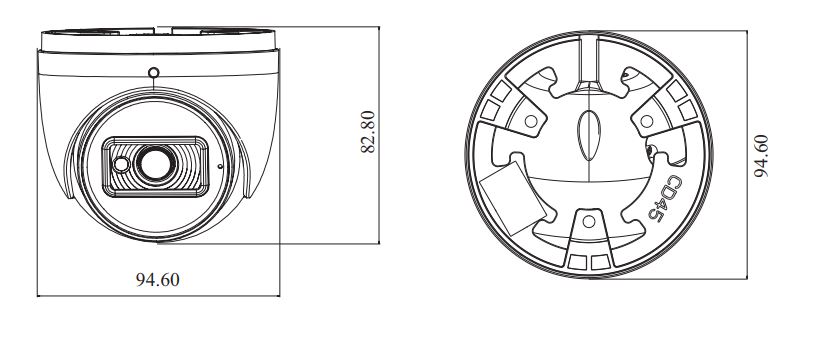

Dimensions and Overview

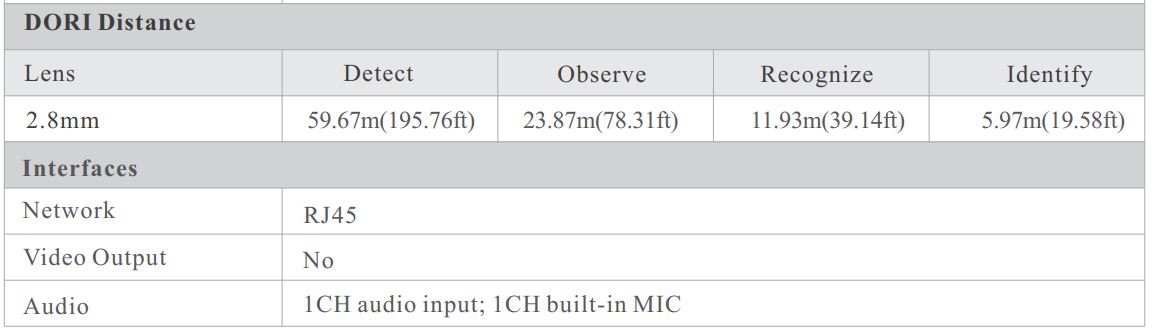

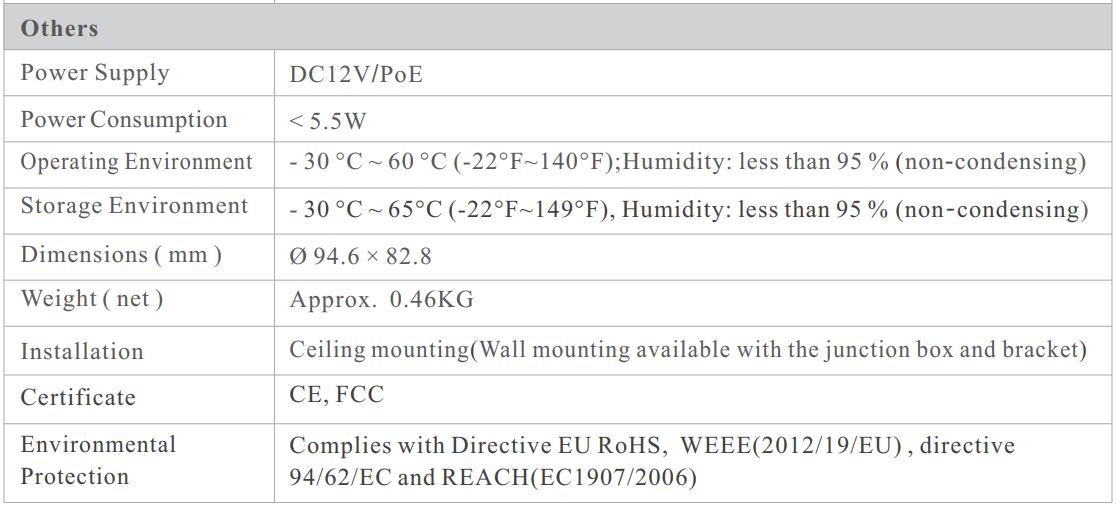

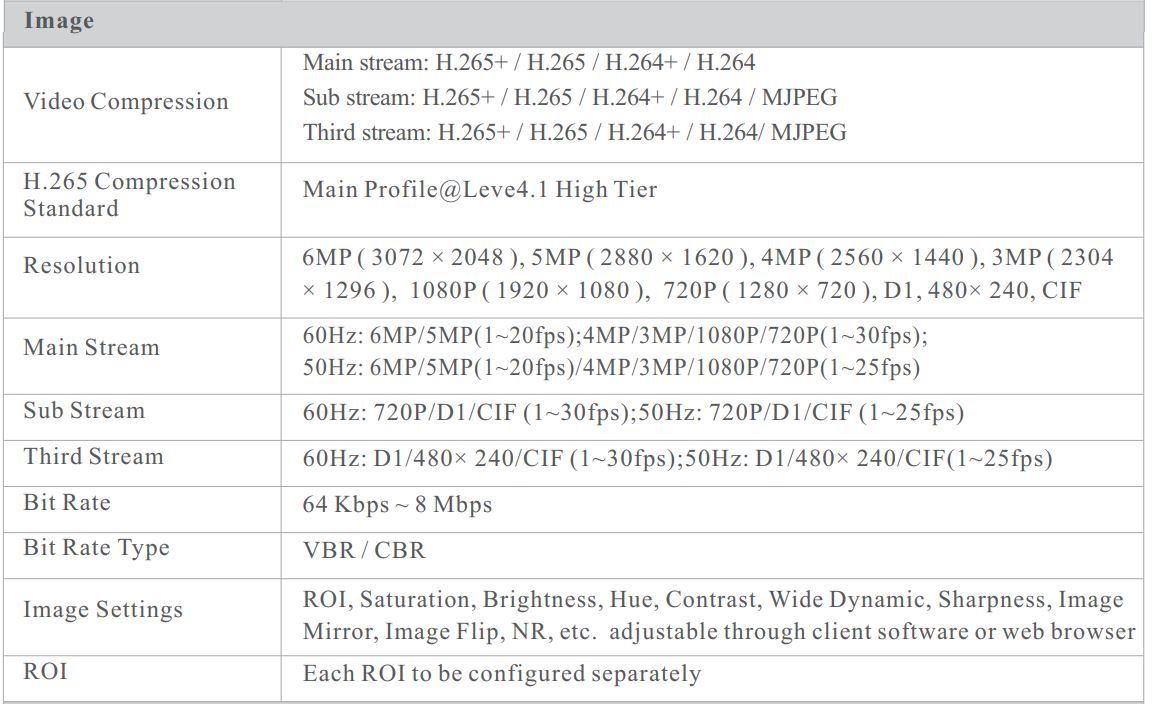

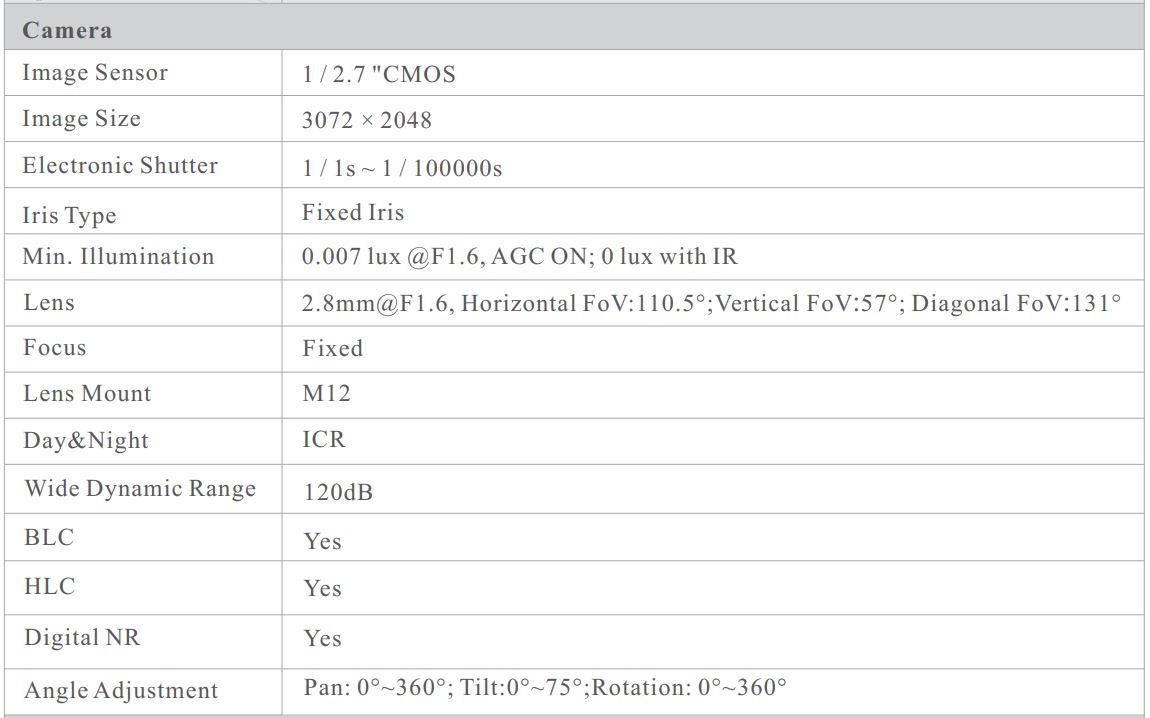

Specifications

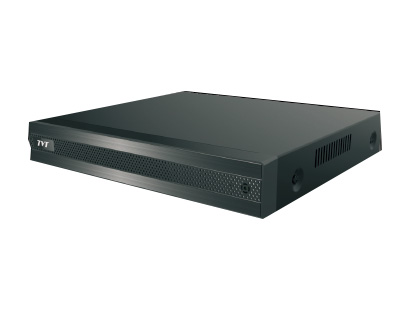

This series supports 4 CH POE NVR Supports 6MP/5MP/4MP/3MP/1080P/960P/720P high definition IP video input, which adopts the advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. This series integrates with 4 PoE network ports , simultaneous 4 CH playback,
and 1080P high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Overview
✓Support 4CH 6MP/5MP/4MP/3MP/1080P/ 960P/720P/960H/✓DI/CIF IP video input
✓H.265S/H.265+/H.265/H.264 coding
✓Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
✓operation by mouse
✓Multi-type recording: manual / timed / motion / sensor / POS / AI recording
✓Playback : 4 CH simultaneous playback
✓Search : time slice, time, event, tag, smart search
✓Support multiple VCA (Video Content Analytics) events, such as object
✓abandoned/missing, region intrusion, tripwire, video exception, crowd density, etc.
✓Support POS information overlay on live view and playback
✓Express and flexible backup via USB, network and so on
✓Support preview, record, playback, backup and remote access
✓DHCP, DDNS, PPPoE network protocol
✓4 PoE network ports; IPCs can be directly connected to NVR; PoE power supply supported
✓Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
✓Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
✓Authorization management, log view and device status view
✓1080P HD output, true high resolution display
✓Support NAT function and QRCode scanning by mobile phones
✓Powerful mobile surveillance by smart phones with iOS and Android OS

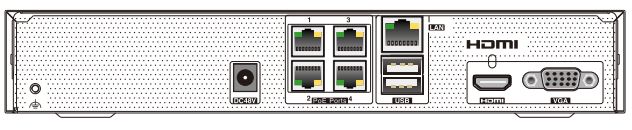

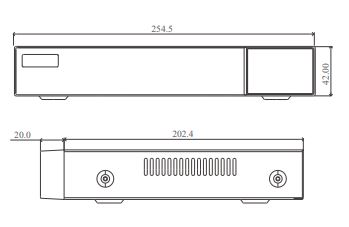

Dimensions and Overview

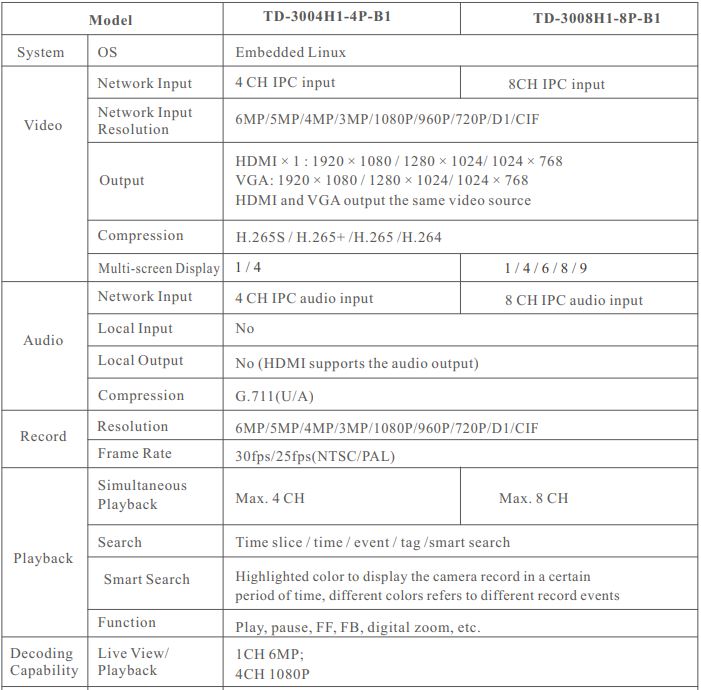

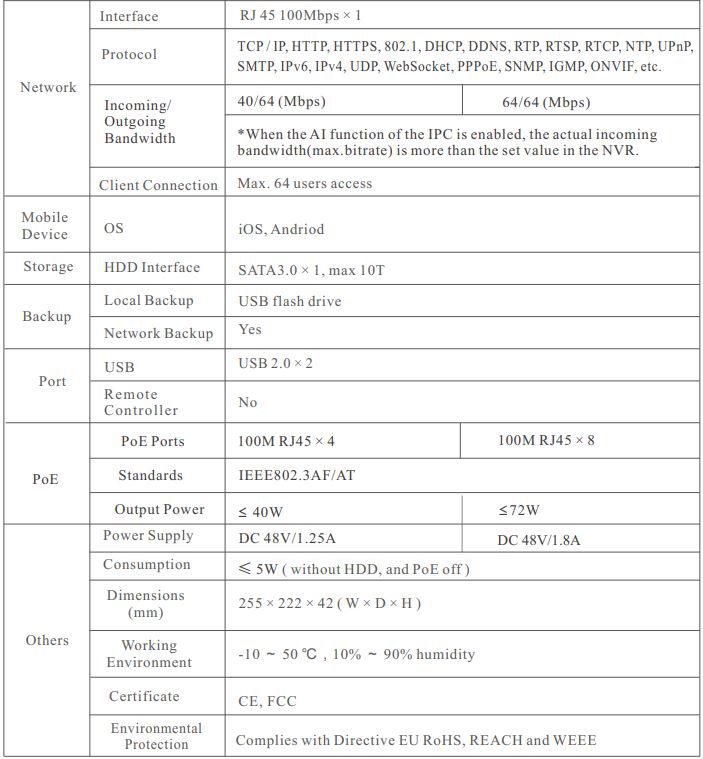

Specifications
