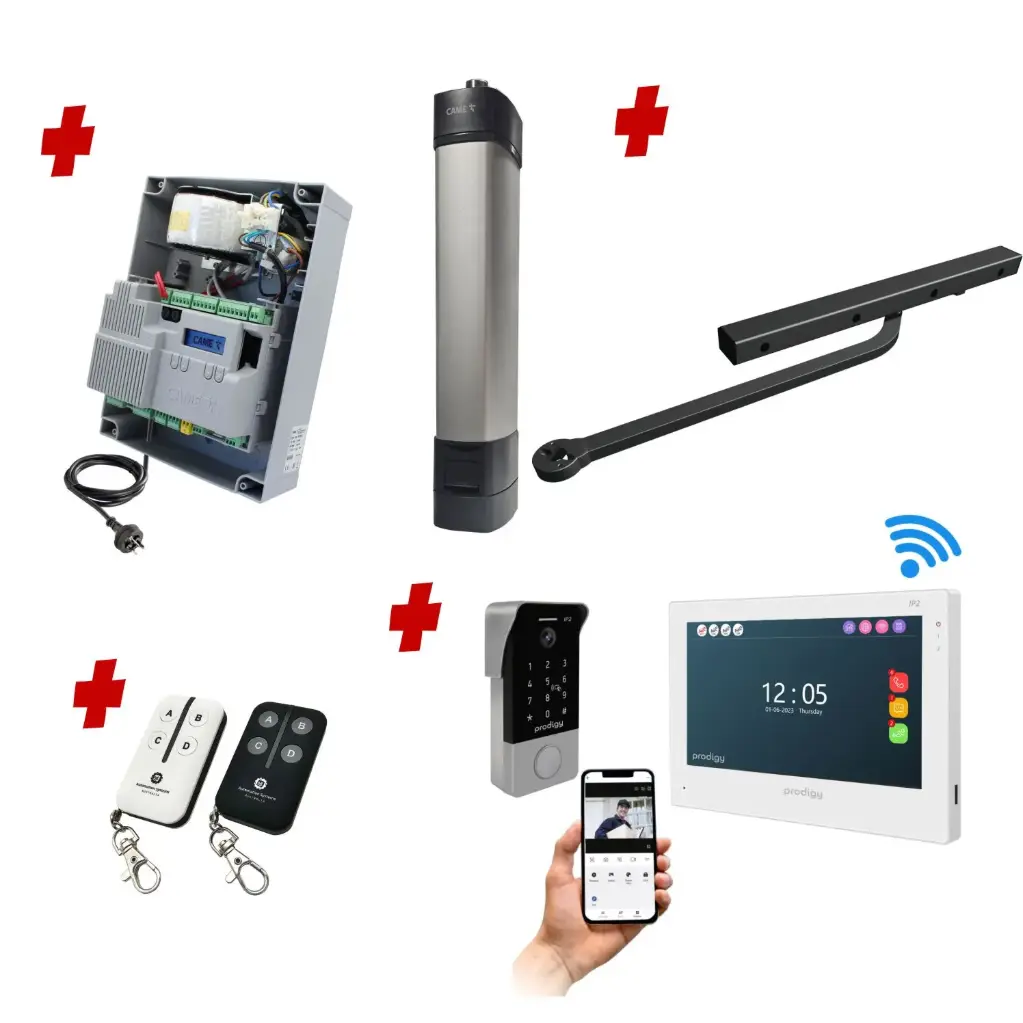

STYLO Pedestrian Gate Operator KIT with Remote Controls and Mobile APP Intercom

STYLO Pedestrian Gate Operator KIT with Remote Controls and Mobile APP Intercom

Kit Part No: STYLO-1S-ZLX24-P-BK+IP2

100mm Clear Area!

$ 2,208.00 2208.0 AUD $ 2,208.00 Tax Included

Gate Opener Brand
- CAME
Swing Gate Thrust/Torque
- 100nM
Model
- Stylo
Warranty
- 2 Year
Maximum Swing Gate Size (each)
- 1.8m
Sliding Gate Max. Weight Capacity
- 150KG
Operating Method
- Remote Controls Only

This combination does not exist.

Add to cart

Delivery

In-store

Click & Collect

Freight from Loading...

2 Year Warranty

Brand: CAME

Gate Opener Brand: CAME

Swing Gate Thrust/Torque: 100nM

Model: Stylo

Warranty: 2 Year

Maximum Swing Gate Size (each): 1.8m

Sliding Gate Max. Weight Capacity: 150KG

Operating Method: Remote Controls Only

Terms and Conditions

⚠️ This product is a Base Kit and is not supplied with Photocells (Safety Beam), it is available in the "Add ons" Tab.

STYLO Ultra Slim Self-Locking (Irreversible)

The STYLO BD Operator is an Extremely solid cylindrical operator with a non-obtrusive Slimline design (only 100mm of post including clear area when open).

The STYLO makes easy work of gates from 1200mm to 1800mm width and up to 150kg. This operator suits gates UP TO 200mm in thickness.

The STYLO swing arm with sliding channel incorporates an adjustable open position stop and also an adjustable closed position stop.

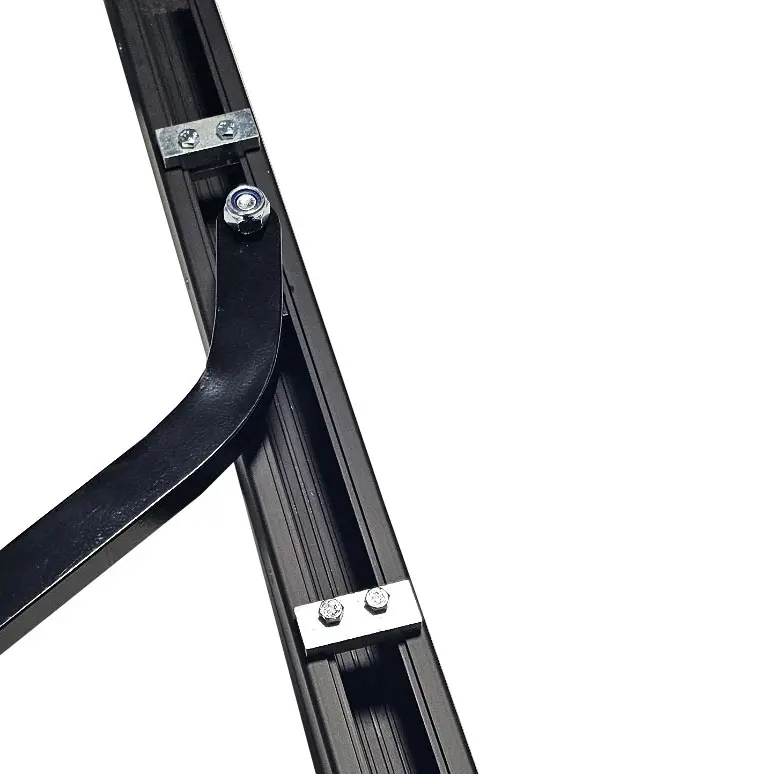

Adjustable Mechanical Stops

With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles (up to 135°), completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the channel.

Seriously Built

A 20mm thickness steel arm connects the STYLO operator from post side to channel. The arm thickness exceeds any specification gate system.

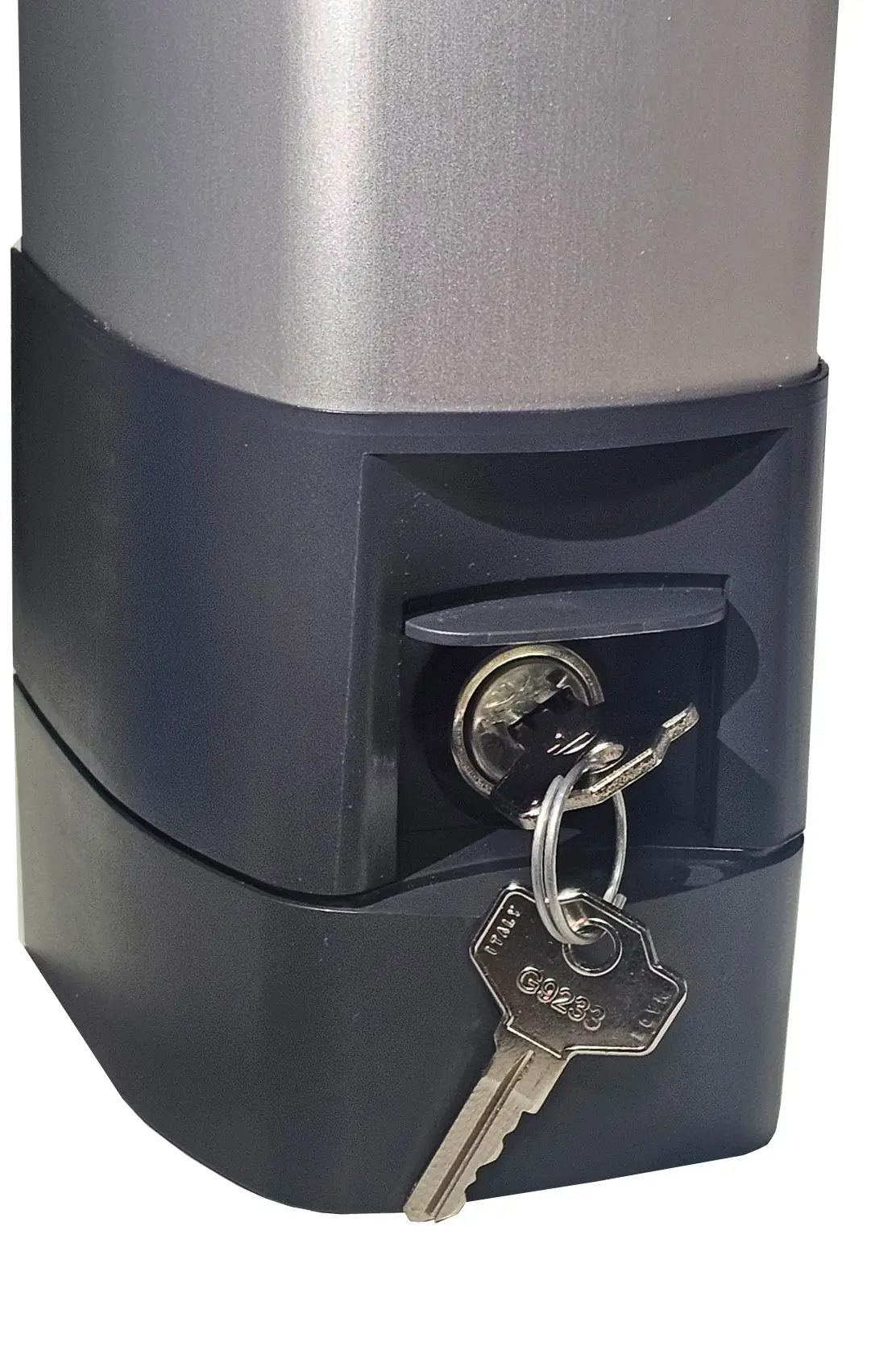

Manual Release

In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.

If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.

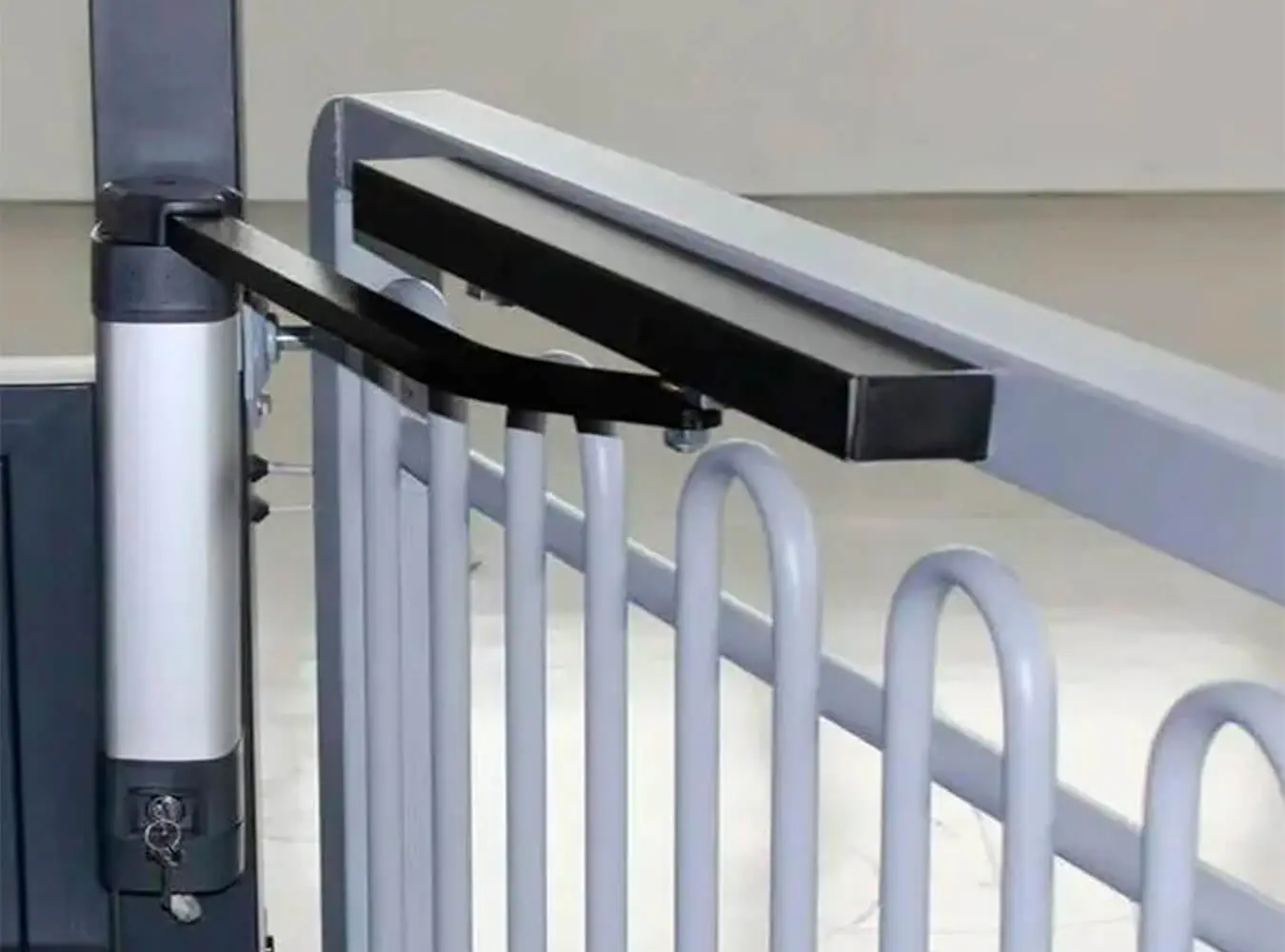

STYLO In Action

A Non-Obtrusive Slim design allows the operator to mount to any 100x100 post with a top mounting channel to the gate.

The STYLO BD uses a one arm system allowing for a clean aesthetic.

System Dimensions

Specifications

MIN./MAX. Gate Length	1.2m/1.8m
Maximum Gate Weight	150KG
Maximum Opening Angle	135°
Encoder	Yes
Motor Power (Volts)	24V DC
Power (Watts)	48W
Operating Temperature	-20° to +55° C
Channel Length	640mm
Torque (N)	100nM Max
Duty Cycle	80%+

Top of the Line ADVANCED Digital Control Box

zlx24 control board box advanced features and made in italy with long service life

The most ADVANCED AND EASY to use control board in the gate automation industry, the ZLX24 features an endless option list and configurability.

Starting with the casing the ZLX24 control box itself has 8 cable entry point four from the rear and four from the bottom side. The box can be fixed to the wall in a traditional manor being a fixing screw in each corner, or alternatively a DIN rail is supplied for its direct to DIN mounting system.

The control board itself is encased in a complete housing within the box to prevent short circuit and accidental touching of components, during the installation the control board easily unclips revealing its module storage and cable management routes, this simplifies the installation for feeding wiring through without any chance of damage.

Overview of the Features

Power Inputs and Outputs

Typical input and outputs to power the system and any wired in accessories

24V Power Input

24V Power Output For Accessories

Automatic Weekly Timer

Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

Selective choice of the 7 Days of the week settings, or the entire week

12/24 Hour Format

EACH timer event can be configured to Open the gate, Partial Opening or B1-2 Output Activated

Configurable Methods Of Operation

Along with the on board weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.

ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen

Full Gate Operation by remote

Partial by remote (Opens the gate partially)

Open Only by remote

Close Only by remote

Open/Close Input by Wired Accessories

Open only Input by Wired Accessories (loop Detector)

Close only Input by Wired Accessories (loop Detector)

Wired Emergency STOP Button

Remote Operation

The remote buttons can individually be programmed to work in any of the below settings for each button.

OPEN-CLOSE (Reverting action if pressed part way through a cycle)

OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)

Partial Operation

RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)

Motor Specifics

Default configurations are already set however, if required further adjustment can be made to suit all installations

ENCODER Control

Automatic Calibration (with Adjustable Calibration Speed)

Motor Test (used for checking your directions prior to calibration)

Adjustable Thrust

Adjustable Travel Speed

Adjustable Sensitivity

Adjustable Slowdown Speed

Adjustable Slowdown Position (Two Stages)

Safety Devices

Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.

Supports Photocell Sensors

Supports Reflective Sensors

Supports Safety Edge

Supports Induction Loops for Safety

Supports STOP Button

Supports Maintained Action (Hold to OPEN/CLOSE)

Added Electric Lock Security

Added protection for the gate and gate system if wind is a factor or in a high risk setting

Automatic Electric Lock (Adjustable Time) with Reverse Thrust Feature

Control Board Security

A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the ZLX24 menu.

Light Control

Multiple options for visible safety alerts, illuminating the driveway OR Both

Flashing/Static Illuminated Light from OPEN til CLOSED

Additional Output for Flashing During Opening

Operational Control

Infinite support for accessories and methods of operation

Remote Controls

Wireless Keypads

Wired Keypads

Wired Button

Induction Loops

Intercom Systems

Relay Output B

Default Can be set to work on a remote button and/or by the weekly timer

Set to a latching ON/OFF Circuit

Can be used to trigger an alarm, garage door or another gate

Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad

Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.

Dimensions

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

IP Based 2 Wire Intercom Package with Free Cloud Based Mobile APP For Multi Users

FEATURING CLOUD INTERCOM FOR ALL INCOMING/OUTGOING TO YOUR MOBILE SIMULANEOUSLY (Two options of FREE 5 Star APP's for all mobile phones - Tuya Smart and Smart Life - OVER 15 Million Users Combined

Finally a FULL HD 2 wire system with unrivaled feature set and easy installation. The prodigy HD 2 wire systems offer all the typical features of an intercom such as day/night vision, unlocking capabilities and Totally 2 wire connection between indoor monitor and outdoor unit (no need for a power supply at the outdoor unit).

At the weatherproof outdoor unit a 148° wide angle outdoor station camera with CMOS sensor with Unlocking by Pin code or RFID card. At the internal monitor a true ultra large 7" touch screen, video recordings, photo snapshots, multi monitor communications, multi door/gate lock control, away mode with voicemail, multiple ring melodies and schedules and so much more, truly unrivaled.

General System Features

✓ Built in Wi-Fi Card to allow direct connection to your internet allowing for SIMULTENOUS APP and Monitor Calls from guests with low latency
✓Totally Free 5 star rated Mobile APP available from Apple APP Store and Google Play (Effectively All modern phones)
✓ Can be powered by the supplied power adapter or by the BUS power line (BUS Distribution module is required)
✓True 7" Touch Screen Display (HD)
✓Video recordings and photo snapshots of guest who press the doorbell
✓Voicemail feature as standard, selectively turned on when required to prompt guest to leave a message (Video and Audio recording)
✓Three pre-loaded display themes to choose from based on UI preference
✓Standby screen OFF/Calendar/Time with clear indicators of missed calls and voicemails
✓Multi time schedules for different ring tones and volumes of the ring tones, ex. At night the ringing volume could be low or muted, during the day it could be configured to a higher volume ✓Multi Monitor intercommunication calls allows for communication with others in the home between different screens. Selectively call an individual monitor OR call all monitors
✓Home/Away and Do Not Disturb Setting By hot Key for quick switching

Free Class Leader Mobile APP Integration

A very brief overview of the mobile APP's typical features such as Door and gate release, photo and video recordings, playback with so much more useful features left to explore. tuya smart life app intercom system

Totally Free Mobile App for ALL DEVICES, Secure, Safe and 5 Star Rated

✓Simultaneously receive video intercom calls to MULTIPLE phones simultaneously with the indoor monitor
✓Door release for all connected locks/automatic gates/garage doors
✓Video recordings and photo snapshots can be taken in the APP and stored locally or optionally to cloud
✓Total Control - Monitor the outdoor station at any time by simply opening the APP on your phone and selecting the intercom

Download the highly rated APP Tuya Smart or Smart Life From App Store on your mobile device for FREE

IP Based HD 2 Wire Access Control Outdoor Station Features

✓Full HD 1080 Resolution 2 Megapixel CMOS Camera
✓Supports up to 199 different PIN code numbers
✓RFID card reading feature built in as standard
✓Wide angle 148° Outdoor station for the widest field of view
✓No additional wires or power supplies required, communications and power are all via the 2 wire line ✓Outdoor weatherproof design IP54
✓Night vision allows for identification of guests at all times
✓Backing plate gasket provided to prevent ingress of insects
✓Adjustable Ring tone volume at outdoor station to prevent neighbors complaining (No Ringing/Select the volume)
✓ON/OFF Setting of the outdoor stations illumination ring around the call button

Door/Gate release features: Unlock by Outdoor station, indoor monitor or mobile phone Release connection from the back of the outdoor station with the ability to from all positions - Unlock by Outdoor station, indoor monitor, mobile phone, exit button (Voltage Free Relay OR N/O,N/C with 12V DC)

2 Wire HD Touchscreen Indoor Monitor Features (with WiFi Cloud and Mobile APP)

✓Built in Wi-Fi to allow direct connection to your internet allowing for SIMULTENOUS APP and Monitor Calls from guests with low latency (* Latency is based on internet speed)
✓Totally Free 5 star rated Mobile APP available from Apple APP Store and Google Play (Effectively All modern phones)
✓True 7" Touch Screen Display (HD)
✓Motion detection with recordings to SD card
✓Video recordings and photo snapshots of guest who press the doorbell
✓Voicemail feature as standard, selectively turned on when required to prompt guest to leave a message (Video and Audio recording)
✓Three pre-loaded display themes to choose from based on UI preference
✓Standby screen OFF/Calendar/Time with clear indicators of missed calls and voicemails
✓Multi time schedules for different ring tones and volumes of the ring tones, ex. At night the ringing volume could be low or muted, during the day it could be configured to a higher volume
✓Multi Monitor intercommunication calls allows for communication with others in the home between different screens. Selectively call an individual monitor OR call all monitors
✓Home/Away and Do Not Disturb Setting By hot Key for quick switching

Indoor Monitor Pre Loaded Themes

Pre-Loaded themes make easy choosing of your desired user interface based on personal preference, the style is easily changed from the systems menu with three to choose from.

Flexible Cabling System

maximum cabling distance of 2 wire intercom

Cabling Requirements

2 Core Cable		Up to 150 Meters Using 0.75mm Pair
2 Core Cable		Up to Up to 50 Meters using 0.5mm Pair
Cat 5 and Cat 6 Cables		Up to 30 Meters using Cat 5, Cat5e, Cat 6 (all 4 pairs)
Security Cable .020		Up to 40 Meters using 4 Core and 6 Core Security Cable (Paired)
