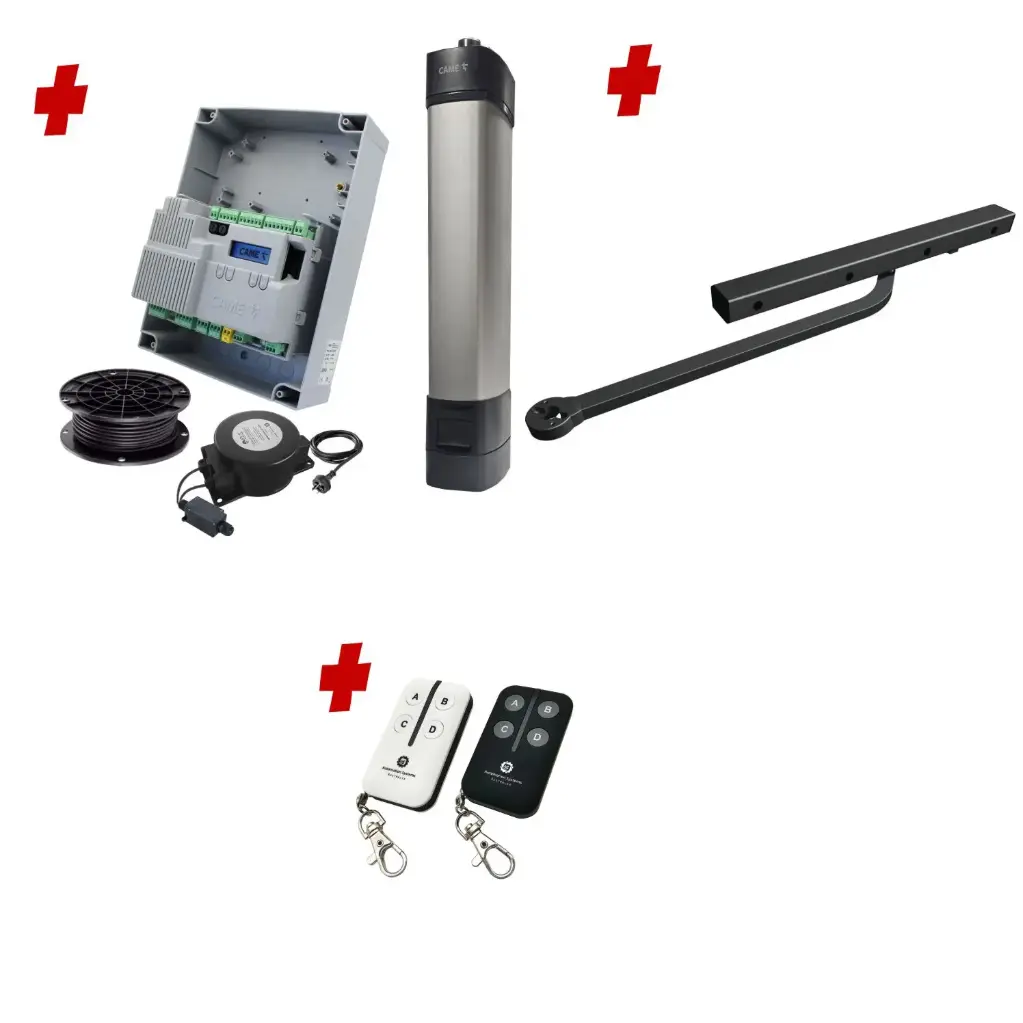

STYLO Pedestrian Gate Operator KIT with Remote Control Operation (Low Voltage Cable Run)
| Gate Opener Brand: CAME |
| Swing Gate Thrust/Torque: 100nM |
| Model: Stylo |
| Warranty: 2 Year |
| Maximum Swing Gate Size (each): 1.8m |
| Sliding Gate Max. Weight Capacity: 150KG |
| Operating Method: Remote Controls Only |
STYLO Ultra Slim Self-Locking (Irreversible)
The STYLO makes easy work of gates from 1200mm to 1800mm width and up to 150kg. This operator suits gates UP TO 200mm in thickness.
The STYLO swing arm with sliding channel incorporates an adjustable open position stop and also an adjustable closed position stop.
Adjustable Mechanical Stops
With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles (up to 135°), completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the channel.
Seriously Built
A 20mm thickness steel arm connects the STYLO operator from post side to channel. The arm thickness exceeds any specification gate system.
Manual Release
If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.
STYLO In Action
A Non-Obtrusive Slim design allows the operator to mount to any 100x100 post with a top mounting channel to the gate.
The STYLO BD uses a one arm system allowing for a clean aesthetic.
System Dimensions
Specifications
| MIN./MAX. Gate Length | 1.2m/1.8m |
| Maximum Gate Weight | 150KG |
| Maximum Opening Angle | 135° |
| Encoder | Yes |
| Motor Power (Volts) | 24V DC |
| Power (Watts) | 48W |
| Operating Temperature | -20° to +55° C |
| Channel Length | 640mm |
| Torque (N) | 100nM Max |
| Duty Cycle | 80%+ |
Top of the Line ADVANCED Digital Control Box
The most ADVANCED AND EASY to use control board in the gate automation industry, the ZLX24 features an endless option list and configurability.
Starting with the casing the ZLX24 control box itself has 8 cable entry point four from the rear and four from the bottom side. The box can be fixed to the wall in a traditional manor being a fixing screw in each corner, or alternatively a DIN rail is supplied for its direct to DIN mounting system.
The control board itself is encased in a complete housing within the box to prevent short circuit and accidental touching of components, during the installation the control board easily unclips revealing its module storage and cable management routes, this simplifies the installation for feeding wiring through without any chance of damage.
Overview of the Features
Power Inputs and Outputs
Typical input and outputs to power the system and any wired in accessories
24V Power Input24V Power Output For AccessoriesAutomatic Weekly Timer
Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).
Selective choice of the 7 Days of the week settings, or the entire week 12/24 Hour FormatEACH timer event can be configured to Open the gate, Partial Opening or B1-2 Output ActivatedConfigurable Methods Of Operation
Along with the on board weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.
ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screenFull Gate Operation by remotePartial by remote (Opens the gate partially)Open Only by remoteClose Only by remoteOpen/Close Input by Wired AccessoriesOpen only Input by Wired Accessories (loop Detector)Close only Input by Wired Accessories (loop Detector)Wired Emergency STOP ButtonRemote Operation
The remote buttons can individually be programmed to work in any of the below settings for each button.
OPEN-CLOSE (Reverting action if pressed part way through a cycle)OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)Partial OperationRELAY OUTPUT/STAY OPEN Feature (Pause automatic close)Motor Specifics
Default configurations are already set however, if required further adjustment can be made to suit all installations
ENCODER ControlAutomatic Calibration (with Adjustable Calibration Speed)Motor Test (used for checking your directions prior to calibration)Adjustable ThrustAdjustable Travel SpeedAdjustable SensitivityAdjustable Slowdown SpeedAdjustable Slowdown Position (Two Stages)Safety Devices
Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.
Supports Photocell SensorsSupports Reflective SensorsSupports Safety EdgeSupports Induction Loops for SafetySupports STOP ButtonSupports Maintained Action (Hold to OPEN/CLOSE)Added Electric Lock Security
Added protection for the gate and gate system if wind is a factor or in a high risk setting
Automatic Electric Lock (Adjustable Time) with Reverse Thrust FeatureControl Board Security
A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the ZLX24 menu.
Light Control
Multiple options for visible safety alerts, illuminating the driveway OR Both
Flashing/Static Illuminated Light from OPEN til CLOSEDAdditional Output for Flashing During OpeningOperational Control
Infinite support for accessories and methods of operation
Remote ControlsWireless KeypadsWired KeypadsWired ButtonInduction LoopsIntercom SystemsRelay Output B
Default Can be set to work on a remote button and/or by the weekly timer
Set to a latching ON/OFF CircuitCan be used to trigger an alarm, garage door or another gateCan be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.
Dimensions
24V Low Voltage External Transformer
The External 24V Transformer is designed to be installed outdoors on a wall or a post or optionally in a garage/carport. The transformer will plug into an ordinary power point and output a safe 24 Volt LOW VOLTAGE supply to the gate system.
Built to a high specification the unit it is capable of a low voltage run of up to 100 meters making it suitable for most installations that do not have a power point nearby to the system.
Key Features
✓ Easy to work with
✓ IP66 Outdoor Rated Design
✓ Can work up to 100 meters low voltage cabling distance
✓ Multiple cable roll options available or use your own cable
24V Low Voltage External Transformer
The External 24V Transformer is designed to be installed outdoors on a wall or a post or optionally in a garage/carport. The transformer will plug into an ordinary power point and output a safe 24 Volt LOW VOLTAGE supply to the gate system.
Built to a high specification the unit it is capable of a low voltage run of up to 100 meters making it suitable for most installations that do not have a power point nearby to the system.
Key Features
✓ Easy to work with
✓ IP66 Outdoor Rated Design
✓ Can work up to 100 meters low voltage cabling distance
✓ Multiple cable roll options available or use your own cable
STX4K Keyring High Range Remote
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
