Bi Fold Double Swing Gate (4 Panel) 1.3-1.6m Each with Italian Made Viper 5 (Power Elsewhere)

The VIPER 524 Is a High-End ITALIAN 24 Volt Telescopic actuator in the Extra Heavy Duty Class, Strong and Silent this actuator can swing gate weights of up to 300KG and Gates up to 4.2m (14FT). Construction is solid and smooth from the die-cast inner structure connecting systems internals to the post bracket to the extruded aluminum housing, stainless steel piston, and robust 3/4" Internal lead screw the actuator retains subtle and quiet characteristics but the drive to push gates of most sizes and weights.

 Operations are smooth and efficient using its 24 Volt DC motor system coupled to a 19mm (3/4") lead screw driving the stainless steel "piston" in and out. The end positions are set using the easiest possible method of adjustable limit stops. Limit stops are slid forward/back to adjust both the maximum open and closed positions of the gate, being a mechanical system its a case of set and forget with no further adjustments being required.

Typically the open and closed positions will not require and further stops unless higher wind loads are expected (cladded gates). The Viper series actuators are 100% Universal meaning one actuator could be installed on EITHER side of the driveway as the clever clutch release system (Emergency release) is available on both sides of the actuator. The laser cut steel brackets for the gate and post are constructed from 6mm steel (galvanized) ensuring they are rigid and static with no flexibility or movement. The actuator is suited for both pull to open inwards and also pushing outwards to open installations.

 The Viper 524 has 500mm of usable stroke without the use of included limit stoppers, or effectively a reduction of 30mm per limit stop used (MIN. 440mm/470mm) and has the ability to work with gates from as narrow as 850mm and as wide as 4.2m (14ft) with a maximum weight of 300kg. The prerequisite for a VIPER operator is a gate mounting rail or fitting point at 200mm or greater from the ground level. A 6mm thick Riser plate is included in the package contents to create a mounting point for the actuator if required. A 1 Metre flying lead is pre-connected to the actuator ready to connect to a junction of your choosing. Cable rolls and junction boxes are available as add on items.

✓ Designed and Manufactured in Italy
✓ Fast and Efficient 24 Volt Operation
✓ Metal Transfer Gear
✓ Aluminum Housing
✓ Quiet and discreet
✓ 19mm (3/4") Actuator Lead Screw

✓ Stainless Steel Piston with embedded piston stopper
✓ Open and Closed Position ADJUSTABLE without the need for a gate stop (adjustable limit stops)
✓ Flexible and vast installation geometries

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

The Premier SW24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged setup requiring advanced logic principals taking advantage of the 70% duty cycle. The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SW24 system (see the complete list below).

 Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property. The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers. All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature
✓ Open one gate Pedestrian Mode Feature
 ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time

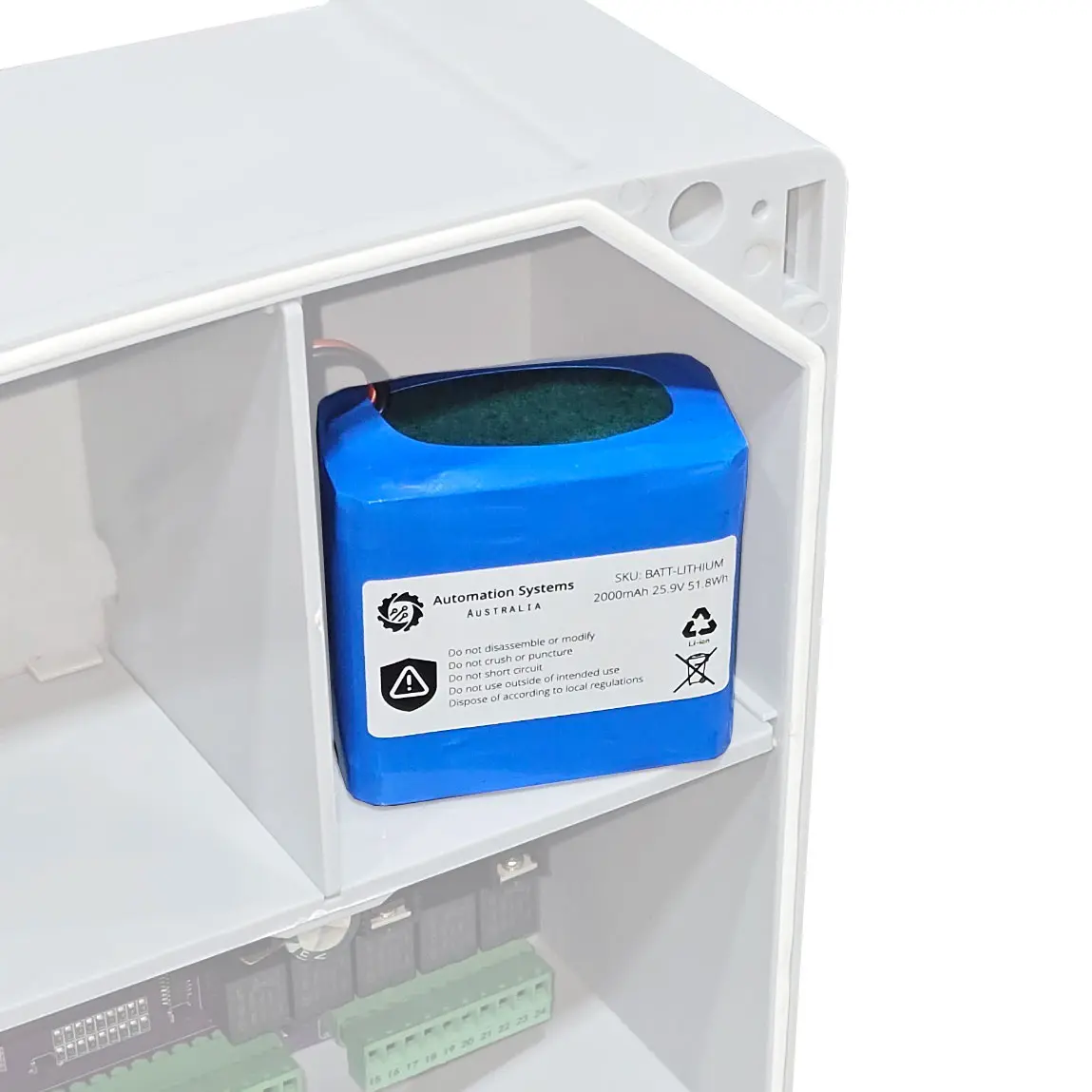

✓ Optional Plug and Play Battery Backup System
✓ Fortress Series Electric and Magnetic Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output

Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)
✓ Typical Complex - Individual Open and Close Command Inputs
✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input

The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 100 meters making it suitable for most installations that do not have a power point nearby to the gate.

Key Features

✓ IP66 Outdoor Rated Design
✓ Can work up to 100 meters low voltage cabling distance
✓ Multiple cable roll options or use your own cable
