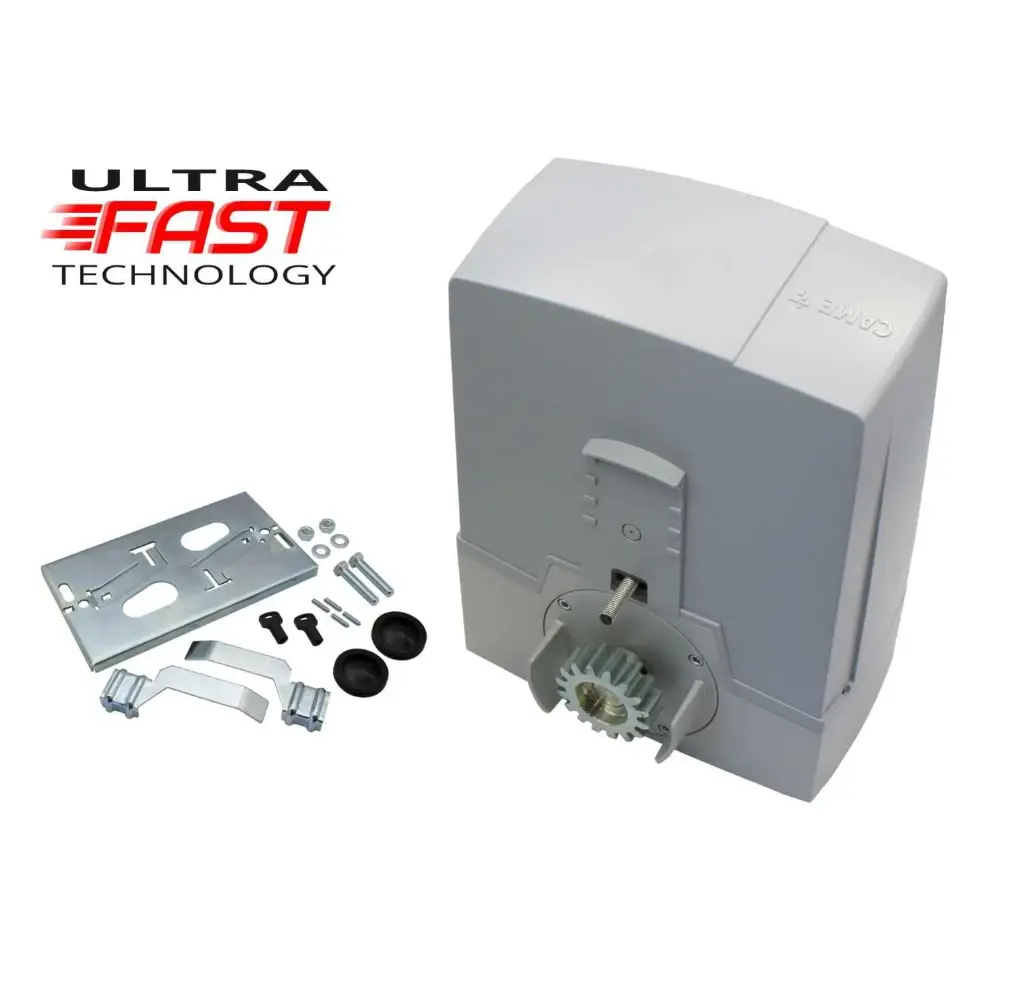

**Special Order** BXV 600 Ultra Fast Heavy Duty Sliding Gate Motor with Limit Switches and Encoder (Internal Transformer)
| Warranty: 2 Year |
| Sliding Gate Max. Width: 20m |
| Sliding Gate Max. Weight Capacity: 600KG |
Please note this is a special order product with a lead time of two days after ordering.
Heavy Duty Sliding Gate Motor with Encoder and Limit Switches
The BXV 600 ULTRA FAST is designed to suit a variety of different applications from typical sliding gates in a domestic home up to extra long 14m length gates in a commercial environment, all this with a 600KG weight capacity. 400KG and 600KG standard versions are also available.
With top of the line features like 3 stage speed control, precise encoder travel and the reliable spring limit system longevity is the basis of design.
All-in-One and Feature Packed
For ease of configuration the cutting edge digital control board is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.
Further key benefits of the BXV system is the motor is controlled by an encoder giving precise and accurate operation along with its slowdowns, all completely adjustable including the speed and slow points.
The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits).
Four point adjustment
As is often the case concreting is never perfect and is more apparent once a motor is installed, this is remedied by the FOUR point adjustment system of the BXV.
Simply adjust each corner of the motor chassis up/down to return the unit to level in both directions. This will allow for easy gear rack installation to the gate since alignment is set to suit
Manual Release
Easy to use manual release incase of power outage. Insert the supplied key and turn to unlock the manual release lever. To release turn the manual release lever and now the gate can be opened and closed manually. If required a battery backup system is available for completely uninterrupted operation. The system is completely housed within the unit.
Specifications
PLEASE NOTE: When using a FAST motor its important that your gate is sliding across LEVEL ground, if on a slope the BXV 600 Standard Speed is available and will be better suited.
| Maximum Gate Width | 18M |
| Maximum Gate Weight | 600KG Each |
| Speed (M/Min) | 22M/Min |
| Encoder | Yes |
| Motor Power (Volts) | 24V DC |
| Power (Watts) | 240W |
| IP Rating | 44 |
| Operating Temperature | -20° to +55° C |
| Thrust (Nm) | 330N |
| Duty Cycle | 80% |
Digital Control Board
By default the control board will be pre-configured for the best typical settings for most users however with the onboard digital display and easy to use scroll buttons the configuration options are almost endless. Out of the box it will be configured for Both Full Gate OPEN/CLOSE + Partial Opening Function (a set amount of the gates travel) in a home you would just enable and set the automatic close timer (if required) and that's it. However in an installation with a longer driveway you may want to adjust the pedestrian command to be an OPEN ONLY input allowing for the use of a loop detector to be used to detect vehicles approaching the gate and open automatically (and optionally close on the automatic close timer if enabled)
Power Inputs and Outputs
Typical input and outputs to power the system and any wired in accessories
24V Power Input24V Power Output For AccessoriesConfigurable Methods Of Operation
Wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and partial opening
Full Gate OperationPartial (Opens the gate partially for pedestrian access) Open OnlyClose OnlyMotor Specifics
Default configurations are already set however, if required further adjustment can be made to suit all installations
ENCODER ControlAutomatic Calibration (with Adjustable Calibration Speed)Motor Test (used for checking your directions prior to calibration)Adjustable ThrustAdjustable Travel SpeedAdjustable SensitivityAdjustable Slowdown SpeedAdjustable Slowdown PositionLight Control
Multiple options for visible safety alerts, illuminating the driveway OR Both
Flashing/Static Illuminated Light from OPEN til CLOSEDAdditional Output for Flashing During Opening
Safety Devices
Plenty of support to protect occupants, visitors and there vehicles
Supports Photocell SensorsSupports Reflective SensorsSupports Safety EdgeSupports Induction Loops for SafetySupports STOP ButtonSupports Maintained Action (Hold to OPEN/CLOSE)Operational Control
Infinite support for accessories and methods of operation
Remote ControlWireless KeypadsWired KeypadsWired ButtonInduction LoopsIntercom SystemsHeavy Duty Sliding Gate Motor with Encoder and Limit Switches
