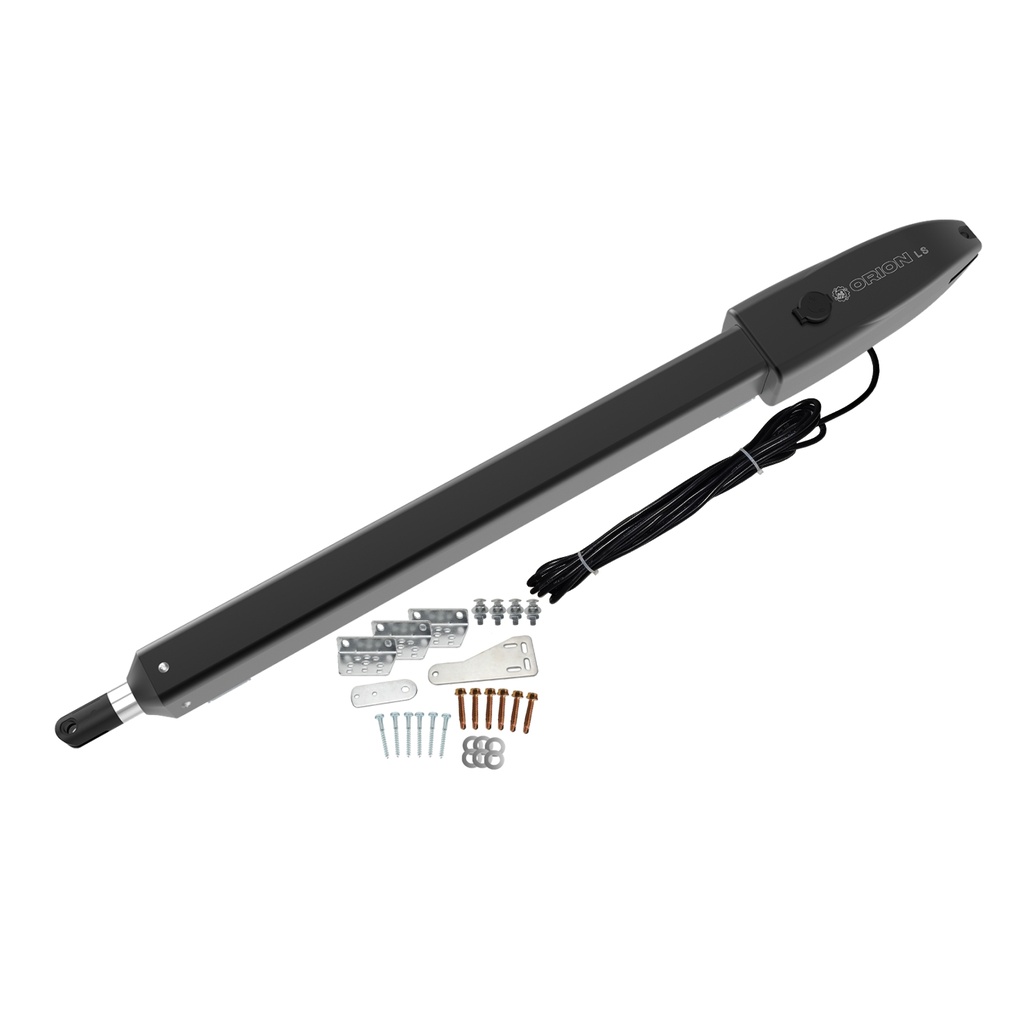

Orion LS 24V (With Limit Stops) Slimline Automatic Driveway Electric Gate Linear Actuator with 7 Metre Cable
| Gate Opener Brand: Automation Systems Australia |
| Swing Gate Thrust/Torque: 1200N |
| Model: Orion LS |
| Warranty: 1 Year |
| Maximum Swing Gate Size (each): 4m/4.2m |
Orion LS Slimline Low Voltage 24 Volt Driveway Linear Actuator Gate Motor
Constructed from a die-cast alloy rear housing for the DC motor and metal gear set and an extruded aluminum housing for the stainless steel telescopic piston it retains a subtle yet modern appearance with plenty of strength for most applications of low resistance/low wind loading gates.
Operations are smooth and efficient using its 24 Volt DC motor system transferred to its steel lead screw through its metal gear set. The end positions are set using the retracted stroke (in) and a gate stop for its expanded stroke (out).
The Orion LS now boasts a maximum of 510mm usable stroke and also two ADJUSTABLE limit stops built in (one for the OPEN position and one for the CLOSED position), the usable amount of stoke whilst retaining the two limit stops is 440mm being each limit stop (individually removable) occupies 35mm of area.
Key Features
✓ Subtle and Quiet
✓ Open and Closed Limit Stops
✓ Large Stroke as standard
✓ Die-Cast Housing and Extruded
✓ Stainless Steel Piston with Metal Gear Set
✓ Only Two Wires Back to Gate Control Box
✓ Flexible and vast installation geometries
✓ Pre-Connected 7 Metre 1.5mm Double Insulated PVC Cable
Overview of the Orion Actuator
Robust Case Construction
Detail on the Build
Adjustable Limit Stops
Set and forget, easy to adjust open and closed positions by the adjustable limit stops.
Manual Release (Clutch)
Simply open the top cover, insert the supplied key and turn to manually release the gate.
Driveway Gate Motor Specifications
| Operating Voltage | 24V DC |
| Duty Cycle | 60% |
| Thrust | 1200N |
| Maximum Stroke Length | 510mm(limit stops removed) / 475mm (one limit stops used) / 440mm (two limit stops used) |
| Limit Stops | Yes for both Open and Closed (individually removable) Ideally a gate stop is used in the closed position if possible |
| Gearing Structure | Gearbox |
| Case Material | Die-Cast and Extruded Aluminum |
| Piston | Stainless Steel With Alloy Gate Connection |
| Maximum Gate Width | 4.2 Meters (14 Ft) See specifications graph |
| Maximum Gate Weight | 350KG (See specifications graph) |
"Pull to Open" Opening Inwards Geometry
"Push to Open" Opening Outwards Geometry
