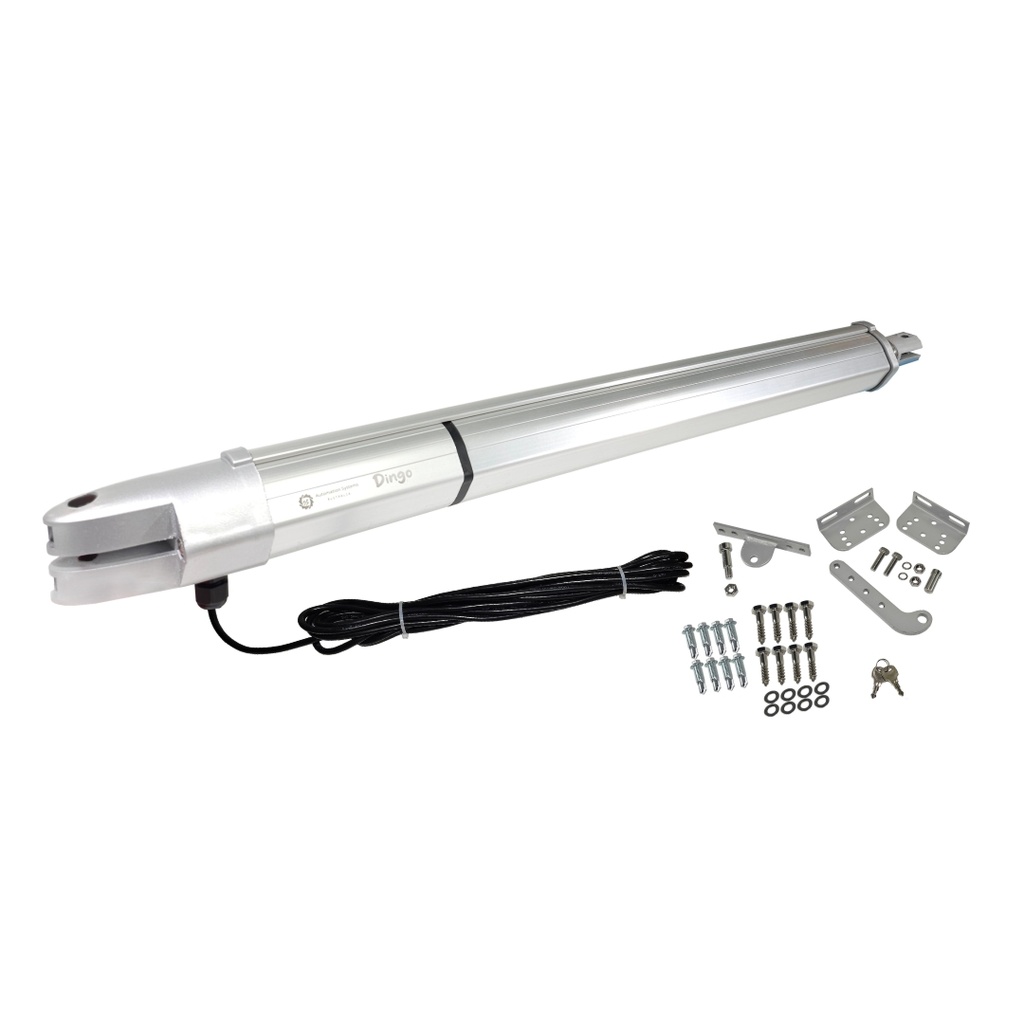

Dingo Slimline 24V Automatic Driveway Electric Gate Linear Actuator with 7 Metre

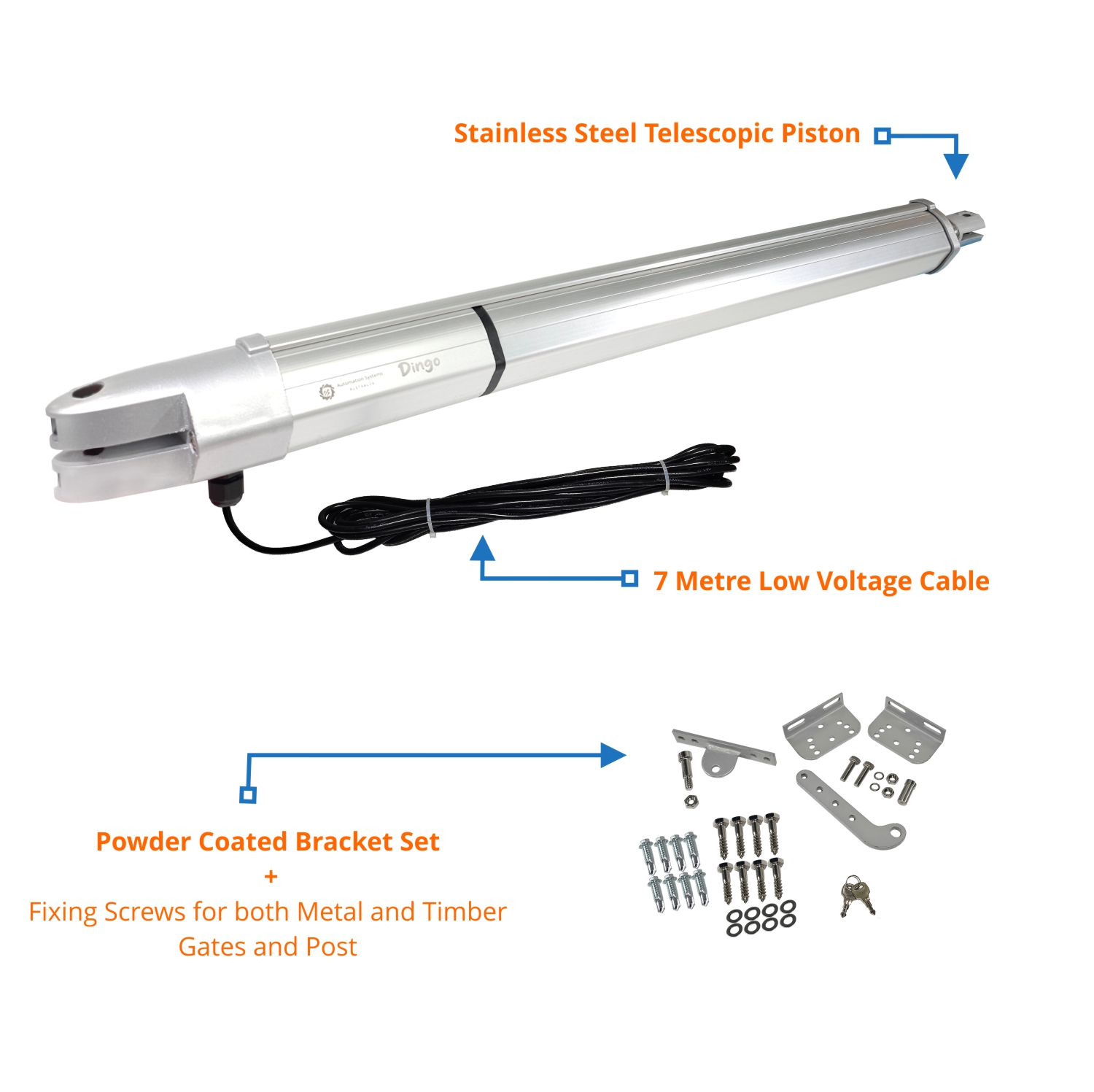

The Dingo Actuator kit is a compact and slimline gate actuator at only 75mm in width it can fit in the narrowest of installations. Constructed from an extruded aluminum housing it retains light weight characteristics, a bright appearance yet still carries the rugged internals that we set as the standard.

Operations are smooth and efficient using its 24 Volt DC motor system coupled to a 19mm (3/4") lead screw and a brass driven nut attached to stainless steel piston. The end positions are set using a magnetic reed limit switch for both the open and closed positions.

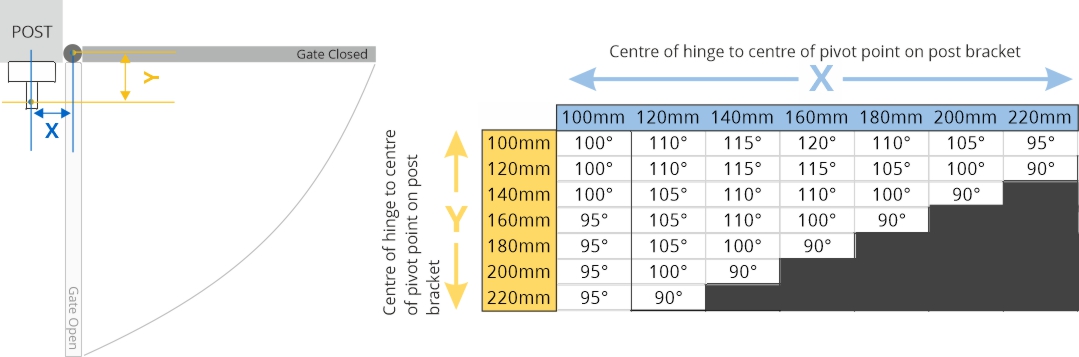

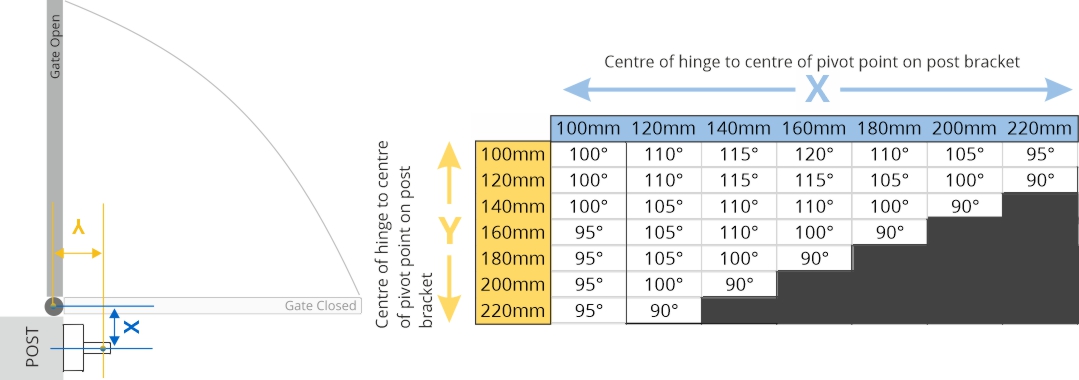

The laser cut steel brackets for the gate and post cater for all installations allowing for up to 16 different mounting configurations to achieve the desired pivot geometry for either pulling inwards to open and also pushing outwards to open installations. The post bracket assembly consists to three parts, the top and bottom plates are 4mm thick each whilst the curved tongue is 8mm thick. The total thickness of the post bracket assembly when assembled is an outstanding 16mm.

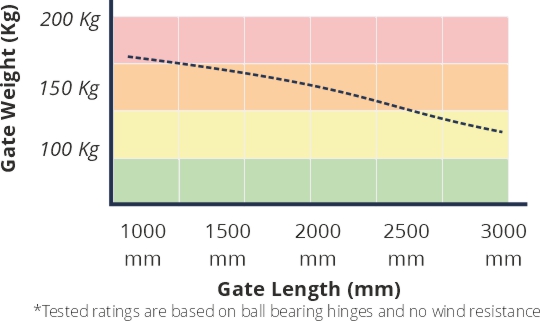

The Dingo has a 400mm stroke and the ability to work with gates from as short as 800mm and as wide as 3m (10ft) with a maximum weight of 175kg, if a wider or heavier gate is installed please see the Commando series of operators.

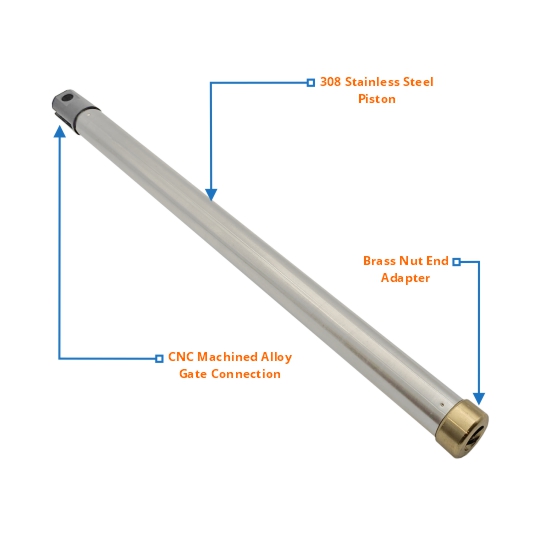

Piston Overview

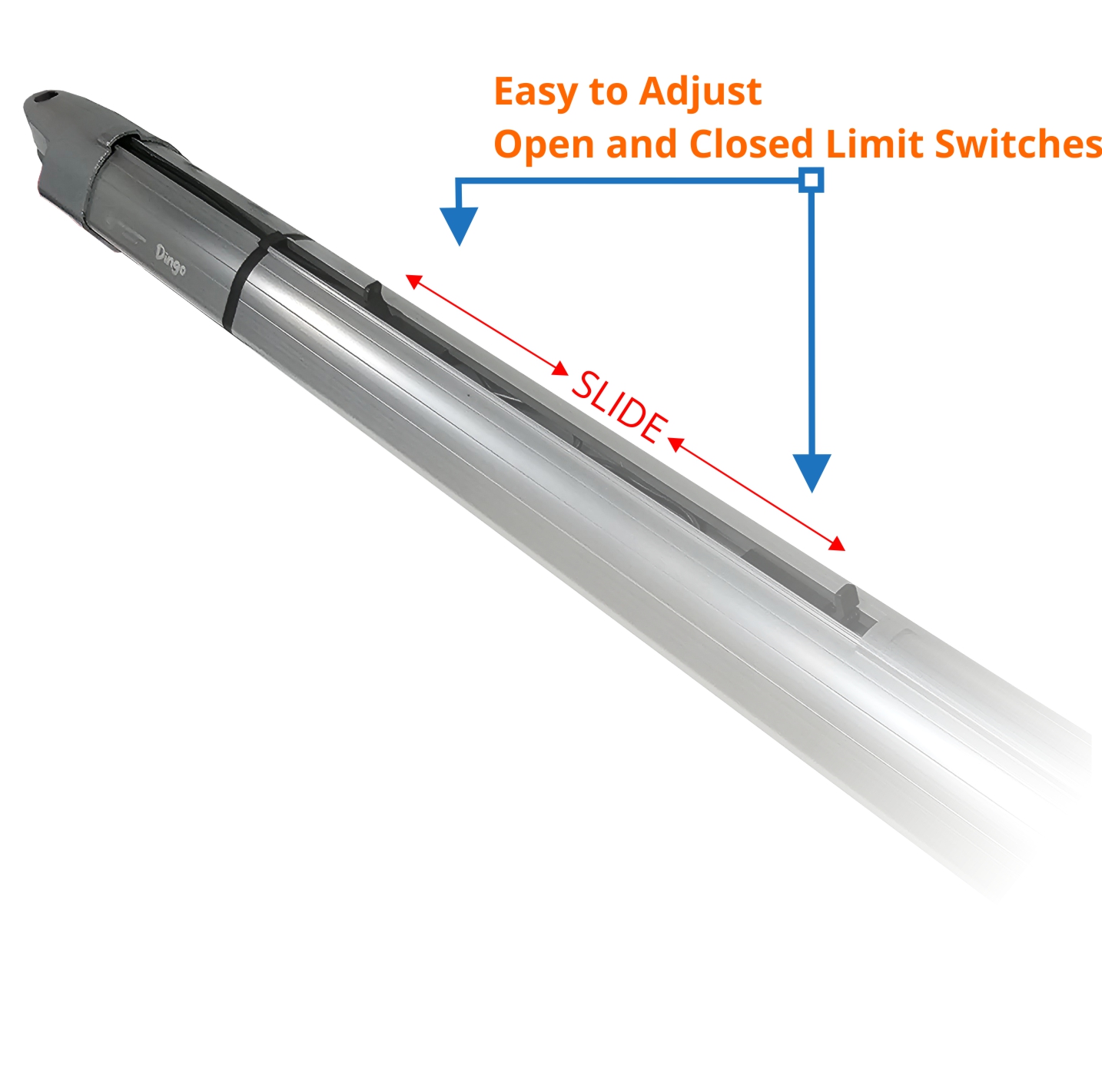

Adjustable Limit Switches
