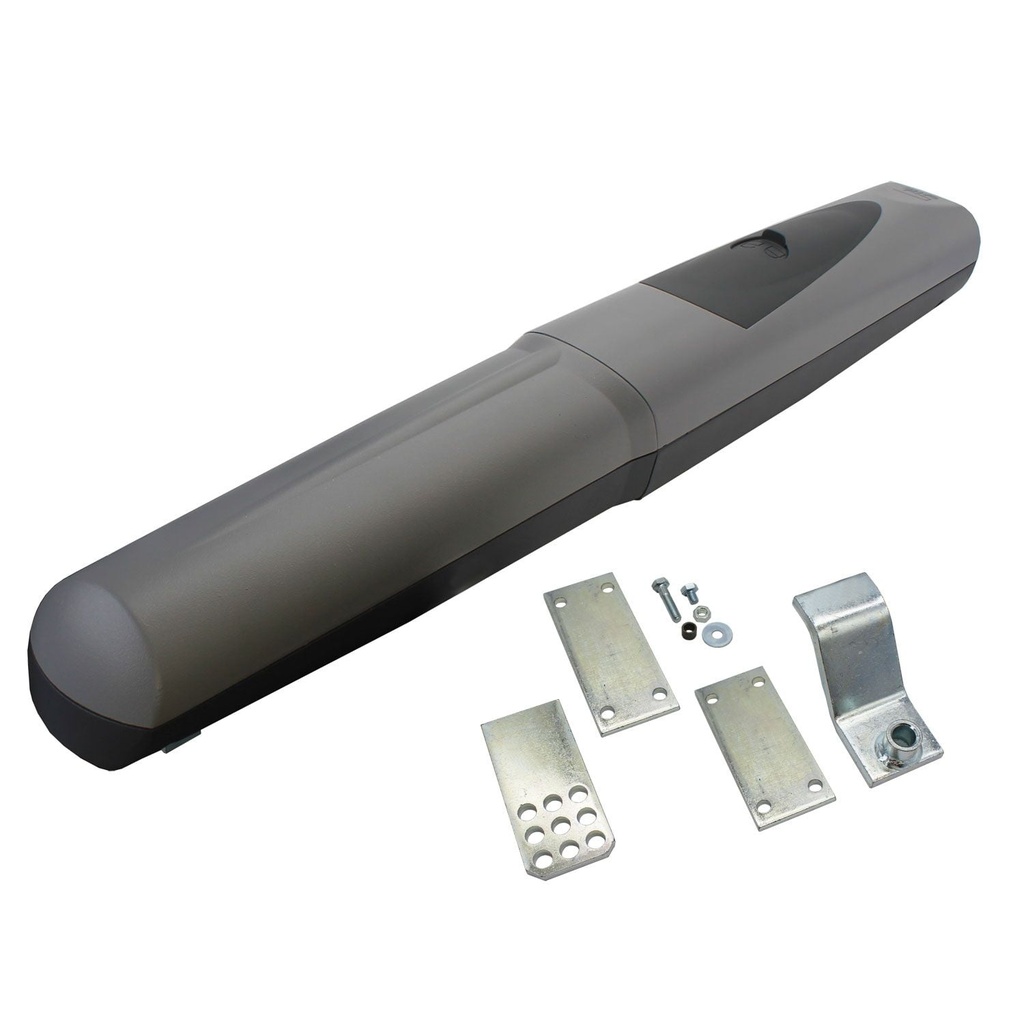

AXO 3 Super Duty High Torque Linear Actuator with Limit Stops (No Cable)
| Gate Opener Brand: CAME |
| Warranty: 2 Year |
| Swing Gate Thrust/Torque: 4500N |
| Model: AXO 3 |
| Maximum Swing Gate Size (each): 3m |
Super Duty High Torque Linear Actuator with Encoder and Limit Stops
The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate up to 3m in length/800KG in weight (long stroke version is available for up to 5m). With the Axo's wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.

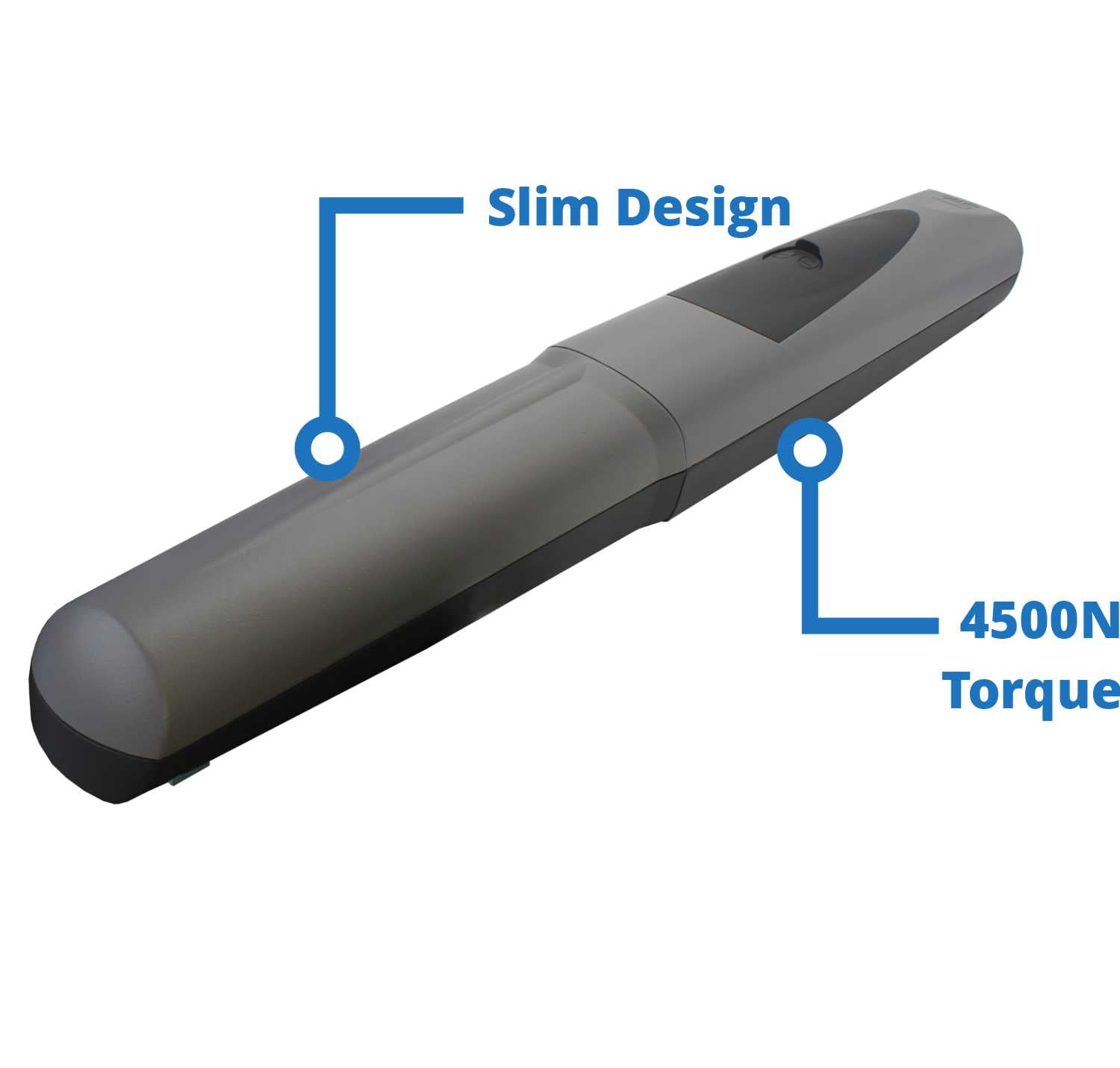

Furthermore the AXO 3024 is a compact design of only 100mm in width, 123mm in height and an overall length of 880mm keeping it discreet.
The versatile swivel tail system allows for flexible mobility in the gates travel which is seldom seen in the design of the actuator and the bracketing system is supplied at full size ready to cut down and weld to suit most installation geometries.
Adjustable Limit Stops
With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles, completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the cast in bite points.
Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.
Built In Encoder
Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.
Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.
Swivel System
Typically a linear actuator is a rigid unit and has very little tolerance for up-down movement in the gate however with the swivel system there is now some allowance, typical scenarios that would utilize the swivel would be gates with a support wheel, gates with a slight sag or gates with misaligned hinges. Note that this will not support rising gates.
Conduit Feed
Supplied with a 20mm corrugate conduit gland this allows for the best protection of the actuators cable without any modifications required to the structure. If required it could be replaced with a typical cable gland.
Manual Release System
In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.
If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.
Installation Geometry
Actuator Dimensions
Specifications
| Maximum Gate Length | 3m |
| Maximum Gate Weight | 800KG |
| Maximum Opening Angle | 110° |
| Encoder | Yes |
| Motor Power (Volts) | 24V DC |
| Power (Watts) | 120W |
| Operating Temperature | -20° to +55° C |
| Stroke | 300mm |
| Thrust (N) | 4500N Max |
| Duty Cycle | 100% |
