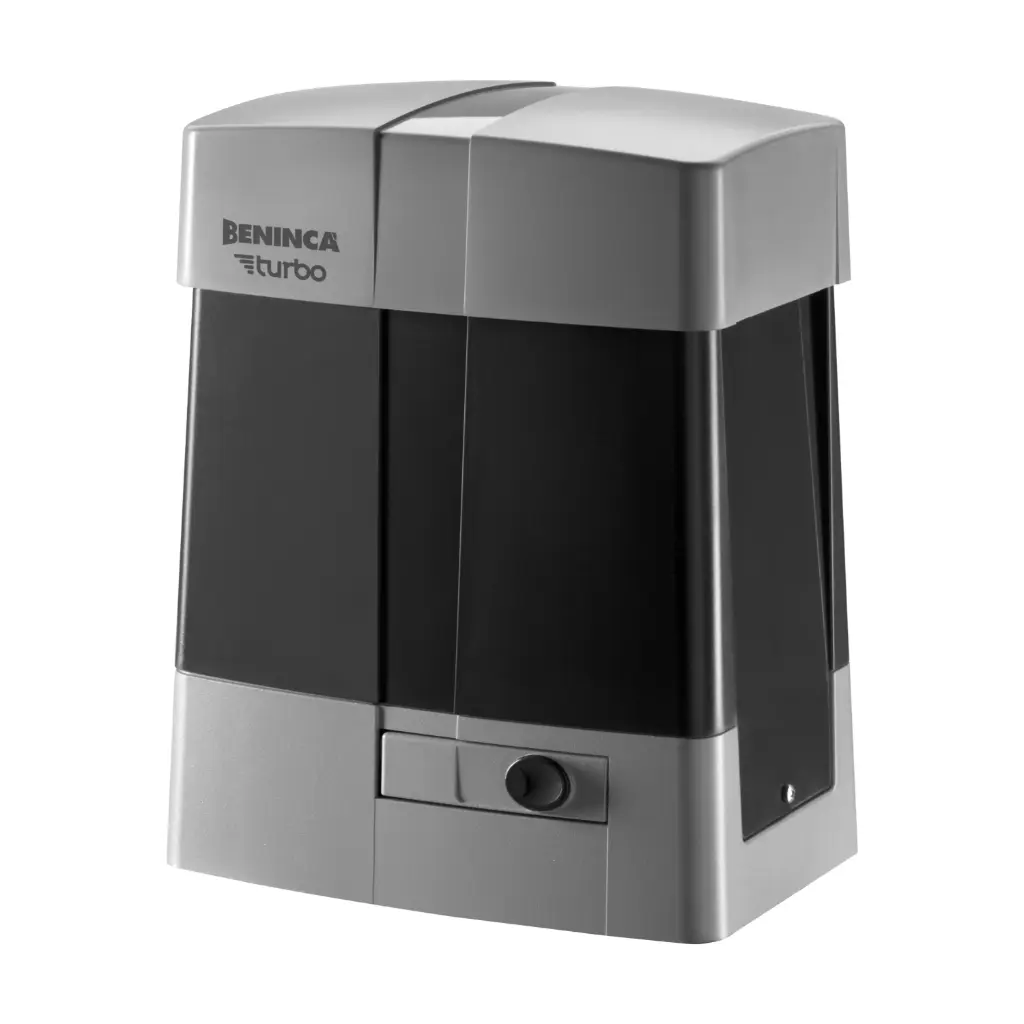

Beninca Bull 1224 TURBO (Advanced Version) 1200KG Sliding Gate Opener (OIL BATH) 24M/MIN

Beninca Bull 1224 TURBO (Advanced Version) 1200KG Sliding Gate Opener (OIL BATH) 24M/MIN

Part No: BULL1224TURBO
🏆 3 Year Warranty!
https://www.alphaautomation.com.au/web/image/product.template/10245/image_1920?unique=98db41b

$ 1,447.00 1447.0 AUD $ 1,447.00 Tax Included

Not Available For Sale

  • Gate Opener Brand
  • Warranty

This combination does not exist.

Delivery
In-store
Click & Collect
Freight from Loading...

3 Year Warranty

Brand: Beninca

Contact Us
Gate Opener Brand: Beninca
Warranty: 3 Year

Terms and Conditions

Share


Beninca Bull 1224 TURBO

The Beninca Bull 1224 TURBO Sliding Gate System is a 1200KG capable Operator (Level Ground) and works on 24V.  It utilizes and Oil Batch System allowing for high intensity usage and operates at an incredible 24 M/MIN speed which is an outstanding speed for a commercial grade operator.

It uses the latest and most advanced Beninca Controller (ARC). With an LCD On-Screen Display (no DIP switches),  automatic learning, Multiple Safety Inputs


Multiple safety inputs allowing for best  safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.

Key Features


✓ 24 Meters a Minute Operating Speed
✓ Strong 24 Volt Operation
✓ Oil Bath System
✓ Die-Cast Alloy Housing
✓ Adjustable Embedded Plate & Fixed Base Supplied
​
✓ Steel Pinion Gear
✓ 80% Duty Cycle
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Advanced Controller

Product Overview

Advanced "ARC" Digital Logic Controller

Steel Pinion and Easy Limit Switches

Key Locked Manual Release


Automatic Gate System Logic Controller Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing
✓ Partial Opening of Gate (Pedestrian Mode Feature)
✓ Automatic Closing Timer Adjustable in one second increments up to 4 minutes
✓ Automatic learning of the gate
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System (Mains & External Power Supply System ONLY)
✓ 24V Low Voltage Power for all accessories directly through the gate controller
✓ Auxiliary Outputs

Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Photocell for Closing Input
✓ Photocell for Opening and Closing
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (BE.CODE)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Working Modes and I/O

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer (240 Seconds Max.)
✓ Configurable Inputs for OPEN/CLOSE and Shared Input of Start Command of OPEN and CLOSE
✓ AUXILLARY Outputs (x2) For preset functions such as logic based courtesy light control or Control by an additional button on the remote.

Dimensions

Automatic Sliding Gate System Specifications


Operating Voltage 24V
Maximum Gate Size 10 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab)
Maximum Gate Weight 1200KG
(Slope is a multiplier of weight)
Duty Cycle 80%
Speed 24 M/MIN
Standby Consumption 30mA
Supports Battery Backup Yes, (Mains Only) 24V DC
Light Support Yes, Warning Light + AUX Outputs (Logic Based)
Accessories Voltage Yes, 24V DC
Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature -20°-50°C
Maximum Remotes 2048
