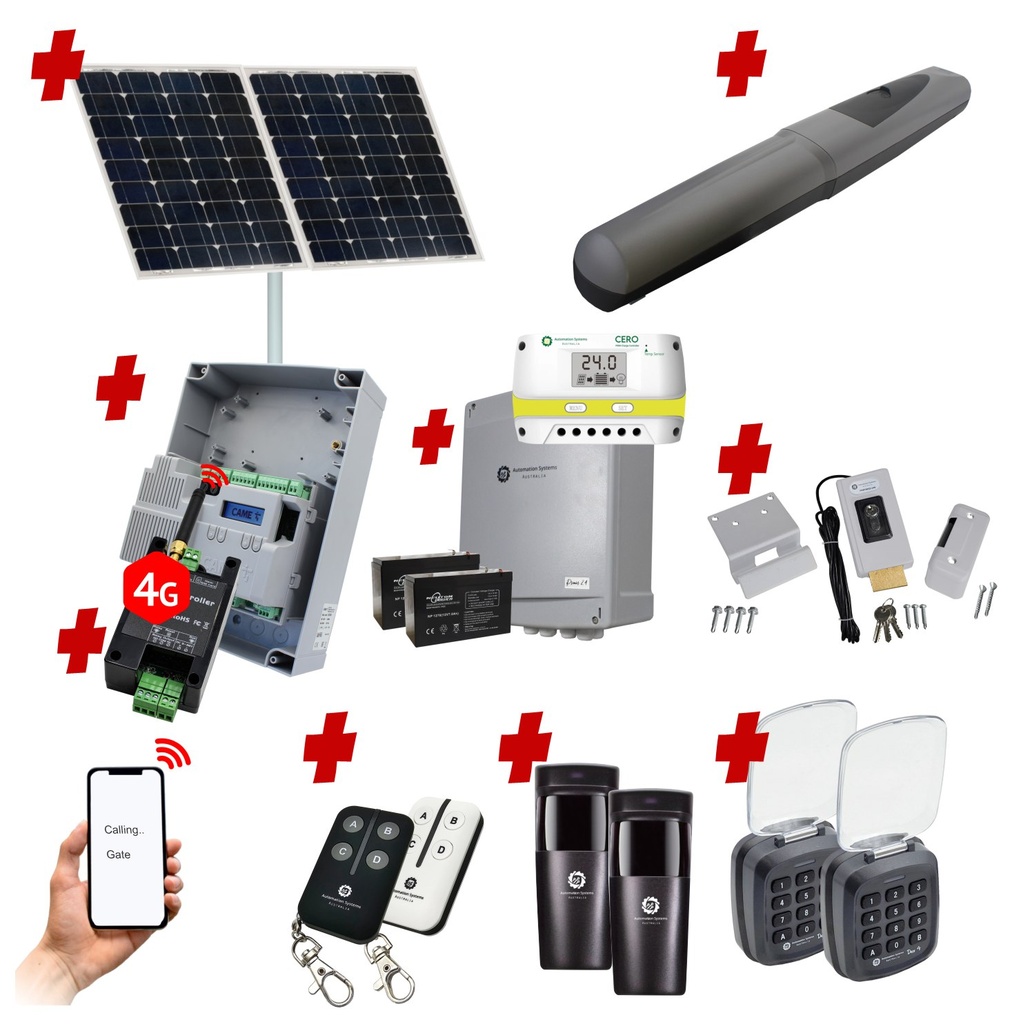

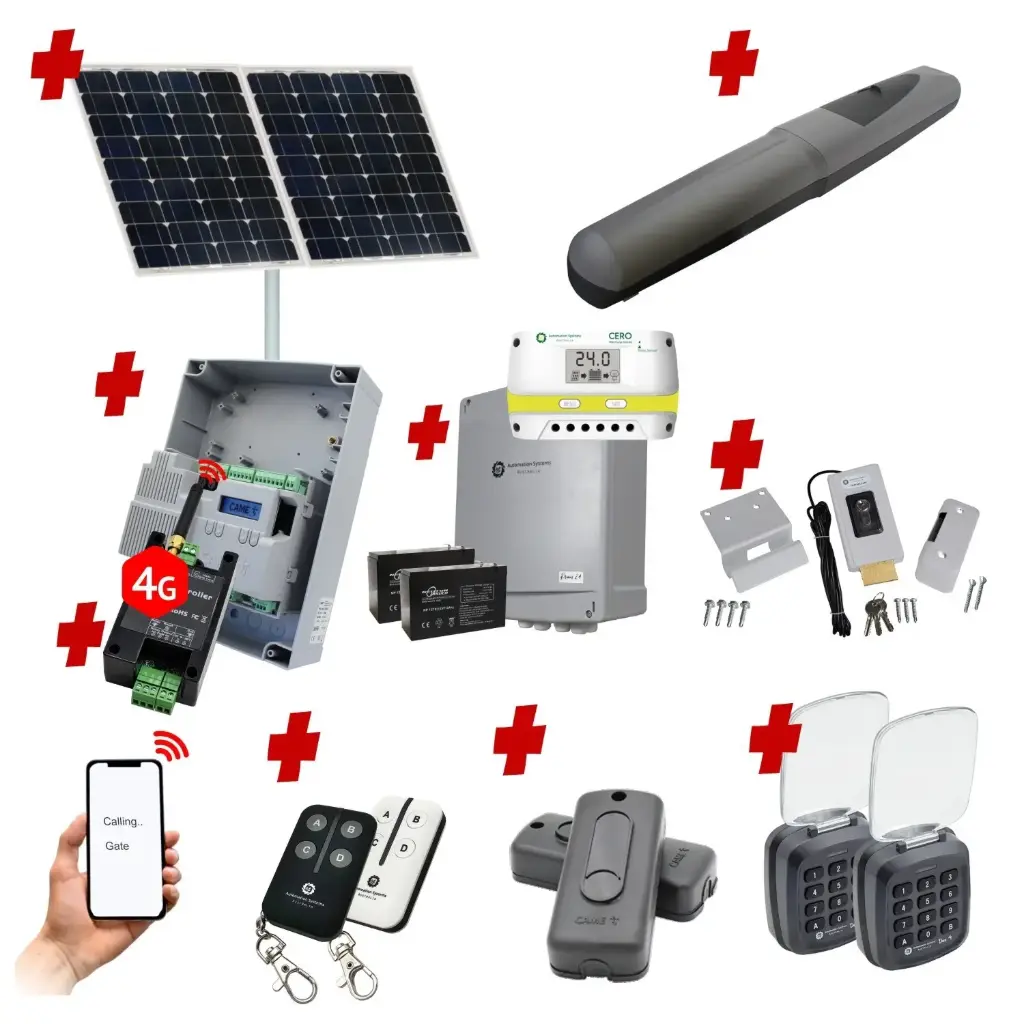

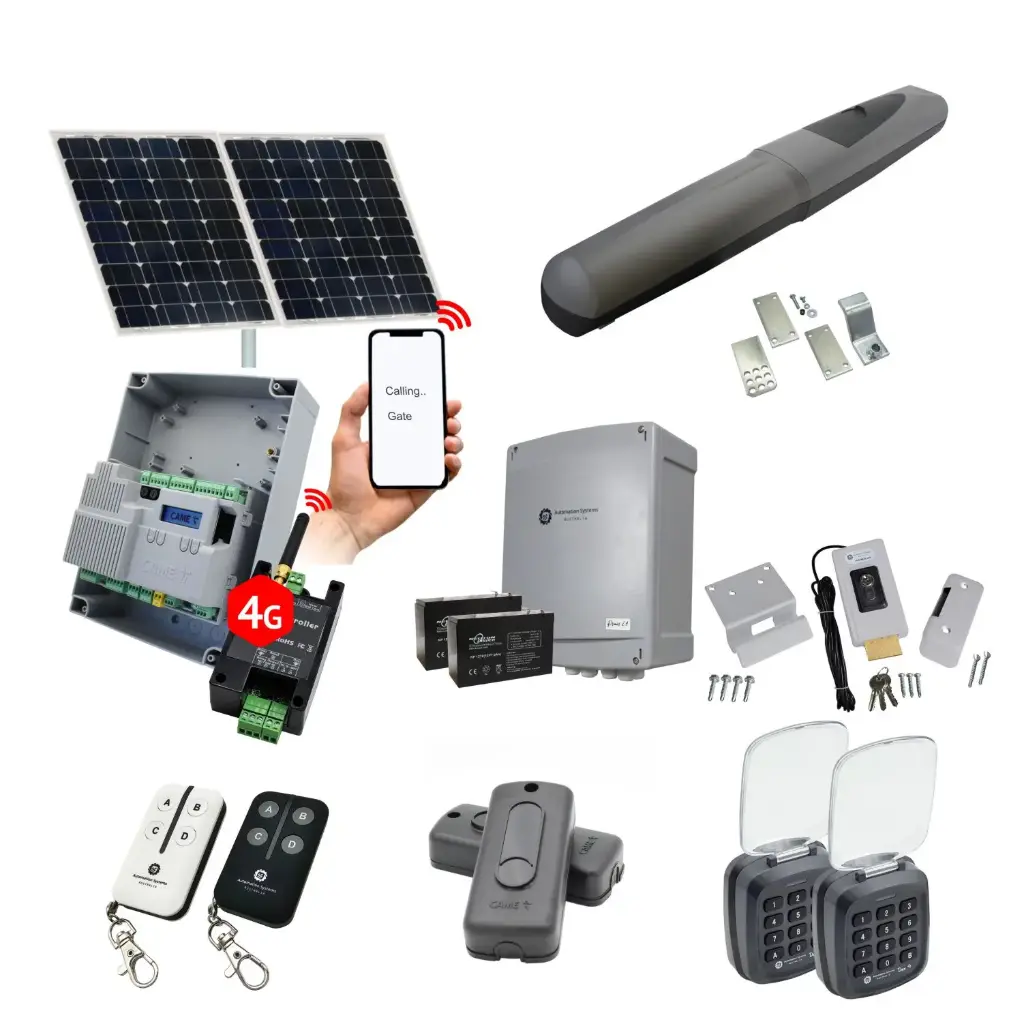

Solar Powered Single Swing Gate Automation Access Unlimited WiFi Bluetooth Kit Super Duty Linear Actuator 1000KG with Limit Stops and Encode
| Operating Method: Remotes, Keypad & Mobile Phone Control |
| Gate Opener Brand: CAME |
| Swing Gate Thrust/Torque: 4500N |
| Model: AXO 5 |
| Warranty: 2 Year |
| Maximum Swing Gate Size (each): 5m |
Super Duty High Torque Linear Actuator with Encoder and Limit Stops
The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate up to 5m in length/1000KG in weight. With the Axo's wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.
Furthermore the AXO 5024 is a compact design of only 100mm in width, 123mm in height and an overall length of 1180mm keeping it discreet.
The versatile swivel tail system allows for flexible mobility in the gates travel which is seldom seen in the design of the actuator and the bracketing system is supplied at full size ready to cut down and weld to suit most installation geometries.
Adjustable Limit Stops
With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles, completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the cast in bite points.
Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.
Built In Encoder
Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.
Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.
Swivel System
Typically a linear actuator is a rigid unit and has very little tolerance for up-down movement in the gate however with the swivel system there is now some allowance, typical scenarios that would utilize the swivel would be gates with a support wheel, gates with a slight sag or gates with misaligned hinges. Note that this will not support rising gates.
Conduit Feed
Supplied with a 20mm corrugate conduit gland this allows for the best protection of the actuators cable without any modifications required to the structure. If required it could be replaced with a typical cable gland.
Manual Release System
In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.
If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.
Installation Geometry
Actuator Dimensions
Specifications
| Maximum Gate Length | 5m |
| Maximum Gate Weight | 1000KG |
| Maximum Opening Angle | 110° |
| Encoder | Yes |
| Motor Power (Volts) | 24V DC |
| Power (Watts) | 120W |
| Operating Temperature | -20° to +55° C |
| Stroke | 600mm |
| Thrust (N) | 4500N Max |
| Duty Cycle | 100% |
Top of the Line ADVANCED Digital Control Box
The most ADVANCED AND EASY to use control board in the gate automation industry, the ZLX24 features an endless option list and configurability.
Starting with the casing the ZLX24 control box itself has 8 cable entry point four from the rear and four from the bottom side. The box can be fixed to the wall in a traditional manor being a fixing screw in each corner, or alternatively a DIN rail is supplied for its direct to DIN mounting system.
The control board itself is encased in a complete housing within the box to prevent short circuit and accidental touching of components, during the installation the control board easily unclips revealing its module storage and cable management routes, this simplifies the installation for feeding wiring through without any chance of damage.
Overview of the Features
Power Inputs and Outputs
Typical input and outputs to power the system and any wired in accessories
24V Power Input from Solar Regulator24V Power Output For AccessoriesAutomatic Weekly Timer
Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).
Selective choice of the 7 Days of the week settings, or the entire week 12/24 Hour FormatEACH timer event can be configured to Open the gate, Partial Opening or B1-2 Output ActivatedConfigurable Methods Of Operation
Along with the on board weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.
ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screenFull Gate Operation by remotePartial by remote (Opens the gate partially)Open Only by remoteClose Only by remoteOpen/Close Input by Wired AccessoriesOpen only Input by Wired Accessories (loop Detector)Close only Input by Wired Accessories (loop Detector)Wired Emergency STOP ButtonRemote Operation
The remote buttons can individually be programmed to work in any of the below settings for each button.
OPEN-CLOSE (Reverting action if pressed part way through a cycle)OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)Partial OperationRELAY OUTPUT/STAY OPEN Feature (Pause automatic close)Motor Specifics
Default configurations are already set however, if required further adjustment can be made to suit all installations
ENCODER ControlAutomatic Calibration (with Adjustable Calibration Speed)Motor Test (used for checking your directions prior to calibration)Adjustable ThrustAdjustable Travel SpeedAdjustable SensitivityAdjustable Slowdown SpeedAdjustable Slowdown Position (Two Stages)Safety Devices
Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.
Supports Photocell SensorsSupports Reflective SensorsSupports Safety EdgeSupports Induction Loops for SafetySupports STOP ButtonSupports Maintained Action (Hold to OPEN/CLOSE)Added Electric Lock Security
Added protection for the gate and gate system if wind is a factor or in a high risk setting
Automatic Electric Lock (Adjustable Time) with Reverse Thrust FeatureControl Board Security
A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the ZLX24 menu.
Light Control
Multiple options for visible safety alerts, illuminating the driveway OR Both
Flashing/Static Illuminated Light from OPEN til CLOSEDAdditional Output for Flashing During OpeningOperational Control
Infinite support for accessories and methods of operation
Remote ControlsWireless KeypadsWired KeypadsWired ButtonInduction LoopsIntercom SystemsRelay Output B
Default Can be set to work on a remote button and/or by the weekly timer
Set to a latching ON/OFF CircuitCan be used to trigger an alarm, garage door or another gateCan be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.
Dimensions
STX4K Keyring High Range Remote
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post
Solar Panel can be installed vertically or horizontally.
✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ True IP67 Rating
✓ 97% or greater power tolerance
✓ Anodized Silver Aluminum Frame
✓ Long 10 Metre Cable (or cut to required size)
✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
| Maximum Power(Pmax) | 60W/120W/180W |
| Optimum Operating Voltage(Vmp) | 35.5V |
| Optimum Operating Current(Imp) | 1.13A |
| Open Circuit Voltage(Voc) | 43.1V |
| Short Circuit Current(Isc) | 3.4A/6.8A/10.2A |
| Power Tolerance | -1%~+3% |
| Operating Module Temperature | 40 C to +85 C |
Heavy Duty Solar Pole
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
CERO PWM Solar Regulator
The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.
The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.
✓ Large copper input terminals (12-28AWG)✓ Ribbed metal heat sink across the entire back side
✓ LCD Display
✓ 3 Stage PWM Management (Bulk, Boost, Float)
✓ Supports Sealed, Gel and Flooded Batteries
✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
✓ Allows for a total of 10 Amps Inputs
✓ High Efficiency
✓ USB Terminal
✓ Temperature Compensation
✓ Low voltage disconnect and reconnect
Battery System
Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.
Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.
Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.
Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.
Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.
The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.
These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirement.
DIR10 Photoelectric Sensor
The DIR10 Photocell is an easy to install high grade unit with excellent build characteristics as the front covers are of polycarbonate material for added strength and durability.
It is versatile in its operating voltage of 12-24V AC OR DC and is wired in a daisy chain configuration from system to the first cell and from the first cell to the second cell. It can be used for up to a 10 meter distance between the photocells.
Cable can be brought into the photocells from either the backside OR externally through the bottom of each photocell meaning one type of photocell caters for all methods of install.
Dex 4 Wireless Keypad
The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.
Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.
Key Features
✓ Three colour options are available: Classic White, Subtle Grey and Deep black
✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
✓ Control Up to four systems or four features on different pin codes
✓ Astounding open air distance of 80 metres
✓ Works on 2x AAA batteries (supplied)
✓ Audible and LED indicators
✓ Totally wireless (wire free) easy installation
Fortress EL Automatic Gate Lock
Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.
The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).
For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).
Key Features
✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation
Tekno S1 4G VOLTE GSM Switch
Key Features
✓ Call your gate from ANYWHERE in the world✓ Control by SMS
✓ Can be configured to allow for Authorized users (Telephone numbers allowed to operate the S1) or Public Mode (Anyone)
✓ Fits directly into the system, no extras required
✓ Simple connection and simple setup
✓ 999 Users Allowance
✓ SMS Notifications to Admin per operation even (can be disabled)
The Tekno S1 can work with all 4G Telco providers however please note the recommended network of choice is Telstra providing the strongest 4G coverage.
