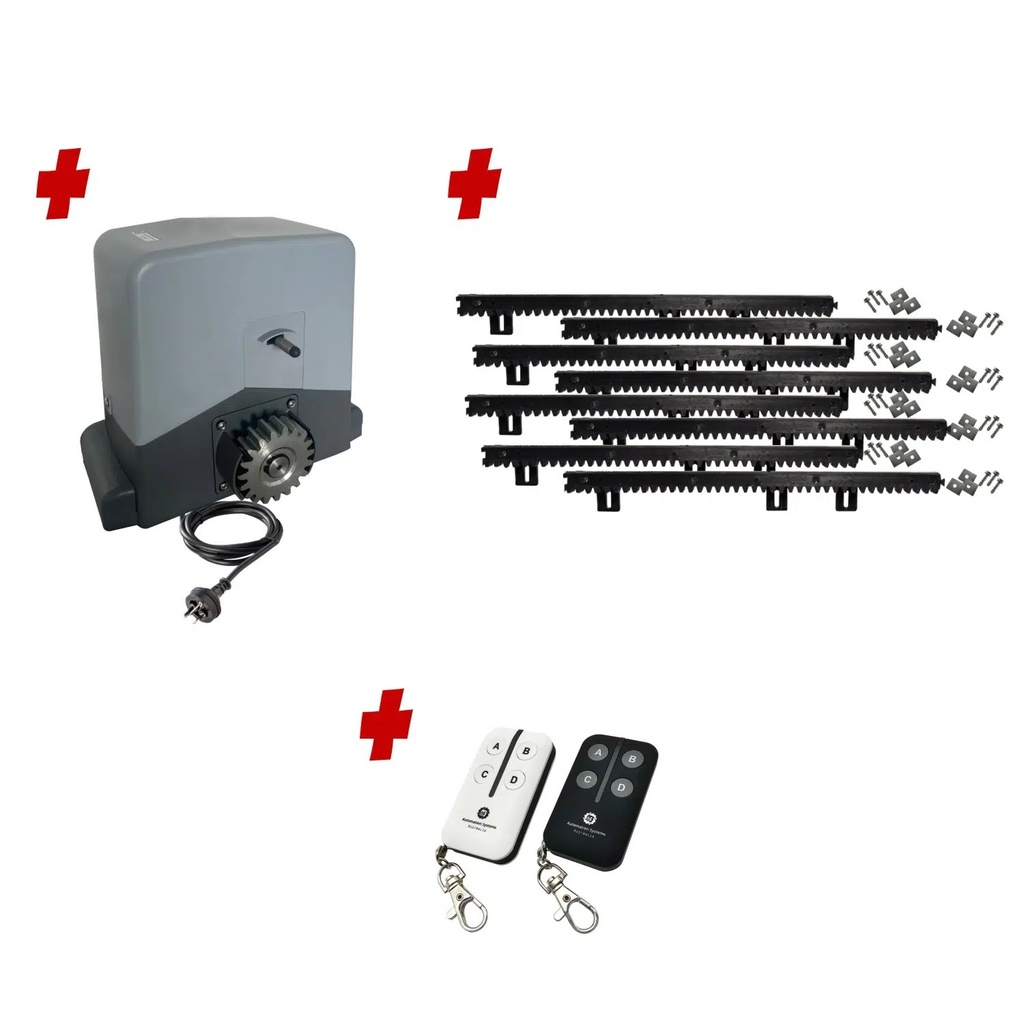

Titan 1000 Sliding Driveway Gate Opener Kit Electric 240V Automatic Heavy Duty POWERFUL Design BASE KIT
| Operating Method: Remote Controls Only |
| Warranty: 1 Year |
| Gate Opener Brand: Automation Systems Australia |
| Model: Titan 1000 |
| Sliding Gate Max. Width: 8m |
| Sliding Gate Max. Weight Capacity: 1000KG |
Titan 1000 Pure AC Sliding Gate System Gate Motor
The Titan 1000 Sliding Gate System is a simple yet effective operator, the housing as always with the titan family of operator remains compact but houses the large AC motor and digital logic controller.
Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL240AC Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a low duty commercial setups.
The simple on-board buttons and DIP switches make it easy for any settings changes. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL240 system (see the complete list below).
The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing.
Ready to plug into an ordinary power point there is NO high voltage wiring required (unless connecting a light),
Key Features
✓ Compact Footprint
✓ Multiple Cable entries by IP68 rated Glands
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Flexible size and weight capacities
A peak inside the Titan Series Operator
Tough Pure AC Motor and Logic Controller
Steel Pinion and Easy Limit Switches
Secure yet Easy Manual Release
Automatic Gate System Logic Controller Features
Features as Standard
✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Low Voltage Power for all accessories (Except a light) directly through the gate controller
✓ Warning Light Output (220/240V)
Multiple Configurable Safety Inputs
✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.
Wired and Wireless Access Control Support
✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times
Residential, Commercial and Complex Working Modes Options
✓ Normal Remote Operation (Open-Stop-Close)✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)
✓ Typical Complex - Individual Open and Close Command Inputs
✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes)
✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input
Dimensions
Automatic Sliding Gate System Specifications
| Operating Voltage | 220V/2404V |
| Motor Power | 550 Watts |
| Maximum Gate Size | 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab) |
| Maximum Gate Weight | 1000KG |
| Duty Cycle | 40% |
| Thrust | 27nM |
| Speed | 20cm/s |
| Standby Consumption | 40mA |
| Light Support | Yes, Flashing or Static |
| Accessories Voltage | Yes, 12V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -10°-60°C |
| Maximum Remotes | 20 |
STX4K Keyring High Range Remote
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
