Beninca BULL 624 Solar Powered Automatic Sliding Driveway Gate Opener 24 Volt Kit Heavy Duty POWERFUL Design with TWO Keypads Entry Exit
| Operating Method: Remotes & Pin Code Keypad |
| Warranty: 3 Year |
| Gate Opener Brand: Beninca |
| Model: Bull 624 |
| Sliding Gate Max. Width: 8m |
| Sliding Gate Max. Weight Capacity: 600KG |

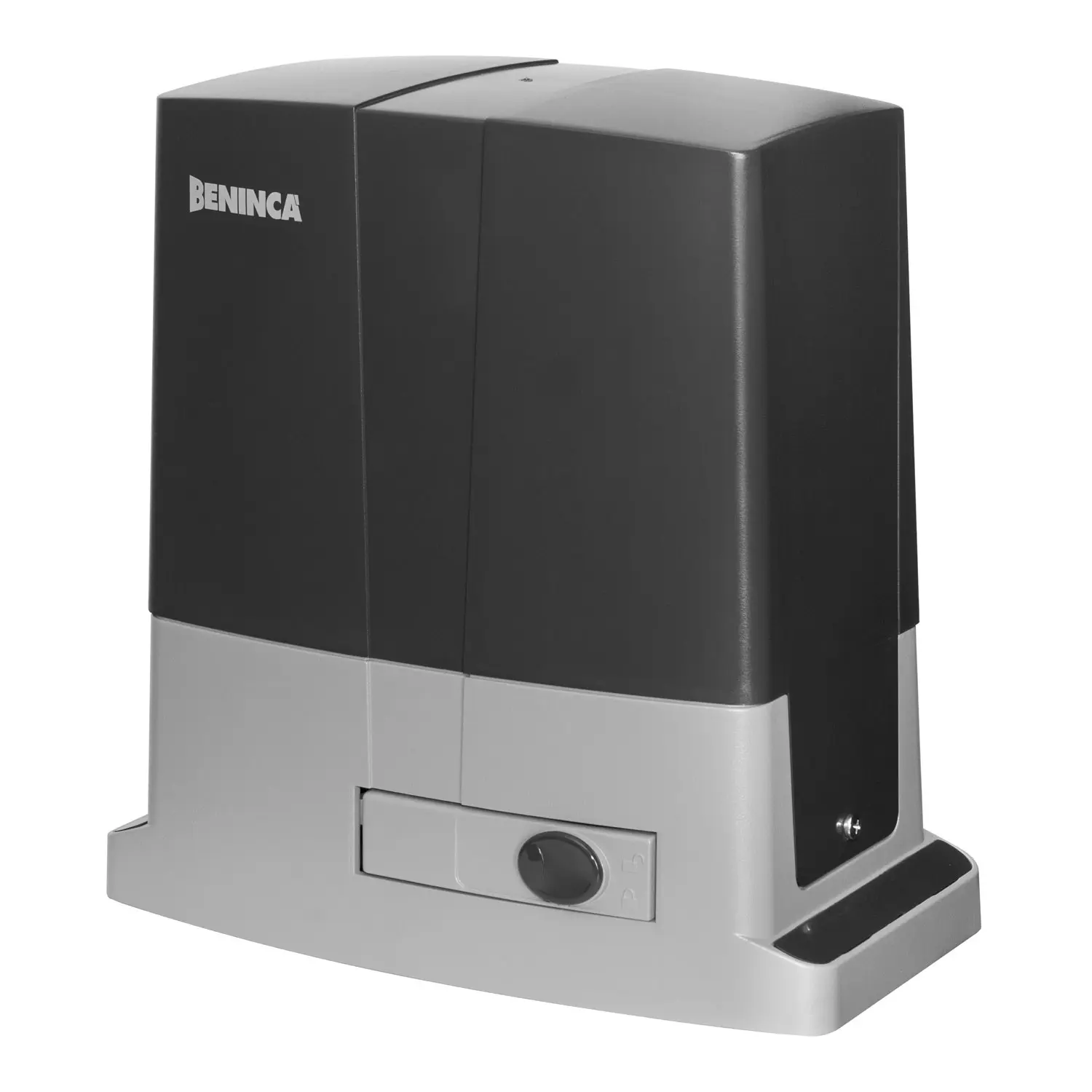

Beninca Bull 624 SE (Advanced Version)
The Beninca Bull 624SE Sliding Gate System is a 600KG capable Operator (Level Ground) and works on 24V.
It uses the latest and most advanced Beninca Controller (ARC). With an LCD On-Screen Display (no DIP switches), automatic learning, Multiple Safety Inputs
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
Key Features
✓ Die-Cast Alloy Housing

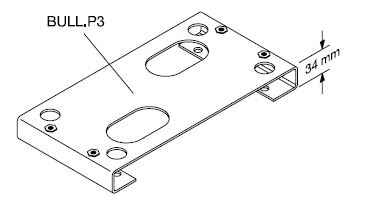

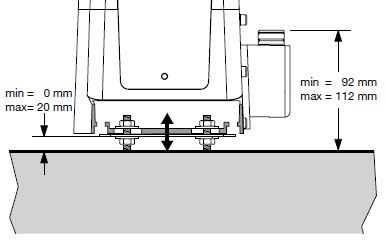

✓ Adjustable Embedded Plate & Fixed Base Supplied
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Advanced Controller
Product Overview
Advanced "ARC" Digital Logic Controller
Steel Pinion and Easy Limit Switches
Key Locked Manual Release
Automatic Gate System Logic Controller Features

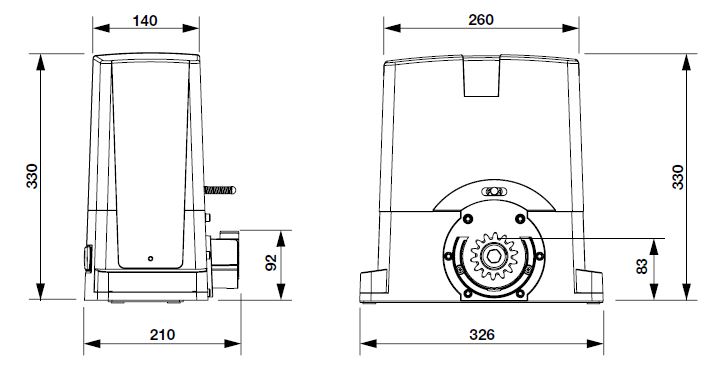

Dimensions
Automatic Sliding Gate System Specifications
| Operating Voltage | 24V |
| Maximum Gate Size | 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab) |
| Maximum Gate Weight | 600KG (Slope is a multiplier of weight) |
| Duty Cycle | 20°C (Intensive Use) - 50°C (40 Cycles/H) |
| Speed | (23CM/S) 14 M/MIN |
| Standby Consumption | 30mA |
| Supports Battery Backup | Yes, 24V DC (With Energy Saving) |
| Light Support | Yes, Warning Light + AUX Outputs (Logic Based) |
| Accessories Voltage | Yes, 24V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -20°-50°C |
| Maximum Remotes | 2048 |
Beninca TO.GO4A
High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post
Solar Panel can be installed vertically or horizontally.
✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ True IP67 Rating
✓ 97% or greater power tolerance
✓ Anodized Silver Aluminum Frame
✓ Long 10 Metre Cable (or cut to required size)
✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
| Maximum Power(Pmax) | 60W/120W/180W |
| Optimum Operating Voltage(Vmp) | 35.5V |
| Optimum Operating Current(Imp) | 1.13A |
| Open Circuit Voltage(Voc) | 43.1V |
| Short Circuit Current(Isc) | 3.4A/6.8A/10.2A |
| Power Tolerance | -1%~+3% |
| Operating Module Temperature | 40 C to +85 C |
Heavy Duty Solar Pole
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
CERO PWM Solar Regulator
The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.
The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.
✓ Large copper input terminals (12-28AWG)✓ Ribbed metal heat sink across the entire back side
✓ LCD Display
✓ 3 Stage PWM Management (Bulk, Boost, Float)
✓ Supports Sealed, Gel and Flooded Batteries
✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
✓ Allows for a total of 10 Amps Inputs
✓ High Efficiency
✓ USB Terminal
✓ Temperature Compensation
✓ Low voltage disconnect and reconnect
Battery System
Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.
Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.
Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.
Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.
Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.
The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.
These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirement.
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only

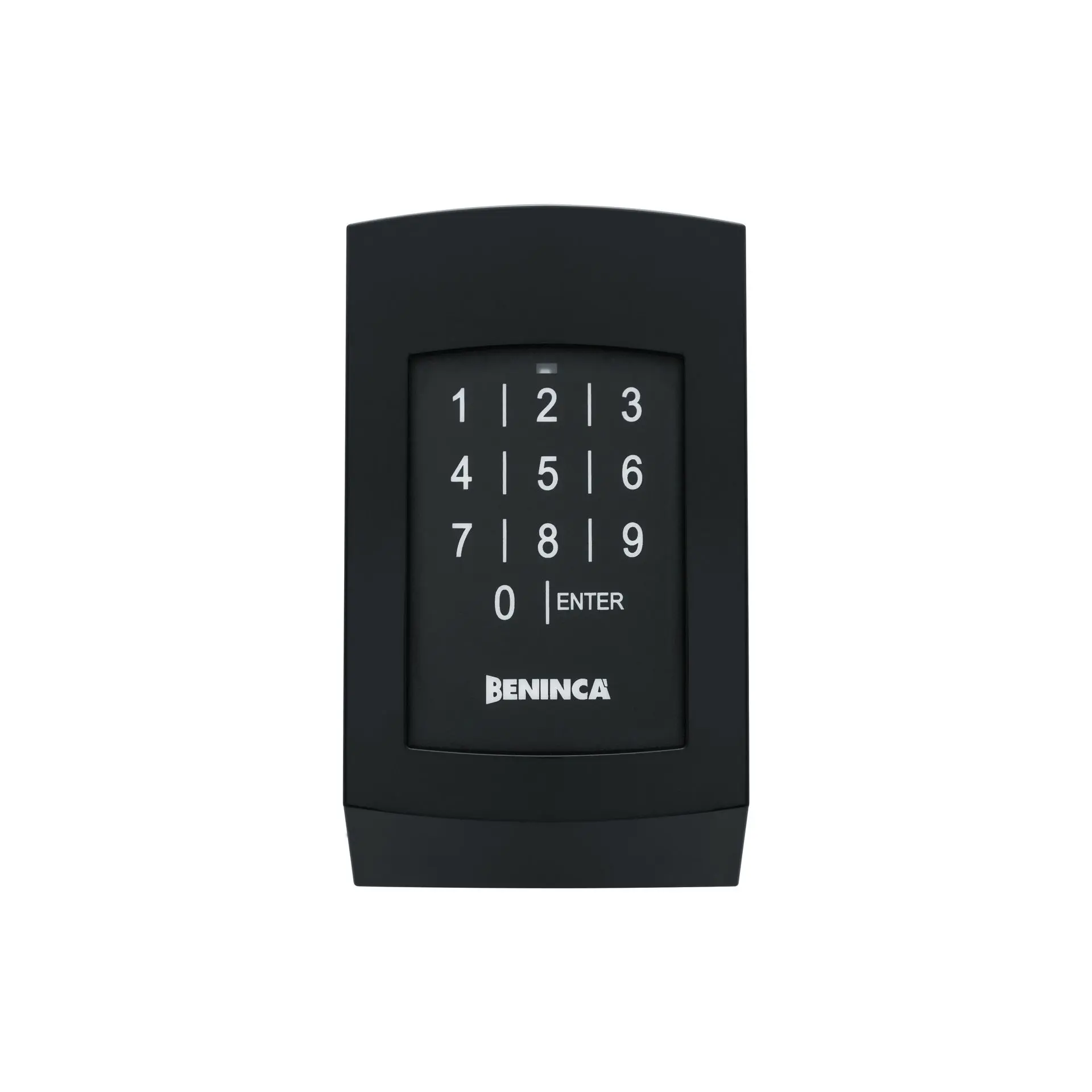

Beninca BE.CODE Wireless Keypad
Maximum distance of 100m in clear line of sight is achievable with the BE.CODE and with an allowance of up to 254 stored codes in the Keypad.
