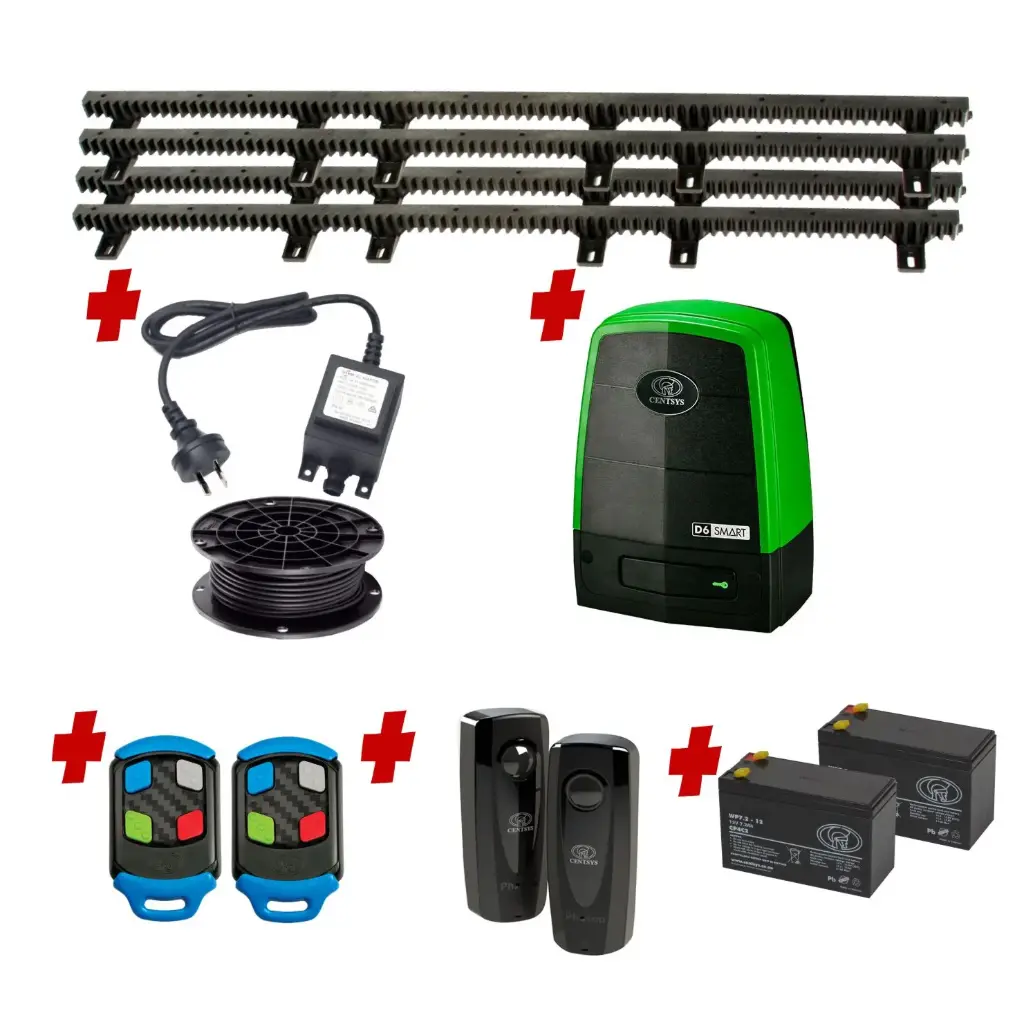

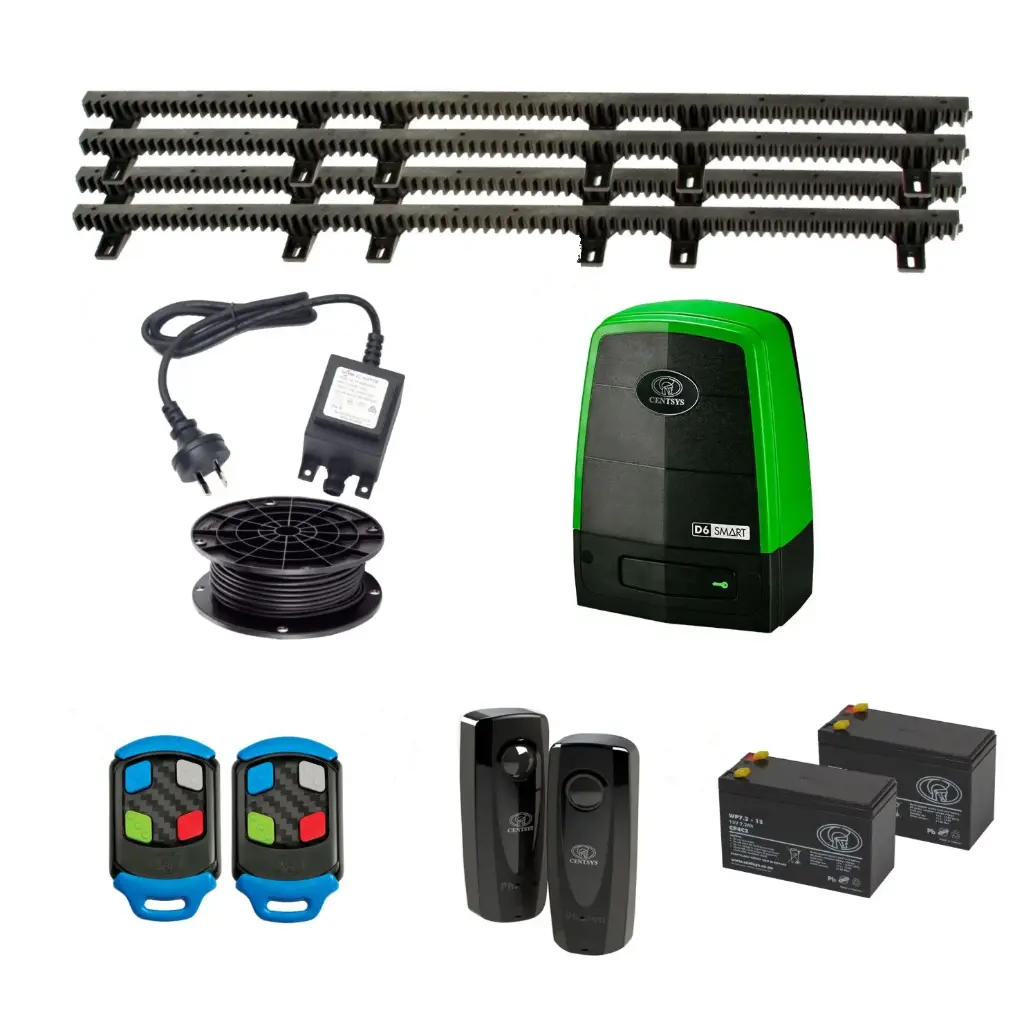

Centsys D6 Smart Commercial Grade (Low Voltage) 600KG Sliding Gate System Installer Trade Kit

Centsys D6 Smart Commercial Grade (Low Voltage) 600KG Sliding Gate System Installer Trade Kit

Kit Part No: CENTSYS-D6-E-I
https://www.alphaautomation.com.au/web/image/product.template/8165/image_1920?unique=d91e32b

$ 1,619.00 1619.0 AUD $ 1,619.00 Tax Included

Not Available For Sale

  • Warranty
  • Operating Method
  • Gate Opener Brand
  • Model
  • Sliding Gate Max. Width
  • Sliding Gate Max. Weight Capacity

This combination does not exist.

Delivery
In-store
Click & Collect
Freight from Loading...

2 Year Warranty

Brand: Centsys (Centurion)

Contact Us
Warranty: 2 Year
Operating Method: Remote Controls Only
Gate Opener Brand: Centsys
Model: D6
Sliding Gate Max. Width: 20m
Sliding Gate Max. Weight Capacity: 600KG

Terms and Conditions

Share

Centsys D6 Smart

The Fastest in Its Class

With a top speed of 35 meters per minute, the D6 SMART is the fastest gate motor in its category. This ensures quick and efficient operation, giving you the convenience of rapid entry and exit while enhancing your property’s security.

Patented Theft-Deterrent Cage

The optional patented theft-deterrent cage, now improved with three additional support brackets for secure anchoring, ensuring stronger deterrence against theft.

Photon SMΔRT Compatibility

Ensure enhanced safety with fully wireless Photon SMART infrared beams, offering a hassle-free and secure addition to your gate automation system, that also looks neat and professional and makes life easier for your installer.

Exceptional Break-In Resistance

Boasting an impressive 1000kg break-in force, the D6 SMΔRT is engineered to resist forced entry, providing superior protection for your property.

Reliable Even Without Power

In the event of a power outage, the D6 SMART’s dependable 24V system can perform up to 102 gate cycles, keeping your property secure and operational without interruption.


Specifications

DX1 Battery charger current output 1.3A@ 27.6V +/-5% (38W)
Maximum number of operations per day 150
Motor voltage 24V DC
Motor power supply Battery-driven (Standard Capacity - 2x12V)
Current consumption (motor at rated load) 13A
Input / Output sink currents (Max accessory current draw)
I/O 1-4 100mA (12/24V)
I/O 5 and 6 3A (12/24V) 10sec Pulse
Motor push force - starting 30kgf
Motor push force - rated 17kgf
Gate mass - maximum 600kg
Gate length - maximum 100m
Gate speed (varies with load) Up to 36m/min / 600mm/sec @ 17kgf
Manual Override Lockable with key release
Operations whilst in battery backup mode with 7.2Ah batteries
Half day 209 (Power Saving) / 102 (Normal)
Full day 183 (Power Saving) / 79 (Normal)
Collision Sensing Electronic
Operating temperature range -15°C to +50°C
Onboard receiver type Code-hopping multichannel receiver with selective add and delete
Receiver code storage capacity 1500 Remotes
Receiver frequency 433.92MHz
Degree of protection IP55

Low Voltage External Transformer

gate low voltage 24 volt power transformer

The Low Voltage Transformer is designed to be installed outdoors on a wall or a post or optionally in a garage/carport. The transformer will plug into an ordinary power point and output a safe Volt LOW VOLTAGE supply to the gate system.



Key Features


✓ Easy to work with
✓ Can work up to 50 meters low voltage cabling distance
✓ Multiple cable roll options available or use your own cable


Photon 30 Wired One Side Infrared Beam

For a totally wireless solution for Centsys SMART systems only consider the Photon Smart which is battery operated for both sides.

The Photon sensor allows prevents the gate closure if there is a an obstacle between the sensors. The reciever sensor which is closest to the control board is wired directly to the control board, where as the Transmitter on the far side is powered by 2x AA batteries.

Multiple sensors can be installed for additional protection in the installation, the maximum range between both the transmitter and reciever sensor is 30 meters.
