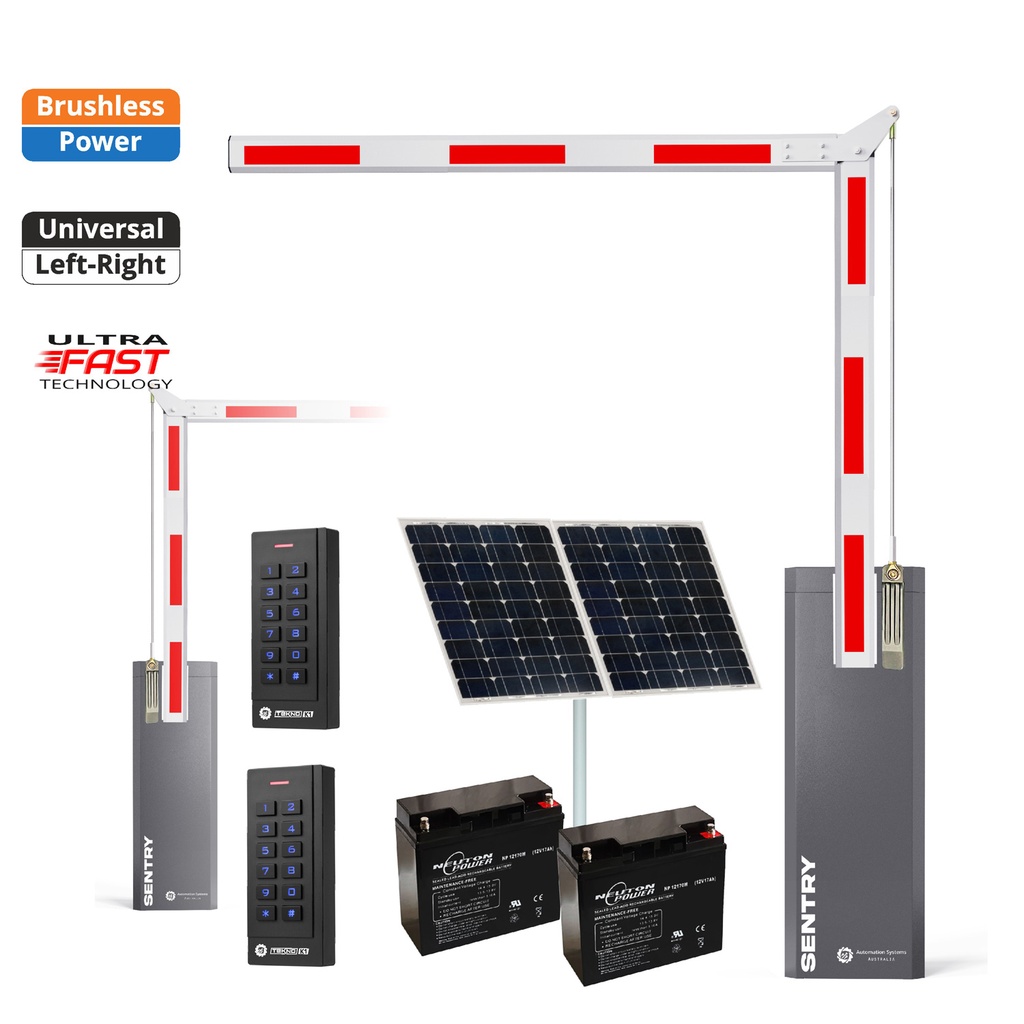

SENTRY Solar Powered BRUSHLESS 90 Degree Boom Barrier Gate High Duty Cycle parking underground garage offices low clearance with TWO Keypads Entry Exit
| Boom Arm Type: 90 Degree Folding Arm |
| Boom Arm Length: 4.5m (Articulating) |
| Boom System Powered By: Solar Powered |
| Boom Gate Operation: Keypad |
SENTRY 90 Degree Articulate Brushless 24 Volt DC Boom Gate
The Sentry low voltage 24 Volts Boom Arm Barrier Gate is the latest in cutting edge technology. Within the boom gates powder coated steel casing lies the heart of the system the brushless 24V 150 Watts motor, tested for over 5 million total cycles the dynamic brushless motor can run at 80% duty cycle suiting almost every application from large scale parking structures, commercial environments, down to small scale entry management such as caravan parks.
The boom gate kit is supplied with an Articulating aluminum arm set ready to cut to the required size, the length is adjustable from the supplied 4.5 metres maximum to a minimum of 2.0 metres Please note to choose the intended arm length correctly as each kit is supplied with the balancing spring pack to suit.
The system is equipped with a multi-speed adjustment allowing for total tuning of speed of operation from 2.4 seconds with short arms to 4 seconds at fastest on long arms. If required the system can be slowed to an 8 second operation speed.
The versatile brushless logic controller (control board) will control the accessories inputs and there power supply, lights output, up and down position relays and a number of setting changes for speed, arm positions and much more. The brushless motors hall effect sensor is also connected to the controller proving the best possible arm accuracy as there is no dependence on limit switches or alike.
Key Features
✓ Hall effect sensor for the best accuracy
✓ Incredible 80% Duty Cycle
✓ Universal LEFT or RIGHT side installation, easy switch over in-case of installation change
✓ Robust powder coated steel casing
✓ Automatic closing timer
✓ Traffic light compatible
✓ Weekly scheduled timer compatible
✓ Induction Loop Compatible
✓ Keypad (Standalone and Wiegand) compatible
✓ Parking, booking system and ticket machine compatible
✓ Din rail mounting system for modules
A quick look at the Sentry BRUSHLESS Super Duty Boom Gate System
Unlimited Driveway compatibility
Robust Design Overview
One boom gate can work with either side
Intelligent Brushless Logic Controller and Solar Regulator
Boom Gate System Specifications
| Operating Voltage | 24V DC |
| Motor Type | BRUSHLESS 24V 150W |
| Duty Cycle | 80% |
| Speed | 2.4-8s Adjustable |
| Accessories Power | 24V DC |
| Safety Inputs | Photocell, Detector, Induction Loop, Stop Button |
| Light Outputs | Light bar and Traffic Light |
| Remotes | Yes, Up to 16 ADMIN remotes with wireless expander |
| Dimensions | 945x335x230mm |
22aH and 26aH Battery Options
22aH (Low Intensity Usage)
| Battery System | 2x 22aH (24v/22ah) |
| Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) | Up to 14 Days WITHOUT Solar Input |
| Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) | up to 5 Days WITHOUT solar Input |
| 25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom | MAX. 2 Days WITHOUT solar Input |
Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.
26aH (High Intensity Usage)
| Battery System | 2x 26aH (24v/26ah) |
| Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) | Up to 22 Days WITHOUT Solar Input |
| Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) | up to 7 Days WITHOUT solar Input |
| 25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom | MAX. 4 Days WITHOUT solar Input |
| 50% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom | MAX. 2 Days WITHOUT solar Input |
Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.
High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post
Solar Panel can be installed vertically or horizontally.
✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ True IP67 Rating
✓ 97% or greater power tolerance
✓ Anodized Silver Aluminum Frame
✓ Long 10 Metre Cable (or cut to required size)
✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
| Maximum Power(Pmax) | 60W/120W/180W |
| Optimum Operating Voltage(Vmp) | 35.5V |
| Optimum Operating Current(Imp) | 1.13A |
| Open Circuit Voltage(Voc) | 43.1V |
| Short Circuit Current(Isc) | 3.4A/6.8A/10.2A |
| Power Tolerance | -1%~+3% |
| Operating Module Temperature | 40 C to +85 C |
Heavy Duty Solar Pole
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
CERO PWM Solar Regulator
The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.
The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.
✓ Large copper input terminals (12-28AWG)✓ Ribbed metal heat sink across the entire back side
✓ LCD Display
✓ 3 Stage PWM Management (Bulk, Boost, Float)
✓ Supports Sealed, Gel and Flooded Batteries
✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
✓ Allows for a total of 10 Amps Inputs
✓ High Efficiency
✓ USB Terminal
✓ Temperature Compensation
✓ Low voltage disconnect and reconnect
Tekno K1 Weatherproof Wired Keypad
The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.
The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.
General Mobile APP users can also be managed in via the app (add/delete) if and when required.
Key Features
✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
✓ Control your gate ANYWHERE in the world
✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
✓ Unlimited APP Users
✓ Add in expiring PIN codes by APP
✓ Add in normal users by APP
✓ Wires directly into the system
✓ Simple connection and simple setup
✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what's supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.
