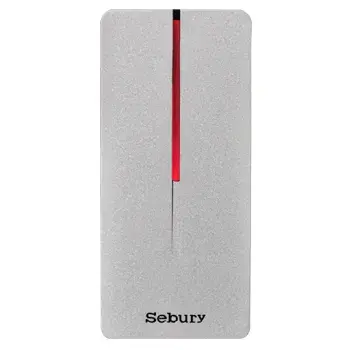

mReader card and Tag Reader
Innovative All-metal Design, without a need for an antenna window
125KHz and 13.56Mhz Dual-band antenna, support to read EM/HID/MF/NFC cards
Fully potted process, IP68，IK10
Specification
Material：Zinc Alloy
Input Voltage：DC12V±10%
Idle Current：≤35mA
Card Reading Type：125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)
Reading Card Distance：125KHz: ≤5cm 13.56MHz: ≤2cm
Output Format：Wiegand 26-37 bit (default wiegand 26 bit, customized other format, HID card output wiegand 26-37 automatically.)
Working Temperature：-20~50° C
Working Humidity：0~95% (no condensation)
Product Dimension：83 * 83 * 27.3mm
