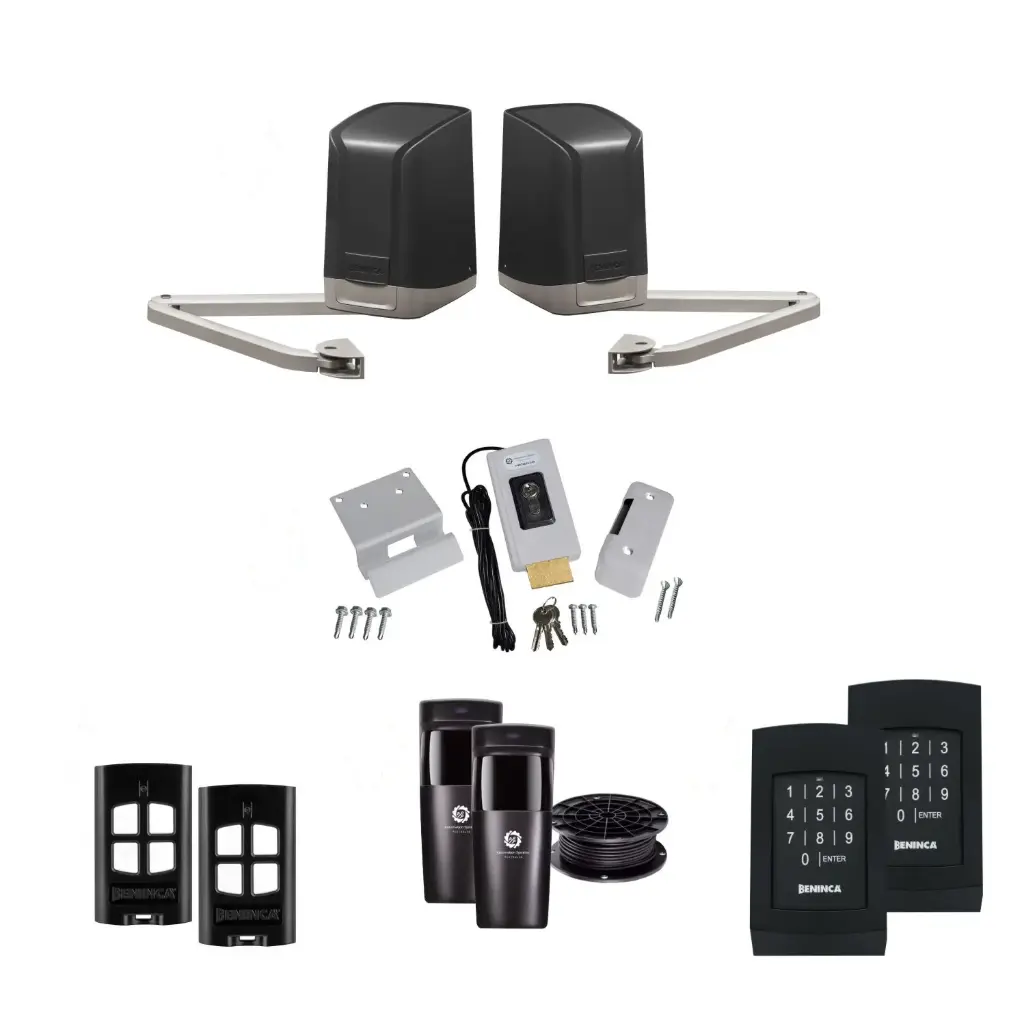

SAM Articulating Arm ITALIAN Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit with TWO Keypads Entry Exit
Kit Part No:
SAM-2D-P-AP
🏆 3 Year Warranty!
| Operating Method: Remotes & Pin Code Keypad |
| Gate Opener Brand: Beninca |
| Swing Gate Thrust/Torque: 220Nm |
| Model: SAM |
| Warranty: 3 Year |
| Maximum Swing Gate Size (each): 2.5m |

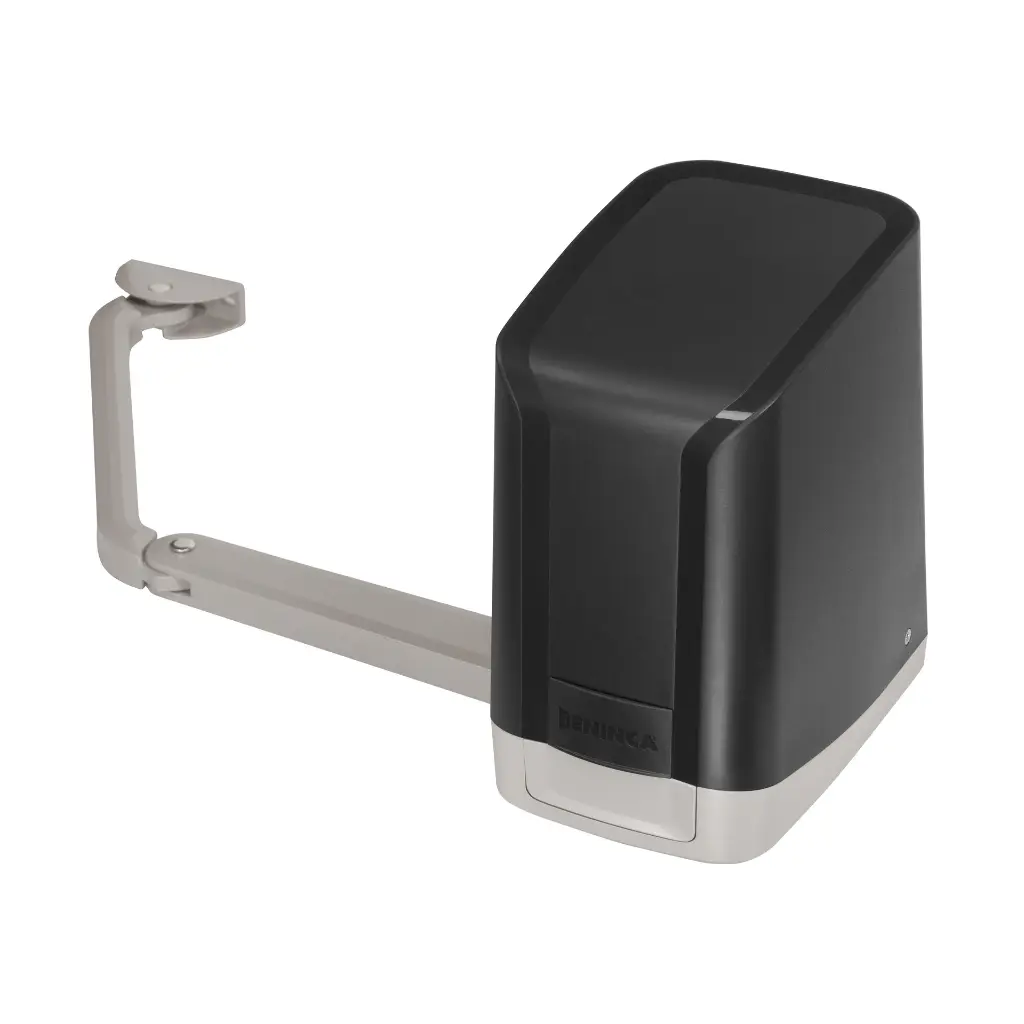

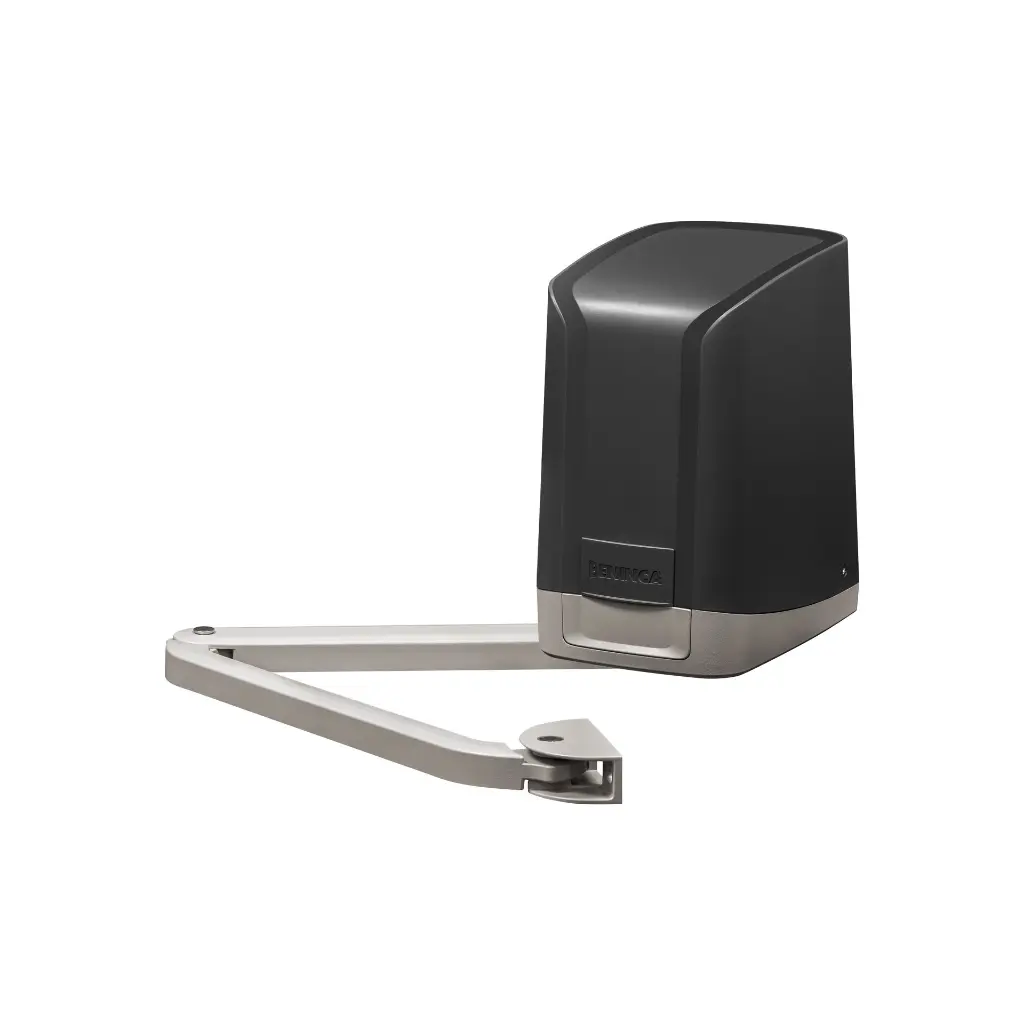

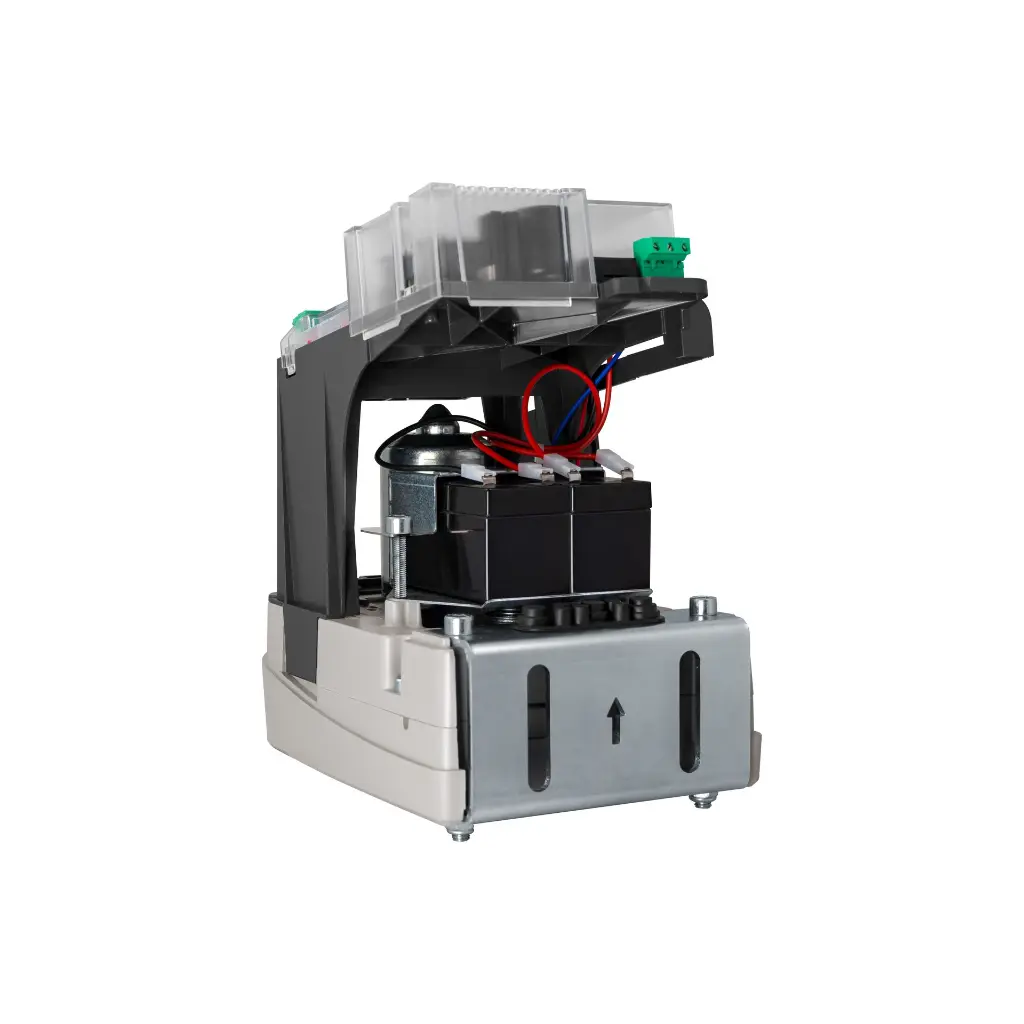

Beninca SAM Articulating Arm Operator
The SAM Is a Italian Made Articulating Arm Operator designed for smaller brick pillar installations for gates up to 2.5m width each.
Its clean design principal does not require a separate control box as it is built within the master motor unit which can be installed on either side of the driveway.
The SAM operator can reach in to the gate position at a respectable 280mm allowing for centralized positioning of the gate on most standard pillars.
Its clean design principal does not require a separate control box as it is built within the master motor unit which can be installed on either side of the driveway.
The SAM operator can reach in to the gate position at a respectable 280mm allowing for centralized positioning of the gate on most standard pillars.
Key Features
✓ Strong and Reliable
✓ Sleek and Stylish
✓ Open & Closed Position Adjustable Mechanical Stop
✓ Sleek and Stylish
✓ Open & Closed Position Adjustable Mechanical Stop
✓ Die-Cast Housing
✓ Built In Encoder (5 Wire Motor)
✓ Flexible and vast installation capabilities
✓ Built In Encoder (5 Wire Motor)
✓ Flexible and vast installation capabilities
Overview of the Orion Actuator

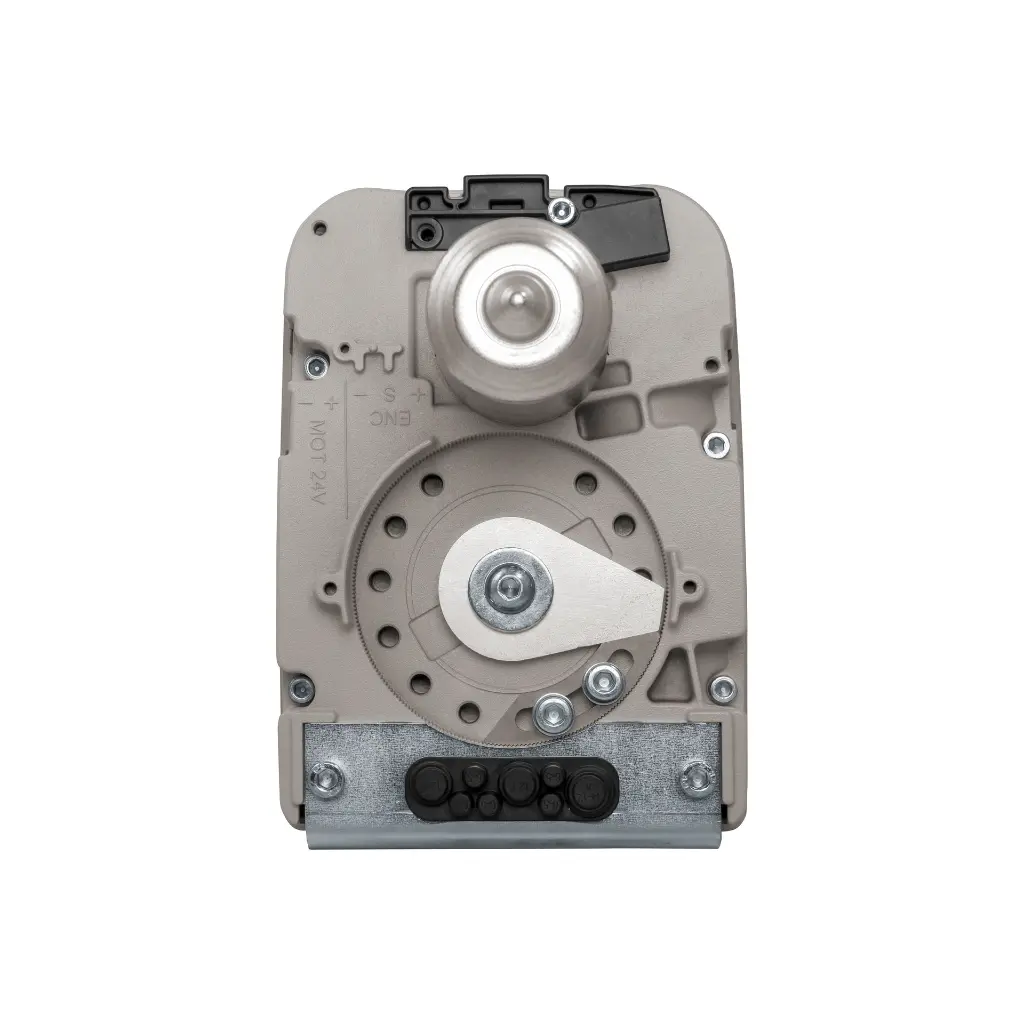

Mechanical Stop
Set the MAX. Open angle with the adjustable top point within the gate motor.
Quality Castings

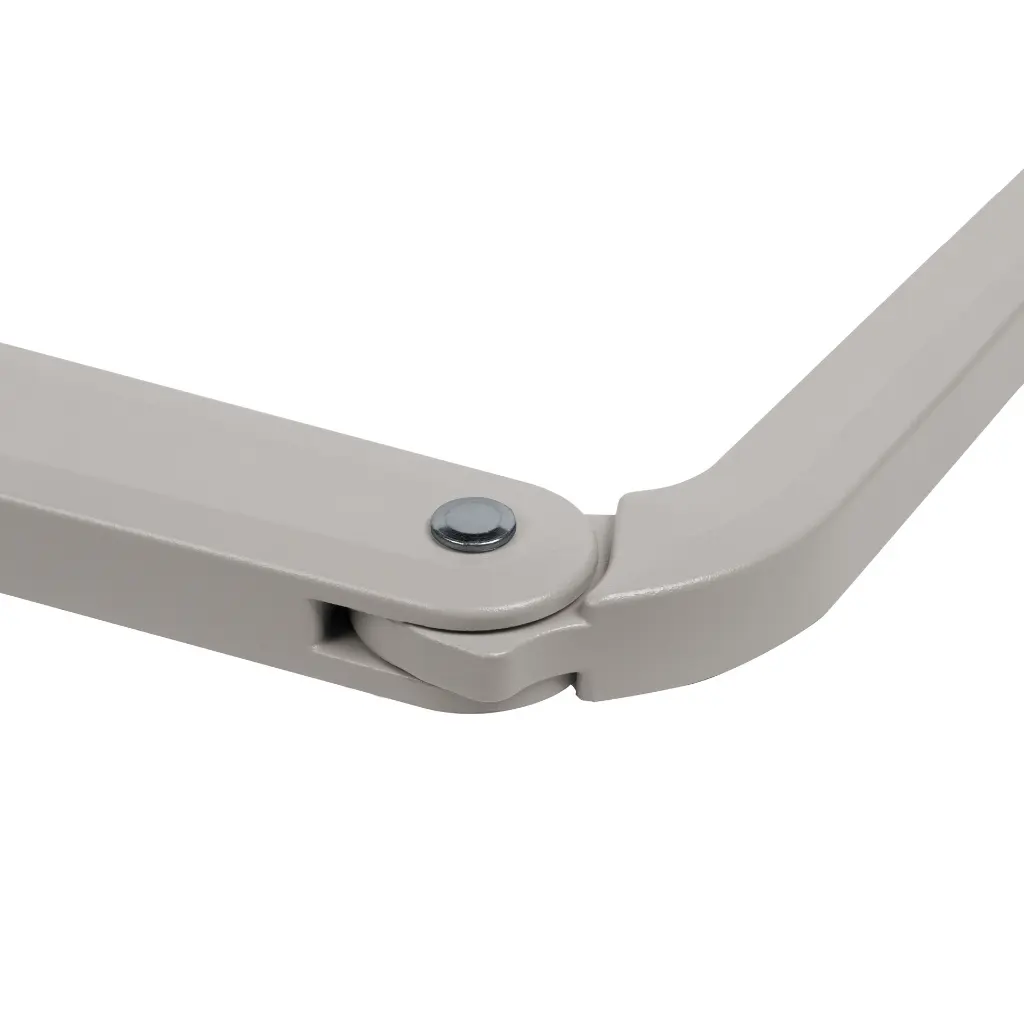

Both the motor unit and arms are constructed of robust die-cast and finished with a powder coating.
Clean Installations

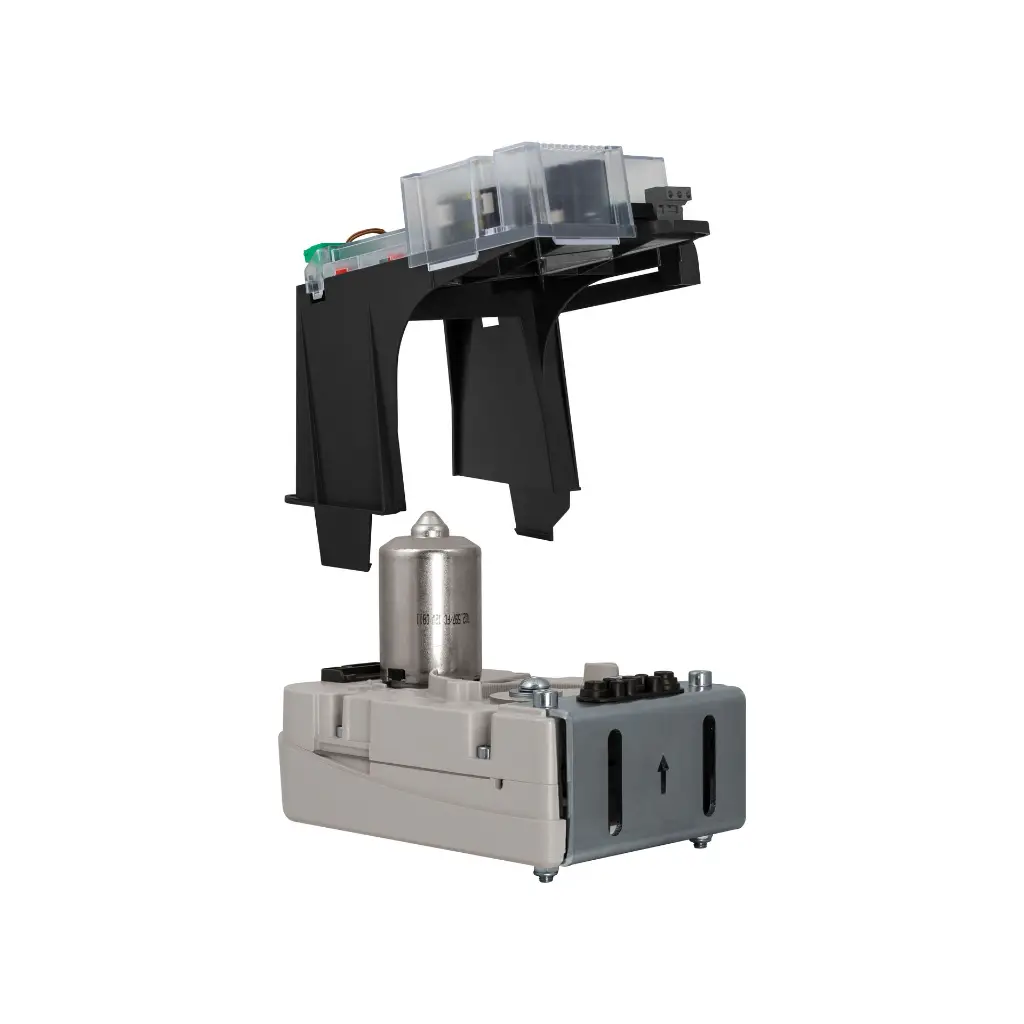

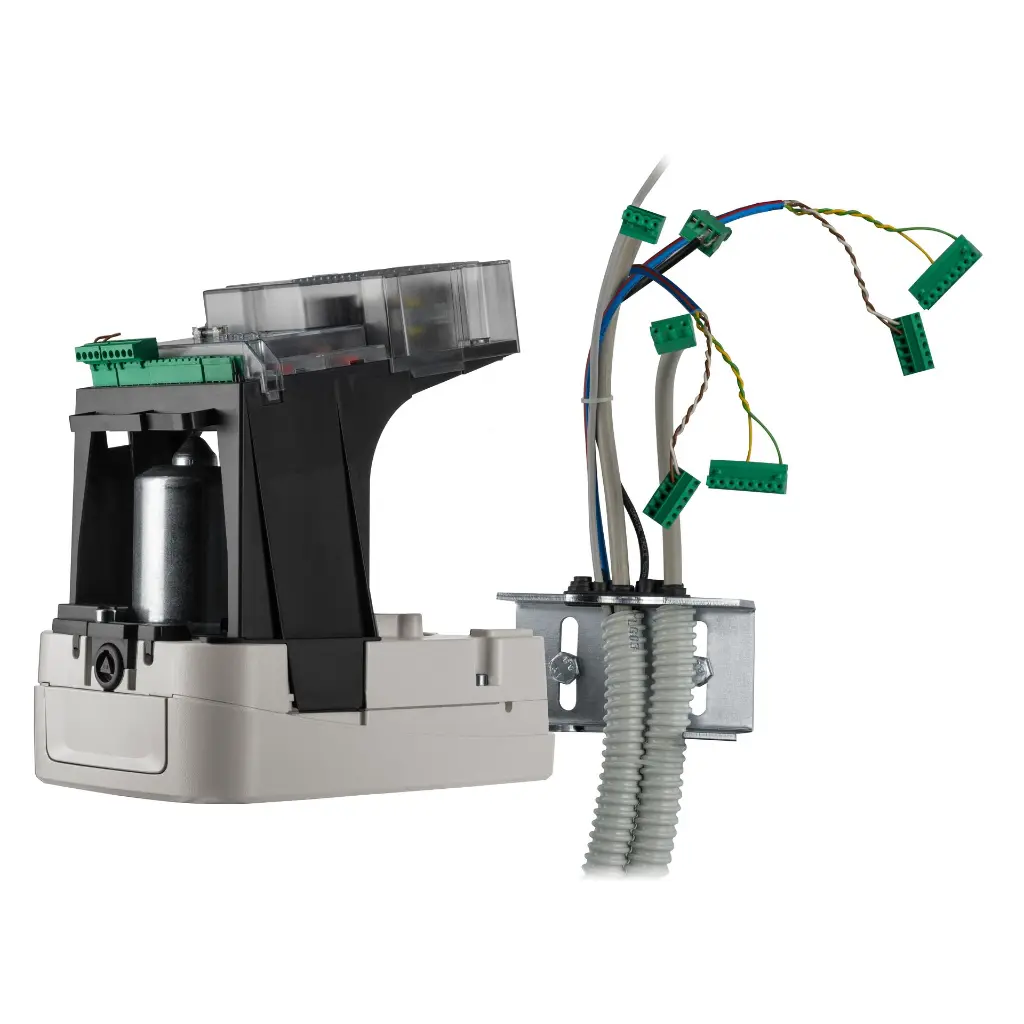

The master gate mot has the control board built in allowing for a cleaner aesthetics and great cable management.
Driveway Gate Motor Specifications
| Operating Voltage | 24V DC |
| Duty | 30 Uses Per Hour |
| Thrust | 220Nm |
| Limit Stops | Yes for Open & Closed, a gate stop is used in the closed position if possible and strongly advised |
| Gearing Structure | Gearbox |
| Case Material | Die-Cast |
| Maximum Gate Width | 2.5 Meters See specifications graph |
| Maximum Gate Weight | 300KG (See Pivot Table Below- Right Column) |
Installation Table
Capacity Table
Operators Measurements
The Built In CP . SAM is a modern 24V Swing Gate Control Board from Beninca.
The LCD Display (not Switches) allows for adjustment of most working settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible (see the complete list below).
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
The LCD Display (not Switches) allows for adjustment of most working settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible (see the complete list below).
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
Automatic Gate System Features
Automatic Gate System Controller Specifications
| Operating Voltage | 24V |
| Duty Cycle | Moderate Use |
| Standby Consumption | 20mA |
| Supports Battery Backup | Yes, 24V DC (Mains Systems Only) |
| Automatic Gate Lock Support | Yes, 12-24V DC |
| Light Support | Yes, Aux. Output |
| Accessories Voltage | Yes, 24V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -20°-50°C |
| Maximum Remotes | 64 |

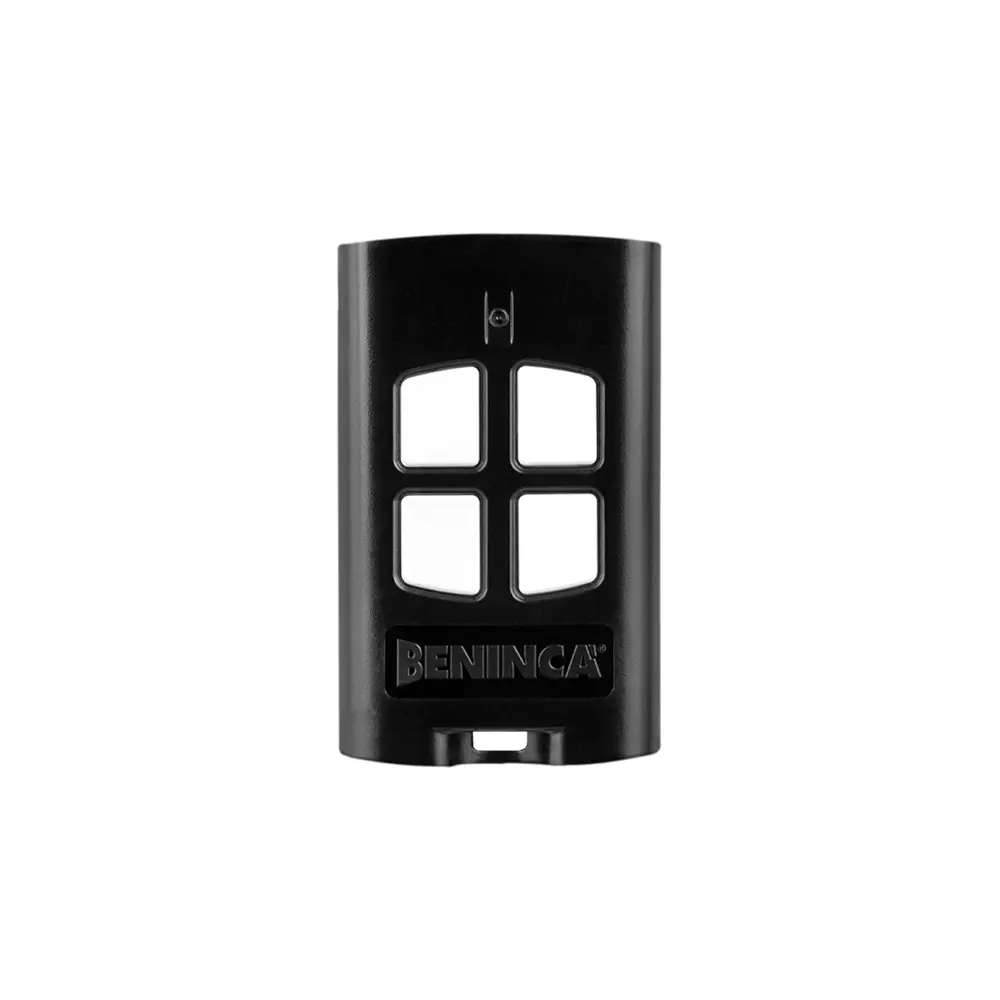

Beninca TO.GO4A
Sleek, Modern, Stylish and Easy to Use the TO.GO4A Remote Control allows for utilization of Pedestrian Function and Normal Gate Operation with the Allowance for control of another Gate/Garage Door with the Unused buttons.

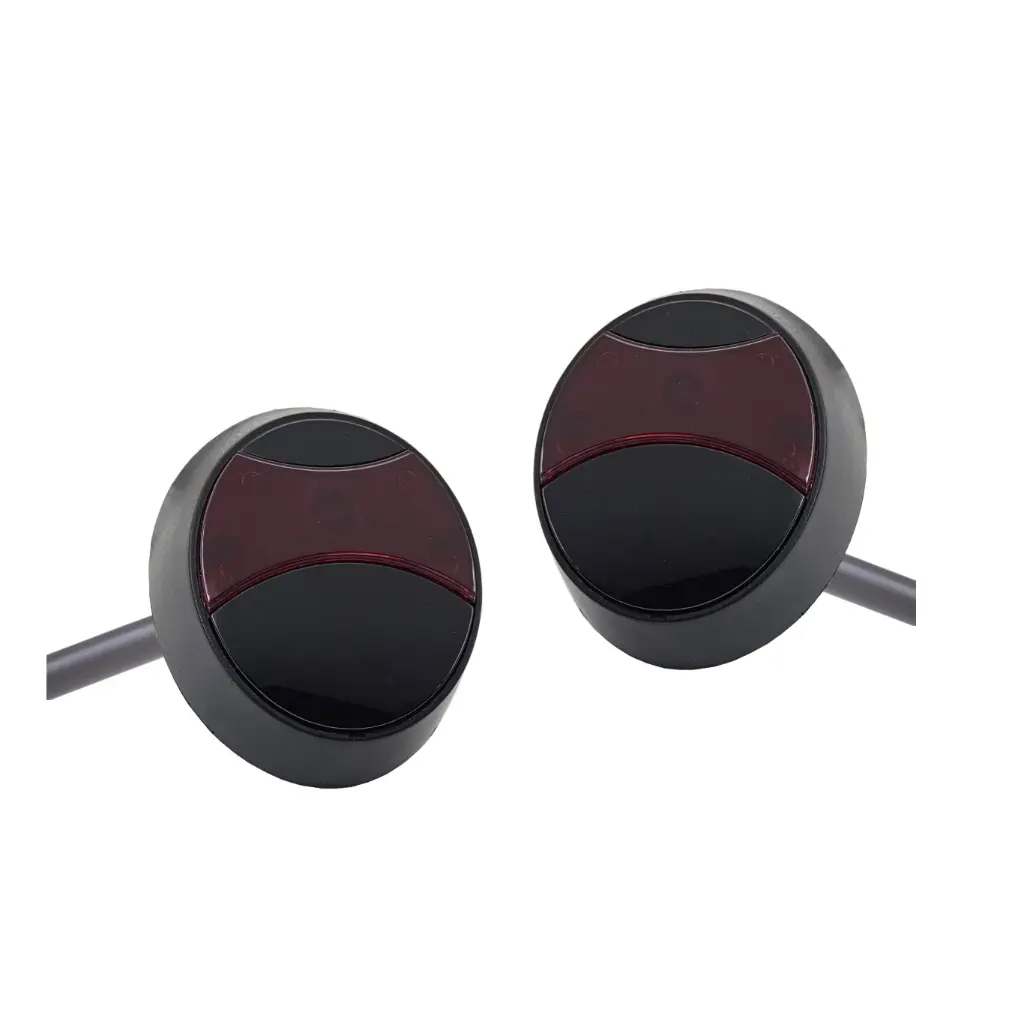

Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only

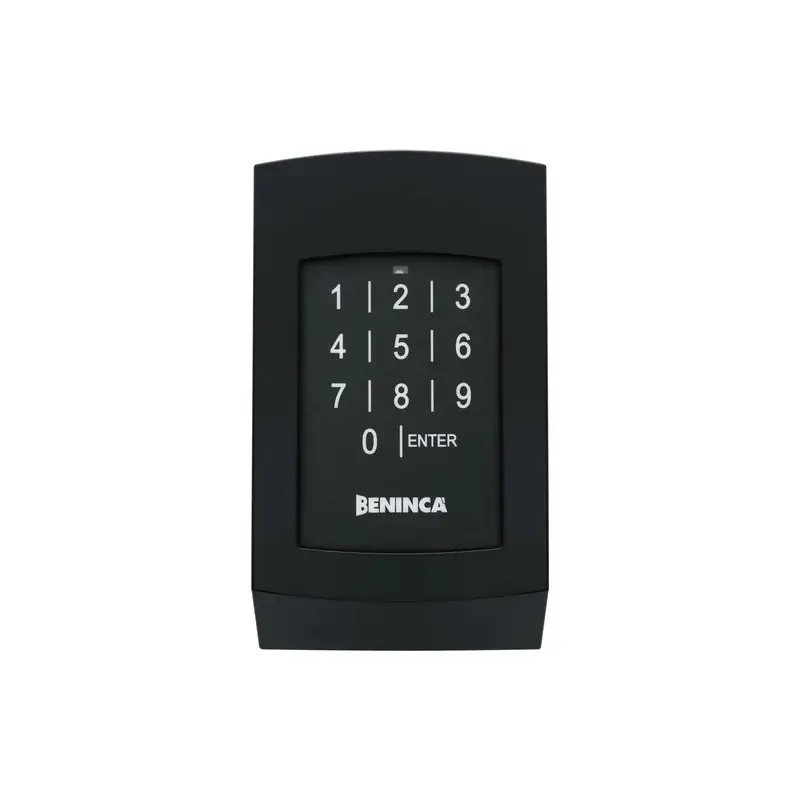

Beninca BE.CODE Wireless Keypad
Slimline and Wireless using replaceable CR123A Lithium Batteries allows a remarkable battery life of 7 years with a use case of 190 Users per day.
Maximum distance of 100m in clear line of sight is achievable with the BE.CODE and with an allowance of up to 254 stored codes in the Keypad.
Maximum distance of 100m in clear line of sight is achievable with the BE.CODE and with an allowance of up to 254 stored codes in the Keypad.
Automatic Electric Lock and Magnetic Lock Options

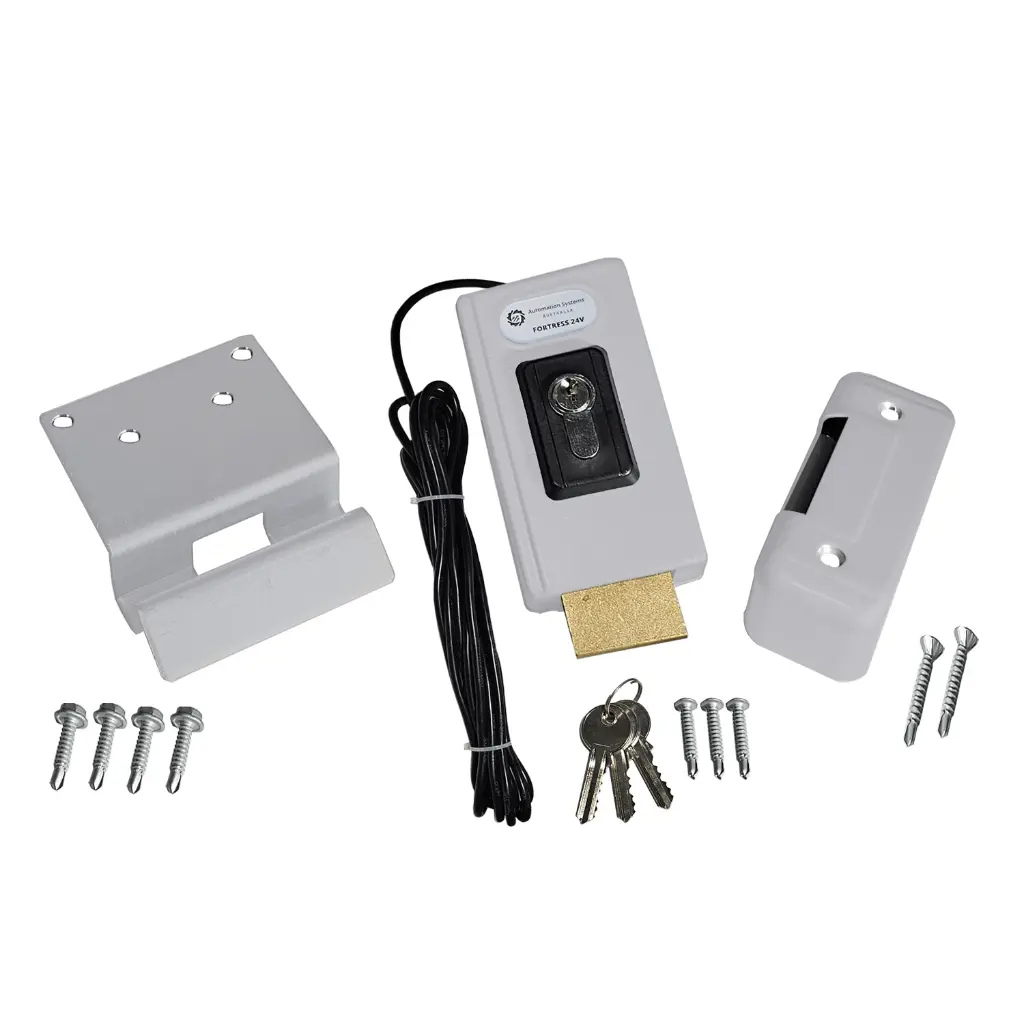

Fortress EL Automatic Gate Lock
The Fortress EL totally AUTOMATIC electric gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security.Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.
The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).
For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).
Key Features
✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation
Fortress ML Automatic Magnetic Gate Lock
The Fortress ML totally AUTOMATIC Magnetic gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.The Fortress ML is designed to work with both gate to post (for single gates) and also a gate to gate (for double gates to be used with a metal gate stop).
The benefit in using a ML series Magnetic lock over an EL series Electric lock is that ML magnetic lock allows for an automatic release from the system as per normal in a circumstance where the lock is loaded by wind resistance whereas the electric lock cannot release whilst loaded by wind resistance.
Key Features
✓ Waterproof Stainless Steel Case with resin filled core
✓ 280KG Holding Force
✓ Works with the gate controllers backup-battery system
✓ Can still unlock under load when commanded
✓ Easy 2 Wire connection
✓ flexible installation
