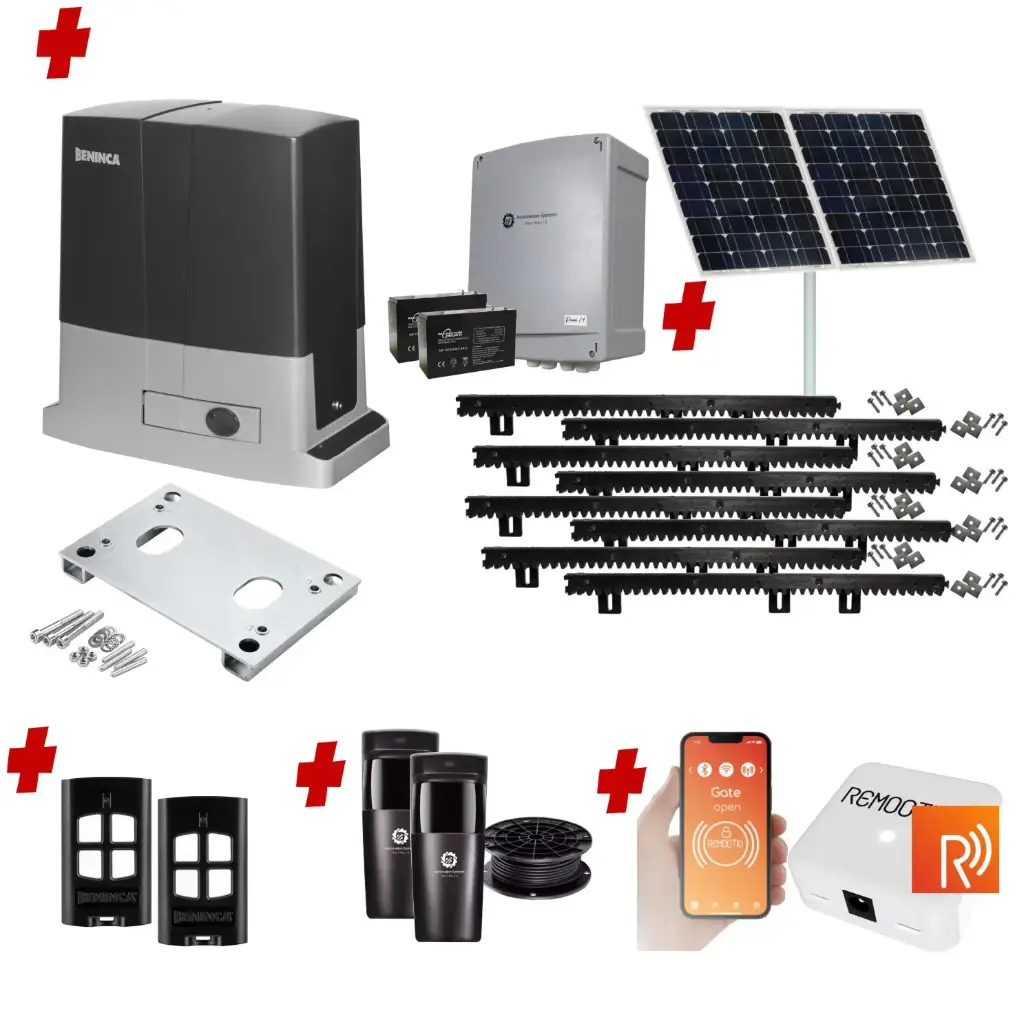

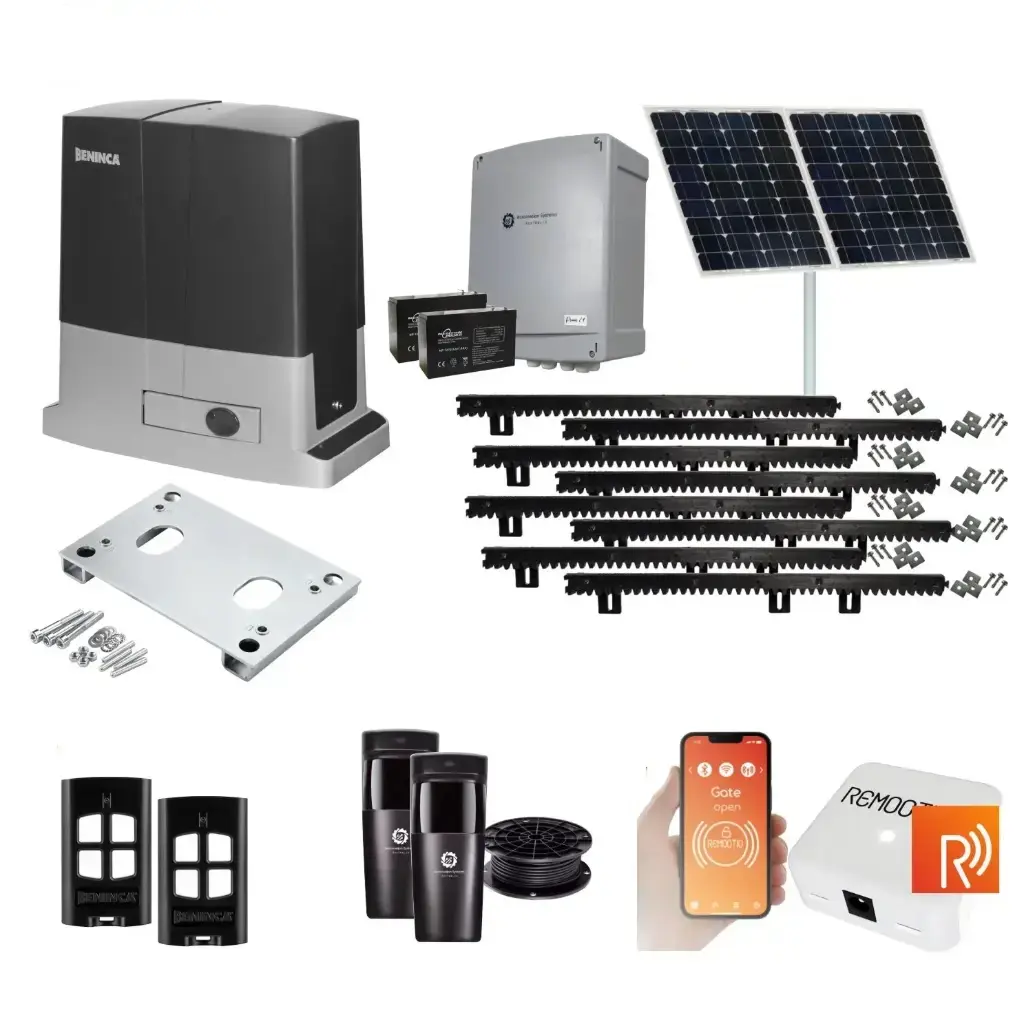

Remootio Beninca BULL 624 Solar Powered Automatic Sliding Driveway Gate Opener 24 Volt Kit Heavy Duty POWERFUL Design
| Operating Method: Remotes & Mobile Phone Control |
| Warranty: 3 Year |
| Gate Opener Brand: Beninca |
| Model: Bull 624 |
| Sliding Gate Max. Width: 8m |
| Sliding Gate Max. Weight Capacity: 600KG |
Beninca Bull 624 SE (Advanced Version)
The Beninca Bull 624SE Sliding Gate System is a 600KG capable Operator (Level Ground) and works on 24V.
It uses the latest and most advanced Beninca Controller (ARC). With an LCD On-Screen Display (no DIP switches), automatic learning, Multiple Safety Inputs
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
Key Features
✓ Die-Cast Alloy Housing
✓ Adjustable Embedded Plate & Fixed Base Supplied
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Advanced Controller
Product Overview
Advanced "ARC" Digital Logic Controller
Steel Pinion and Easy Limit Switches
Key Locked Manual Release
Automatic Gate System Logic Controller Features
Dimensions
Automatic Sliding Gate System Specifications
| Operating Voltage | 24V |
| Maximum Gate Size | 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab) |
| Maximum Gate Weight | 600KG (Slope is a multiplier of weight) |
| Duty Cycle | 20°C (Intensive Use) - 50°C (40 Cycles/H) |
| Speed | (23CM/S) 14 M/MIN |
| Standby Consumption | 30mA |
| Supports Battery Backup | Yes, 24V DC (With Energy Saving) |
| Light Support | Yes, Warning Light + AUX Outputs (Logic Based) |
| Accessories Voltage | Yes, 24V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -20°-50°C |
| Maximum Remotes | 2048 |
Beninca TO.GO4A
High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post
Solar Panel can be installed vertically or horizontally.
✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ True IP67 Rating
✓ 97% or greater power tolerance
✓ Anodized Silver Aluminum Frame
✓ Long 10 Metre Cable (or cut to required size)
✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
| Maximum Power(Pmax) | 60W/120W/180W |
| Optimum Operating Voltage(Vmp) | 35.5V |
| Optimum Operating Current(Imp) | 1.13A |
| Open Circuit Voltage(Voc) | 43.1V |
| Short Circuit Current(Isc) | 3.4A/6.8A/10.2A |
| Power Tolerance | -1%~+3% |
| Operating Module Temperature | 40 C to +85 C |
Heavy Duty Solar Pole
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
CERO PWM Solar Regulator
The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.
The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.
✓ Large copper input terminals (12-28AWG)✓ Ribbed metal heat sink across the entire back side
✓ LCD Display
✓ 3 Stage PWM Management (Bulk, Boost, Float)
✓ Supports Sealed, Gel and Flooded Batteries
✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
✓ Allows for a total of 10 Amps Inputs
✓ High Efficiency
✓ USB Terminal
✓ Temperature Compensation
✓ Low voltage disconnect and reconnect
Battery System
Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.
Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.
Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.
Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.
Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.
The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.
These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirement.
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Remootio 3
This Remootio 3 Package Includes
- Remootio 3 device (Bluetooth and Wi-Fi enabled device for controlling and monitoring gates and garage doors)
- Sensor (for detecting if your gate is open or closed)
- Power adapter (5V) (for powering Remootio 3 from a wall socket) (Can also be powered by Automatic gate/garage door directly (5-32V DC, 12-24V AC))
- Power cable for the 5V power adapter
- Double-sided tapes
- Cable for connecting Remootio to your gate or garage door
- Installation manual
Key Features
- Remootio 3 has two output relays which makes it compatible with gate/garage door openers that have separate trigger inputs for opening and closing
- Remootio 3 works with a 5V power supply (standard USB charger)
- Remootio 3 also works from 5-32V DC, 12-24V AC voltages, so it can be powered from the control board of most gate openers making installation very easy
- Remootio 3 has two accessory input terminals (e.g. sensor and doorbell button)
Works With
|
Most electric gates |
|
Most garage door openers |
|
Most electric strikes |
Please use the compatibility checker to make sure that Remootio 3 is compatible with your gate or garage door opener.
Connection Methods
|
Bluetooth (also works when there is no Wi-Fi / Internet access) |
|
Wi-Fi (local network) |
|
Internet (via Wi-Fi) |
Smart Home Integrations
|
Apple Home |
|
Amazon Alexa |
|
Google Assistant |
|
Samsung SmartThings |
Control Via
|
iOS and Android Smartphones |
|
Apple Watch |
|
Open API |
Easy Installation
|
Wiring diagrams available for most electric gate and garage door openers |
|
Small dimensions – fits almost anywhere |
|
Wide operating voltage range: 5-32VDC & 12-24VAC |
|
2x output relays |
Three ways to connect
Bluetooth: You can control your gates even when WiFi is not available at your gates or when the internet service is down.
Wi-Fi: Connect Remootio to your home WiFi and control your gates from anywhere within your house. In this mode, no data goes through the internet.
Internet: You can control and monitor your gates from anywhere in the world.
No external bridge or hub is needed. It's all built into the device.
It also works in parallel with your traditional remote controller
Apple Home, Amazon Alexa, Google Home, Siri, SmartThings
Remootio 3 is compatible with Apple Home, Google Home, Amazon Alexa and SmartThings so you can use voice commands to open or close your garage door.
You can also add a personal phrase in the Remootio app and open or close your gates with Siri shortcuts.
Easy keysharing
You can easily share keys with family and friends or even Airbnb guests via QR code or via text message. (You can also use the messaging platform of any social media apps to share keys).
Access right management
Grant or revoke access rights easily from the app. You have full control over which users have access to your gate or garage via Bluetooth, WiFi and Internet. (For example you can limit the gardener's key to only work via Bluetooth.)
Limit when users can operate the gates:
Duration based: Set a start date and an end date (ideal for AirBnB)
Weekly recurring pattern: Set a start time and an end time for each day of the week. (For example the gardener can only open on weekdays between 10:00 am and 2:00 pm)
Automations
Close or open your gate or garage door at certain times of the day. You can set up as many automations as you wish.
For example, Remootio can open your gate every working day at 9:00 AM and close it at 6:00 PM. (You can choose any day of the week and any time of the day.) You can add as many automations as you wish.
Camera add-on
You can add a Remootio compatible Wi-Fi camera and watch the live stream in the Remootio app.
Check gate status
You can check whether your gate is open or closed from the Remootio app any time. You can also ask Alexa or Google home if your garage door is closed.
Notifications
Get notified when someone operates your gate, someone rings the doorbell, or when the gate has been left open.
Apple Watch app
Use the Remootio apple watch app to control your gate from your wrist.
Widgets
Open and close your gate or garage door without opening the app using the Remootio widget or the Siri shortcuts widget.
Security
Independently from whether you use Bluetooth or Wi-Fi, Remootio uses 256-bit authenticated end-to-end encryption between your smartphone and the Remootio device.
Keys are not stored in a cloud, but in your Remootio device and your smartphone.
Small size
Thanks to its small dimensions, Remootio fits just about anywhere.
Customizable App
From the Remootio app you can easily rename, add a photo and select a background color for each gate and garage door so that you can easily find them when you are swiping through your devices.
Multiple devices
Handle multiple devices from the same app. Swipe horizontally between them. You can add as many Remootio devices as you wish.
Free smartphone app
The smartphone app is available for both iOS and Android. There are no subscription fees.
Remootio 3
This Remootio 3 Package Includes
- Remootio 3 device (Bluetooth and Wi-Fi enabled device for controlling and monitoring gates and garage doors)
- Sensor (for detecting if your gate is open or closed)
- Power adapter (5V) (for powering Remootio 3 from a wall socket) (Can also be powered by Automatic gate/garage door directly (5-32V DC, 12-24V AC))
- Power cable for the 5V power adapter
- Double-sided tapes
- Cable for connecting Remootio to your gate or garage door
- Installation manual
Key Features
- Remootio 3 has two output relays which makes it compatible with gate/garage door openers that have separate trigger inputs for opening and closing
- Remootio 3 works with a 5V power supply (standard USB charger)
- Remootio 3 also works from 5-32V DC, 12-24V AC voltages, so it can be powered from the control board of most gate openers making installation very easy
- Remootio 3 has two accessory input terminals (e.g. sensor and doorbell button)
Works With
|
|
Most electric gates |
|
|
Most garage door openers |
|
|
Most electric strikes |
Please use the compatibility checker to make sure that Remootio 3 is compatible with your gate or garage door opener.
Connection Methods
|
|
Bluetooth (also works when there is no Wi-Fi / Internet access) |
|
|
Wi-Fi (local network) |
|
|
Internet (via Wi-Fi) |
Smart Home Integrations
|
|
Apple Home |
|
|
Amazon Alexa |
|
|
Google Assistant |
|
|
Samsung SmartThings |
Control Via
|
|
iOS and Android Smartphones |
|
|
Apple Watch |
|
|
Open API |
Easy Installation
|
|
Wiring diagrams available for most electric gate and garage door openers |
|
|
Small dimensions – fits almost anywhere |
|
|
Wide operating voltage range: 5-32VDC & 12-24VAC |
|
|
2x output relays |
Three ways to connect
Bluetooth: You can control your gates even when WiFi is not available at your gates or when the internet service is down.
Wi-Fi: Connect Remootio to your home WiFi and control your gates from anywhere within your house. In this mode, no data goes through the internet.
Internet: You can control and monitor your gates from anywhere in the world.
No external bridge or hub is needed. It's all built into the device.
It also works in parallel with your traditional remote controller
Apple Home, Amazon Alexa, Google Home, Siri, SmartThings
Remootio 3 is compatible with Apple Home, Google Home, Amazon Alexa and SmartThings so you can use voice commands to open or close your garage door.
You can also add a personal phrase in the Remootio app and open or close your gates with Siri shortcuts.
Easy keysharing
You can easily share keys with family and friends or even Airbnb guests via QR code or via text message. (You can also use the messaging platform of any social media apps to share keys).
Access right management
Grant or revoke access rights easily from the app. You have full control over which users have access to your gate or garage via Bluetooth, WiFi and Internet. (For example you can limit the gardener's key to only work via Bluetooth.)
Limit when users can operate the gates:
Duration based: Set a start date and an end date (ideal for AirBnB)
Weekly recurring pattern: Set a start time and an end time for each day of the week. (For example the gardener can only open on weekdays between 10:00 am and 2:00 pm)
Automations
Close or open your gate or garage door at certain times of the day. You can set up as many automations as you wish.
For example, Remootio can open your gate every working day at 9:00 AM and close it at 6:00 PM. (You can choose any day of the week and any time of the day.) You can add as many automations as you wish.
Camera add-on
You can add a Remootio compatible Wi-Fi camera and watch the live stream in the Remootio app.
Check gate status
You can check whether your gate is open or closed from the Remootio app any time. You can also ask Alexa or Google home if your garage door is closed.
Notifications
Get notified when someone operates your gate, someone rings the doorbell, or when the gate has been left open.
Apple Watch app
Use the Remootio apple watch app to control your gate from your wrist.
Widgets
Open and close your gate or garage door without opening the app using the Remootio widget or the Siri shortcuts widget.
Security
Independently from whether you use Bluetooth or Wi-Fi, Remootio uses 256-bit authenticated end-to-end encryption between your smartphone and the Remootio device.
Keys are not stored in a cloud, but in your Remootio device and your smartphone.
Small size
Thanks to its small dimensions, Remootio fits just about anywhere.
Customizable App
From the Remootio app you can easily rename, add a photo and select a background color for each gate and garage door so that you can easily find them when you are swiping through your devices.
Multiple devices
Handle multiple devices from the same app. Swipe horizontally between them. You can add as many Remootio devices as you wish.
Free smartphone app
The smartphone app is available for both iOS and Android. There are no subscription fees.
