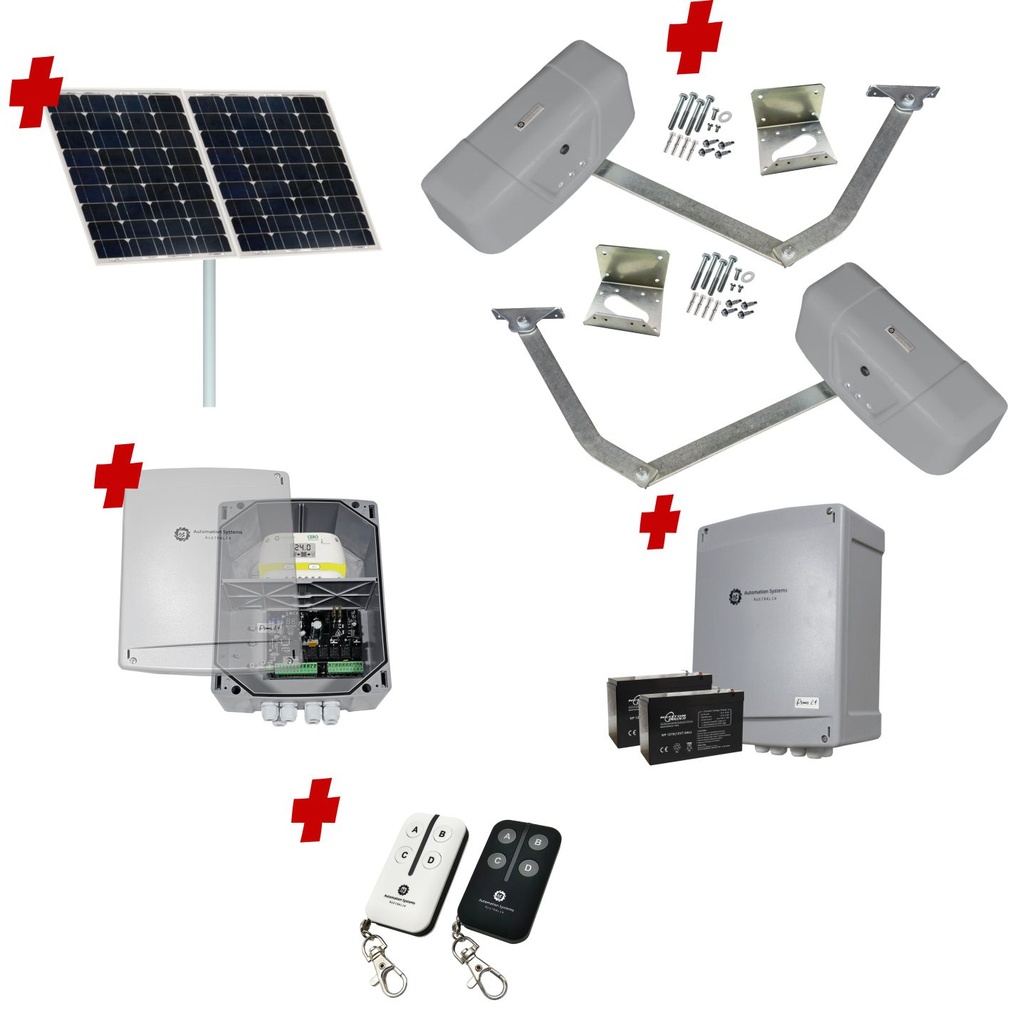

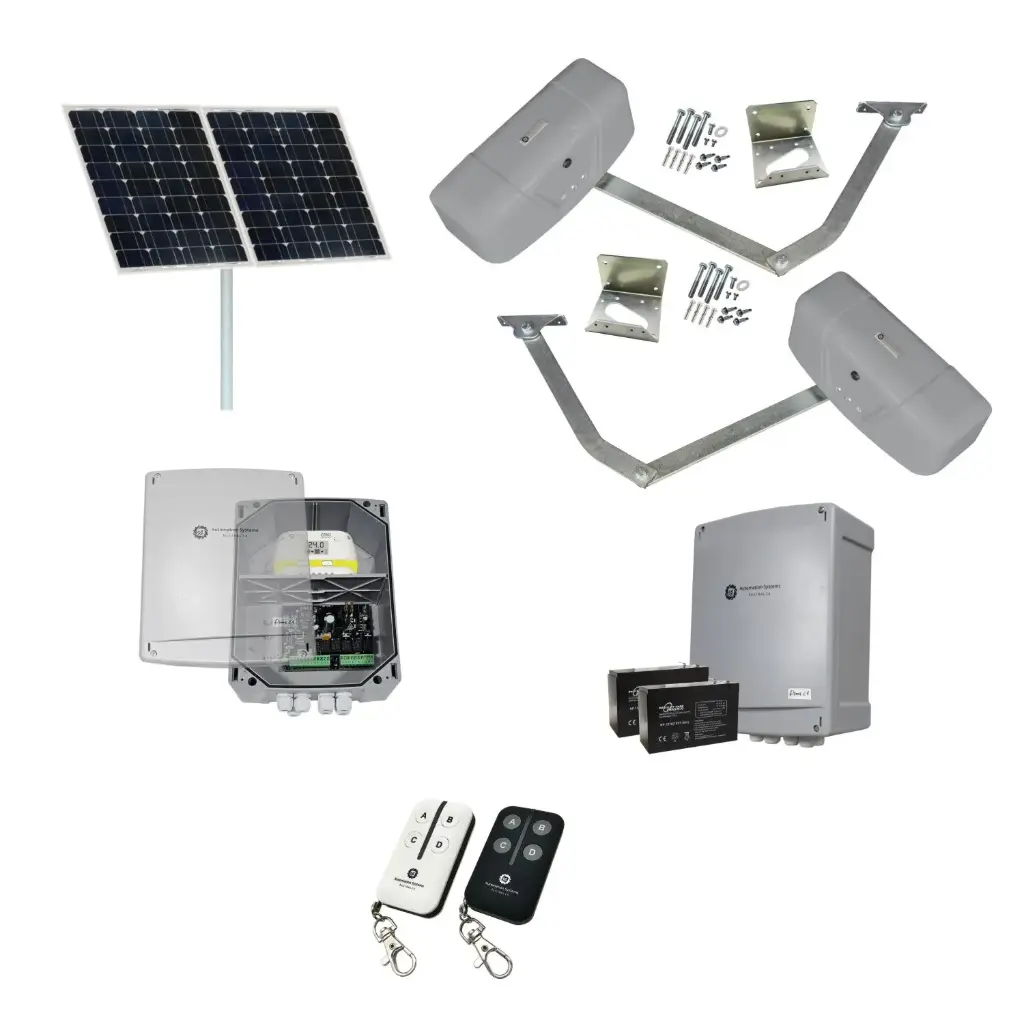

RAPTOR Extra Heavy Duty ITALIAN Solar Powered Automatic Double Swing Driveway Gate Opener 24 Volt Kit ROBUST Heavy Duty Design BASE KIT
| Operating Method: Remote Controls Only |
| Swing Gate Thrust/Torque: 500 Nm |
| Model: Raptor |
| Warranty: 3 Year |
| Maximum Swing Gate Size (each): 4m/4.2m |

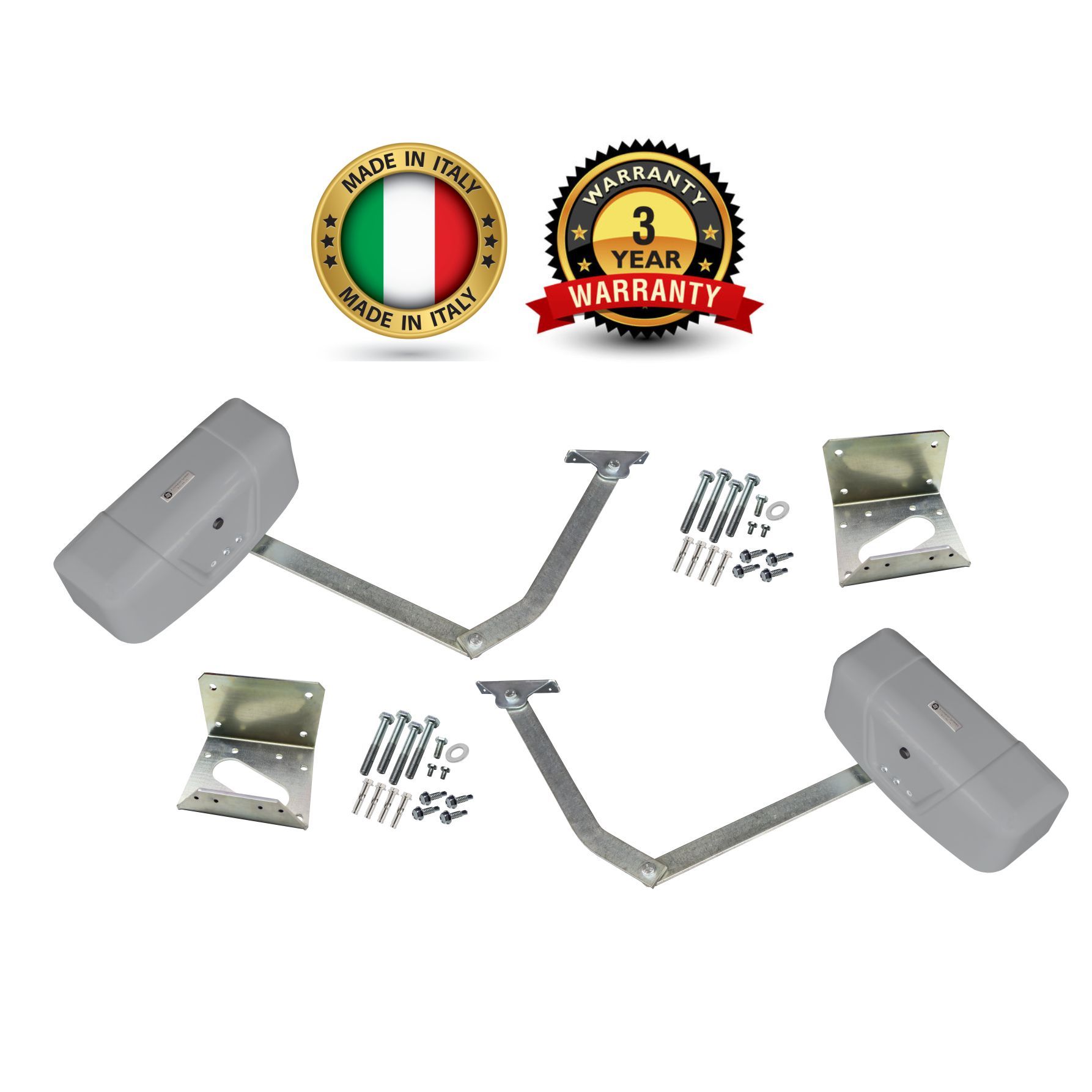

Raptor Low Voltage 24 Volt Heavy Duty Articulating Arm Operator
Flexibility is standard thanks to the spherical ball joint connection points on the arm. Both joins in the arm have excellent flexibility allowing for gate operation even when the gate is out of level or a rising gate application. The steel arms continue the heavy duty capabilities of the operators being constructed from laser cut steel at an 8mm thickness for high strength and the post bracket also carries its weight at 5mm thickness also from laser cut steel.
The Raptor series operator is 100% Universal meaning the operator could be installed on EITHER side of the driveway and is suitable for both Inwards (Pull to Open) and Outwards (Push to Open) installations with a clever clutch release system (Emergency release) is available on both sides of the operator.
The Raptor operator uses micro switches (Limit Switches) for both the Open and also the Closed positions allowing for precise and easily adjustable cut off point for each position. Micro switches are wired back to the gate control board for easier designation of both positions without the requirement of any electronics within the gate motor.
The prerequisite for a Raptor operator is a mounting area of 215mm, this is typically available on piers, pillars and large posts. If you have a narrow post the mounting area requirement can be reduced by drilling additional holes in the post bracket OR the post could be extended by installing a heavy duty bracket on the side of the post. The clearance area required for a Raptor operators arm when the gate is open to 90 Degrees (arm folded back) is 450mm.
Both Cable rolls required (DC Motor and Limit Switches) is available as an add on (in the kit contents tab) if cable has not been pre-laid before hand), a total of 5 wires is used to operate a Raptor.
Key Features
✓ Fast and Efficient 24 Volt Operation
✓ All Metal Gear Reduction System in a Die Cast Housing
✓ Universal Left or Right Side
✓ Support's inwards and Outwards Opening
Under the Cover
The Raptor allows for adjustment of the open and closed position using the micro switches (Limit Switches), easy to adjust without cams, simply adjust the striker to the required position for each micro switch.
All Metal Gear Set
Uncompromised quality and strength, all internal gears are of metal construction.
Spherical Ball Joints
Suitable for a large multitude of applications the ball joint allows for ultimate flexibility when required.
Manual Release System
Simply remove the grommet, insert the supplied Allen key and turn clockwise/counter-clockwise to lock and unlock.
Mounting Chart
Simplified - Gate Set In Maximum (Pull to Open)
Please note gate is in the CLOSED position in this illustration.
Simplified - Gate Set Out Maximum (Push to Open)
Please note gate is in the OPEN position in this illustration.
Raptor Driveway Gate Motor Specifications
| Operating Voltage | 24V DC |
| Duty Cycle | 90% |
| Force | 500Nm |
| Max Angle | 120° When mounting bracket Offset is 120mm |
| Limit Switches | Yes, Open and Closed Positions |
| Gearing Structure | Reduction, Irreversible |
| Case Material | Die Cast Alloy, ABS Fascia |
| Maximum Gate Width | 4.2 Meters (14 Ft) EACH |
| Maximum Gate Weight | 800KG EACH
Always factor in wind resistance, capacities are based on no wind load. |
STX4K Keyring High Range Remote
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
Premier SW24 Advanced Digital Automatic Gate Controller
Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers. All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.
Automatic Gate System Features
Features as Standard
✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature✓ Open one gate Pedestrian Mode Feature
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Fortress Series Electric Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
Multiple Configurable Safety Inputs
✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.
Wired and Wireless Access Control Support
✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times
Residential, Commercial and Complex Working Modes Options
✓ Normal Remote Operation (Open-Stop-Close)✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)
✓ Typical Complex - Individual Open and Close Command Inputs
✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input
Automatic Gate System Controller Specifications
| Operating Voltage | 24V DC Via Solar Regulator |
| Duty Cycle | 70% |
| Standby Consumption | 20mA |
| Automatic Gate Lock Support | Yes, 24V DC |
| Light Support | Yes, 24V DC |
| Accessories Voltage | Yes, 12V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -10°-60°C |
| Maximum Remotes | 192 |
Control Box and Battery Box Dimensions
High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post
Solar Panel can be installed vertically or horizontally.
✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ True IP67 Rating
✓ 97% or greater power tolerance
✓ Anodized Silver Aluminum Frame
✓ Long 10 Metre Cable (or cut to required size)
✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
| Maximum Power(Pmax) | 60W/120W/180W |
| Optimum Operating Voltage(Vmp) | 35.5V |
| Optimum Operating Current(Imp) | 1.13A |
| Open Circuit Voltage(Voc) | 43.1V |
| Short Circuit Current(Isc) | 3.4A/6.8A/10.2A |
| Power Tolerance | -1%~+3% |
| Operating Module Temperature | 40 C to +85 C |
Heavy Duty Solar Pole
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
CERO PWM Solar Regulator
The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.
The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.
✓ Large copper input terminals (12-28AWG)✓ Ribbed metal heat sink across the entire back side
✓ LCD Display
✓ 3 Stage PWM Management (Bulk, Boost, Float)
✓ Supports Sealed, Gel and Flooded Batteries
✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
✓ Allows for a total of 10 Amps Inputs
✓ High Efficiency
✓ USB Terminal
✓ Temperature Compensation
✓ Low voltage disconnect and reconnect
Battery System
Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.
Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.
Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.
Option 3 (Premier 24-LI20): The 20aH Lithium setup allows for up to three weeks in a typical residential installation of 10 cycles per day without seeing any charge from the solar panel (whilst factoring in standby power). Lithium batteries offer a longer lifetime than Deep Cycle batteries, so you get more years of service from the system. It is also fitted with a Victron Smart Charge Controller (MPPT), which lets you monitor the system from your mobile phone using the app. It can also support Light commercial usage.
Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.
Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.
The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.
These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirement.
