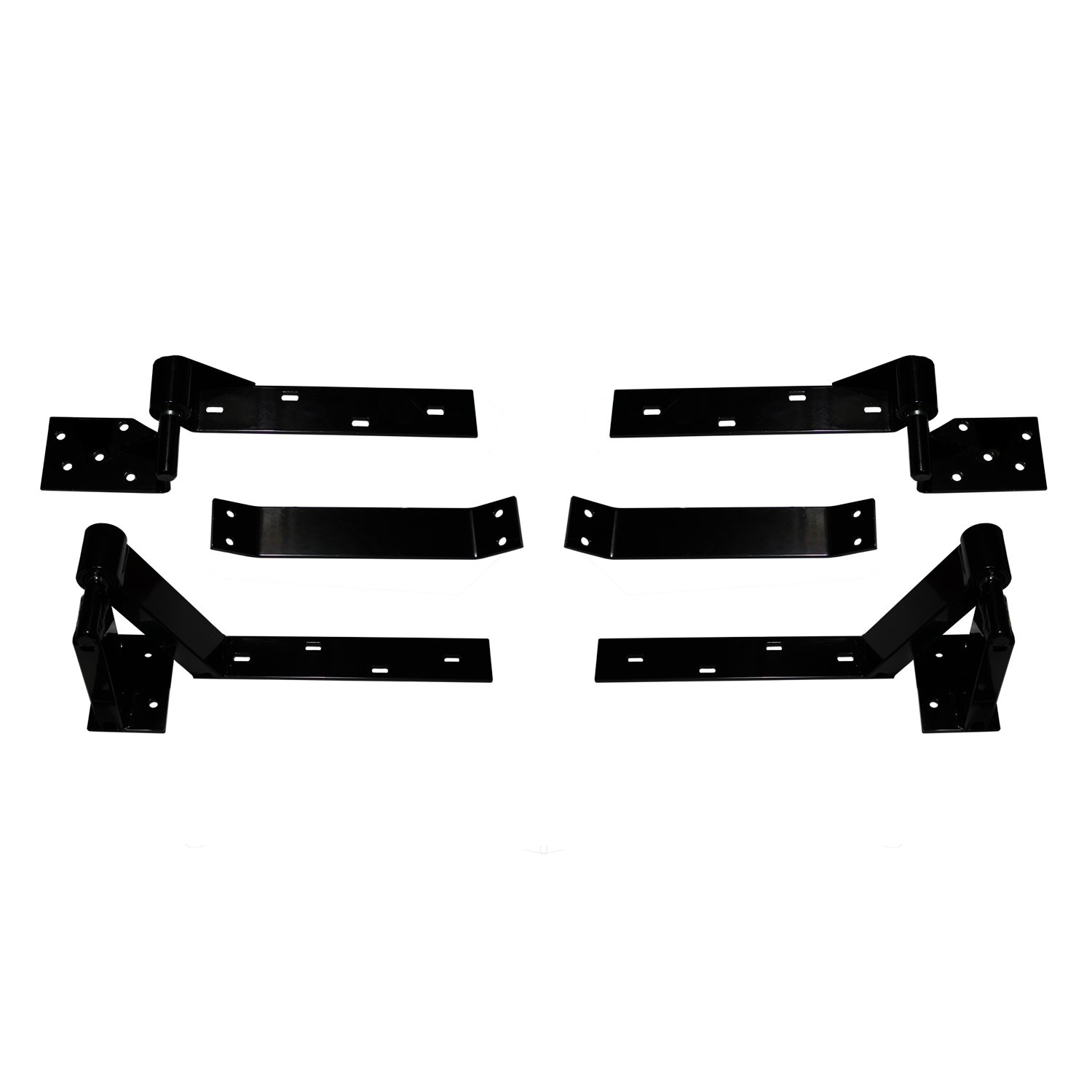

Left and Right Side Rising Tilting Swing Gate Hinge System (Gloss Black)

SKU: RISING-LHS+RHS

$195.00

$160.00

Save $35.00

    Out of stock

    Click & Collect

    Delivery

    In-Store

    Same Day Dispatch (Order before 10AM)

    Rising Gate Hinge System

    Left and Right side Double gate rising hinge system for tilting gates

    The rising hinge system allows for a tilted opening angle beginning from when the gate begins its opening till it reaches the full open position, this allows the special hinge system to open when a driveway has a grade uphill.

    Typically the hinge separation will determine the final rise amount, the close the top and bottom hinges are to one another the greater the rise, the further away from one another the less the rise amount. Please see the chart below on some typical examples.

    ✓ Steel Hinges
    ✓ Ball Joint in Each Hinge
    ✓ Gloss Black Colour
    ✓ Bottom support plate included for weightier gates
    ✓ Maximum 150KG capacity

    Rising Gate Guideline

    Gate Width (mm) Gate Rise (mm) Hinge Separation (mm)
    900 275 750
    900 235 900
    900 160 1360
    900 140 1650
    900 200 1060
    900 180 1200
    900 140 1400
    900 150 1460
    900 130 1760
    900 125 1900
    1200 240 1060
    1200 220 1200
    1200 195 1360
    1200 170 1400
    1200 180 1460
    1200 165 1650
    1200 150 1760
    1200 145 1900
    1500 290 1060
    1500 255 1200
    1500 230 1360
    1500 200 1400
    1500 210 1460
    1500 190 1650
    1500 180 1760
    1500 175 1900
    1800 460 750
    1800 390 900
    1800 330 1060
    1800 290 1200
    1800 260 1360
    1800 235 1400
    1800 240 1460
    1800 220 1650
    1800 210 1760
    1800 200 1900
    2100 380 1060
    2100 385 1200
    2100 300 1360
    2100 270 1400
    2100 270 1460
    2100 250 1650
    2100 235 1760
    2100 225 1900

    Kit Contents (See Description Tab for Full In-Depth Details)

    • Description

      Rising Gate Hinge System

      Left side rising hinge system for tilting gates
      The rising hinge system allows for a tilted opening angle beginning from when the gate begins its opening till it reaches the full open position, this allows the special hinge system to open when a driveway has a grade uphill. Typically the hinge separation will determine the final rise amount, the close the top and bottom hinges are to one another the greater the rise, the further away from one another the less the rise amount. Please see the chart below on some typical examples. ✓ Steel Hinges ✓ Ball Joint in Each Hinge ✓ Gloss Black Colour ✓ Bottom support plate included for weightier gates ✓ Maximum 150KG capacity

      Rising Gate Guideline

      Gate Width (mm) Gate Rise (mm) Hinge Separation (mm)
      900 275 750
      900 235 900
      900 160 1360
      900 140 1650
      900 200 1060
      900 180 1200
      900 140 1400
      900 150 1460
      900 130 1760
      900 125 1900
      1200 240 1060
      1200 220 1200
      1200 195 1360
      1200 170 1400
      1200 180 1460
      1200 165 1650
      1200 150 1760
      1200 145 1900
      1500 290 1060
      1500 255 1200
      1500 230 1360
      1500 200 1400
      1500 210 1460
      1500 190 1650
      1500 180 1760
      1500 175 1900
      1800 460 750
      1800 390 900
      1800 330 1060
      1800 290 1200
      1800 260 1360
      1800 235 1400
      1800 240 1460
      1800 220 1650
      1800 210 1760
      1800 200 1900
      2100 380 1060
      2100 385 1200
      2100 300 1360
      2100 270 1400
      2100 270 1460
      2100 250 1650
      2100 235 1760
      2100 225 1900
      x

      Left Side Rising Tilting Swing Gate Hinge System (Gloss Black)

      Out Of Stock

    • Description

      Rising Gate Hinge System

      Right side rising hinge system for tilting gates
      The rising hinge system allows for a tilted opening angle beginning from when the gate begins its opening till it reaches the full open position, this allows the special hinge system to open when a driveway has a grade uphill. Typically the hinge separation will determine the final rise amount, the close the top and bottom hinges are to one another the greater the rise, the further away from one another the less the rise amount. Please see the chart below on some typical examples. ✓ Steel Hinges ✓ Ball Joint in Each Hinge ✓ Gloss Black Colour ✓ Bottom support plate included for weightier gates ✓ Maximum 150KG capacity

      Rising Gate Guideline

      Gate Width (mm) Gate Rise (mm) Hinge Separation (mm)
      900 275 750
      900 235 900
      900 160 1360
      900 140 1650
      900 200 1060
      900 180 1200
      900 140 1400
      900 150 1460
      900 130 1760
      900 125 1900
      1200 240 1060
      1200 220 1200
      1200 195 1360
      1200 170 1400
      1200 180 1460
      1200 165 1650
      1200 150 1760
      1200 145 1900
      1500 290 1060
      1500 255 1200
      1500 230 1360
      1500 200 1400
      1500 210 1460
      1500 190 1650
      1500 180 1760
      1500 175 1900
      1800 460 750
      1800 390 900
      1800 330 1060
      1800 290 1200
      1800 260 1360
      1800 235 1400
      1800 240 1460
      1800 220 1650
      1800 210 1760
      1800 200 1900
      2100 380 1060
      2100 385 1200
      2100 300 1360
      2100 270 1400
      2100 270 1460
      2100 250 1650
      2100 235 1760
      2100 225 1900
      x

      Right Side Rising Tilting Swing Gate Hinge System (Gloss Black)

      Out Of Stock
