Double Swing Gate Automation Installer and Trade Kit Super Duty Linear Actuator with Limit Stops and Encoder Made in Italy

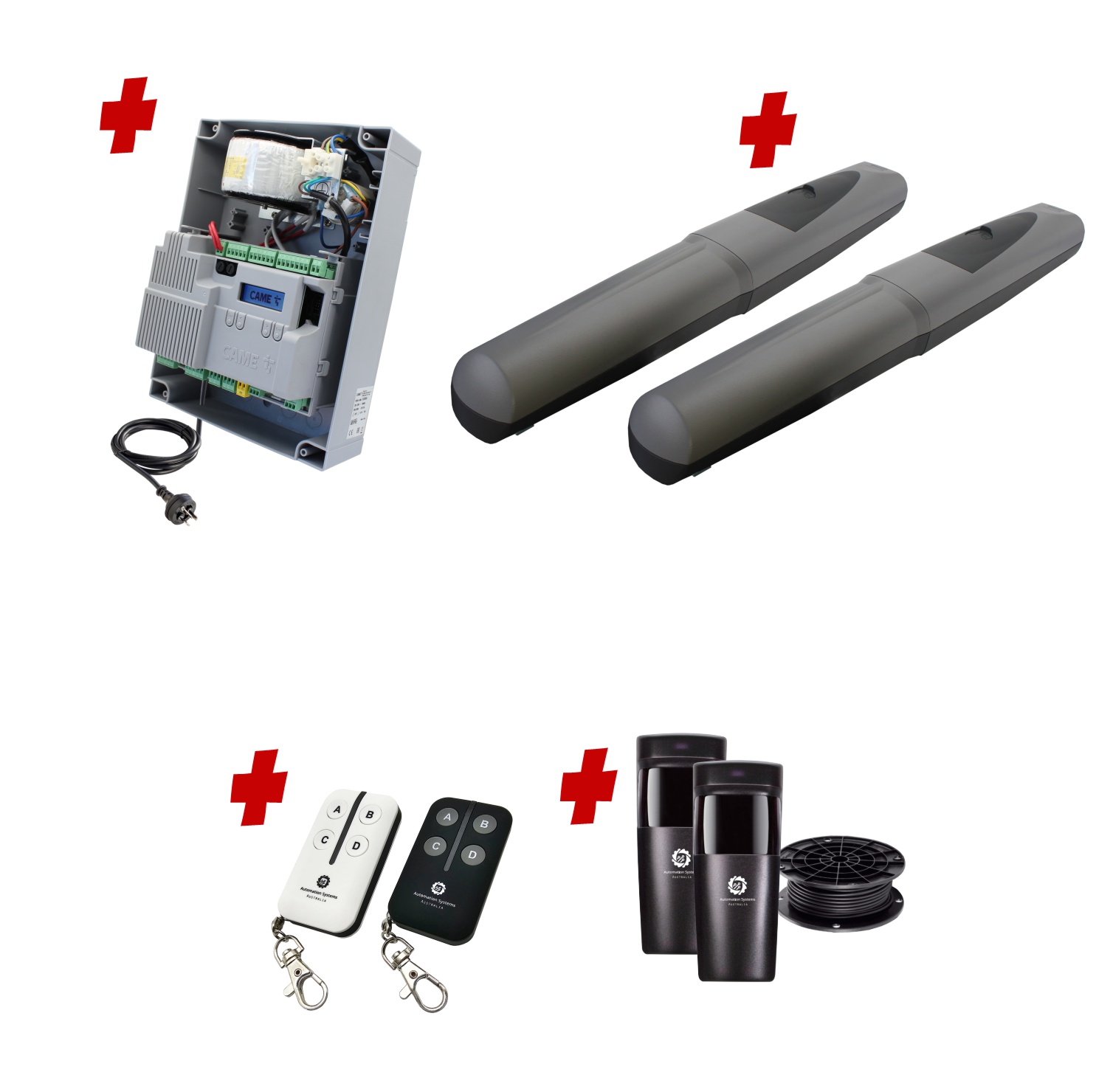

Kit Contents (See Description Tab for Full In-Depth Details)

•

  Description

  Super Duty High Torque Linear Actuator with Encoder and Limit Stops








  The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate up to 5m in length/1000KG in weight. With the Axo’s wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.

  Furthermore the AXO 5024 is a compact design of only 100mm in width, 123mm in height and an overall length of 1180mm keeping it discreet.

  The versatile swivel tail system allows for flexible mobility in the gates travel which is seldom seen in the design of the actuator and the bracketing system is supplied at full size ready to cut down and weld to suit most installation geometries.

  Adjustable Limit Stops








  With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles, completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the cast in bite points.

  Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.

  Built In Encoder

  Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.

  Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.



  Swivel System








  Typically a linear actuator is a rigid unit and has very little tolerance for up-down movement in the gate however with the swivel system there is now some allowance, typical scenarios that would utilize the swivel would be gates with a support wheel, gates with a slight sag or gates with misaligned hinges. Note that this will not support rising gates.

  Conduit Feed






  Supplied with a 20mm corrugate conduit gland this allows for the best protection of the actuators cable without any modifications required to the structure. If required it could be replaced with a typical cable gland.



  Manual Release System







  In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.

  If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.

  Installation Geometry



  Actuator Dimensions



  Specifications



  Maximum Gate Length	5m
  Maximum Gate Weight	1000KG
  Maximum Opening Angle	110°
  Encoder	Yes
  Motor Power (Volts)	24V DC
  Power (Watts)	120W
  Operating Temperature	-20° to +55° C
  Stroke	600mm
  Thrust (N)	4500N Max
  Duty Cycle	100%

  x

  AXO 5 24V Super Duty High Torque Linear Actuator

  • 5m / 18ft Farm Gate / 1000KG Capacity
  • Left OR Right Side
  • Limit Stops
  • Encoder Control
  • High Torque
  • Flexible Swivel End

  Show more

  • 5m / 18ft Farm Gate / 1000KG Capacity
  • Left OR Right Side
  • Limit Stops
  • Encoder Control
  • High Torque
  • Flexible Swivel End

  ×

  Out Of Stock

  Cable Length *

  Choose an option3m Cable5m Cable10m CableNo Cable (BYO)7m Cable Clear Out Of Stock

•

  Description

  Super Duty High Torque Linear Actuator with Encoder and Limit Stops








  The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate up to 5m in length/1000KG in weight. With the Axo’s wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.

  Furthermore the AXO 5024 is a compact design of only 100mm in width, 123mm in height and an overall length of 1180mm keeping it discreet.

  The versatile swivel tail system allows for flexible mobility in the gates travel which is seldom seen in the design of the actuator and the bracketing system is supplied at full size ready to cut down and weld to suit most installation geometries.

  Adjustable Limit Stops








  With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles, completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the cast in bite points.

  Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.

  Built In Encoder

  Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.

  Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.



  Swivel System








  Typically a linear actuator is a rigid unit and has very little tolerance for up-down movement in the gate however with the swivel system there is now some allowance, typical scenarios that would utilize the swivel would be gates with a support wheel, gates with a slight sag or gates with misaligned hinges. Note that this will not support rising gates.

  Conduit Feed






  Supplied with a 20mm corrugate conduit gland this allows for the best protection of the actuators cable without any modifications required to the structure. If required it could be replaced with a typical cable gland.



  Manual Release System







  In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.

  If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.

  Installation Geometry



  Actuator Dimensions



  Specifications



  Maximum Gate Length	5m
  Maximum Gate Weight	1000KG
  Maximum Opening Angle	110°
  Encoder	Yes
  Motor Power (Volts)	24V DC
  Power (Watts)	120W
  Operating Temperature	-20° to +55° C
  Stroke	600mm
  Thrust (N)	4500N Max
  Duty Cycle	100%

  x

  AXO 5 24V Super Duty High Torque Linear Actuator

  • 5m / 18ft Farm Gate / 1000KG Capacity
  • Left OR Right Side
  • Limit Stops
  • Encoder Control
  • High Torque
  • Flexible Swivel End

  Show more

  • 5m / 18ft Farm Gate / 1000KG Capacity
  • Left OR Right Side
  • Limit Stops
  • Encoder Control
  • High Torque
  • Flexible Swivel End

  ×

  Out Of Stock

  Cable Length *

  Choose an option3m Cable5m Cable10m CableNo Cable (BYO)7m Cable Clear Out Of Stock

•

  Description

  Please note this is a replacement operator and is not supplied with remotes or receiver card.



  Top of the Line ADVANCED Digital Control Box








  The most ADVANCED AND EASY to use control board in the gate automation industry, the ZLX24 features an endless option list and configurability.

  Starting with the casing the ZLX24 control box itself has 8 cable entry point four from the rear and four from the bottom side. The box can be fixed to the wall in a traditional manor being a fixing screw in each corner, or alternatively a DIN rail is supplied for its direct to DIN mounting system.

  The control board itself is encased in a complete housing within the box to prevent short circuit and accidental touching of components, during the installation the control board easily unclips revealing its module storage and cable management routes, this simplifies the installation for feeding wiring through without any chance of damage.

  Overview of the Features




  Power Inputs and Outputs

  Typical input and outputs to power the system and any wired in accessories

  24V Power Input
  24V Power Output For Accessories



  Automatic Weekly Timer

  Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

  Selective choice of the 7 Days of the week settings, or the entire week
  12/24 Hour Format
  EACH timer event can be configured to Open gates, Partial Opening or B1-2 Output Activated



  Configurable Methods Of Operation

  Along with the on onboard weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.

  ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen
  Full Gate Operation by remote
  Partial by remote (Opens one gate partially) OR Pedestrian by remote (Opens ONE gate completely)
  Open Only by remote
  Close Only by remote
  Open/Close Input by Wired Accessories
  Open only Input by Wired Accessories (loop Detector)
  Close only Input by Wired Accessories (loop Detector)
  Wired Emergency STOP Button



  Remote Operation

  The remote buttons can individually be programmed to work in any of the below settings for each button.

  OPEN-CLOSE (Reverting action if pressed part way through a cycle)
  OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)
  Partial-Pedestrian Operation
  RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)



  Motor Specifics

  Default configurations are already set however, if required further adjustment can be made to suit all installations

  ENCODER Control
  Automatic Calibration (with Adjustable Calibration Speed)
  Motor Test (used for checking your directions prior to calibration)
  Adjustable Thrust
  Adjustable Travel Speed
  Adjustable Sensitivity
  Adjustable Slowdown Speed
  Adjustable Slowdown Position (Two Stages)
  Delay Time Between Motors for Opening
  Delay Time Between Motors for Closing



  Safety Devices

  Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.

  Supports Photocell Sensors
  Supports Reflective Sensors
  Supports Safety Edge
  Supports Induction Loops for Safety
  Supports STOP Button
  Supports Maintained Action (Hold to OPEN/CLOSE)



  Added Electric Lock Security

  Added protection for the gates and gate system if wind is a factor or in a high risk setting

  Automatic Electric Lock (Adjustable Time) with Reverse Thrust Feature
  TWO Electric Lock Outputs, Allows you to use ONE or TWO electric Locks to secure depending on the gate/lock arrangement (with adjustable logic on how they operate).



  Control Board Security

  A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the ZLX24 menu.

  Light Control

  Multiple options for visible safety alerts, illuminating the driveway OR Both

  Flashing/Static Illuminated Light from OPEN til CLOSED
  Additional Output for Flashing During Opening



  Operational Control

  Infinite support for accessories and methods of operation

  Remote Controls
  Wireless Keypads
  Wired Keypads
  Wired Button
  Induction Loops
  Intercom Systems



  Relay Output B

  Default Can be set to work on a remote button and/or by the weekly timer

  Set to a latching ON/OFF Circuit
  Can be used to trigger an alarm, garage door or another gate
  Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad
  Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.



  Dimensions



  x

  24V ADVANCED Powered Swing Gate Control Panel

  • Backlit LCD Display (Auto Standby)
  • Multiple lights and safety sensor inputs
  • 3 Stage Speed Control
  • Installation Wizard System (Step by Step)
  • Weekly Timer Settings (Open and Close programs)
  • Automatic Close Timer
  • Pedestrian Function
  • Supports Battery Backup
  • Pre wired with a 1.2m Power Cord

  Show more

  • Backlit LCD Display (Auto Standby)
  • Multiple lights and safety sensor inputs
  • 3 Stage Speed Control
  • Installation Wizard System (Step by Step)
  • Weekly Timer Settings (Open and Close programs)
  • Automatic Close Timer
  • Pedestrian Function
  • Supports Battery Backup
  • Pre wired with a 1.2m Power Cord

  ×

  Out Of Stock

•

  Description

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (White)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K White quantity

•

  Description

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (Black)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

•

  Description

  Dukie Photocell Kit



  The Dukie series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage wiring however the optional upgrade to Dukie+ photocell allows for battery operation on the further photocell from the gate control box meaning only one of the photocells is wired.

  Key Features

  ✓ 45° Adjustable in each direction, suited for inline and out of line posts ✓ Ultra modern and neat appearance ✓ Compact design fits almost anywhere at 100(L)x45(W)x35(D)mm ✓ NO and NC Relay Settings ✓ Excellent range characteristics of up to 10 meter distance between each photocell ✓ Unlimited sets can be installed on each system for added protective layers ✓ OPTIONAL Dukie+ upgrade for a battery operated transmitter cell on the far side

  x

  Dukie OR Dukie + Photocells

  Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

  Show more

  Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

  ×

  Out Of Stock

  Photocell Options *	Choose an optionDukie (Wired BOTH Sides) ADJUSTABLE ANGLE PhotocellDukie + (No cable to OTHER side of the driveway) ADJUSTABLE ANGLE Photocell
  Cable Length *	Choose an option3m Cable5m Cable10m CableNo Cable (BYO)7m Cable15m Cable20m Cable Clear Out Of Stock
