Complete Automatic Heavy Duty Cantilever System With Titan Electric Low Voltage Gate Motor Kit (650KG/5.8M MAX Opening)

SKU: CANTI-C8MN-TITAN2410-E-I

$2,555.00

$1,885.00

Save $670.00

  • Bulky Item Shipping costs are calculated during checkout
  • 1 Year Warranty
  • Brand : Automation Systems Australia

    In stock

    Click & Collect

    Delivery

    In-Store

    Same Day Dispatch (Order before 10AM)

    The default allowance for the package is for a 4 meter gate opening (6m total gate), this can be adjusted in the kit contents to cater for your requirements.

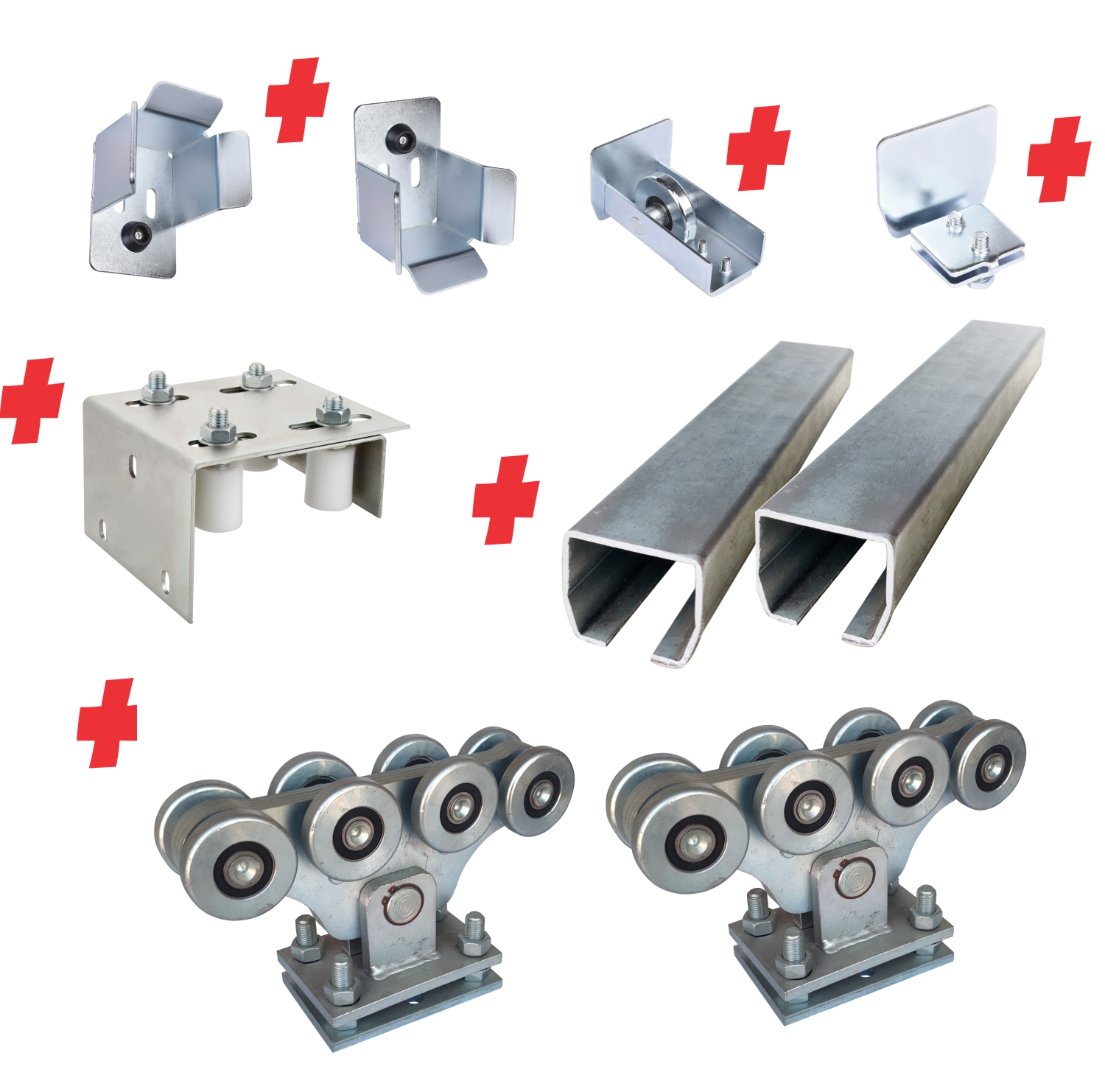

    8 Wheel Cantilever Gate System

    Floating Cantilever Sliding Gate for residential and commercial

    The heavy duty cantilever sliding gate system allows for a balanced operation of a gate without the need for a typical ground track system and wheels, this is ideal for commercial setups that the ground track can be damaged by machinery or even residential setups where it may not be plausible to have a concrete strip footing across the driveway to levels or driveway finishing’s.

    The 8 wheel cantilever system is capable of a maximum driveway opening size of 5.8 meters (Total gate length Approx. 8 meters when including the tail) or 650KG gate weight (whichever comes first).

    Typical guidelines

    ✓ The cantilever gate tail is 30% of the opening + an additional 700mm
    ✓ Ideal Height Should not exceed 1.8m on a 8 Wheel System
    ✓ A receiver resting point is installed on the post in the closed position for the gate to rest on whilst closed
    ✓Optionally an additional receiver resting point could also be installed at the end of the open position for the gate to also rest on
    ✓The system is supplied with a base plate for the carriage trollies to allow for adjustment and achieve level across the two sets

    Installation Layout

    8 wheel floating sliding cantilever gate carriage

    Calculations

    8 wheel floating sliding cantilever gate carriage

    End Cap for C8MN Channel

    end cap for 8 wheel cantilever channel
    ✓ Used to encase the open positions end of channel when not using an additional wheel
    ✓ Clamps in place by tightening the two bolts

    Guide Wheel for C8MN Channel

    front wheel for cantilever gate 8 wheel channel
    ✓ Rests on the resting bottom catcher in the closed position
    ✓ Additional can be used for the open position (requires additional resting point bottom catcher)
    ✓ Clamps in place by tightening the bottom bolts

    8 Wheel Cantilever Carriage

    8 wheel floating sliding cantilever gate carriage
    ✓ 8 Bearing Wheels
    ✓ Supports up to 650KG Max. Weight Gate
    ✓ Base Plate included for Leveling and adjustability

    Resting Point/Catcher

    bottom catcher for cantilever front wheel
    ✓ Resting point for Guide Wheel
    ✓ Used as the Top catcher position
    ✓ If using an additional guide wheel for the open position an additional rest point will also be required

    Galvanized Cantilever Channel for C8MN Cantilever System

    bottom catcher for cantilever front wheel
    ✓ 5mm Wall Thickness
    ✓ Suitable for welding to the gate, screwing to the gate and other attachment methods

    Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor

    The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab).

    Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.

    Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability.

    The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).

    Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

    The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing.

    The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

    The premier controller also supports all installations with an intelligent light control system with three output options (traffic light control, driveway light control and alert strobe/courtesy light)

    All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

    Key Features



    ✓ Fast and Efficient 24 Volt Operation
    ✓ Die-Cast Alloy Housing
    ✓ Compact Footprint
    ✓ Multiple Cable entries by IP68 rated Glands
    ✓ Steel Pinion Gear
    ✓ Open and Closed Position Easy Micro-Switch Limits
    ✓ Flexible size and weight capacities

    A peak inside the Titan Series Operator

    Tough 180 Watt DC Motor and Digital Logic Controller

    high quality strong automatic low voltage sliding gate motor

    Steel Pinion and Easy Limit Switches

    Secure yet Easy Manual Release



    Automatic Gate System Logic Controller Features

    Features as Standard

    ✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
    ✓ Open partially Pedestrian Mode Feature (adjustable distance)
    ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
    ✓ Automatic learning of the gate + Fine tunable operating Times
    ✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
    ✓ Adjustable Slow Down Speed and Time
    ✓ Optional Plug and Play Battery Backup System
    ✓ Low Voltage Power for all accessories directly through the gate controller
    ✓ Warning Light Output
    ✓ Traffic Light Output
    ✓ Driveway Light Output

    Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.





    Multiple Configurable Safety Inputs

    ✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
    ✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
    ✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
    ✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
    ✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
    ✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

    Wired and Wireless Access Control Support

    ✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
    ✓ Press Button Simple button operation
    ✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
    ✓ Doorbell Intercom Systems
    ✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
    ✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
    ✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

    Residential, Commercial and Complex Working Modes Options

    ✓ Normal Remote Operation (Open-Stop-Close)
    ✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
    ✓ Typical Complex – Individual Open and Close Command Inputs
    ✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
    ✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

    OPTIONAL Uninterrupted Battery Backup System

    backup uninterrupted battery sliding gate

    The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

    If the optional battery system is not desired the system can still be manually release using the secure override system.

    Dimensions

    compact small sliding gate motor dimensions

    Automatic Sliding Gate System Specifications

    Operating Voltage 24V
    Maximum Gate Size 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab)
    Maximum Gate Weight 1000KG
    Duty Cycle 90%
    Thrust 27nM
    Speed Adjustable up to 36cm/s (21 Meters per minute)
    Standby Consumption 40mA
    Supports Battery Backup Yes, 24V DC
    Light Support Yes, Traffic Light/Driveway Light/Strobe
    Accessories Voltage Yes, 12V DC
    Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
    Operating Temperature -10°-60°C
    Maximum Remotes 250
    automatic sliding gate motor specifications



    24V Low Voltage External Transformer

    gate low voltage power transformer
    The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 120 meters making it suitable for most installations that do not have a power point nearby to the gate.

    Key Features

    ✓ IP66 Outdoor Rated Design
    ✓ Can work up to 120 meters low voltage cabling distance
    ✓ Multiple cable roll options or use your own cable

    STX4K Keyring High Range Remote

    Automation systems Australia keyring remote control for driveway gate
    The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    Key Features

    ✓ Up to 100 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
    ✓ Clear visibility red LED indicator which will illuminate upon a button press
    ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
    ✓ Slimline and modern ergonomic design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

    Dukie X 32KHZ Anti-Interference Professional Photocell Kit

    Dukie X Automatic gate and garage door photocell

    The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.

    Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.



    Key Features

    ✓ Ultra modern and neat appearance
    ✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
    ✓ NO and NC Relay Settings
    ✓ Excellent range characteristics of up to 10 meter distance between each photocell
    ✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)

    Kit Contents (See Description Tab for Full In-Depth Details)
