Apache ARTICULATING Italian Low Voltage 24V Automatic Double Swing Driveway Gate Opener 24 Volt Kit ROBUST Heavy Duty Design for DIY and Trade Installers

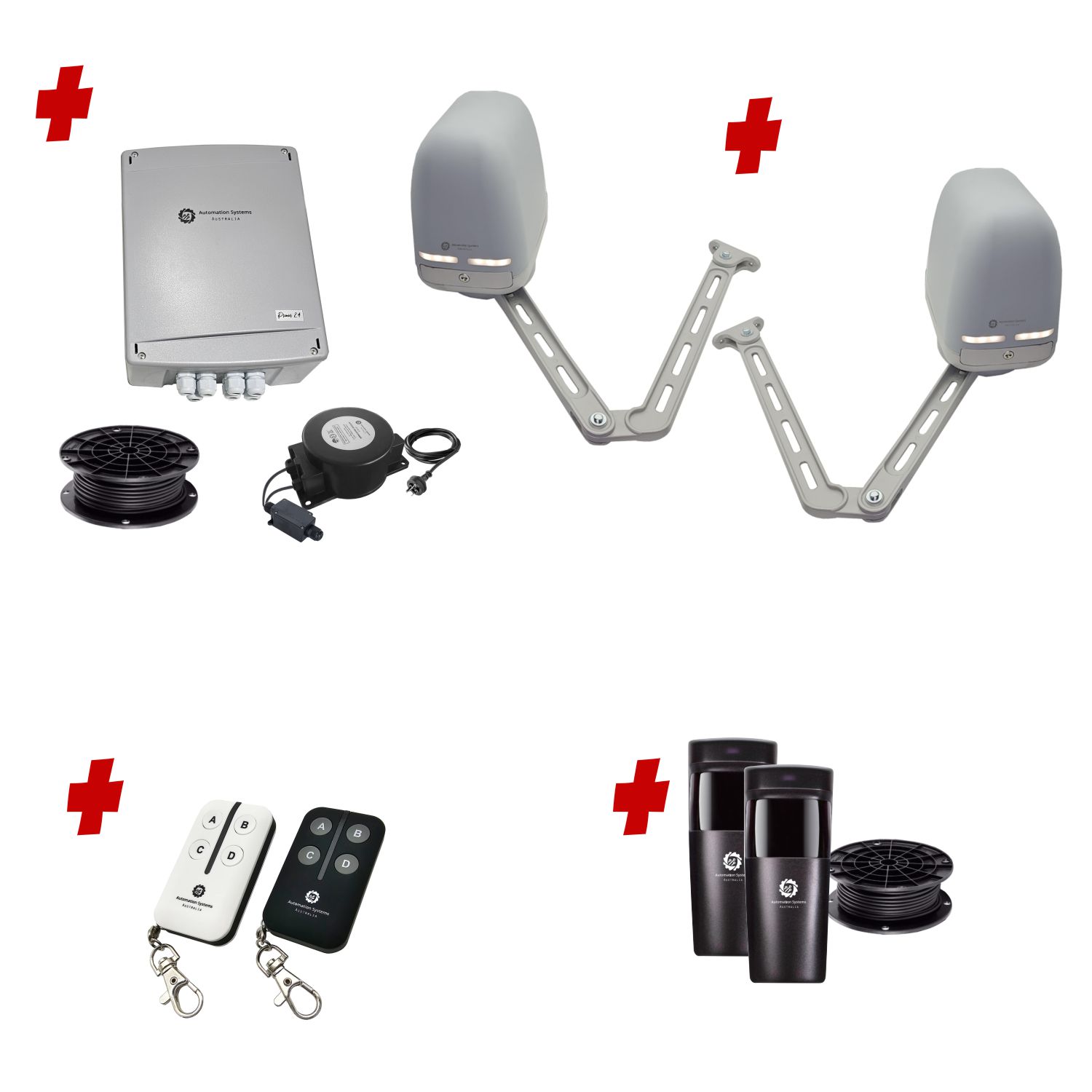

Kit Contents (See Description Tab for Full In-Depth Details)

•

  Description

  Apache Low Voltage 24 Volt Flexible Articulated Arm Gate Operator



  The Apache 24 Volt Swing Arm operator is a versatile and flexible operator allowing for connection to gates from flush mounting (0mm) up to 300mm set in away from the mounting point of the operator. Strong and quiet the Apache can operate gates smoothly and with ease with a rated capacity of up to 2.5m per gate (5m opening) and up to a maximum of 200kg per gate.

  The oversized ALL METAL GEAR structure inside ensures a seamless operation without breakdowns or premature life unlike plastic and nylon gear sets. Also boasting a robust die-cast alloy case to encapsulate the gearing system all gears, motor and bearings are totally closed in and sealed from any outer elements. Built into the Alloy case we will also find the clever clutch release system (Emergency release) which is keyed to unlock for added security.

  The unique Night Light system allows for illumination during operation and whilst the gates open adding a great guidance and a tidy aesthetic to the installation. To use this feature an additional cable (also low voltage) will be required between the gate controller and each Apache operator. With an easy to use (and secure) manual release system in place.

  Operations are smooth and efficient using its 24 Volt DC motor driving the articulating arm clockwise/counter-clockwise. The end positions are set using the easiest possible method of adjustable limit stops. Limit stops are fitted to casted grooved positions to adjust both the maximum open and closed positions of the gate, being a mechanical system its a case of set and forget with no further adjustments being required. Typically the open and closed positions will not require and further stops unless higher wind loads are expected (cladded gates).

  The Apache operator is 100% Universal Left and Right side meaning the same unit could be installed on EITHER side of the driveway.

  The Apache is able to be installed with just a 40mm clear height available making it an easy choice when it comes to ground clearance, the Apache requires 450mm clear area from the edge of the driveway when the gate is open at 90° which makes it suited for the majority of installations where the gate is spaced away from neighboring feces and retaining walls.

  NO NEED FOR GATE STOPS, the on-body limit stops are totally adjustable in there positioning for both the open and closed positions.

  The connection for cable join between the Apache and the gate controller is made underneath the plastic cover and the wall/post/pillar mounting bracket allows for a conduit directly into the operator if desired.

  Key Features

  ✓ Designed, Engineered and Manufactured in Italy
  ✓ Fast and Efficient 24 Volt Operation
  ✓ LED Light System
  ✓ Full metal Gearbox
  ✓ Die-Cast Housing and Arm

  ✓ Quiet and discreet
  ✓ Open and Closed Position ADJUSTABLE without the need for a gate stop (adjustable limit stops)
  ✓ Flexible installation

  Easy to Adjust Open and Close Position Limit Stops



  LED Light

  when optionally connected to the control board (additional low voltage two core cable is used).
  Whilst in operation the LED Light will illuminate


  An Overview of the Apache Series Operator



  Manual Release System



  Driveway Gate Motor Specifications

  Operating Voltage	24V DC
  Duty Cycle	90%
  Torque	180 Nm
  Limit Stops	Yes, Open and Closed Positions (Adjustable)
  Gearing	All metal Gears
  Case Material	Die-Cast Inner Housing Structure, ABS Top Cover
  Maximum Gate Weight	2.5 Meters EACH
  Maximum Gate Weight	200KG EACH
  Cabling	2 Wire to Control Box (DC MOTOR), Additional 2 Wires for LED Light (optional)





  “Pull to Open”/”Push to Open” Installation Geometry



  x

  Apache 24V Articulating Arm Operator with Limit Stops

  • Maximum 5m Opening (2x2.5m Gates)/200KG Each Gate
  • Flexible Articulating Arms
  • Night Light LED System
  • Can swing Up To 120° (Adjustable)
  • Adjustable Open & Closed Limit Stops
  • Advanced Digital Control Board

  Show more

  • Maximum 5m Opening (2x2.5m Gates)/200KG Each Gate
  • Flexible Articulating Arms
  • Night Light LED System
  • Can swing Up To 120° (Adjustable)
  • Adjustable Open & Closed Limit Stops
  • Advanced Digital Control Board

  ×

  Out Of Stock

  Cable Options *

  Choose an option5m Cable and Junction (Motor and Night Light)5m Cable and Junction (Motor Only)7m Cable and Junction (Motor and Night Light)7m Cable and Junction (Motor Only)No Cable, I have my own Clear Out Of Stock

•

  Description

  Apache Low Voltage 24 Volt Flexible Articulated Arm Gate Operator



  The Apache 24 Volt Swing Arm operator is a versatile and flexible operator allowing for connection to gates from flush mounting (0mm) up to 300mm set in away from the mounting point of the operator. Strong and quiet the Apache can operate gates smoothly and with ease with a rated capacity of up to 2.5m per gate (5m opening) and up to a maximum of 200kg per gate.

  The oversized ALL METAL GEAR structure inside ensures a seamless operation without breakdowns or premature life unlike plastic and nylon gear sets. Also boasting a robust die-cast alloy case to encapsulate the gearing system all gears, motor and bearings are totally closed in and sealed from any outer elements. Built into the Alloy case we will also find the clever clutch release system (Emergency release) which is keyed to unlock for added security.

  The unique Night Light system allows for illumination during operation and whilst the gates open adding a great guidance and a tidy aesthetic to the installation. To use this feature an additional cable (also low voltage) will be required between the gate controller and each Apache operator. With an easy to use (and secure) manual release system in place.

  Operations are smooth and efficient using its 24 Volt DC motor driving the articulating arm clockwise/counter-clockwise. The end positions are set using the easiest possible method of adjustable limit stops. Limit stops are fitted to casted grooved positions to adjust both the maximum open and closed positions of the gate, being a mechanical system its a case of set and forget with no further adjustments being required. Typically the open and closed positions will not require and further stops unless higher wind loads are expected (cladded gates).

  The Apache operator is 100% Universal Left and Right side meaning the same unit could be installed on EITHER side of the driveway.

  The Apache is able to be installed with just a 40mm clear height available making it an easy choice when it comes to ground clearance, the Apache requires 450mm clear area from the edge of the driveway when the gate is open at 90° which makes it suited for the majority of installations where the gate is spaced away from neighboring feces and retaining walls.

  NO NEED FOR GATE STOPS, the on-body limit stops are totally adjustable in there positioning for both the open and closed positions.

  The connection for cable join between the Apache and the gate controller is made underneath the plastic cover and the wall/post/pillar mounting bracket allows for a conduit directly into the operator if desired.

  Key Features

  ✓ Designed, Engineered and Manufactured in Italy
  ✓ Fast and Efficient 24 Volt Operation
  ✓ LED Light System
  ✓ Full metal Gearbox
  ✓ Die-Cast Housing and Arm

  ✓ Quiet and discreet
  ✓ Open and Closed Position ADJUSTABLE without the need for a gate stop (adjustable limit stops)
  ✓ Flexible installation

  Easy to Adjust Open and Close Position Limit Stops



  LED Light

  when optionally connected to the control board (additional low voltage two core cable is used).
  Whilst in operation the LED Light will illuminate


  An Overview of the Apache Series Operator



  Manual Release System



  Driveway Gate Motor Specifications

  Operating Voltage	24V DC
  Duty Cycle	90%
  Torque	180 Nm
  Limit Stops	Yes, Open and Closed Positions (Adjustable)
  Gearing	All metal Gears
  Case Material	Die-Cast Inner Housing Structure, ABS Top Cover
  Maximum Gate Weight	2.5 Meters EACH
  Maximum Gate Weight	200KG EACH
  Cabling	2 Wire to Control Box (DC MOTOR), Additional 2 Wires for LED Light (optional)





  “Pull to Open”/”Push to Open” Installation Geometry



  x

  Apache 24V Articulating Arm Operator with Limit Stops

  • Maximum 5m Opening (2x2.5m Gates)/200KG Each Gate
  • Flexible Articulating Arms
  • Night Light LED System
  • Can swing Up To 120° (Adjustable)
  • Adjustable Open & Closed Limit Stops
  • Advanced Digital Control Board

  Show more

  • Maximum 5m Opening (2x2.5m Gates)/200KG Each Gate
  • Flexible Articulating Arms
  • Night Light LED System
  • Can swing Up To 120° (Adjustable)
  • Adjustable Open & Closed Limit Stops
  • Advanced Digital Control Board

  ×

  Out Of Stock

  Cable Options *

  Choose an option5m Cable and Junction (Motor and Night Light)5m Cable and Junction (Motor Only)7m Cable and Junction (Motor and Night Light)7m Cable and Junction (Motor Only)No Cable, I have my own Clear Out Of Stock

•

  Description

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (White)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K White quantity

•

  Description

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (Black)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

•

  Description

  Dukie Photocell Kit



  The Dukie series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage wiring however the optional upgrade to Dukie+ photocell allows for battery operation on the further photocell from the gate control box meaning only one of the photocells is wired.

  Key Features

  ✓ 45° Adjustable in each direction, suited for inline and out of line posts ✓ Ultra modern and neat appearance ✓ Compact design fits almost anywhere at 100(L)x45(W)x35(D)mm ✓ NO and NC Relay Settings ✓ Excellent range characteristics of up to 10 meter distance between each photocell ✓ Unlimited sets can be installed on each system for added protective layers ✓ OPTIONAL Dukie+ upgrade for a battery operated transmitter cell on the far side

  x

  Dukie OR Dukie + Photocells

  Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

  Show more

  Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

  ×

  Out Of Stock

  Photocell Options *	Choose an optionDukie (Wired BOTH Sides) ADJUSTABLE ANGLE PhotocellDukie + (No cable to OTHER side of the driveway) ADJUSTABLE ANGLE Photocell
  Cable Length *	Choose an option3m Cable5m Cable10m CableNo Cable (BYO)7m Cable15m Cable20m Cable Clear Out Of Stock

•

  Description

  Premier SW24 Advanced Digital Automatic Gate Controller



  The Premier SW24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged setup requiring advanced logic principals taking advantage of the 70% duty cycle. The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SW24 system (see the complete list below). Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property. The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers. All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.



  Automatic Gate System Features



  Features as Standard

  ✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature ✓ Open one gate Pedestrian Mode Feature Double Swing Gates Only ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes ✓ Automatic learning of the gate + Fine tunable operating Times ✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN) ✓ Adjustable Slow Down Speed and Time ✓ Optional Plug and Play Battery Backup System ✓ Fortress Series Electric and Magnetic Lock Support ✓ Low Voltage Power for all accessories directly through the gate controller ✓ Warning Light Output

  Normal Modes allow for the "STAY Open" feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.



  Multiple Configurable Safety Inputs

  ✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel. ✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption. ✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations. ✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs). ✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle. ✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

  Wired and Wireless Access Control Support

  ✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4) ✓ Press Button Simple button operation ✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF) ✓ Doorbell Intercom Systems ✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence ✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1) ✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

  Residential, Commercial and Complex Working Modes Options

  ✓ Normal Remote Operation (Open-Stop-Close) ✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes) ✓ Typical Complex - Individual Open and Close Command Inputs ✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes) ✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input

  OPTIONAL Uninterrupted Battery Backup System



  The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes. If the optional battery system is not desired the system can still be manually release using the secure override system when applicable.

  Automatic Gate System Controller Specifications

  Operating Voltage	24V
  Duty Cycle	70%
  Standby Consumption	20mA
  Supports Battery Backup	Yes, 24V DC
  Automatic Gate Lock Support	Yes, 24V DC
  Light Support	Yes, 24V DC
  Accessories Voltage	Yes, 12V DC
  Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
  Operating Temperature	-10°-60°C
  Maximum Remotes	192

  Control Box Dimensions





  x

  Premier 24V Weatherproof Swing Gate Control Box

  • Powered by 24V Low Voltage Line
  • Digital Display
  • Speed Control + Ramp Up + Slow Down
  • Automatic Close Timer
  • Automatic Lock Support
  • Supports Battery Backup

  Show more

  • Powered by 24V Low Voltage Line
  • Digital Display
  • Speed Control + Ramp Up + Slow Down
  • Automatic Close Timer
  • Automatic Lock Support
  • Supports Battery Backup

  ×

  Out Of Stock

•

  Description

  24V Low Voltage External Transformer



  The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 120 meters making it suitable for most installations that do not have a power point nearby to the gate.

  Key Features

  ✓ IP66 Outdoor Rated Design ✓ Can work up to 120 meters low voltage cabling distance ✓ Multiple cable roll options or use your own cable

  Specifications

  Input Power	240V AC
  Output Power	24V AC
  Rated Current	10A
  IP Rating	IP66

  x

  Weatherproof 24V Low Voltage Transformer

  Out Of Stock

  Cable Length *

  Choose an optionNo Cable (BYO)15m Cable30m Cable50m Cable100m Cable120m Cable Clear Out Of Stock
