24V 80W Complete Standalone Solar System Solar Panel, Heavy Duty Mounting Post, Batteries and Cable

Kit Contents (See Description Tab for Full In-Depth Details)

•

  Description

  High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post




  Solar Panel can be installed vertically or horizontally.


  ✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
  ✓ True IP67 Rating
  ✓ 97% or greater power tolerance
  ✓ Anodized Silver Aluminum Frame
  ✓ Long 10 Metre Cable (or cut to required size)
  ✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post


  Maximum Power(Pmax)	60W/120W/180W
  Optimum Operating Voltage(Vmp)	35.5V
  Optimum Operating Current(Imp)	1.13A
  Open Circuit Voltage(Voc)	43.1V
  Short Circuit Current(Isc) 40/80/120W	3.4A/6.8A/10.2A
  Power Tolerance	-1%~+3%
  Operating Module Temperature	40 C to +85 C

  Heavy Duty ADJUSTABLE Solar Pole





  ✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
  ✓ Allows for Panel installation in a Vertical or Horizontal Orientation
  ✓ Pre-Set Fixed Angle best suited for the southern hemisphere
  ✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations


  x

  24V Solar Panel and Heavy Duty Post Installation System

  Out Of Stock

  Cable Length *	Choose an option3m Cable5m Cable10m Cable7m Cable20m Cable
  Solar Panel System	24V 120W Panel System (Dual Array 60W) Choose an option24V 60W Panel System24V 120W Panel System (Dual Array 60W)24V 180W Panel System (Triple Array 60W)

•

  Description

  12V/24V PWM Solar Regulator



  Allows for a total of 10 Amps Inputs (up to 5x 40W panels) High Efficiency Temperature Compensation Reverse Polarity Protection Reverse Current Protection Four level battery voltage reading Low voltage disconnect and reconnect

  x

  12V/24V 10 AMP PWM Solar Regulator

  • Allows for a total of 10 Amps Inputs (up to 5x 40W panels)
  • High Efficiency
  • Temperature Compensation
  • Reverse Polarity Protection
  • Reverse Current Protection
  • Four level battery voltage reading
  • Low voltage disconnect and reconnect

  Show more

  • Allows for a total of 10 Amps Inputs (up to 5x 40W panels)
  • High Efficiency
  • Temperature Compensation
  • Reverse Polarity Protection
  • Reverse Current Protection
  • Four level battery voltage reading
  • Low voltage disconnect and reconnect

  ×

  Out Of Stock

•

  Description

  Battery System



  Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.

  Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.

  Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.

  Option 2 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.

  The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.

  These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirment.

  		Premier 24-15B	Premier 24-22B	Premier 24-26B
  IP Rating		IP67 Waterproof	IP67 Waterproof	IP67 Waterproof
  Battery		2x 15aH DEEP CYCLE	2x 22aH DEEP CYCLE	2x 22aH DEEP CYCLE
  Enclosure Dimensions (L x W x D)		220x290x130mm	400x300x170mm	400x300x170mm
  Recommended Usage by State (General Guideline)		All States	All States + Light Commercial	All States + Medium Commercial
  Cable Inlet/Outlet (Weatherproof)		6x Supplied	3x Supplied	3x Supplied
  Mounting Method		Through Box	External Mounting Bracket (supplied)	External Mounting Bracket (supplied)

  x

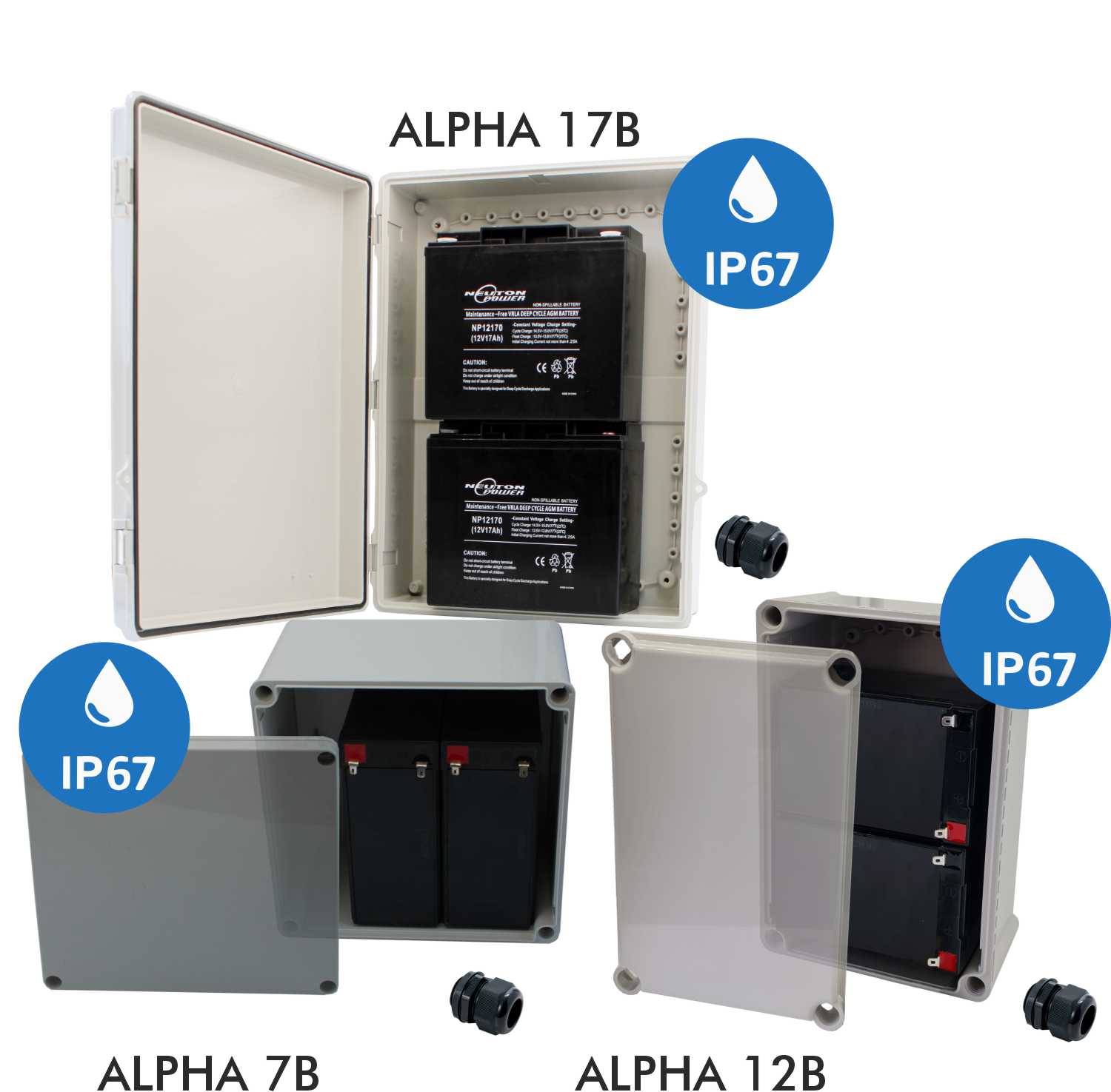

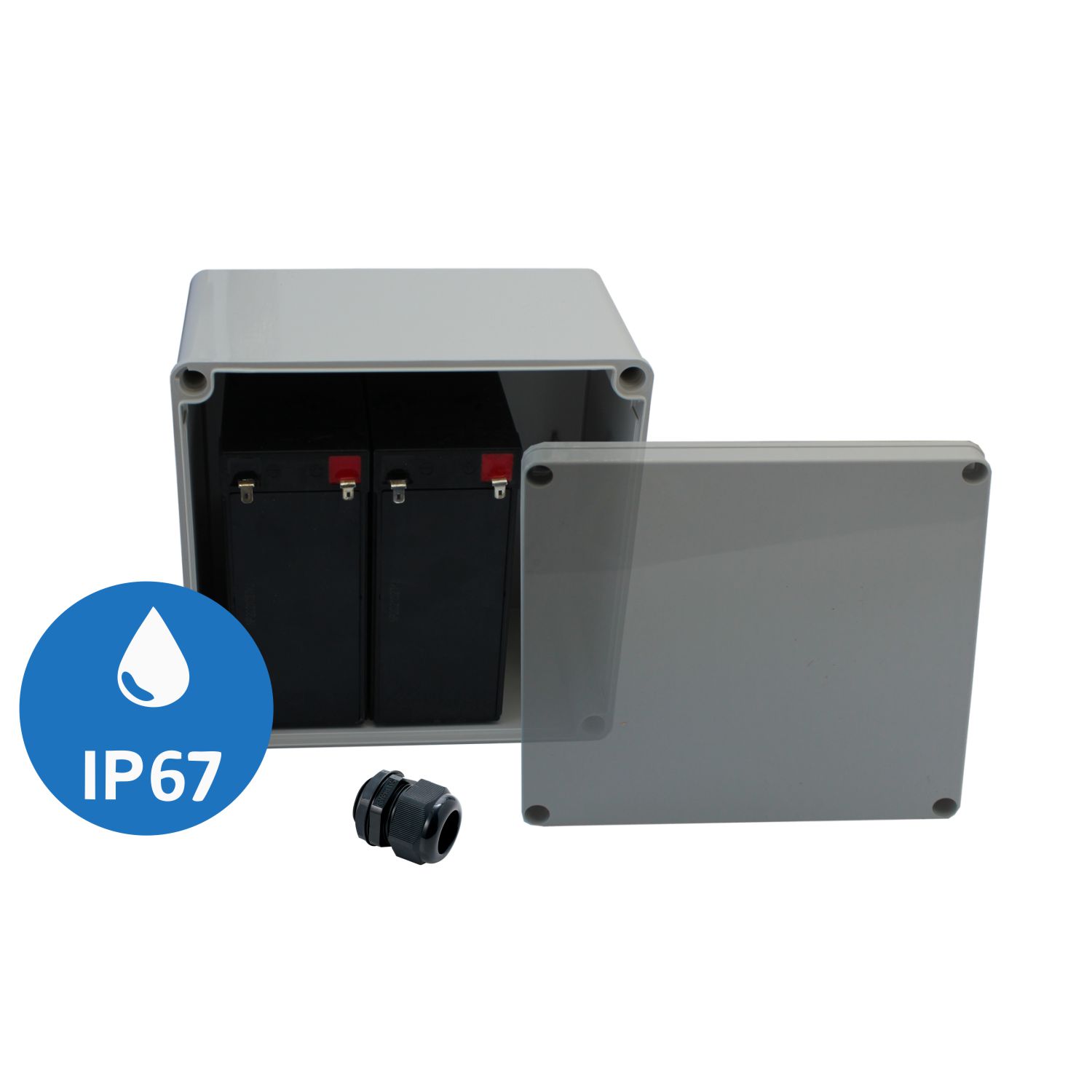

  24V Battery Pack 7aH 12aH 17aH in Waterproof IP67 Enclosure

  Out Of Stock

  Battery System *	Choose an optionDEEP CYCLE 15aH (2x15aH Batteries)DEEP CYCLE 22aH (2x22aH Batteries)DEEP CYCLE 26aH (2x26aH Batteries)
  Battery Box Cable Length *	Choose an option1m Cable from Battery Box to Control Board3m Cable from Battery Box to Control Board6m Cable from Battery Box to Control Board10m Cable from Battery Box to Control Board Clear Out Of Stock
