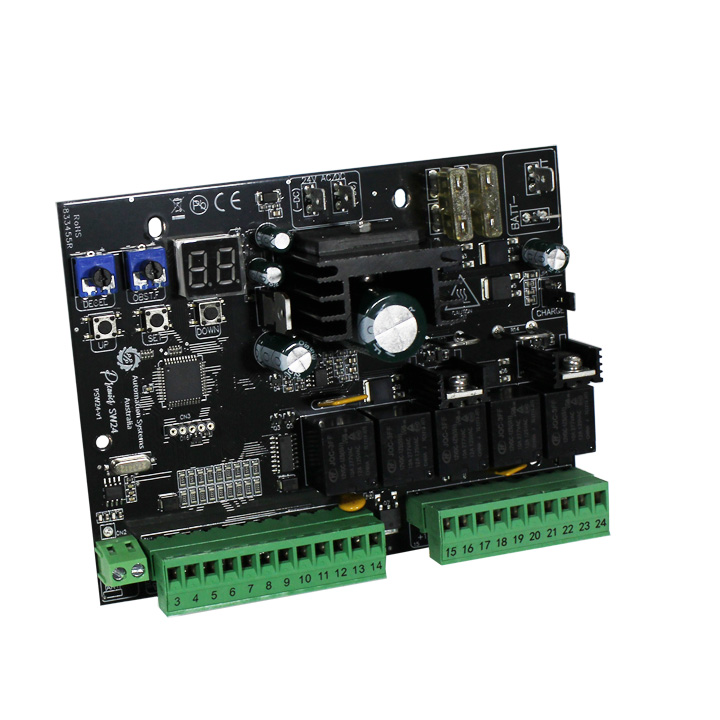

Premier SW24 Swing Gate Control Board

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature

✓ Open one gate Pedestrian Mode Feature DOUBLE GATES ONLY

✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes

✓ Automatic learning of the gate + Fine tunable operating Times

✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)

✓ Adjustable Slow Down Speed and Time

✓ Optional Plug and Play Battery Backup System

✓ Fortress Series Electric and Magnetic Lock Support

✓ Low Voltage Power for all accessories directly through the gate controller

✓ Warning Light Output









Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.

✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.

✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.

✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).

✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.

✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)

✓ Press Button Simple button operation

✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)

✓ Doorbell Intercom Systems

✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence

✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)

✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)

✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)

✓ Typical Complex - Individual Open and Close Command Inputs

✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes)

✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input
