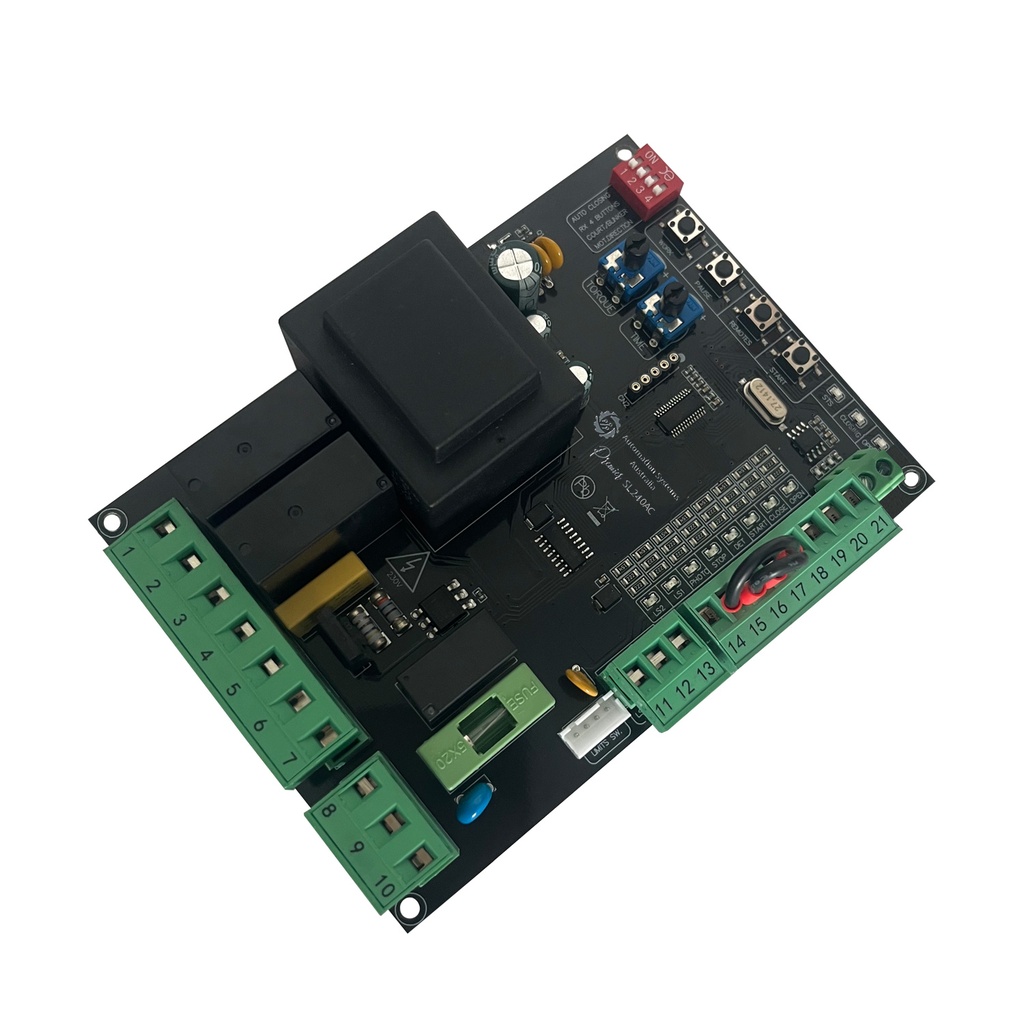

Automatic Gate System Logic Controller Features
Features as Standard
✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Low Voltage Power for all accessories (Except a light) directly through the gate controller
✓ Warning Light Output (220/240V)
Multiple Configurable Safety Inputs
✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.
Wired and Wireless Access Control Support
✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times
Residential, Commercial and Complex Working Modes Options
✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)
✓ Typical Complex - Individual Open and Close Command Inputs
✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes)
✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input
Automatic Sliding Gate System Specifications
| Operating Voltage | 220V/2404V |
| Duty Cycle | 40% |
| Standby Consumption | 40mA |
| Light Support | Yes, Flashing or Static |
| Accessories Voltage | Yes, 12V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -10°-60°C |
| Maximum Remotes | 20 |
