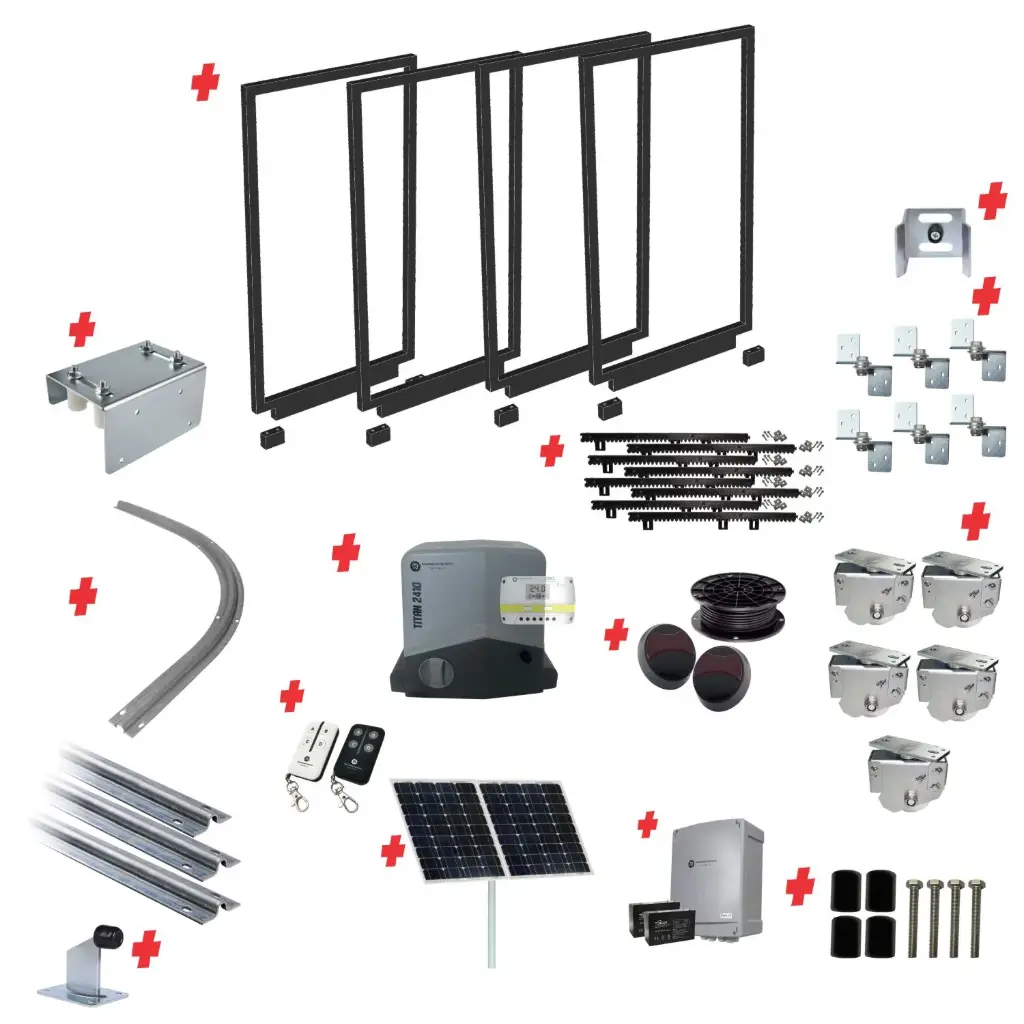

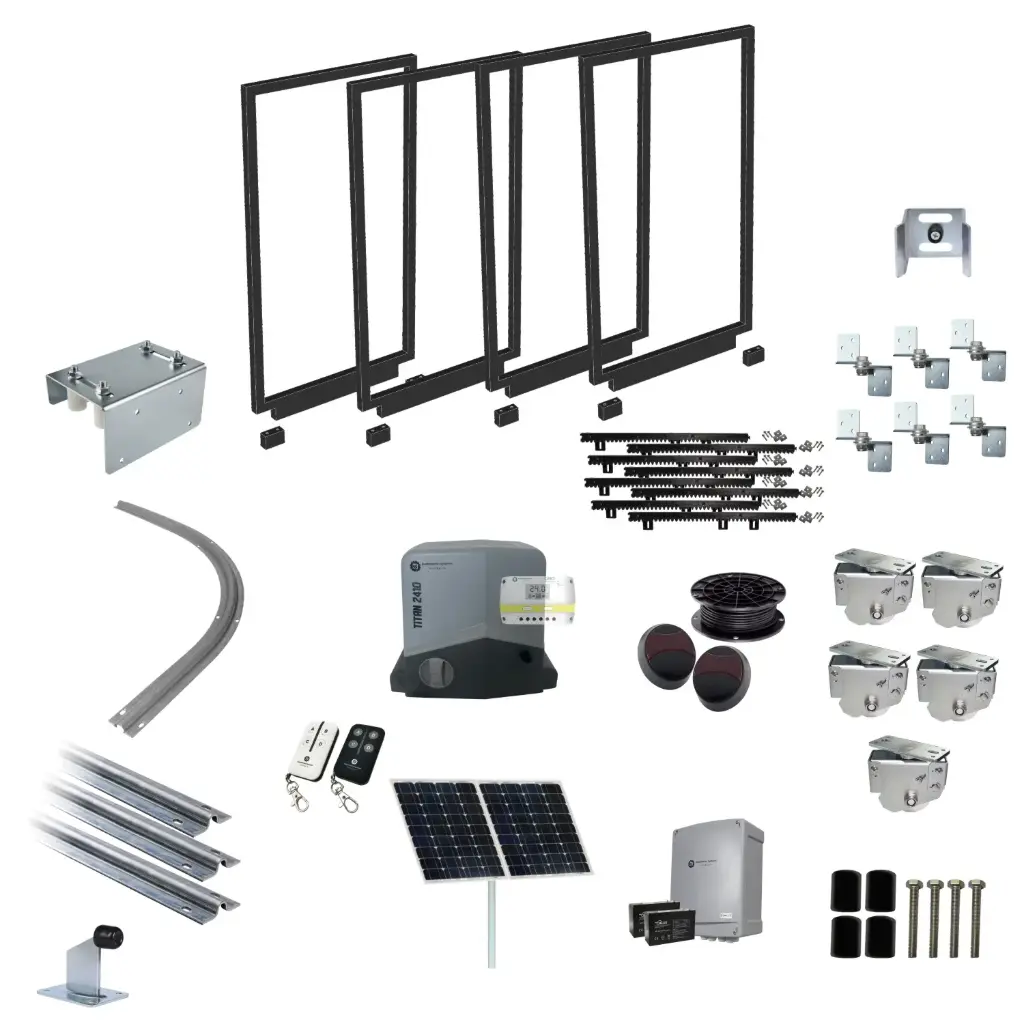

Complete Gates and Automatic Radius Turning Sectional Sliding Gate With Titan Solar Powered Sliding Gate Motor
| Operating Method: Remote Controls Only |
⚠️ Please view the "Kit contents" tab to selectively adjust the configuration according to your requirements. The default configuration of this package is 1x SLM panel (Two Wheels) and 3x SLS panels (one wheel each) (total four panels) with a total of 8 meters of track.
Radius Gate Frame
Specifically designed for Radius (turning) gate applications this gate measures at 1000mm width and 1770mm Height (with cut-outs) giving a final installed height of Aprox. 1800mm (+/- depending on final weight of gate and load against the spring wheel).
Laser welded (pre-galvanized steel) gives the best strength and versatility for the gate frame and can be used for most cladding applications
A bottom 120mm rail provides a clean aesthetic of checked in wheel structure and these panels can be used as Masters (SLM) or Slave (SLS/E) panels thanks to the clever removable pocket designs.
Regardless off direction when a pockets is removed the remaining area is already welded closed for a clean final finish without the need of plastic caps.
The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) (cladding channels available as an extra) or EXTERNAL vertical/Horizontal Cladding of any thickness. Additional bracing kits are available if a horizontal support rail is required.
Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 120x50 Bottom Rail
✓ SHS 50x50 Top and Sides
Dimensions
Important Information - Measurement details and Requirements
| Width of Gate Panel | 1000mm EACH |
| Height of Gate Panel | 1770mm (minus Cutouts 70mm) + Radius Wheels |
Radius Gate Frame
Specifically designed for Radius (turning) gate applications this gate measures at 1000mm width and 1770mm Height (with cut-outs) giving a final installed height of Aprox. 1800mm (+/- depending on final weight of gate and load against the spring wheel).
Laser welded (pre-galvanized steel) gives the best strength and versatility for the gate frame and can be used for most cladding applications
A bottom 120mm rail provides a clean aesthetic of checked in wheel structure and these panels can be used as Masters (SLM) or Slave (SLS/E) panels thanks to the clever removable pocket designs.
Regardless off direction when a pockets is removed the remaining area is already welded closed for a clean final finish without the need of plastic caps.
The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) (cladding channels available as an extra) or EXTERNAL vertical/Horizontal Cladding of any thickness. Additional bracing kits are available if a horizontal support rail is required.
Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 120x50 Bottom Rail
✓ SHS 50x50 Top and Sides
Dimensions
Important Information - Measurement details and Requirements
| Width of Gate Panel | 1000mm EACH |
| Height of Gate Panel | 1770mm (minus Cutouts 70mm) + Radius Wheels |
Please view the "Kit contents" tab to selectively adjust the configuration according to your requirements. The default configuration of this package is 1x SLM panel (Two Wheels) and 3x SLS panels (one wheel each) (total four panels) with a total of 8 meters of track.
With a pair of wheels on the first panel and a singular wheel on all other panels (linked together by the radius hinge) the sliding gate panels can be sized from 500mm each to a maximum of 1800mm each, it would be recommended to work on set panel lengths of 500/1000 with the Radius 340 track or 1500mm with the Radius 1000, these panel sizes best suit nylon gear rack (if automating).
Perpendicular Sliding Gate Motor Installation Example
Parallel Sliding Gate Motor Installation Example
Spring Loaded Radius turning sliding gate wheels
✓ Spring Loaded Wheel with 20mm Travel
✓ Pre-Load Adjustable
✓ 360° Turning Design with Ball Bearing
✓ R10 Track Compatibility
✓ Screw On Installation to the bottom of gate (No Welding)
Radius Gate Hinges
✓ Universal Left and Right direction hinge
Radius 340 Sliding Gate Track for turning sliding gate
✓ Ready to go around the corner, turning sliding gate track for 500mm/1000mm panels
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ R10 Profile
✓ Available in Kit Contents the option to choose radius 1000 for 1500mm width panels
Four Point Roller System
✓ 3mm Galvanized steel bracket
✓ Ultra Wide 300mm wide fixing bracket
✓ Option to fix secondary plate (if used) by welding or drilling and screwing to post in tunnel style installations
145mm Height Sliding Gate Stop
✓ Rubber Bumper
✓ 145mm High
✓ 10mm stem and 6mm base steel thickness
Please view the "Kit contents" tab to selectively adjust the configuration according to your requirements. The default configuration of this package is 1x SLM panel (Two Wheels) and 3x SLS panels (one wheel each) (total four panels) with a total of 8 meters of track.
With a pair of wheels on the first panel and a singular wheel on all other panels (linked together by the radius hinge) the sliding gate panels can be sized from 500mm each to a maximum of 1800mm each, it would be recommended to work on set panel lengths of 500/1000 with the Radius 340 track or 1500mm with the Radius 1000, these panel sizes best suit nylon gear rack (if automating).
Perpendicular Sliding Gate Motor Installation Example
Parallel Sliding Gate Motor Installation Example
Spring Loaded Radius turning sliding gate wheels
✓ Spring Loaded Wheel with 20mm Travel
✓ Pre-Load Adjustable
✓ 360° Turning Design with Ball Bearing
✓ R10 Track Compatibility
✓ Screw On Installation to the bottom of gate (No Welding)
Radius Gate Hinges
✓ Universal Left and Right direction hinge
Radius 340 Sliding Gate Track for turning sliding gate
✓ Ready to go around the corner, turning sliding gate track for 500mm/1000mm panels
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ R10 Profile
✓ Available in Kit Contents the option to choose radius 1000 for 1500mm width panels
Four Point Roller System
✓ 3mm Galvanized steel bracket
✓ Ultra Wide 300mm wide fixing bracket
✓ Option to fix secondary plate (if used) by welding or drilling and screwing to post in tunnel style installations
145mm Height Sliding Gate Stop
✓ Rubber Bumper
✓ 145mm High
✓ 10mm stem and 6mm base steel thickness
Titan 2410 Ultra Fast 24 Volt Sliding Gate Motor
The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab).
Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.
Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability.
The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).
Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.
The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing.
Key Features
✓ Die-Cast Alloy Housing
✓ Compact Footprint
✓ Multiple Cable entries by IP68 rated Glands
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Flexible size and weight capacities
A peak inside the Titan Series Operator
Tough 180 Watt DC Motor and Digital Logic Controller
Steel Pinion and Easy Limit Switches
Secure yet Easy Manual Release
Automatic Gate System Logic Controller Features
Features as Standard
✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature✓ Open partially Pedestrian Mode Feature (adjustable distance)
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
Multiple Configurable Safety Inputs
✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.
Wired and Wireless Access Control Support
✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world + Schedules + Geofencing (Using TSL1)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times
Residential, Commercial and Complex Working Modes Options
✓ Normal Remote Operation (Open-Stop-Close)✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)
✓ Typical Complex - Individual Open and Close Command Inputs
✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input
Dimensions
Automatic Sliding Gate System Specifications
| Operating Voltage | 24V DC Via Solar Regulator |
| Maximum Gate Size | 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab) |
| Maximum Gate Weight | 1000KG |
| Duty Cycle | 90% |
| Thrust | 27nM |
| Speed | Adjustable up to 36cm/s (21 Meters per minute) |
| Standby Consumption | 40mA |
| Supports Battery Backup | Yes, 24V DC |
| Light Support | Yes, Warning Light |
| Accessories Voltage | Yes, 12V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -10°-60°C |
| Maximum Remotes | 250 |
Unlock the full potential of your purple series gate controller (SL24T and SW24T) with Native Intgration to the gate control board.
Experience the ability to operate the gate on-site, off-site, by set scheduled times and location based operations (Geo-Fencing). The ability to operate partial or full gate operation for any one or multiple modes
✓ The ability to now control the driveway lights (SL24T/Titan2410) is now available.✓ Change the operating logics on the fly via the APP to change from Start command, automatic closing and an assortment of other logics supported by the control board.
✓ Check the gate status: Open, Opening, closed, Closing, partial, (Same for Pedestrian/Partial Function)
✓ Open the Remote Pairing to add additional remotes with ease (or wireless keypads/wireless press buttons)
No Wi-Fi at the gate or Poor Wi-Fi?
Two alternative solutions can be applied here:
Solution 1: WiFi Extended (2.4GHZ) can be used for long distance such as the N300 extender. This retains full mobile APP functionality on-ste or off-site.
Solution 2: Use another mobile phone as a temporary hotspot to connect to the tuya platform, once completed the mobile APP can be used locally via bluetooth.
Did you know?
You can set multiple devices to operate via tuya in an oprating scene, for example the gate and also the garage door could open together as you approach home, or on your toggle by using an exteranl WiFi module on the garage door (Tekno WF).
Specifications
| WiFi Band | 2.4GHZ Only |
| WiFi Distance | Site and Equipment Dependant |
| Integration | Direct plug into control board |
| Compatibility | SW24T and SL24T PURPLE control boards ONLY |
Unlock the full potential of your purple series gate controller (SL24T and SW24T) with Native Intgration to the gate control board.
Experience the ability to operate the gate on-site, off-site, by set scheduled times and location based operations (Geo-Fencing). The ability to operate partial or full gate operation for any one or multiple modes
✓ The ability to now control the driveway lights (SL24T/Titan2410) is now available.✓ Change the operating logics on the fly via the APP to change from Start command, automatic closing and an assortment of other logics supported by the control board.
✓ Check the gate status: Open, Opening, closed, Closing, partial, (Same for Pedestrian/Partial Function)
✓ Open the Remote Pairing to add additional remotes with ease (or wireless keypads/wireless press buttons)
No Wi-Fi at the gate or Poor Wi-Fi?
Two alternative solutions can be applied here:
Solution 1: WiFi Extended (2.4GHZ) can be used for long distance such as the N300 extender. This retains full mobile APP functionality on-ste or off-site.
Solution 2: Use another mobile phone as a temporary hotspot to connect to the tuya platform, once completed the mobile APP can be used locally via bluetooth.
Did you know?
You can set multiple devices to operate via tuya in an oprating scene, for example the gate and also the garage door could open together as you approach home, or on your toggle by using an exteranl WiFi module on the garage door (Tekno WF).
Specifications
| WiFi Band | 2.4GHZ Only |
| WiFi Distance | Site and Equipment Dependant |
| Integration | Direct plug into control board |
| Compatibility | SW24T and SL24T PURPLE control boards ONLY |
STX4K Keyring High Range Remote
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post
Solar Panel can be installed vertically or horizontally.
✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ True IP67 Rating
✓ 97% or greater power tolerance
✓ Anodized Silver Aluminum Frame
✓ Long 10 Metre Cable (or cut to required size)
✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
| Maximum Power(Pmax) | 60W/120W/180W |
| Optimum Operating Voltage(Vmp) | 35.5V |
| Optimum Operating Current(Imp) | 1.13A |
| Open Circuit Voltage(Voc) | 43.1V |
| Short Circuit Current(Isc) | 3.4A/6.8A/10.2A |
| Power Tolerance | -1%~+3% |
| Operating Module Temperature | 40 C to +85 C |
Heavy Duty Solar Pole
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
CERO PWM Solar Regulator
The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.
The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.
✓ Large copper input terminals (12-28AWG)✓ Ribbed metal heat sink across the entire back side
✓ LCD Display
✓ 3 Stage PWM Management (Bulk, Boost, Float)
✓ Supports Sealed, Gel and Flooded Batteries
✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
✓ Allows for a total of 10 Amps Inputs
✓ High Efficiency
✓ USB Terminal
✓ Temperature Compensation
✓ Low voltage disconnect and reconnect
Battery System
Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.
Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.
Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.
Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.
Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.
The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.
These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirement.
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor
upgrade for wiring on one side only
