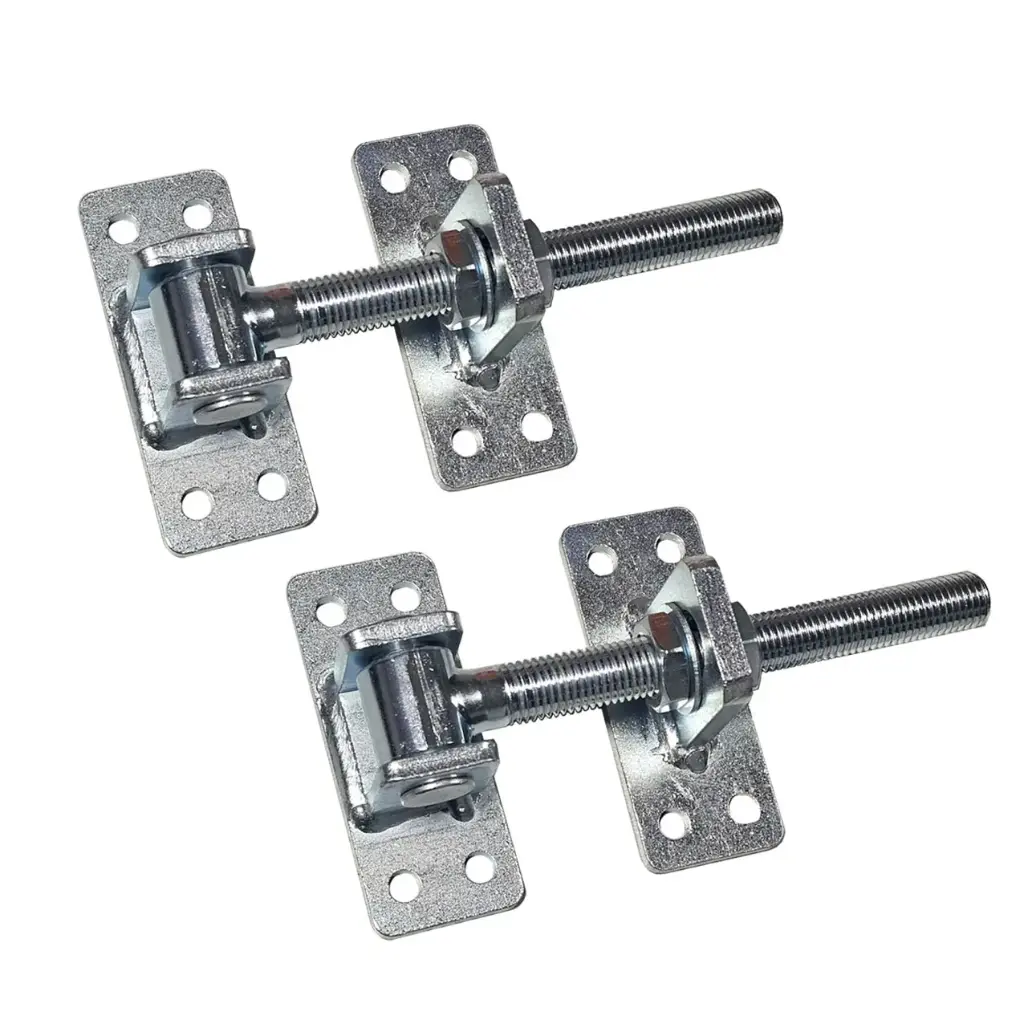

Pair of Adjustable 180 Degree Swing Gate Hinge (Vertical Rail Type)
Kit Part No:
SH-V40x2
Adjustable Gate Hinge for Gate Vertical Rail
A unique hinge designed with automation in mind. If a gate is designed without additional horizontal rails for the mounting of automation equipment the hinge position may conflict with the automation. The SH-V40 can be installed anywhere on the gates vertical rail ensuring it can be out of the way of the actuators mounting rail. The minimum vertical tube size is 40mm.
✓ Extremely Flexible Adjustment
✓ Zinc Rich Coating
✓ Beefy M16 Bolt Adjustment
✓ Supports up to 150KG per pair of hinges
✓ Fixes directly to the gate Vertical rail (not horizontal rail)
✓ Fits on to any 40mm or greater Vertical rail
✓ Can be used with timber, steel or aluminum gates
✓ Can be welded if required to steel gates
✓ Can be installed on to narrow posts

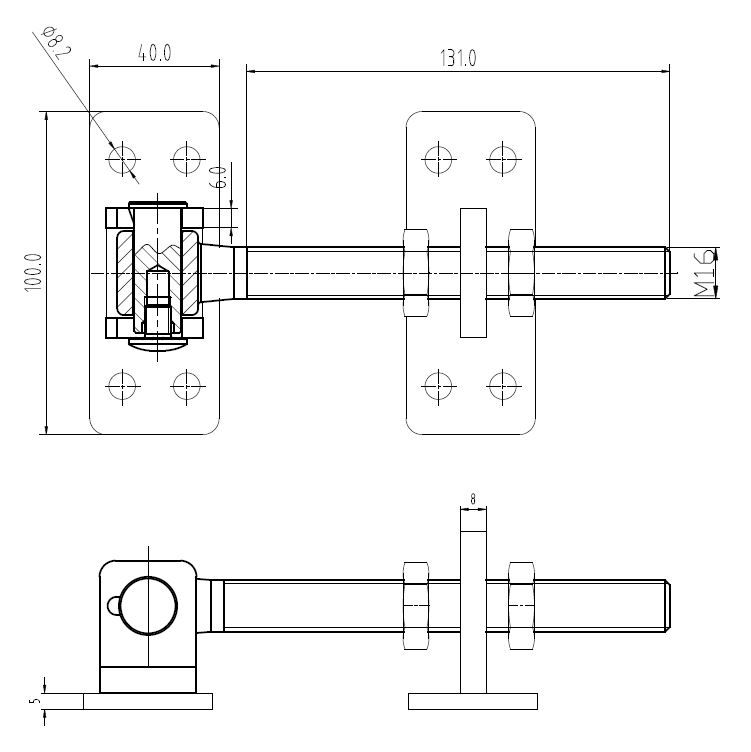

Dimensions
