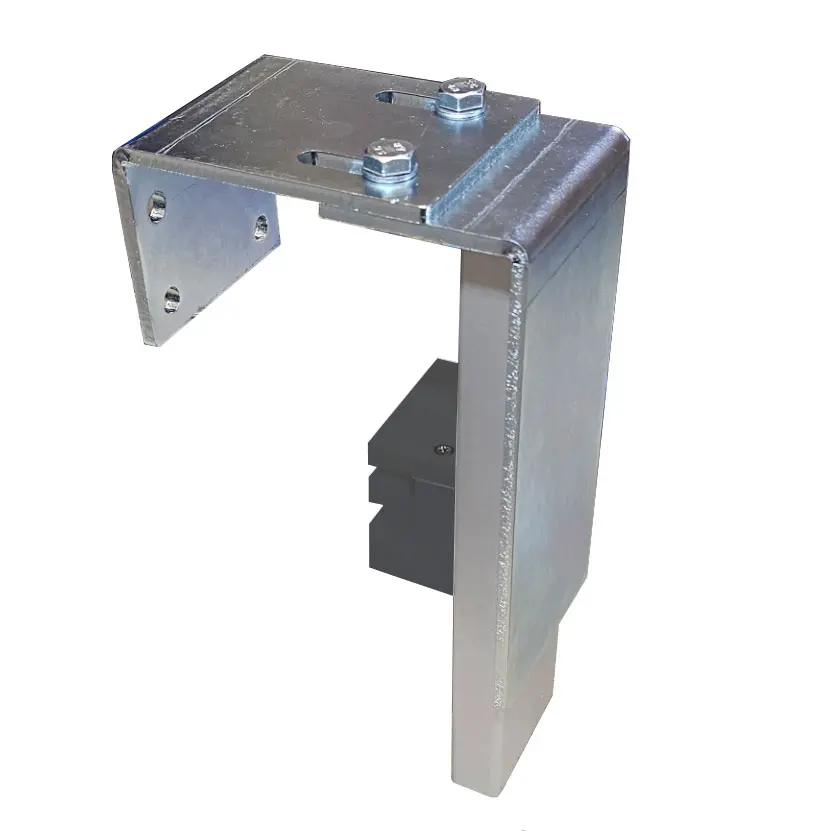

Overhead Bracket with Superior Nylon Block and Channel System (Black Block)
Kit Part No:
OHB1-AL-C300-NB-BK-SUP

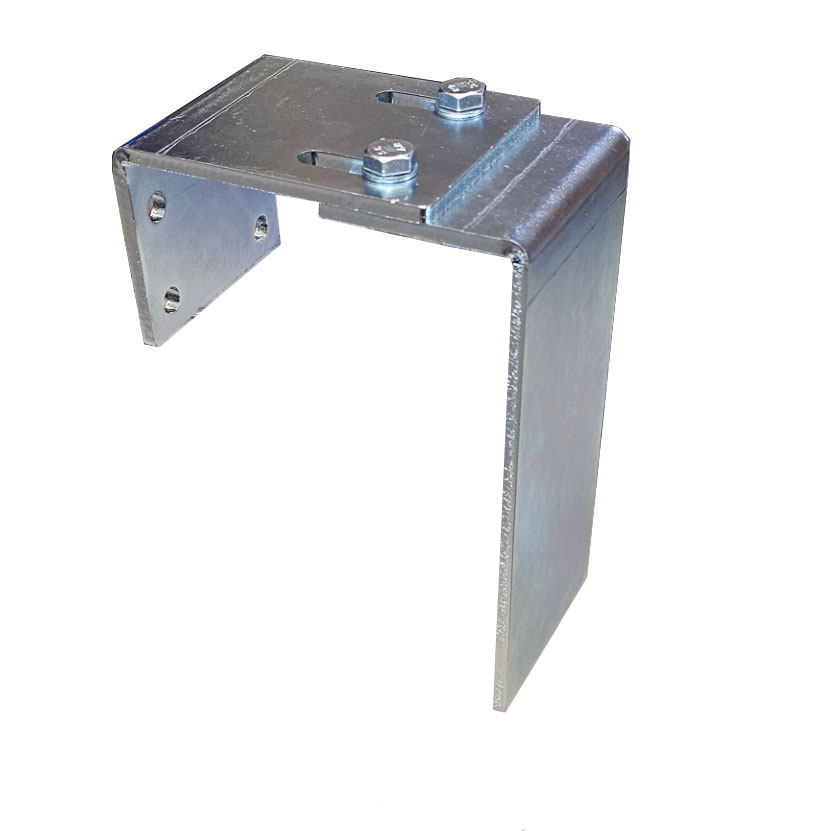

Overhead Bracket for Nylon Block and Channel
The intention of this product is only if a support post has not been put in place to support the gate from the inside, it is always best practice to use a support post.
✓ 6mm Thickness Steel
✓ Adjustable 135-165mm outside to outside
✓ Allows for up to 70mm gate total thickness including any outer cladding when using a 30mm angle/Z Profile
✓ Fits directly to any 100mm or greater post (fasteners to post are not supplier)
Technical Drawing
C Channel for Sliding Gate Nylon Block (Top Rear Guiding System)
✓ 3mm Aluminum
✓ Can be welded or Screwed to the Support Post
✓ Allows the block to easily float up and down following the driveway grade
✓ Does not interfere with any front face cladding or above gate protrusions such as spears or scrolls
✓ Can be welded or Screwed to the Support Post
✓ Allows the block to easily float up and down following the driveway grade
✓ Does not interfere with any front face cladding or above gate protrusions such as spears or scrolls
Dimensions
Superior Black Nylon Sliding Gate Block
✓ Easy to install two piece design
✓ Solid Nylon Block
✓ Can work in our pre-made Aluminum and Steel C Channels Or your own custom construction of angle
✓ Supports our Z profile which screws directly to the gate
✓ Supports welded gate angle of 40x40mm
Dimensions
