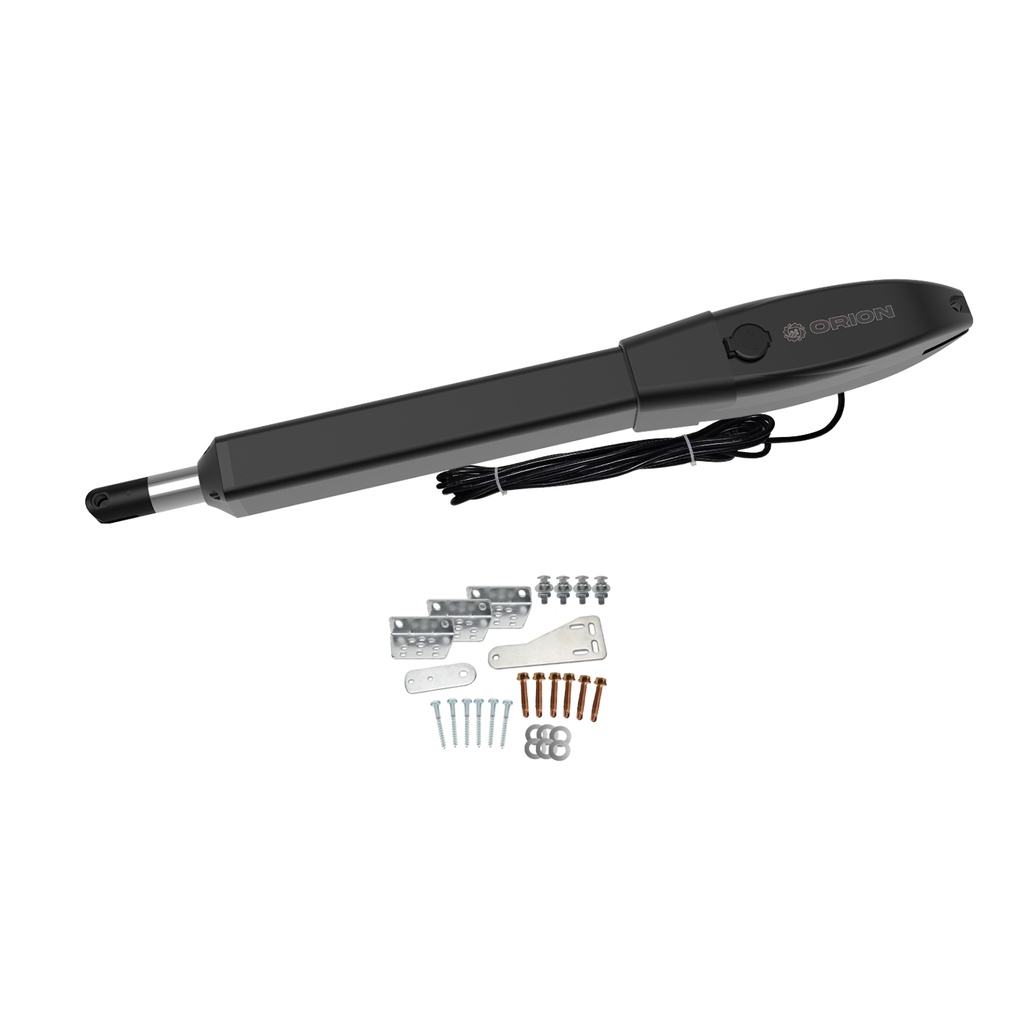

Orion 24V Slimline Automatic Driveway Electric Gate Linear Actuator with 7 Metre Cable
Part No:
ORION-ACT
Long Stroke
| Gate Opener Brand: Automation Systems Australia |
| Swing Gate Thrust/Torque: 1200N |
| Model: Orion LS |
| Warranty: 1 Year |
| Maximum Swing Gate Size (each): 4m/4.2m |
Orion Slimline Low Voltage 24 Volt Driveway Linear Actuator Gate Motor
The Orion Linear Actuator kit is ultra modern and slimline measuring at only 80mm in width. Suitable for narrow post installations of 100mm. Constructed from a die-cast alloy rear housing for the DC motor and metal gear set and an extruded aluminum housing for the stainless steel telescopic piston it retains a subtle yet modern appearance with plenty of strength for most applications of low resistance/low wind loading gates up to 3.5m in size or up to 350kg in weight each.
Operations are smooth and efficient using its 24 Volt DC motor system transferred to its steel lead screw through its metal gear set. The end positions are set using the retracted stroke (in) and a gate stop for its expanded stroke (out).
The Orion has a 400mm stroke and the ability to work with gates from as short as 800mm and as wide as 3.5m (12ft) with a maximum weight of 350kg, if a wider, heavier or a cladded gate is installed please see the Viper series of operators.
Key Features
✓ Fast and Efficient 24 Volt Operation
✓ Subtle and Quiet
✓ Die-Cast Housing and Extruded
✓ Slimline and Compact design
✓ Subtle and Quiet
✓ Die-Cast Housing and Extruded
✓ Slimline and Compact design
✓ Stainless Steel Piston with Metal Gear Set
✓ Only Two Wires Back to Gate Control Box
✓ Flexible and vast installation geometries
✓ 1.5mm Double Insulated PVC Cable
✓ Only Two Wires Back to Gate Control Box
✓ Flexible and vast installation geometries
✓ 1.5mm Double Insulated PVC Cable
Overview of the Orion Actuator
Robust Case Construction
Detail on the Build
Manual Release (Clutch)
Simply open the top cover, insert the supplied key and turn to manually release the gate.
Driveway Gate Motor Specifications
| Operating Voltage | 24V DC |
| Duty Cycle | 60% |
| Thrust | 1200N |
| Maximum Stroke Length | 400mm |
| Limit Switches | No, Gate stop required |
| Gearing Structure | Gearbox |
| Case Material | Die-Cast and Extruded Aluminum |
| Piston | Stainless Steel With Alloy Gate Connection |
| Maximum Gate Weight | 3.5 Meters (12 Ft) |
| Maximum Gate Weight | 350KG |
"Pull to Open" Opening Inwards Geometry
"Push to Open" Opening Outwards Geometry
