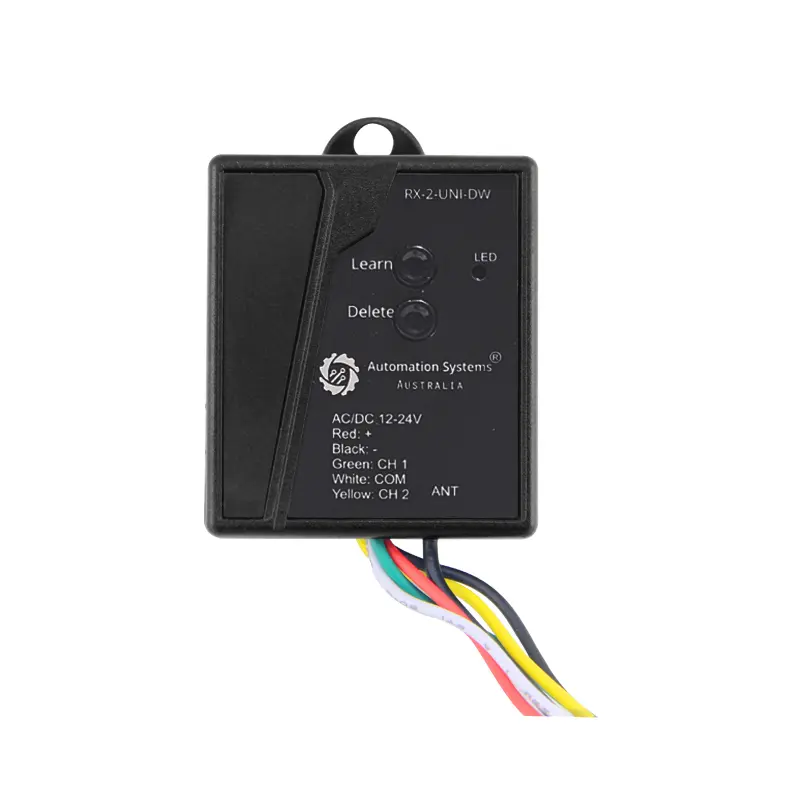

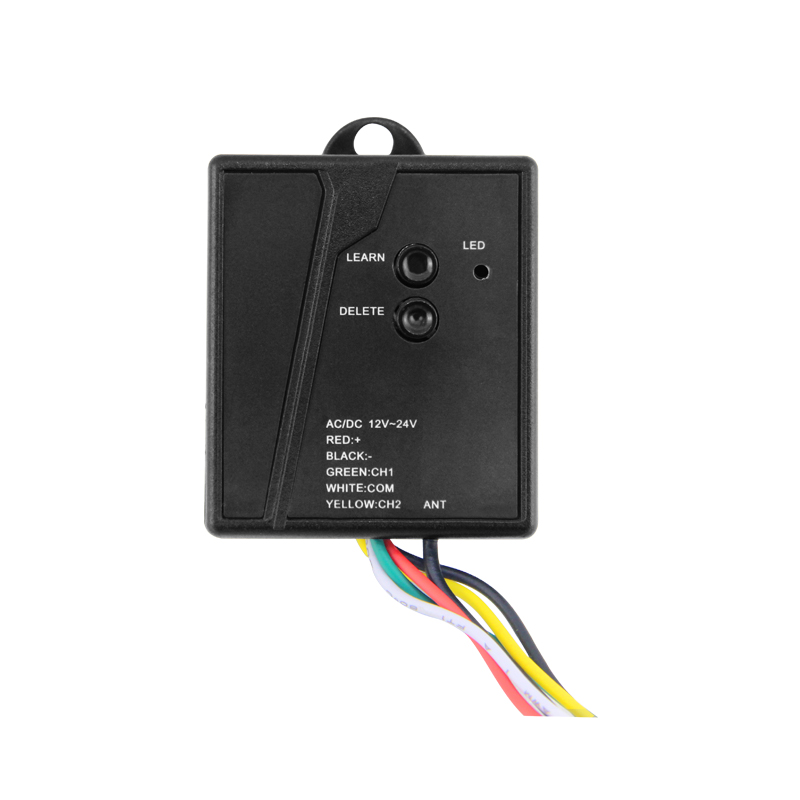

Latching/Momentary 433MHZ DUAL (TWO) CHANNEL Remote Control Wire In Receiver (with Pre-Connected Wiring) for Garage Doors, Alarm Systems, Automatic Gates, Light Control
Part No:
RX-2-UNI-DW
Dual Channel Remote Control Receiver
Working with the STX4K, STX4L and Dex4 Wireless equipment the Two Channel receiver offers the ability to control up to two individual devices/systems separately such as automatic gate systems, garage doors, alarm systems and almost any device with the requiring a momentary pulse OR latching circuit to operate.
The RX-2-UNI-DW has factory connected wiring on the receiver allowing for faster integration into the host system saving time and unnecessary tedious wiring. The wiring for the two relays is a common ground meaning only one reciever to one host system with a maximum of two functions. If one receiver is to be connected into TWO host systems consider the RX-2-UNI which has two separate relay commons.
Specifications
| Operating Voltage | 12-30VDC/12-24VAC |
| Operating Current | 9mA standby |
| Relay Switching Current Capacity | 3A Momentary/500mA Latching |
| Frequency | 433mhz |
| Compatible Transmitters (tX) | STX4L, STX4K, Dex4,PB-WIRELESS-TOUCH1,WPB-PRESS-WIRELESS,WPB-MHEAD-WIRELESS |
| Wire Length | 27CM |
