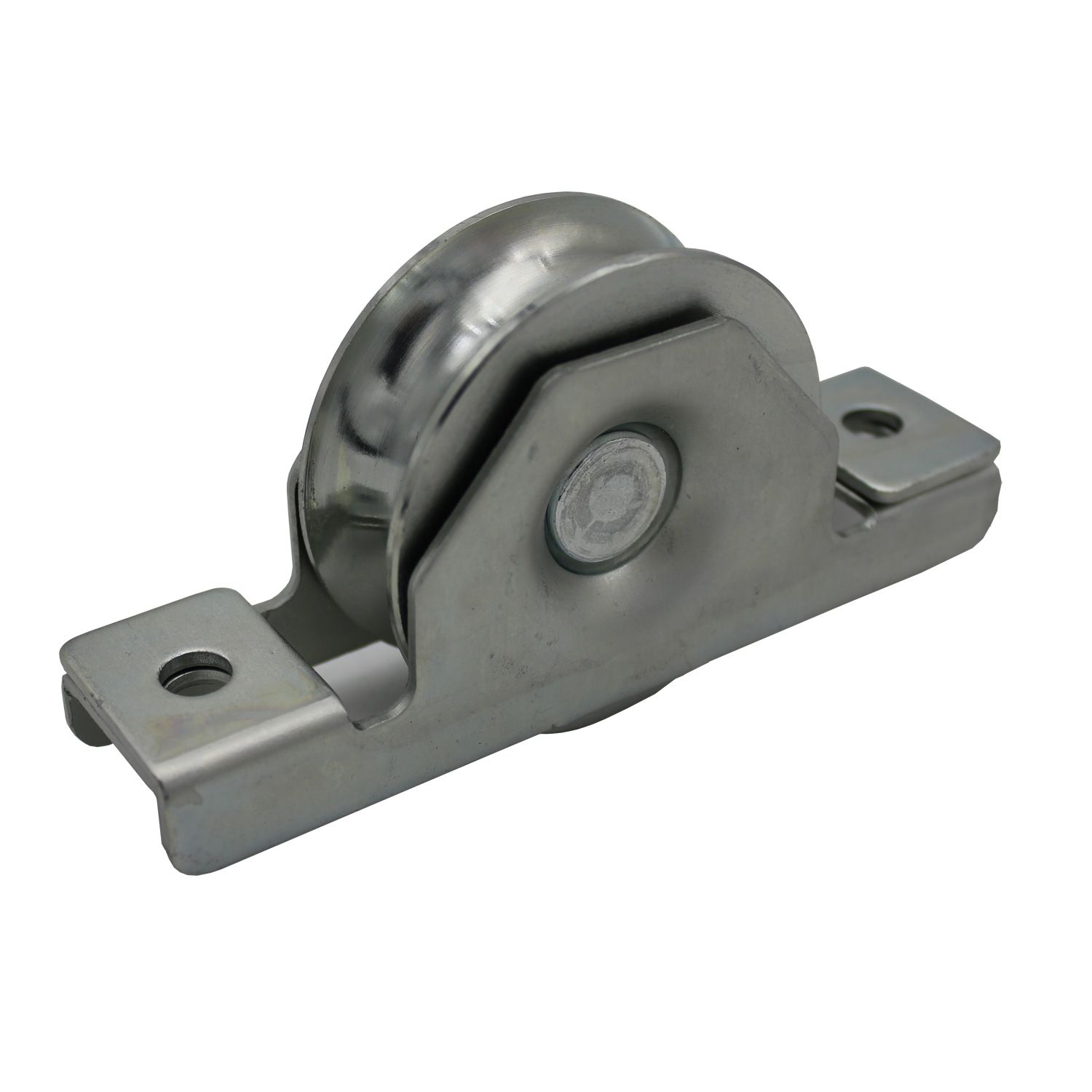

Internal Mount Double Bearing Internal Sliding Gate Wheel 78mm R10 U Groove
Part No:
IRM-78A
Internal Gate Wheels (Recess/Flush Mounting)
✓ Internal Double Bearing Wheel
✓ Supports up to 700KG per pair of wheels
✓ A pocket is cut on the bottom side of the lower rail, fixing points are on the external flange
✓ Fits into 75mm high or greater tubing
✓ Raises the gate by only 25mm
✓ Supports up to 700KG per pair of wheels
✓ A pocket is cut on the bottom side of the lower rail, fixing points are on the external flange
✓ Fits into 75mm high or greater tubing
✓ Raises the gate by only 25mm

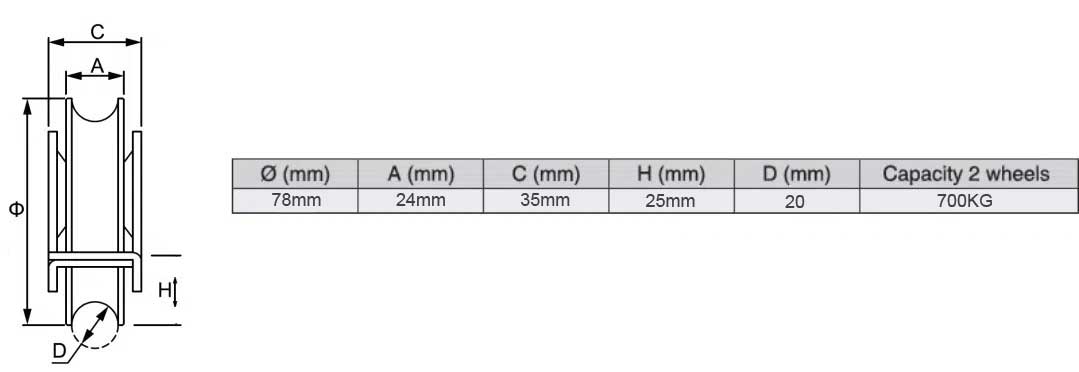

Dimensions
