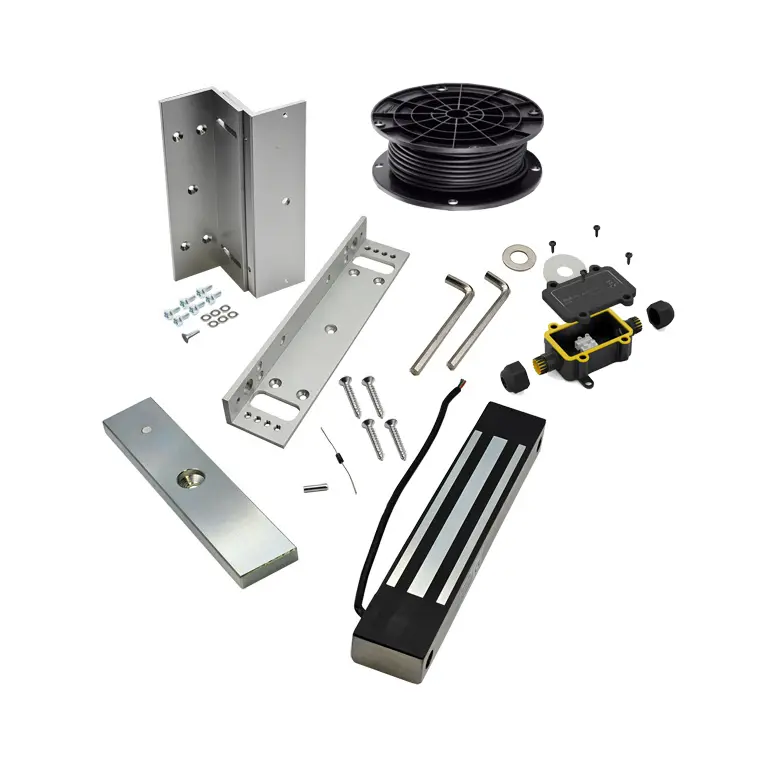

280KG 12V and 24V Magnetic Lock for Automatic Gates Including ZL Bracket and 10m Cable
Kit Part No:
EML-280+ZL-BR280-10m
280KG Waterproof Magnetic Lock (12/24V DC)
The Fortress ML Magnetic lock has a hold ability of 280KG when energized, it can be powered by 12V DC or 24V DC. Magnetic locks unlike solenoid based locks will released when commanded to unlock by the control system even whilst under load making a magnetic lock an excellent option for most applications.
✓ Suitable for Small and Large Gates✓ Suitable for Single and Double Gates
✓ Provided with Both an L bracket for magnetic lock mounting and an adjustable Z bracket for the armature plate alignment
Magnetic Lock Specifications
| Operating Voltage | 12V/24V DC |
| Consuption | 450mA(12V)/225mA(24V) |
| Body Size | 222x42x26mm |
| Armature Plate Size | 180x38x12mm |
