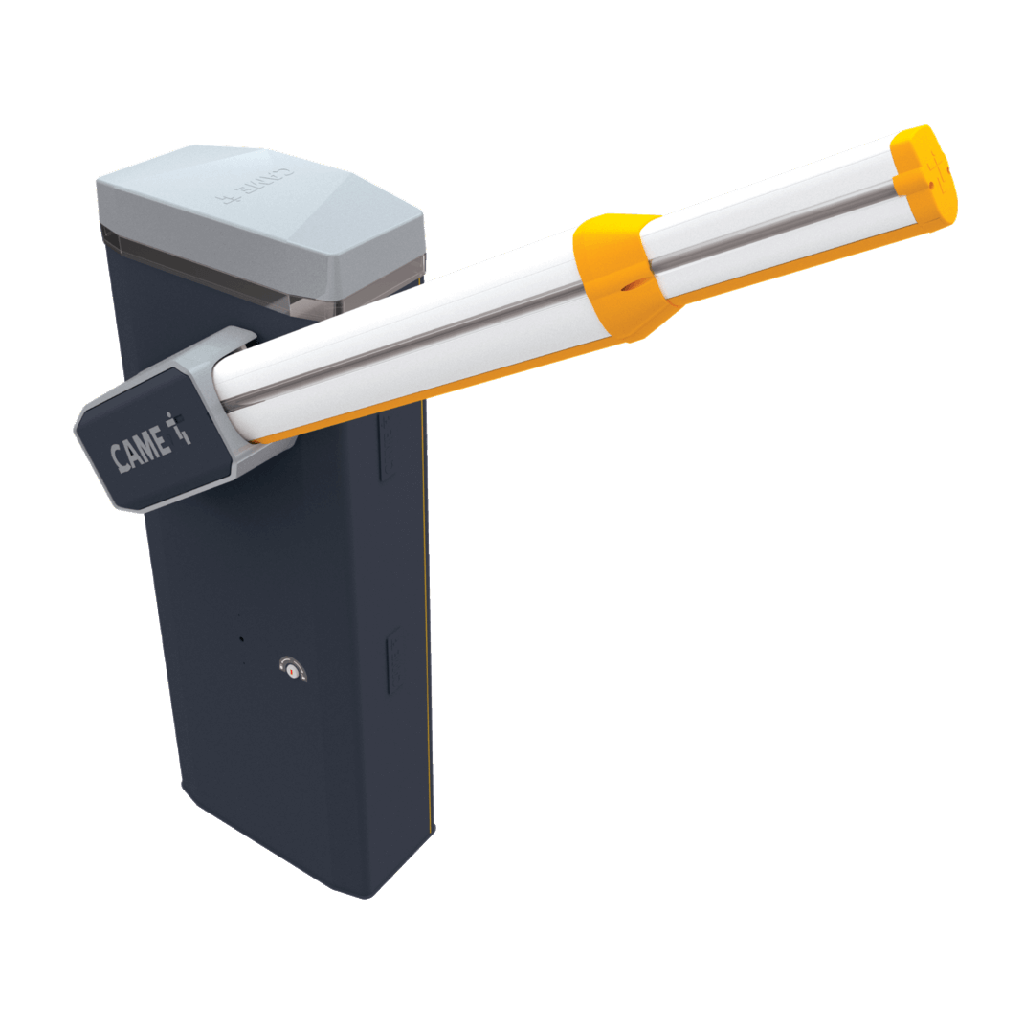

GT8 Boom Gate Operator to Suit Up to 8m Opening with Arm Made in Italy
Part No:
GARD-GT8
Bulky Item
Please note this is a replacement operator and is not supplied with remotes or receiver card.
High Duty Cycle Italian Boom Gate System
At a Glance
Universal Left OR Right Side Installation 24V DC System 190 KM/H Wind Rating Galvanized Steel and Powder coated Tested for 350 Cycles/Hour with over 3 million cycles Ultra Fast Operation within 6 seconds Easy to work on Control Board placement under the TOP cover Rubber Edging on the Bottom Side of the ArmCompatibility and Features
Supports Loop Detectors Supports WIRED and WIRELESS Keypads Supports Egress Press Buttons Supports Crown Light System Supports LED Arm System Supports Opening and Safety Detector Combo Supports Battery Backup Card (all internal) Digital Display for easy parameter and settings configuration Supports Skirt System to prevent unauthorized foot traffic Dual Voltage Feed for ultimate precision, control and braking function Supports Opening, closing and Safety Detectors Supports Battery Backup system (all internal)
Adjustable Automatic Close Time Internal Anti Tamper System (can also support a N/C Contact from alternative switch) Supports Open Only, Close Only, Open/Close and Stop Command inputs (Each are individual circuits) Supports status warning, flashing lights and general area lighting systems Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations Supports hold to operate mode Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations Supports synchronization module to allow connection of a master and slave unit (RSE Cards) allowing for all accessories connection directly to the master | Maximum Arm Length | 8m (Standard) |
| Minimum Arm Length | 6.1m (Cut Down) |
| Operating Time | Within 6S |
| Motor Power (Volts) | 24V DC |
| Torque (NM) | 300 |
| Average Life by Cycles | 3,000,000 |
| Maximum cycles per HOUR | 350 |
| Maximum cycles per DAY | 5400 |
| Operating Temperature | -20°C to +50°C |

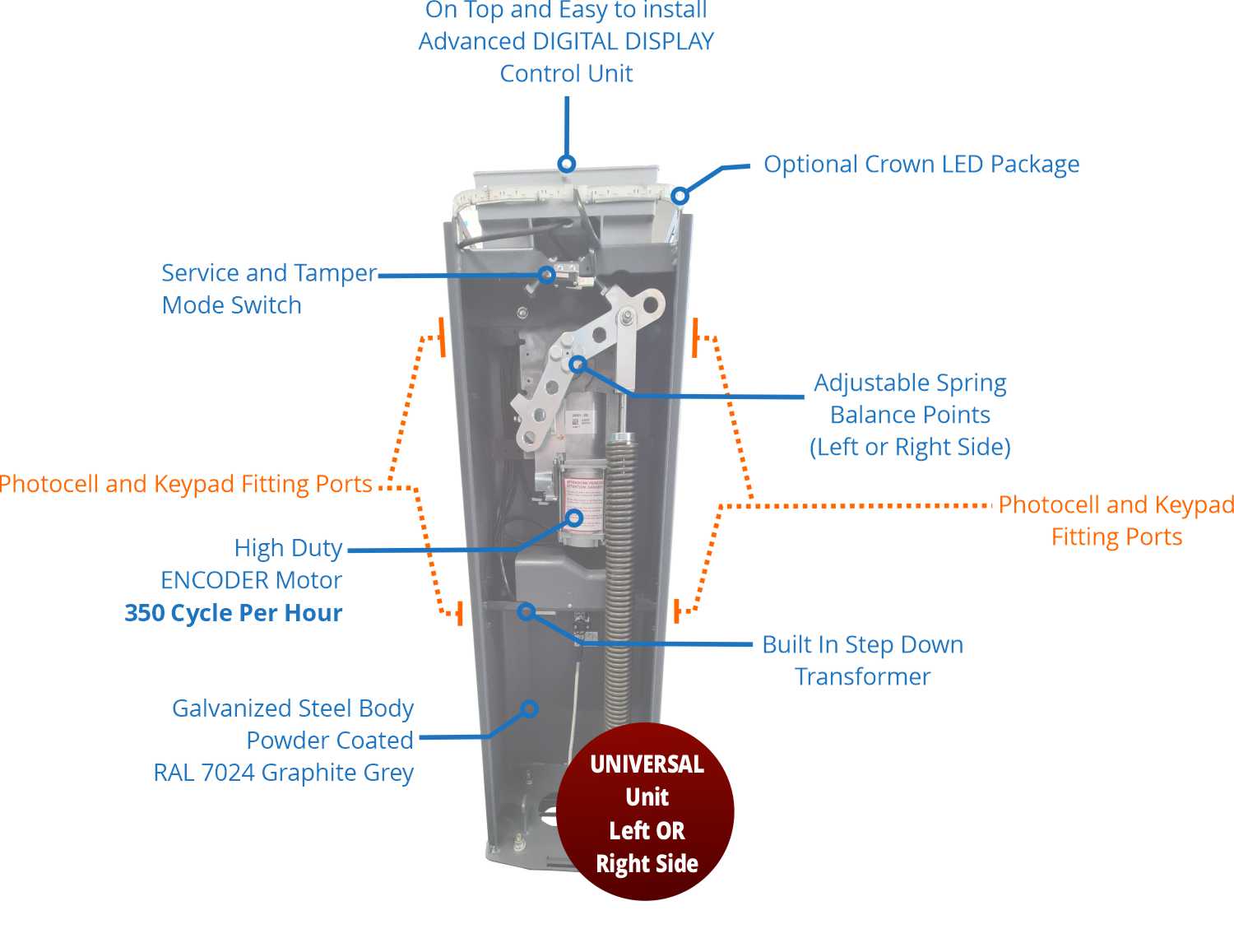

Operators Overview

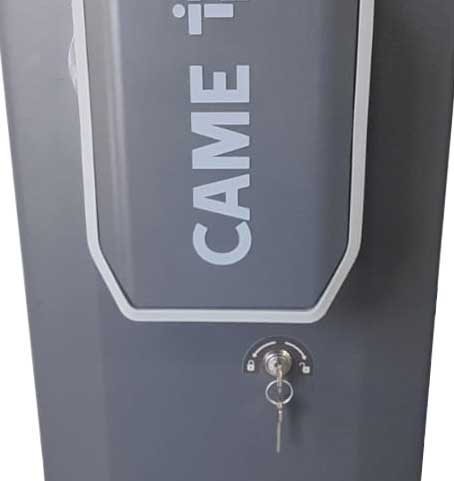

Manual Release
Simple to use Manual Release system, simply insert the key and turn to the unlock position. Now you can push the arm up to the open position and turn the key to the lock position. In a case where uninterrupted use is required see the optional batter backup system below.

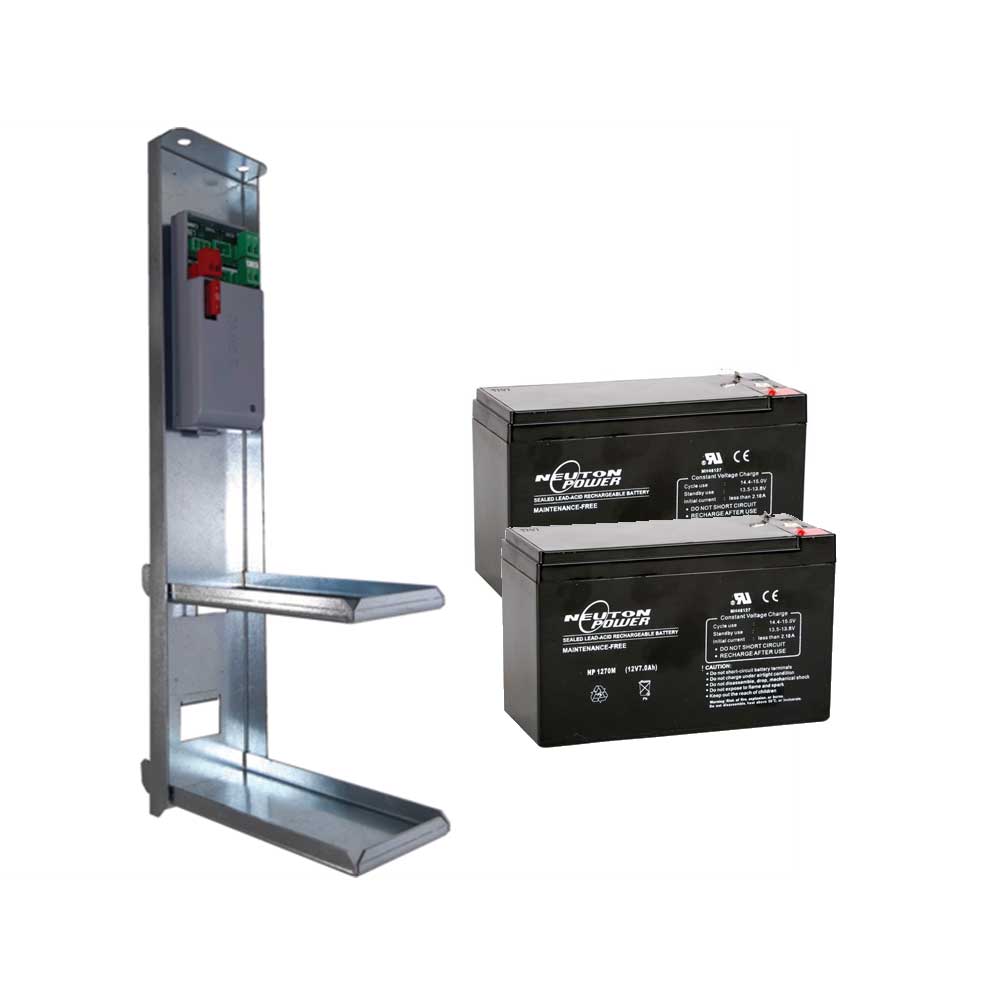

Optional Battery Backup System
Direct installation within the operator Allows for completely uninterrupted use Recharges automatically when power is restored All connected accessories continue to operate as per normal Supplied batteries are wired in series to create 24V Operating time without power can be up to one week on light usage or hours on heavy usageAluminum Arm

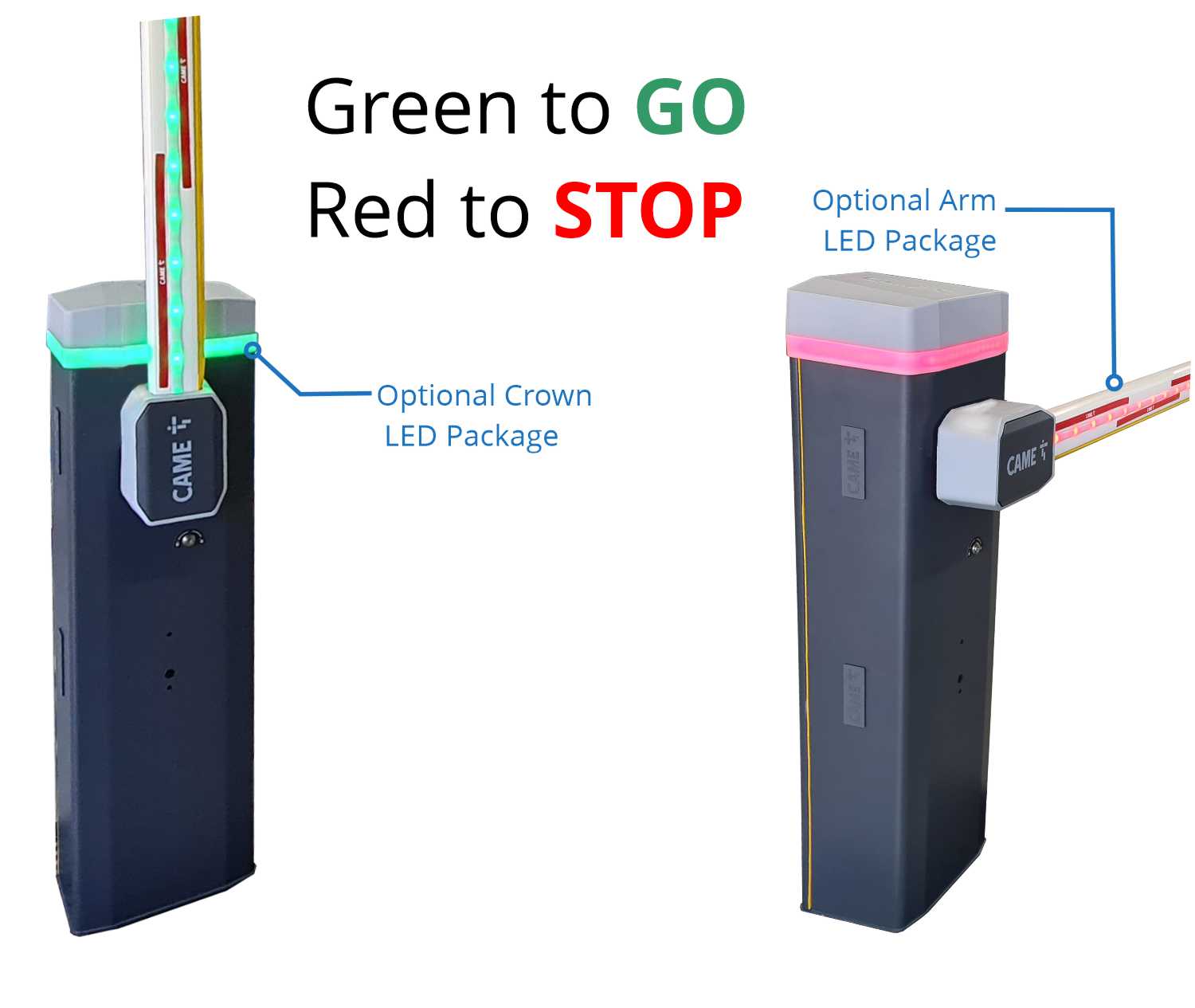

Optional Lighting
There's no longer a need for traffic lights anymore with the optional completely integrated LED lighting solution with high DAY or NIGHT visibility any user can identify when its safe to pass through (GREEN to Go) or (Red to Stop).
No confusion, No accidents and No down time.

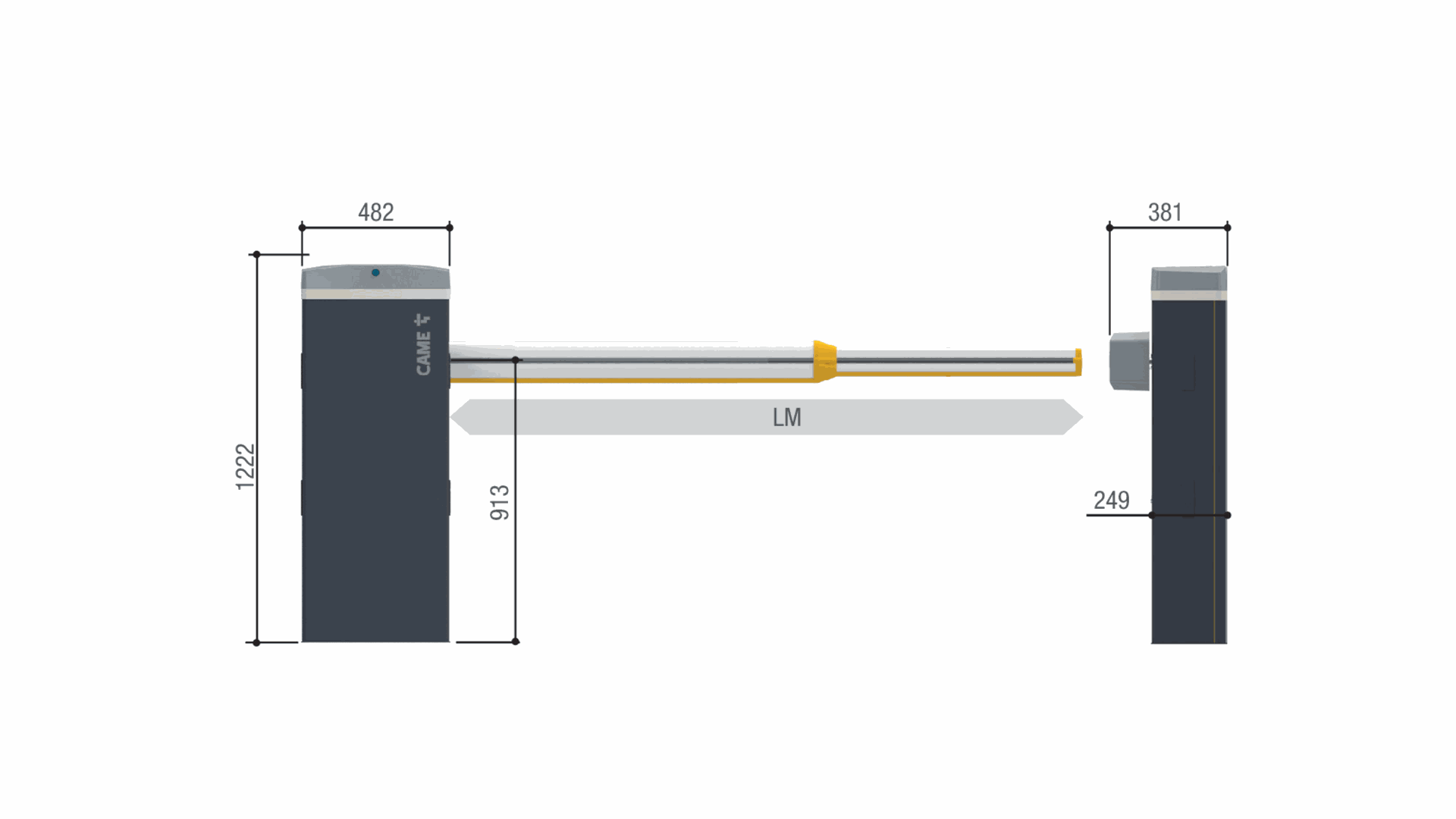

Operator Dimensions
