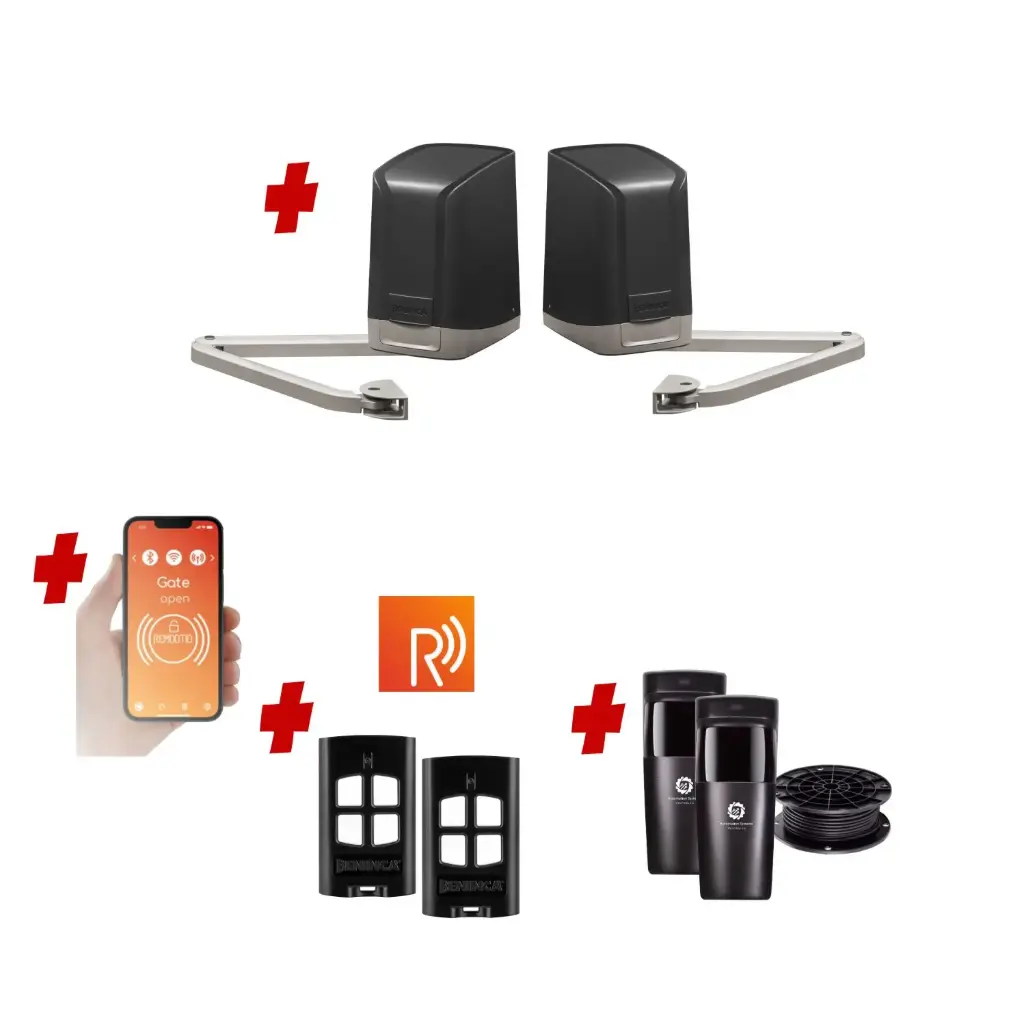

Remootio SAM Articulating Arm ITALIAN Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit
| Operating Method: Remotes & Mobile Phone Control |
| Gate Opener Brand: Beninca |
| Swing Gate Thrust/Torque: 220Nm |
| Model: SAM |
| Warranty: 3 Year |
| Maximum Swing Gate Size (each): 2.5m |
Beninca SAM Articulating Arm Operator
Its clean design principal does not require a separate control box as it is built within the master motor unit which can be installed on either side of the driveway.
The SAM operator can reach in to the gate position at a respectable 280mm allowing for centralized positioning of the gate on most standard pillars.
Key Features
✓ Sleek and Stylish
✓ Open & Closed Position Adjustable Mechanical Stop
✓ Built In Encoder (5 Wire Motor)
✓ Flexible and vast installation capabilities
Overview of the Orion Actuator
Mechanical Stop
Set the MAX. Open angle with the adjustable top point within the gate motor.
Quality Castings
Both the motor unit and arms are constructed of robust die-cast and finished with a powder coating.
Clean Installations
The master gate mot has the control board built in allowing for a cleaner aesthetics and great cable management.
Driveway Gate Motor Specifications
| Operating Voltage | 24V DC |
| Duty | 30 Uses Per Hour |
| Thrust | 220Nm |
| Limit Stops | Yes for Open & Closed, a gate stop is used in the closed position if possible and strongly advised |
| Gearing Structure | Gearbox |
| Case Material | Die-Cast |
| Maximum Gate Width | 2.5 Meters See specifications graph |
| Maximum Gate Weight | 300KG (See Pivot Table Below- Right Column) |
Installation Table
Capacity Table
Operators Measurements
The LCD Display (not Switches) allows for adjustment of most working settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible (see the complete list below).
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
Automatic Gate System Features
Automatic Gate System Controller Specifications
| Operating Voltage | 24V |
| Duty Cycle | Moderate Use |
| Standby Consumption | 20mA |
| Supports Battery Backup | Yes, 24V DC (Mains Systems Only) |
| Automatic Gate Lock Support | Yes, 12-24V DC |
| Light Support | Yes, Aux. Output |
| Accessories Voltage | Yes, 24V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -20°-50°C |
| Maximum Remotes | 64 |
Beninca TO.GO4A
Remootio 3
This Remootio 3 Package Includes
- Remootio 3 device (Bluetooth and Wi-Fi enabled device for controlling and monitoring gates and garage doors)
- Sensor (for detecting if your gate is open or closed)
- Power adapter (5V) (for powering Remootio 3 from a wall socket) (Can also be powered by Automatic gate/garage door directly (5-32V DC, 12-24V AC))
- Power cable for the 5V power adapter
- Double-sided tapes
- Cable for connecting Remootio to your gate or garage door
- Installation manual
Key Features
- Remootio 3 has two output relays which makes it compatible with gate/garage door openers that have separate trigger inputs for opening and closing
- Remootio 3 works with a 5V power supply (standard USB charger)
- Remootio 3 also works from 5-32V DC, 12-24V AC voltages, so it can be powered from the control board of most gate openers making installation very easy
- Remootio 3 has two accessory input terminals (e.g. sensor and doorbell button)
Works With
|
Most electric gates |
|
Most garage door openers |
|
Most electric strikes |
Please use the compatibility checker to make sure that Remootio 3 is compatible with your gate or garage door opener.
Connection Methods
|
Bluetooth (also works when there is no Wi-Fi / Internet access) |
|
Wi-Fi (local network) |
|
Internet (via Wi-Fi) |
Smart Home Integrations
|
Apple Home |
|
Amazon Alexa |
|
Google Assistant |
|
Samsung SmartThings |
Control Via
|
iOS and Android Smartphones |
|
Apple Watch |
|
Open API |
Easy Installation
|
Wiring diagrams available for most electric gate and garage door openers |
|
Small dimensions – fits almost anywhere |
|
Wide operating voltage range: 5-32VDC & 12-24VAC |
|
2x output relays |
Three ways to connect
Bluetooth: You can control your gates even when WiFi is not available at your gates or when the internet service is down.
Wi-Fi: Connect Remootio to your home WiFi and control your gates from anywhere within your house. In this mode, no data goes through the internet.
Internet: You can control and monitor your gates from anywhere in the world.
No external bridge or hub is needed. It's all built into the device.
It also works in parallel with your traditional remote controller
Apple Home, Amazon Alexa, Google Home, Siri, SmartThings
Remootio 3 is compatible with Apple Home, Google Home, Amazon Alexa and SmartThings so you can use voice commands to open or close your garage door.
You can also add a personal phrase in the Remootio app and open or close your gates with Siri shortcuts.
Easy keysharing
You can easily share keys with family and friends or even Airbnb guests via QR code or via text message. (You can also use the messaging platform of any social media apps to share keys).
Access right management
Grant or revoke access rights easily from the app. You have full control over which users have access to your gate or garage via Bluetooth, WiFi and Internet. (For example you can limit the gardener's key to only work via Bluetooth.)
Limit when users can operate the gates:
Duration based: Set a start date and an end date (ideal for AirBnB)
Weekly recurring pattern: Set a start time and an end time for each day of the week. (For example the gardener can only open on weekdays between 10:00 am and 2:00 pm)
Automations
Close or open your gate or garage door at certain times of the day. You can set up as many automations as you wish.
For example, Remootio can open your gate every working day at 9:00 AM and close it at 6:00 PM. (You can choose any day of the week and any time of the day.) You can add as many automations as you wish.
Camera add-on
You can add a Remootio compatible Wi-Fi camera and watch the live stream in the Remootio app.
Check gate status
You can check whether your gate is open or closed from the Remootio app any time. You can also ask Alexa or Google home if your garage door is closed.
Notifications
Get notified when someone operates your gate, someone rings the doorbell, or when the gate has been left open.
Apple Watch app
Use the Remootio apple watch app to control your gate from your wrist.
Widgets
Open and close your gate or garage door without opening the app using the Remootio widget or the Siri shortcuts widget.
Security
Independently from whether you use Bluetooth or Wi-Fi, Remootio uses 256-bit authenticated end-to-end encryption between your smartphone and the Remootio device.
Keys are not stored in a cloud, but in your Remootio device and your smartphone.
Small size
Thanks to its small dimensions, Remootio fits just about anywhere.
Customizable App
From the Remootio app you can easily rename, add a photo and select a background color for each gate and garage door so that you can easily find them when you are swiping through your devices.
Multiple devices
Handle multiple devices from the same app. Swipe horizontally between them. You can add as many Remootio devices as you wish.
Free smartphone app
The smartphone app is available for both iOS and Android. There are no subscription fees.
Remootio 3
This Remootio 3 Package Includes
- Remootio 3 device (Bluetooth and Wi-Fi enabled device for controlling and monitoring gates and garage doors)
- Sensor (for detecting if your gate is open or closed)
- Power adapter (5V) (for powering Remootio 3 from a wall socket) (Can also be powered by Automatic gate/garage door directly (5-32V DC, 12-24V AC))
- Power cable for the 5V power adapter
- Double-sided tapes
- Cable for connecting Remootio to your gate or garage door
- Installation manual
Key Features
- Remootio 3 has two output relays which makes it compatible with gate/garage door openers that have separate trigger inputs for opening and closing
- Remootio 3 works with a 5V power supply (standard USB charger)
- Remootio 3 also works from 5-32V DC, 12-24V AC voltages, so it can be powered from the control board of most gate openers making installation very easy
- Remootio 3 has two accessory input terminals (e.g. sensor and doorbell button)
Works With
|
|
Most electric gates |
|
|
Most garage door openers |
|
|
Most electric strikes |
Please use the compatibility checker to make sure that Remootio 3 is compatible with your gate or garage door opener.
Connection Methods
|
|
Bluetooth (also works when there is no Wi-Fi / Internet access) |
|
|
Wi-Fi (local network) |
|
|
Internet (via Wi-Fi) |
Smart Home Integrations
|
|
Apple Home |
|
|
Amazon Alexa |
|
|
Google Assistant |
|
|
Samsung SmartThings |
Control Via
|
|
iOS and Android Smartphones |
|
|
Apple Watch |
|
|
Open API |
Easy Installation
|
|
Wiring diagrams available for most electric gate and garage door openers |
|
|
Small dimensions – fits almost anywhere |
|
|
Wide operating voltage range: 5-32VDC & 12-24VAC |
|
|
2x output relays |
Three ways to connect
Bluetooth: You can control your gates even when WiFi is not available at your gates or when the internet service is down.
Wi-Fi: Connect Remootio to your home WiFi and control your gates from anywhere within your house. In this mode, no data goes through the internet.
Internet: You can control and monitor your gates from anywhere in the world.
No external bridge or hub is needed. It's all built into the device.
It also works in parallel with your traditional remote controller
Apple Home, Amazon Alexa, Google Home, Siri, SmartThings
Remootio 3 is compatible with Apple Home, Google Home, Amazon Alexa and SmartThings so you can use voice commands to open or close your garage door.
You can also add a personal phrase in the Remootio app and open or close your gates with Siri shortcuts.
Easy keysharing
You can easily share keys with family and friends or even Airbnb guests via QR code or via text message. (You can also use the messaging platform of any social media apps to share keys).
Access right management
Grant or revoke access rights easily from the app. You have full control over which users have access to your gate or garage via Bluetooth, WiFi and Internet. (For example you can limit the gardener's key to only work via Bluetooth.)
Limit when users can operate the gates:
Duration based: Set a start date and an end date (ideal for AirBnB)
Weekly recurring pattern: Set a start time and an end time for each day of the week. (For example the gardener can only open on weekdays between 10:00 am and 2:00 pm)
Automations
Close or open your gate or garage door at certain times of the day. You can set up as many automations as you wish.
For example, Remootio can open your gate every working day at 9:00 AM and close it at 6:00 PM. (You can choose any day of the week and any time of the day.) You can add as many automations as you wish.
Camera add-on
You can add a Remootio compatible Wi-Fi camera and watch the live stream in the Remootio app.
Check gate status
You can check whether your gate is open or closed from the Remootio app any time. You can also ask Alexa or Google home if your garage door is closed.
Notifications
Get notified when someone operates your gate, someone rings the doorbell, or when the gate has been left open.
Apple Watch app
Use the Remootio apple watch app to control your gate from your wrist.
Widgets
Open and close your gate or garage door without opening the app using the Remootio widget or the Siri shortcuts widget.
Security
Independently from whether you use Bluetooth or Wi-Fi, Remootio uses 256-bit authenticated end-to-end encryption between your smartphone and the Remootio device.
Keys are not stored in a cloud, but in your Remootio device and your smartphone.
Small size
Thanks to its small dimensions, Remootio fits just about anywhere.
Customizable App
From the Remootio app you can easily rename, add a photo and select a background color for each gate and garage door so that you can easily find them when you are swiping through your devices.
Multiple devices
Handle multiple devices from the same app. Swipe horizontally between them. You can add as many Remootio devices as you wish.
Free smartphone app
The smartphone app is available for both iOS and Android. There are no subscription fees.
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
