100mm Roller Set with 210mm LONG Powder Coated Satin Black Bracket Sliding Gate Upper Roller Guide Kit
Kit Part No:
RBS-100BLK-210BLK
PAIR of Nylon Rollers and 210mm Powder Coated Satin Black Steel Bracket for Sliding gate top roller
Powder Coated Satin Black Steel Bracket for Sliding gate top roller
✓ Powder Coated Satin Black bracket 210mm (roller side) x 225mm (post side)
✓ Comprises of two C sections (3mm each) for best rigidity, welded at four points
✓ Suits all M14/M16 nylon rollers
✓ Clear span between rollers maximum is 115mm
✓ Comprises of two C sections (3mm each) for best rigidity, welded at four points
✓ Suits all M14/M16 nylon rollers
✓ Clear span between rollers maximum is 115mm

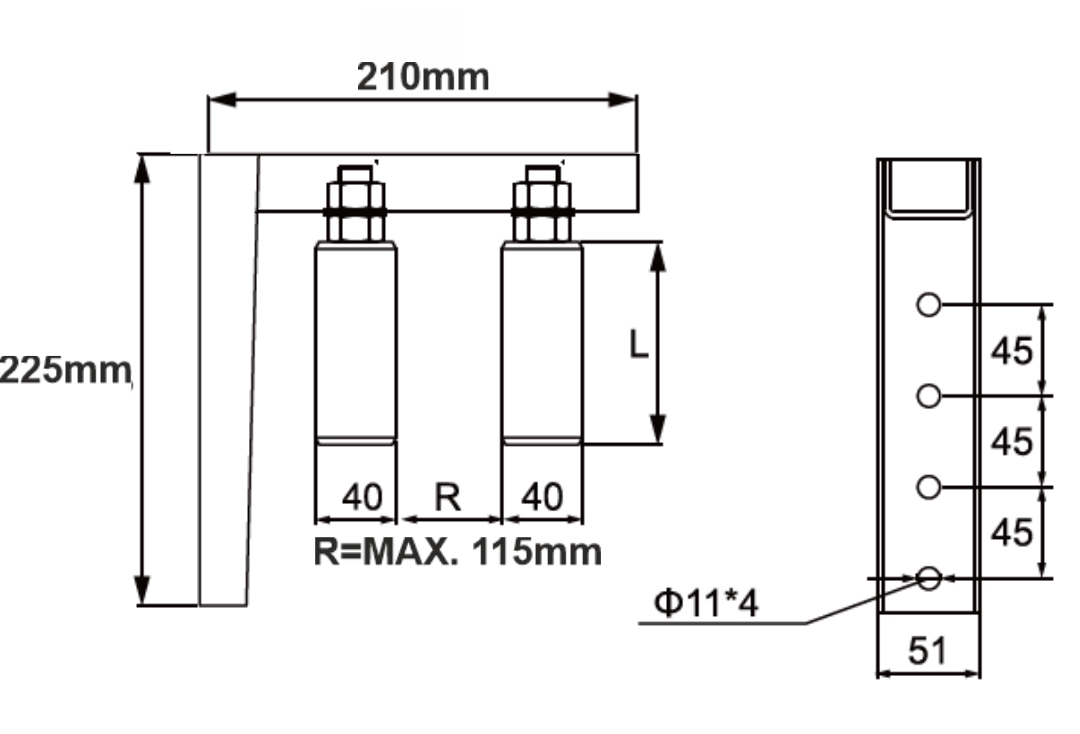

Bracket Dimensions

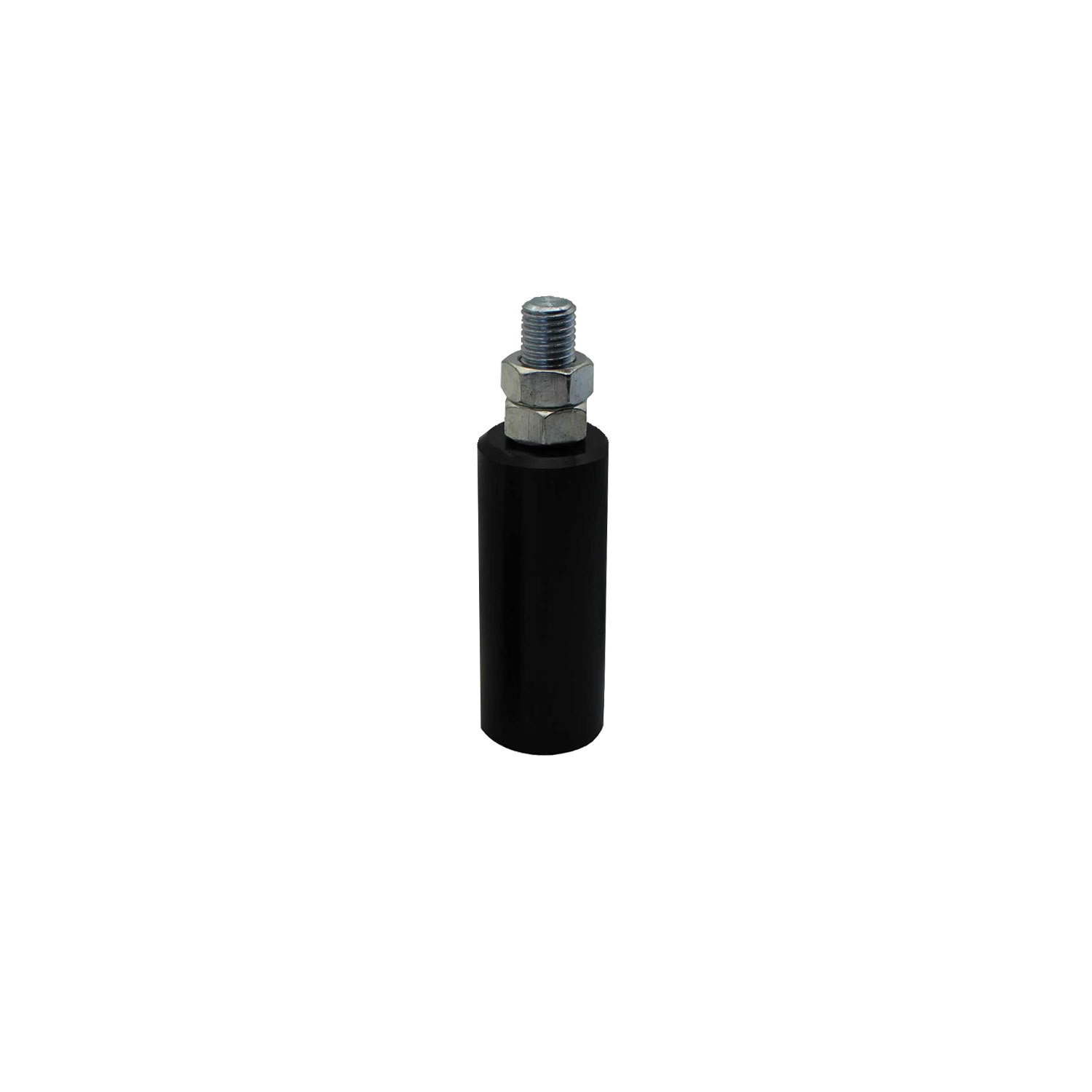

150mm Black Sliding Gate Top Nylon Roller
✓ Smooth Finish Type allows for any portion or the entire nylon roller to be used
✓ Long 100mm Design to clear spears and scrolls, also works well for gates sliding across a slope
✓ Zinc Plated M14 through bolt
✓ Double Nut locking to the bracket
✓ Long 100mm Design to clear spears and scrolls, also works well for gates sliding across a slope
✓ Zinc Plated M14 through bolt
✓ Double Nut locking to the bracket

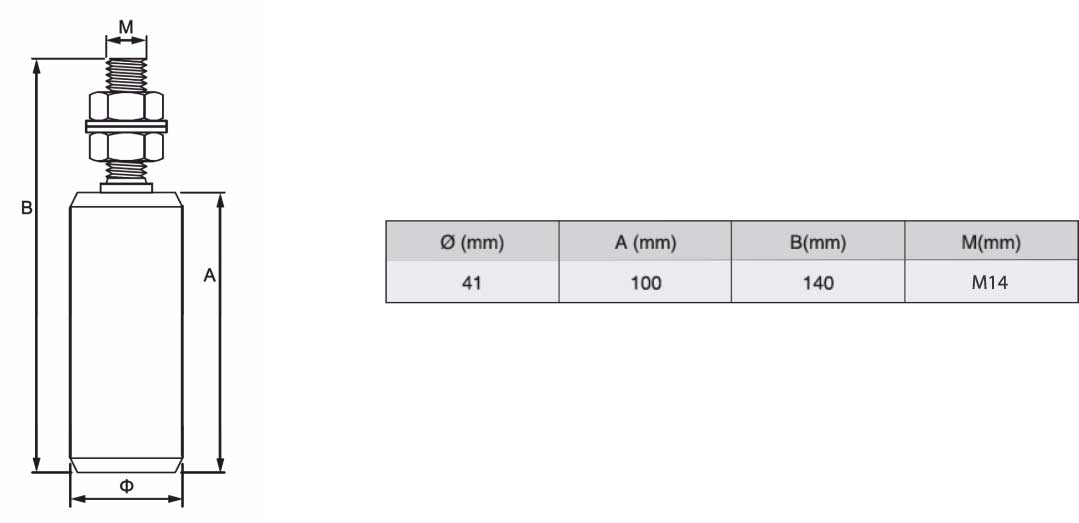

Roller Dimensions
