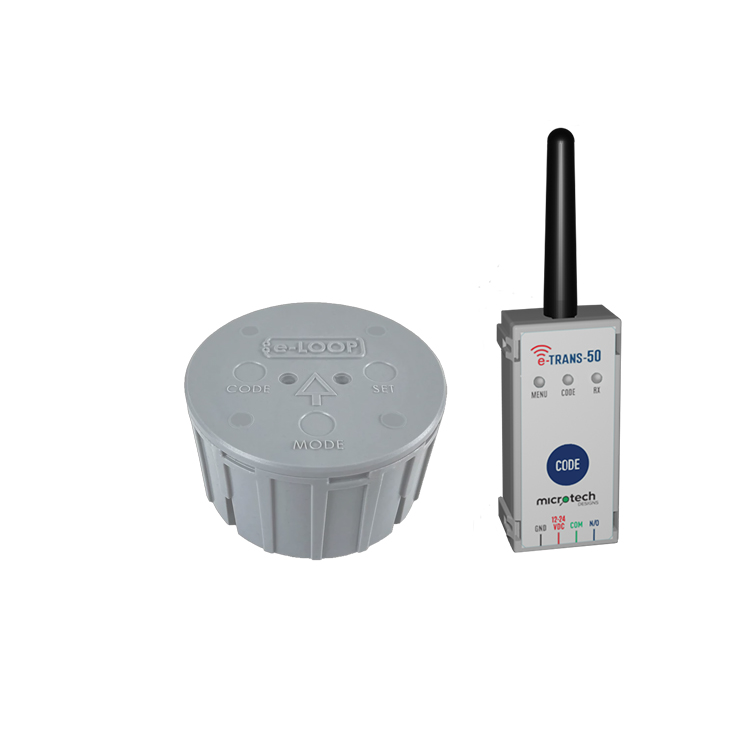

eLoop Flush Mount Commercial WIRELESS Automatic Vehicle Detection Sensor- Automatic Opening
Part No:
WDT-COM-EX-INGROUND
Flush Mount WIRELESS Automatic Vehicle Detection Sensor - for Automatic Opening of gate

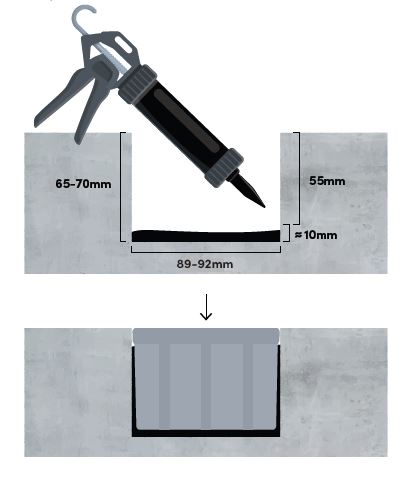

The WIRELESS loop detector is core drilled into concrete (89-92mm Hole) and then sealed in place to the base of the hole (55mm depth) using sikaflex. The detector can wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.

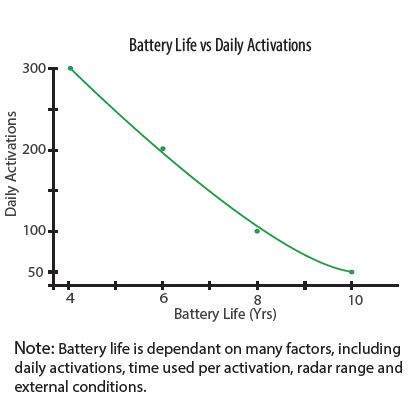

The wireless exit “loop” is maintenance free and installed with Replaceable Lithium batteries for up to TEN YEAR use period before a battery replacement is required, to replace the batteries simply remove the top cover and fit the new Lithium batteries. * 10 year battery lifetime based on 50 activations per day, 8 years at 100 activations per days, 4 years at 300 activations per day.
Why should i use the flush mount option over the surface mounted optiom? A neater final appearance and better suited for machinery due to non obstruction.
How does it work and what happens if I accidently drive over it? The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 10,000kg (10 Tonnes).
How far can i have it from the gate? Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.
Will it work with my system? Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC
Which installations does this suit? Any domestic or commercial installations which fit the following criteria: ✓A concrete pad or driveway is available for the device to be installed into
✓When a vehicle is parked it does not sit within 3 meters of the device
✓The device does not sit in a recess and pool water, snow or any debris
✓Not nearby to high voltage cables
How is it installed?
1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
2. Power on the transceiver and have the loop touching the antenna of the transceiver.
3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
5. Install the wireless loop to the backing plate and allow 3 minutes for calibration Test to confirm operation, job done!
✓1x Transceiver
✓1x Allen Key
✓2x Concrete Screw Bolts
The wireless exit “loop” is maintenance free and installed with Replaceable Lithium batteries for up to TEN YEAR use period before a battery replacement is required, to replace the batteries simply remove the top cover and fit the new Lithium batteries. * 10 year battery lifetime based on 50 activations per day, 8 years at 100 activations per days, 4 years at 300 activations per day.
Why should i use the flush mount option over the surface mounted optiom? A neater final appearance and better suited for machinery due to non obstruction.
How does it work and what happens if I accidently drive over it? The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 10,000kg (10 Tonnes).
How far can i have it from the gate? Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.
Will it work with my system? Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC
Which installations does this suit? Any domestic or commercial installations which fit the following criteria: ✓A concrete pad or driveway is available for the device to be installed into
✓When a vehicle is parked it does not sit within 3 meters of the device
✓The device does not sit in a recess and pool water, snow or any debris
✓Not nearby to high voltage cables
How is it installed?
1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
2. Power on the transceiver and have the loop touching the antenna of the transceiver.
3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
5. Install the wireless loop to the backing plate and allow 3 minutes for calibration Test to confirm operation, job done!
Supplied With
✓1x Commercial Wireless Loop (with Lithium Batteries Installed)✓1x Transceiver
✓1x Allen Key
✓2x Concrete Screw Bolts

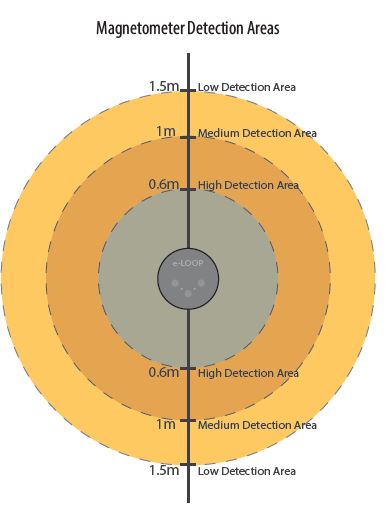

Detection Area
Replaceable Battery Life
Installation
