eLoop Post Mount WIRELESS Automatic Vehicle Detection Sensor- Automatic Opening

An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system

Multiple hours saved, materials saved and frustrations gone

Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process.
The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.


The wireless exit “loop” is maintenance free and installed with Replaceable Lithium batteries for up to TEN YEAR use period before a battery replacement is required, to replace the batteries simply remove the top cover and fit the new Lithium batteries.

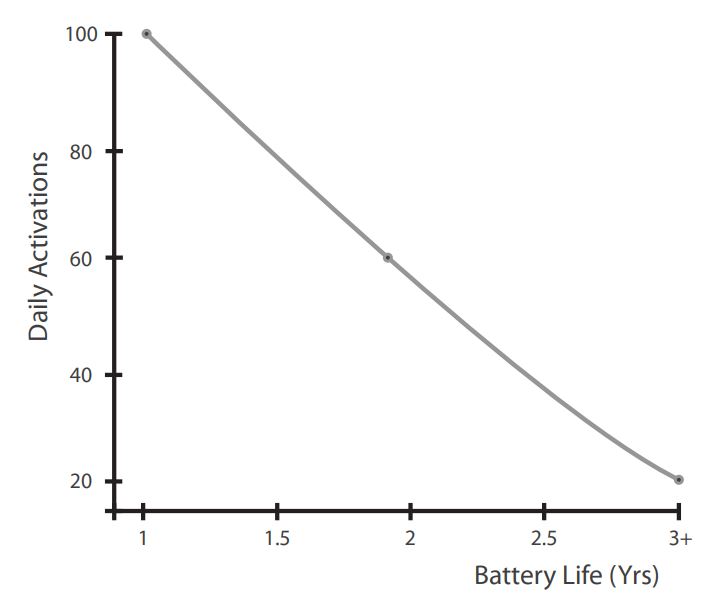

* 3 year battery lifetime based on 20 activations per day, 2 years at 60 activations per days, 1 years at 100 activations per day.


How does it work?

The post mounted wireless eloop is designed for a vehicle to pass by (within 3 meters) in which its magnometer and radar will verify it is infact a vehichle and send a command to open the gate.


How far can i have it from the gate?

Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters on wooden posts and 25 meters on metal posts.


How big is it?

Its a slimline unit with only a 75mm width.


Will it work with my system?

Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC


Which installations does this suit?

Any domestic or commercial installations which fit the following criteria:

✓The vehichle can trigger the sensor within a 3m distance

✓When a vehicle is parked it does not sit within 3 meters of the device.

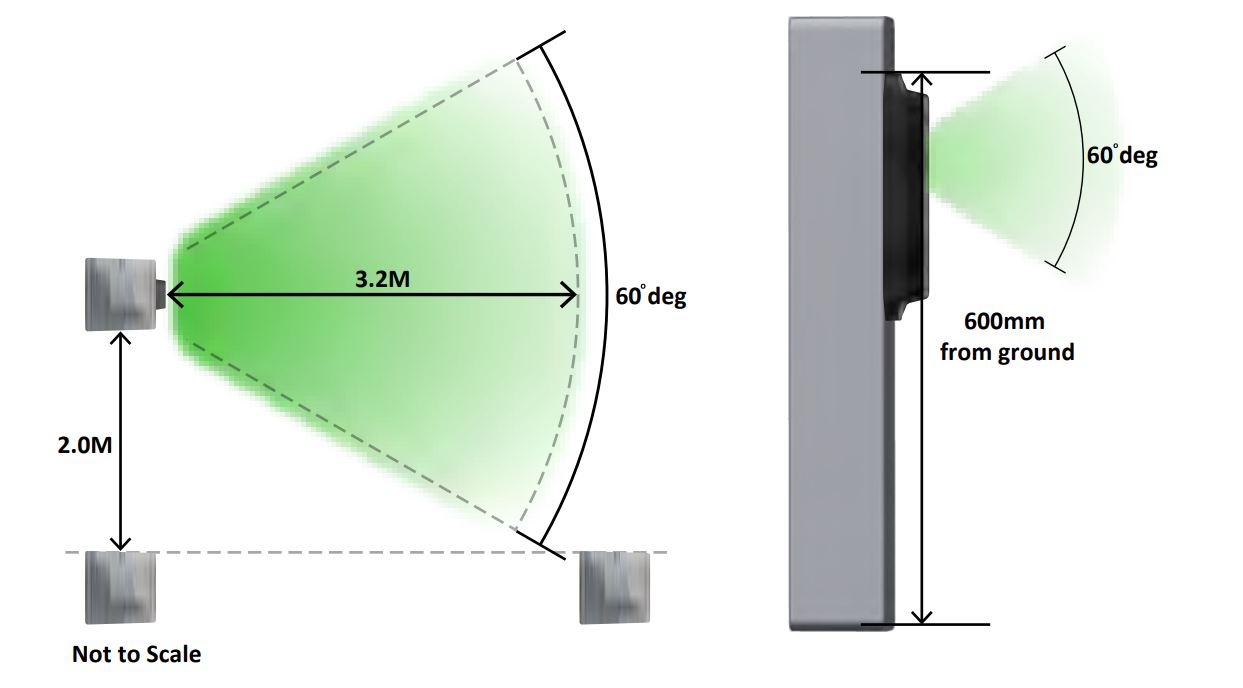

✓When there is no obstacle within 3 meters of the device in a 60 degree field of view

✓Not nearby or underneath to high voltage cables

✓Not under a roof or within a carpark



How is it installed?

1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure

2. With the post mount loop in hand place the magnet onto the code position

3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.

4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).

5. Install the wireless post mount eloop to the post and allow 3 minutes for calibration with no obstacles, moving vehichles or persons nearby.

Test to confirm operation, job done!

Supplied With

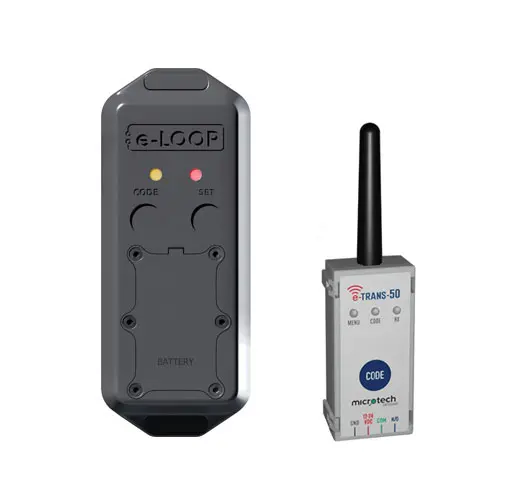

✓1x Post Mount eLoop Wireless(with Lithium Batteries Installed)

✓1x Transceiver

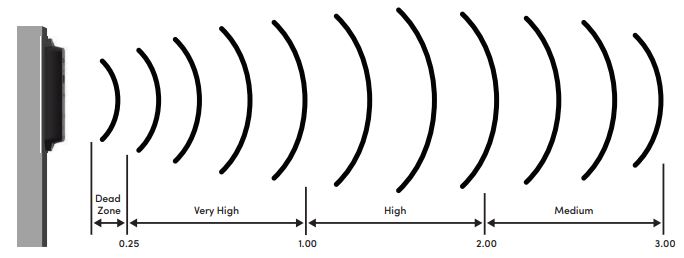

Detection Distance
